LiTime 48V 3500 Watt Pure Sine Wave All in One Solar Inverter Charger for Home

Model #: 48V 3500W Solar Inverter Charger SKU: HYBINV-48V3KW-S

Quantity
Price $985.99 +Add to wishlist +Add to gift registry

Product Details

Product Description for LiTime 48V 3500W Pure Sine Wave Solar Inverter Charger for Home

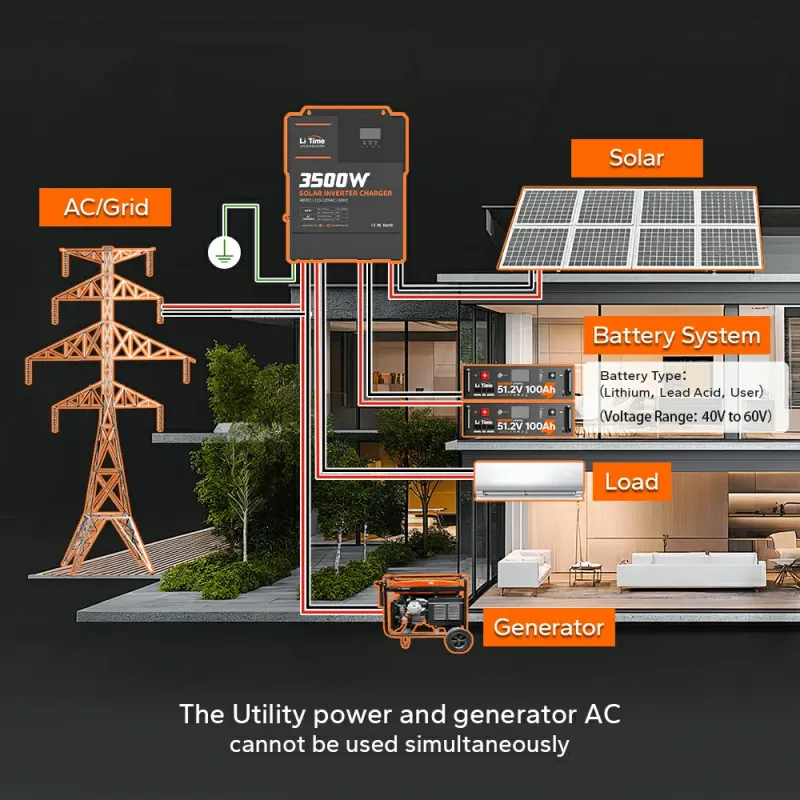

LiTime 48V 3500W All-in-One Pure Sine Wave Solar Inverter Charger – Intelligent 3-in-1 Power Solution for Home Energy Storage, Off-Grid Solar, RV, Marine, and Backup Systems

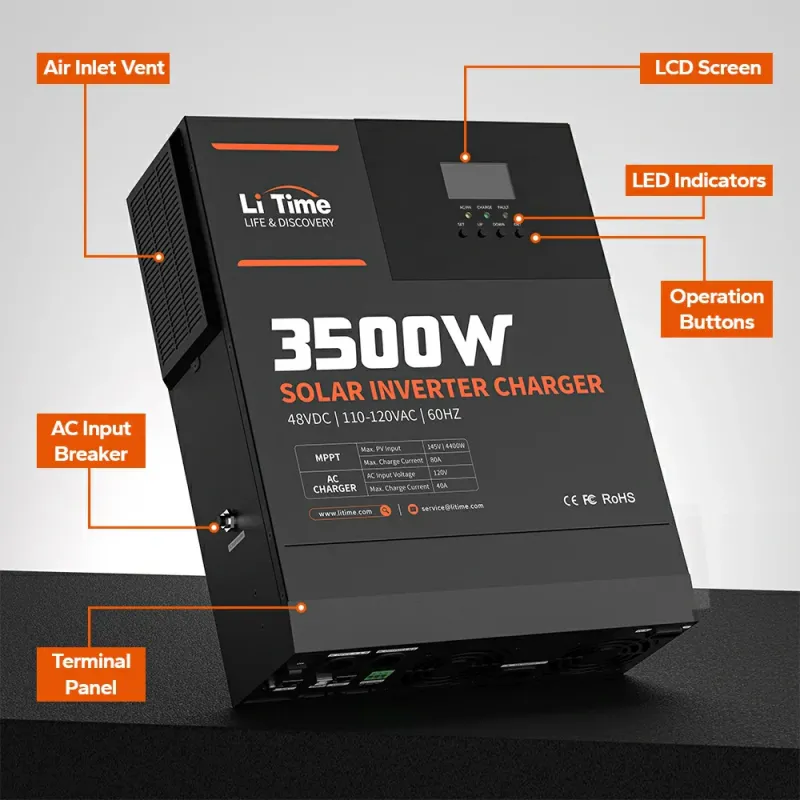

Elevate your power management with the LiTime 48V 3500W Pure Sine Wave Solar Inverter Charger, an all-in-one device integrating a 3500W pure sine wave inverter, 80A MPPT solar controller, and 40A battery charger to save over 50% space and simplify installation. Delivering 3500W continuous power with a 6000W peak surge and pure sine wave output (≤5% distortion), it converts 48V DC to stable 120V AC for sensitive electronics like refrigerators, air conditioners, and tools. Compatible with all 48V batteries (LiFePO4, GEL, AGM, SLA, CAL), it features seamless 10ms UPS switching during outages and RS485 communication for remote monitoring. With 4 charge modes and 3 output modes, plus comprehensive protections against overload, high/low voltage, high temperature, short circuit, and AC backflow, this inverter is perfect for home energy storage, off-grid solar, RVs, marine vessels, and backups. Built with an LCD screen for real-time status and two cooling fans for heat dissipation, it operates reliably from 14°F to 131°F ( -10°C to 55°C) with 91% efficiency. Key Features:

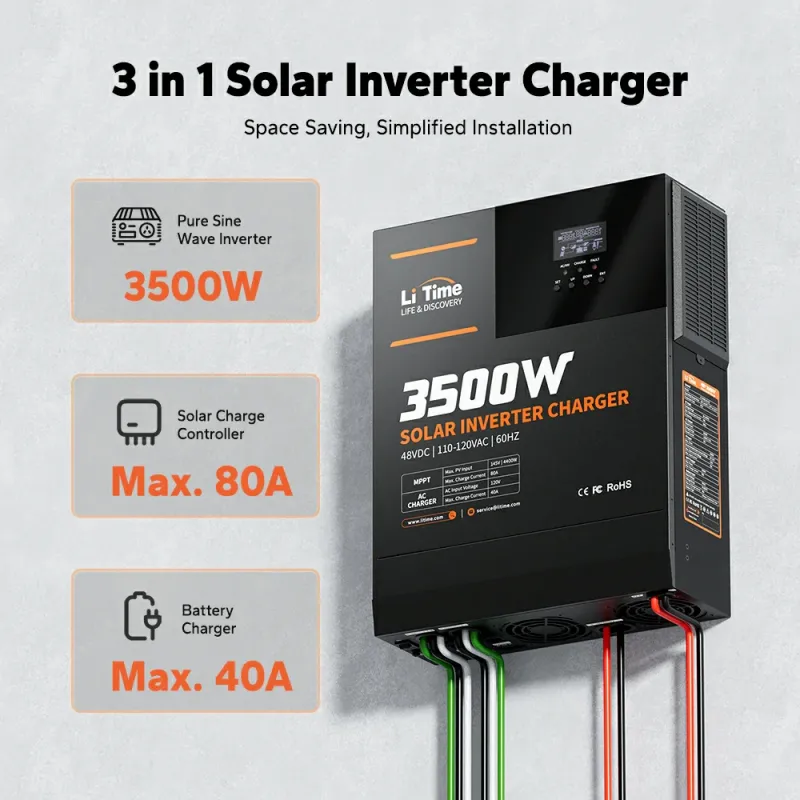

  • All-in-One 3-in-1 Design: Combines inverter, MPPT solar controller, and battery charger for simplified wiring and cost savings.
  • Pure Sine Wave Output: Clean 120V AC with ≤5% distortion for sensitive appliances and inductive loads.

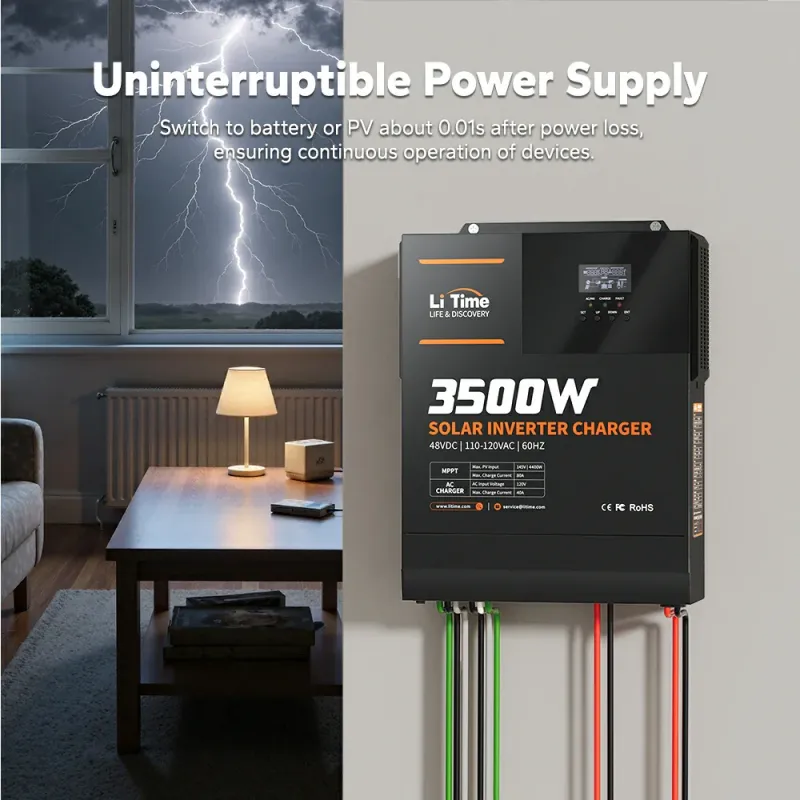

  • 10ms UPS Switching: Seamless transition from AC to battery or PV during outages for uninterrupted power.
  • High MPPT Efficiency: 80A solar controller with >94% efficiency and 60V-145V PV input for optimal solar harvesting.

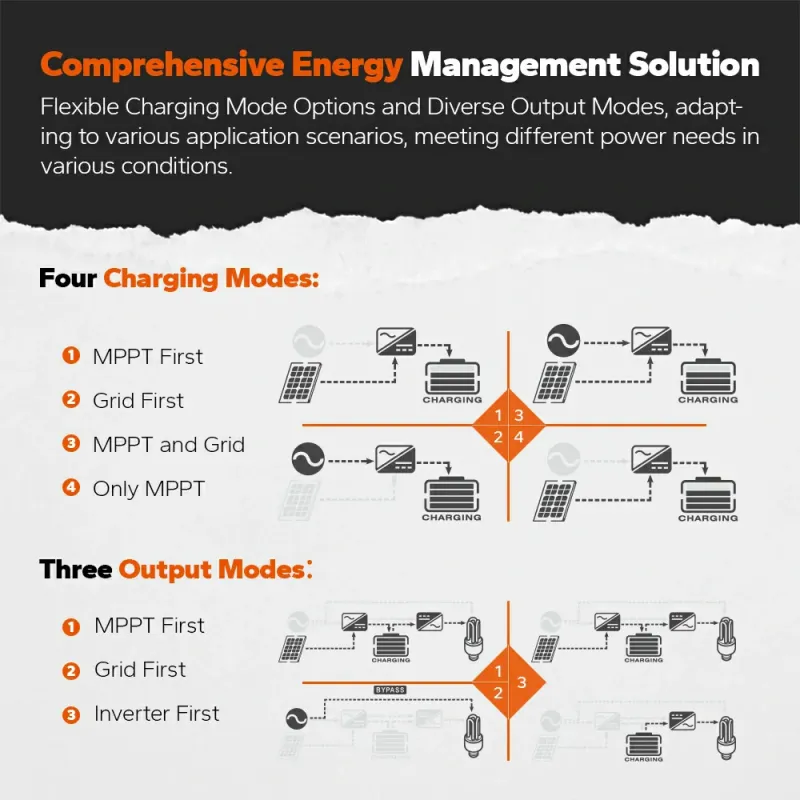

  • Adjustable Charging: 40A AC charger with 4 modes (solar only, utility only, solar+utility, utility+solar) for flexibility.

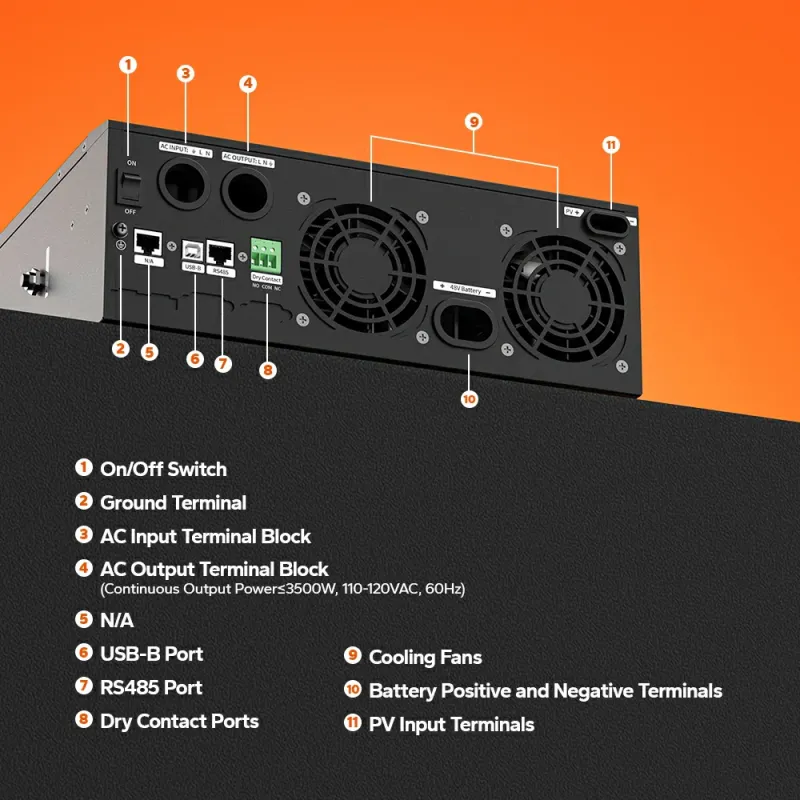

  • RS485 Remote Monitoring: Supports CAN/RS485 for integration with Victron systems and real-time data logging.

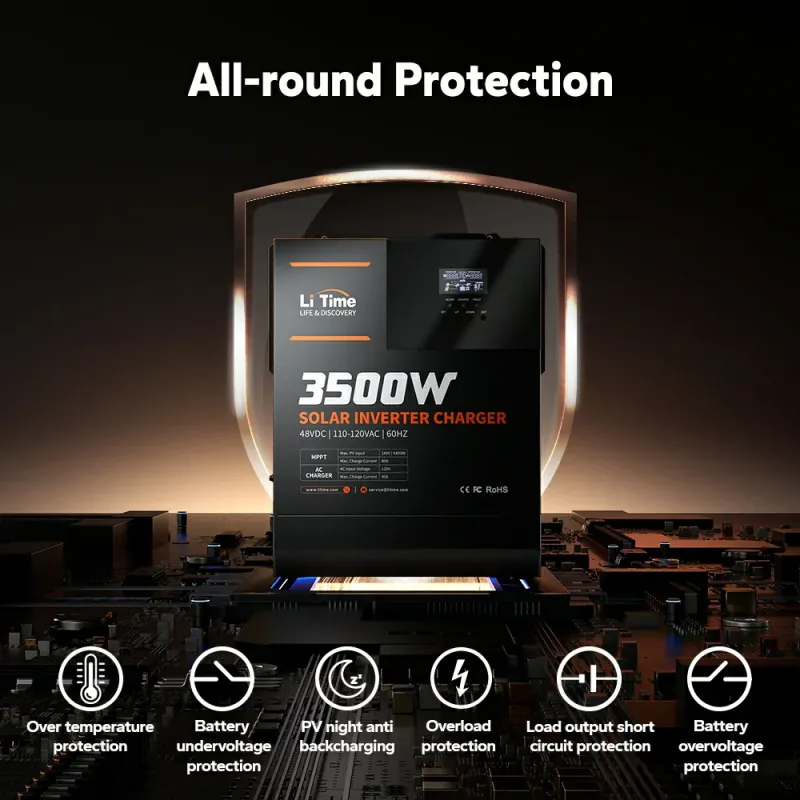

  • Comprehensive Protections: Overload, high/low voltage, high temperature, short circuit, AC backflow, and bypass overcurrent safeguards.
  • Smart LCD Display: Real-time monitoring of input/output voltage, current, power, and battery status.

Specifications at a Glance:

  • Rated Output Power: 3500W; Surge Power: 6000W (5 seconds).
  • AC Output Voltage: 120V ± 10%; Frequency: 60Hz ± 0.3Hz; Wave Form: Pure Sine Wave.
  • DC Input Voltage: 48V (21V to 32V range); No Load Consumption: <38W.
  • Charger Input: 120V ± 10%; Output Current: 40A.
  • PV Input: Voltage 60V to 145V; Max Power 4400W; Max Current 50A; MPPT Efficiency >94%.
  • Operating Temperature: 14°F to 131°F (-10°C to 55°C); Storage: -4°F to 122°F (-20°C to 50°C).

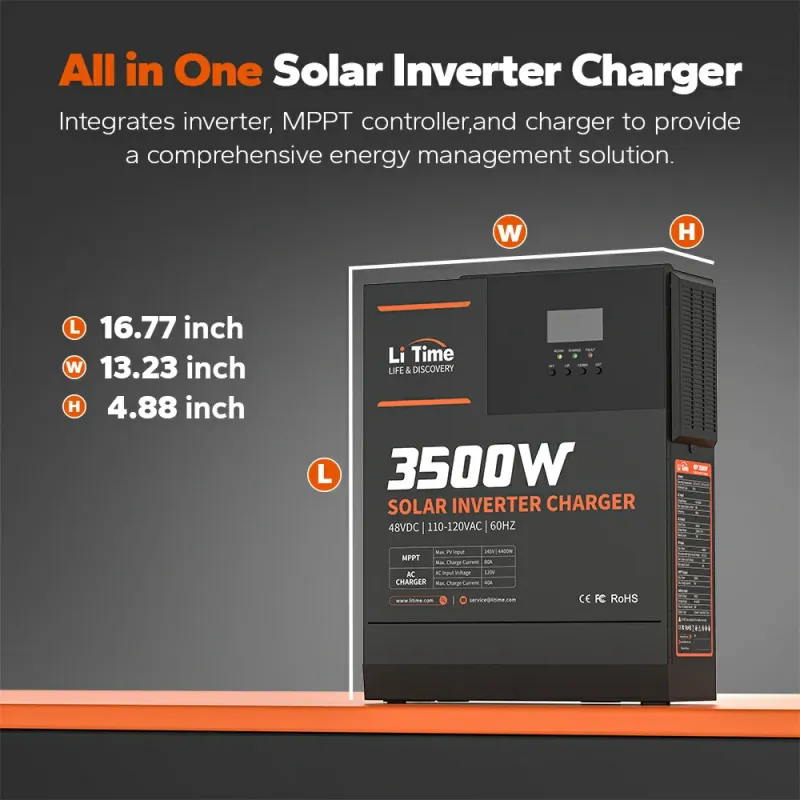

  • Dimensions: 16.77 x 13.23 x 4.88 in (426 x 336 x 124 mm); Weight: 23.15 lbs (10.5 kg).
  • Certifications: CE, FCC, RoHS.

Pair this inverter charger with our premium LiFePO4 batteries for a complete, high-efficiency power ecosystem. Whether for home energy storage, off-grid solar, RV trips, marine use, or backups, the LiTime 3500W inverter charger delivers unmatched reliability and peace of mind. Order now and experience LiTime’s innovative power technology—stocked and ready to ship from lithiumion-batteries.com!

(For full technical details, download the datasheet or manual linked on the product page.)
