SunGold Power 20kW Off-Grid Solar Kit with 30.72kWh LiFePO4 Battery & 32x450W Bifacial Panels – 48VDC 120V/240V Split-Phase System for Home, RV & Off-Grid
Model #: SGR-20K30E SKU: SGR-20K30E
Product Details
Product Description for Sungold Power OFF GRID SOLAR KIT 20KW 48VDC 120V/240V LIFEPO4 30.72KWH LITHIUM BATTERY 32 X 450 WATTS SOLAR PANELS
SunGold Power 20kW Off-Grid Solar Kit with 30.72kWh LiFePO4 Battery & 32x450W Bifacial Panels – Complete 48VDC 120V/240V Split-Phase System for Home, RV, Cabin & Off-Grid

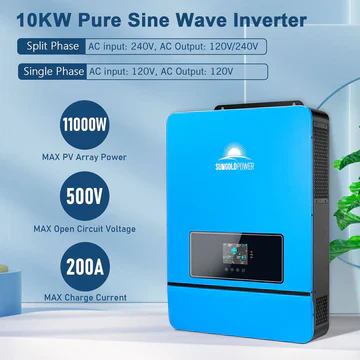

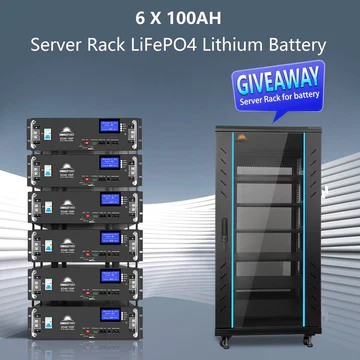

Achieve energy independence with the SunGold Power 20kW Off-Grid Solar Kit (Model: SGR-20K30E), a fully integrated, high-performance system for reliable solar power. This complete package includes two 10,000W pure sine wave inverters with 120V/240V split-phase output, six 51.2V 100Ah LiFePO4 batteries (30.72kWh total), thirty-two high-efficiency 450W bifacial N-Type monocrystalline solar panels, and all necessary components — everything needed for whole-home backup, RV living, remote cabins, or off-grid businesses.
Key Features Dual 10,000W Inverters support up to 6 units in parallel for 60kW total output and seamless 120V/240V split-phase power. Long-Lasting 30.72kWh LiFePO4 Battery Bank with 7000+ cycles at 80% DOD and built-in BMS for safe, efficient operation. 32x450W Bifacial N-Type Monocrystalline Solar Panels deliver up to 14.4kW peak output with 21.3% efficiency and durable anodized aluminum frames. Pre-Wired & Ready-to-Install includes all cables, breakers, Z-brackets, and fusing for hassle-free setup. Expandable Design adds more panels or batteries for growing energy needs. Smart Monitoring via LCD interface for real-time performance tracking. Wide Temperature Resilience operates from -4°F to 140°F with low-temp protection. Safe & Certified inverters UL1741 ETL-listed, panels UL61730/TUV/IEC/CEC/CE, batteries UN38.3 compliant, 3-year inverter warranty.

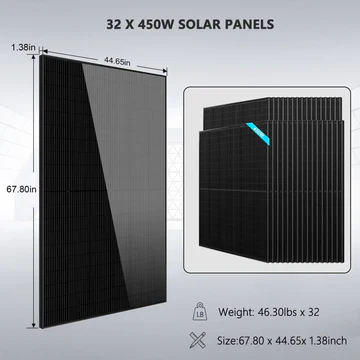

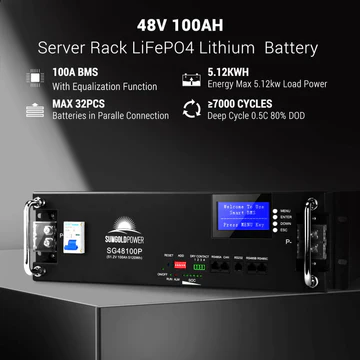

Specifications at a Glance Inverter Voltage: 48VDC input, 120/240V AC output • Continuous Power: 20,000W (2x10kW) • Surge Power: 40,000W • Battery: 51.2V 100Ah x6 (30.72kWh total) • Continuous Discharge: 100A per battery • Max Charge Current: 100A per battery • Solar Panels: 450W bifacial N-Type monocrystalline x32 • VMP: 33.57V • VOC: 39.54V • Efficiency: 21.3% • Efficiency: >95% overall • Dimensions: Inverters 25.6 × 17.7 × 5.1 in each • Batteries 19.3 × 18.9 × 5.5 in each • Panels 67.8 × 44.65 × 1.38 in each • Weight: Inverters 53.5 lbs each • Batteries 93 lbs each • Panels 46.3 lbs each • Certifications: UL1741 (inverters), UL61730 (panels), UN38.3 (batteries) • Warranty: 3 years inverters, 10 years batteries, 25 years panels
Pair this kit with additional SunGold Power batteries or panels for endless scalability. Whether powering your off-grid cabin, RV adventures, or home during outages, the SunGold Power 20kW Kit delivers commercial-grade performance at residential pricing. Order now — stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
