SunGold Power 11.4kW Hybrid Solar Kit SGH-11N3E – 48V Split-Phase with 30.72kWh LiFePO4 Battery & 28x450W Panels for Home, RV & Off-Grid
Model #: SGH-11N3E (11.4kW Inv + 28450W PV + 6100Ah Bat) SKU: SGH-11N3E
Product Details
Product Description for SunGold Power Hybrid Solar Kit 11.4KW 48V Split Phase 30.72 KWH Lithium Battery 32 X 415 Watt Solar Panel
SunGold Power 11.4kW Hybrid Solar Kit SGH-11N3E – Complete 48VDC 120V/240V Split-Phase System with 30.72kWh LiFePO4 Battery & 28x450W Panels for Home, RV, Cabin & Off-Grid

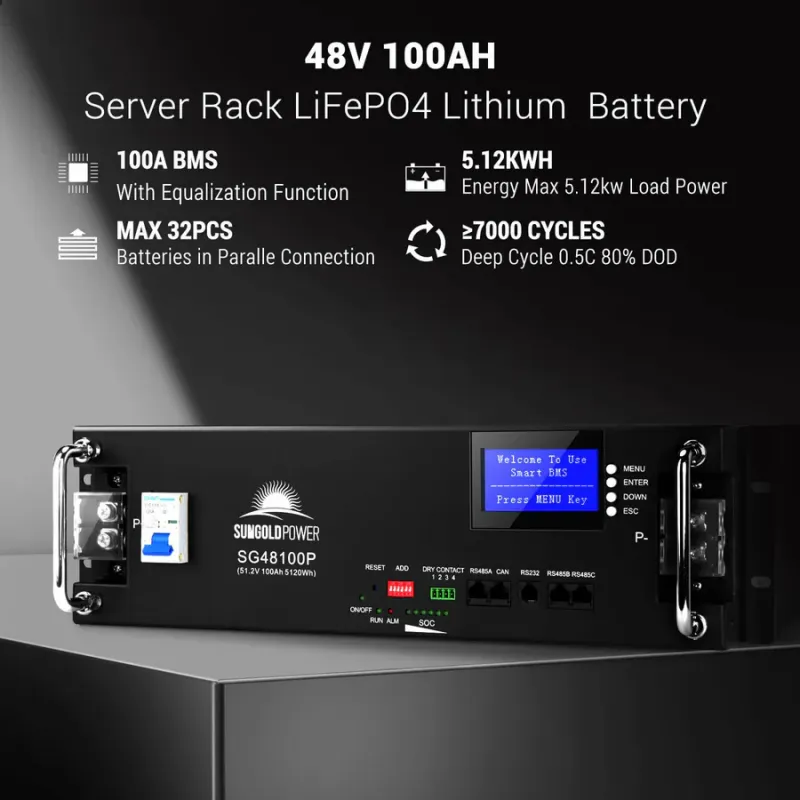

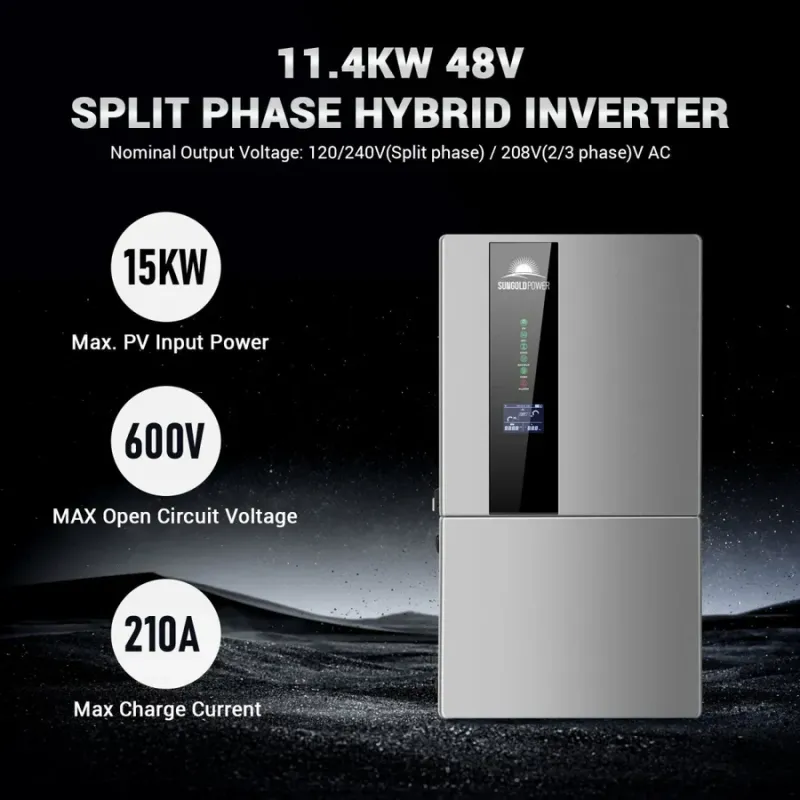

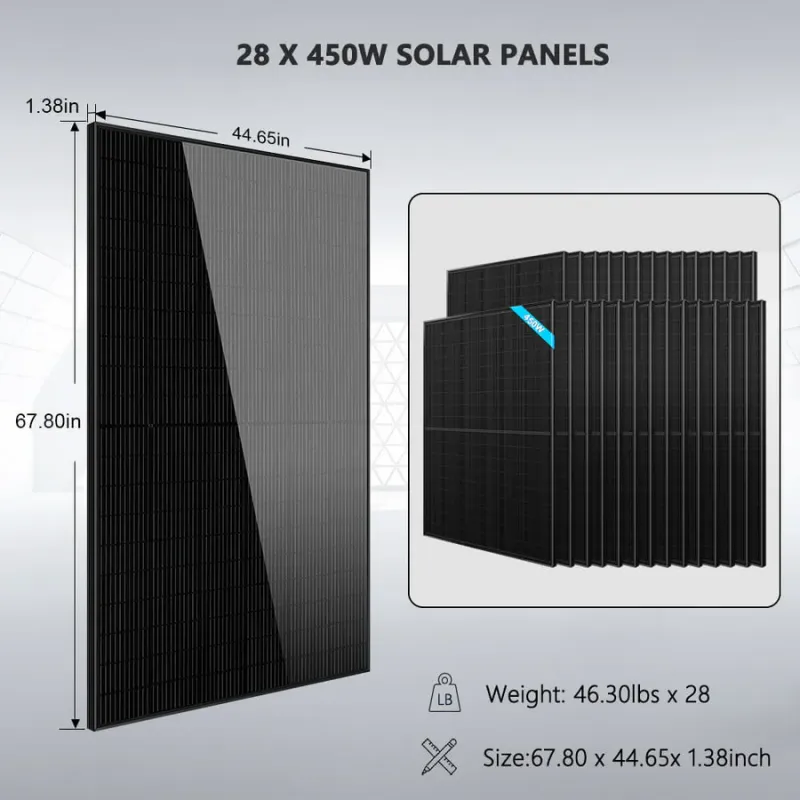

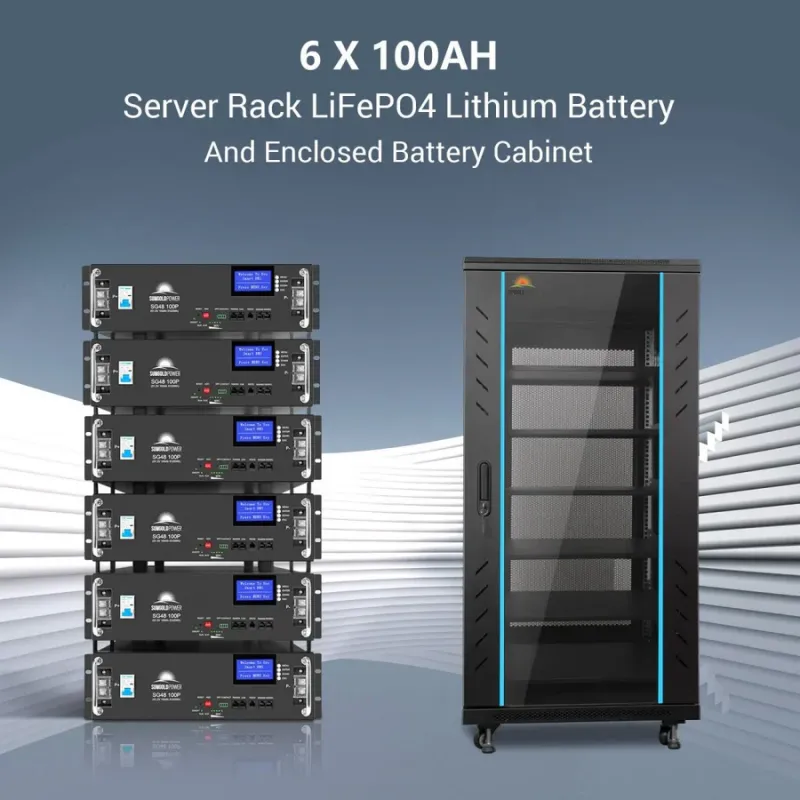

Achieve energy independence with the SunGold Power 11.4kW Hybrid Solar Kit (Model: SGH-11N3E), a fully integrated, high-performance system for reliable solar power. This complete package includes an 11.4kW pure sine wave hybrid inverter with 120V/240V split-phase output, six 51.2V 100Ah LiFePO4 batteries (30.72kWh total), twenty-eight high-efficiency 450W monocrystalline solar panels, and all necessary components — everything needed for whole-home backup, RV living, remote cabins, or off-grid businesses.
Key Features High-Power 11.4kW Hybrid Inverter supports grid-tied, off-grid, and hybrid modes with seamless 120V/240V split-phase output. Long-Lasting 30.72kWh LiFePO4 Battery Bank with 7000+ cycles at 80% DOD and built-in BMS for safe, efficient operation. 28x450W Monocrystalline Solar Panels deliver up to 12.6kW peak output with 21.5% efficiency and durable anodized aluminum frames. Built-In MPPT Charge Controller handles up to 15kW PV input with 99.5% tracking efficiency for maximum solar harvest. Pre-Wired & Ready-to-Install includes all cables, breakers, Z-brackets, and fusing for hassle-free setup. Expandable Design adds more panels or batteries for growing energy needs. Smart Monitoring via LCD interface and optional Bluetooth app for real-time performance tracking. Wide Temperature Resilience operates from -4°F to 140°F with low-temp protection. Safe & Certified inverter UL1741 ETL-listed, panels UL61730/TUV/IEC/CEC/CE, batteries UN38.3 compliant, 3-year inverter warranty.
Specifications at a Glance Inverter Voltage: 48VDC input, 120/240V AC output • Continuous Power: 11,400W • Surge Power: 22,800W • MPPT Solar Input: 15,000W max (120–450V) • Battery: 51.2V 100Ah x6 (30.72kWh total) • Continuous Discharge: 100A per battery • Max Charge Current: 100A per battery • Solar Panels: 450W monocrystalline x28 • VMP: 34.5V • VOC: 41.2V • Efficiency: 21.5% • Efficiency: >95% overall • Dimensions: Inverter 25.6 × 17.7 × 5.1 in • Batteries 19.3 × 18.9 × 5.5 in each • Panels 67.8 × 44.6 × 1.4 in each • Weight: Inverter 53.5 lbs • Batteries 93 lbs each • Panels 45.1 lbs each • Certifications: UL1741 (inverter), UL61730 (panels), UN38.3 (batteries) • Warranty: 3 years inverter, 10 years batteries, 25 years panels
Pair this kit with additional SunGold Power batteries or panels for endless scalability. Whether powering your off-grid cabin, RV adventures, or home during outages, the SunGold Power 11.4kW Hybrid Kit delivers commercial-grade performance at residential pricing. Order now — stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
