RICH SOLAR 24V 1600W Complete Solar Kit – Sleek Black Finish Off-Grid System with 8x200W Panels, 3000W Inverter & 5.12kWh LiFePO4 Battery for Home, RV & Cabin
Model #: RS-CK1600 SKU: RS-CK1600
Product Details
Product Description for RICH SOLAR 24V 1600W Complete Solar Kit – Sleek Black Finish with 8x200W Panels, 3000W Inverter & 5.12kWh LiFePO4 Battery
RICH SOLAR 24V 1600W Complete Solar Kit – Sleek Black Finish Off-Grid System with 8x200W Panels, 3000W Inverter & 5.12kWh LiFePO4 Battery for Home, RV, Cabin & Backup

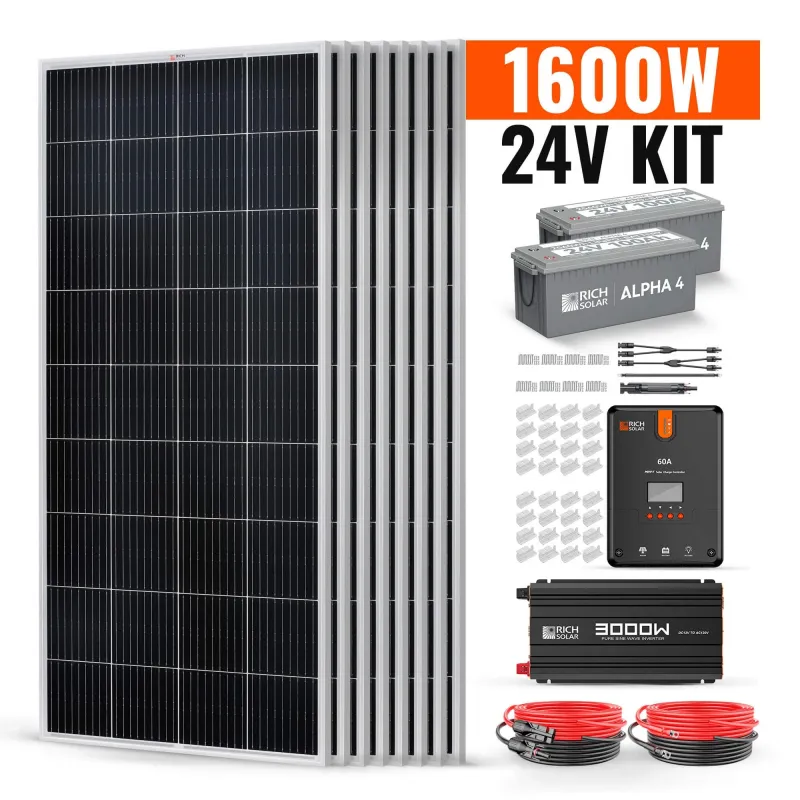

Achieve flexible energy independence with the RICH SOLAR 24V 1600W Complete Solar Kit (Sleek Black Finish), a fully integrated, high-performance system for reliable solar power. This complete package includes eight 200W monocrystalline solar panels (1600W total), a 60A MPPT charge controller, a 3000W pure sine wave inverter, two 24V 100Ah Alpha 4 LiFePO4 batteries (5.12kWh total), and all necessary accessories — everything needed for whole-home backup, full-time RV living, cabins, or off-grid businesses.
Key Features • High-Power 1600W Solar Array – eight 200W monocrystalline panels (21.3% efficiency) for maximum output in varying light conditions. • 60A MPPT Charge Controller – optimizes battery charging with overcharge/reverse polarity protection and LCD monitoring. • 3000W Pure Sine Wave Inverter – 120V AC output with 6000W surge, 88% efficiency, multiple sockets for appliances and tools. • 5.12kWh LiFePO4 Storage – two 24V 100Ah Alpha 4 rack-mount batteries with 5000+ cycles and built-in BMS. • Pre-Wired & Plug-and-Play – includes Z-brackets, 30A inline fuses, Y-branch adapters, solar/battery cables (10-30ft #8-10 AWG), and quick disconnects. • Fully Expandable – add more panels, batteries, or inverters for growing energy needs. • Smart Monitoring – LCD display on controller and inverter for real-time performance tracking. • All-Weather Performance – -40°F to 185°F operation with weather-resistant components. • Certified & Safe – UL1741 inverter, UL1973 batteries, UL61730 panels.
Specifications at a Glance Inverter Power: 3000W continuous / 6000W surge • Voltage: 24VDC input, 120V AC output Battery Capacity: 5.12kWh (2 × 24V 100Ah) • Max Charge/Discharge: 100A per battery Solar Input: 1600W max (8 × 200W panels) • VMP: 18.3V • VOC: 22.2V • Efficiency: 21.3% Controller: 60A MPPT • Max PV Input: 150V / 1600W (24V) Dimensions (approx): Inverter 13.8 × 9.5 × 3.9 in | Batteries 13.0 × 6.7 × 8.7 in each | Panels 58.3 × 26.4 × 1.4 in each Weight: Inverter 11.2 lbs | Batteries 48.5 lbs each | Panels 26.5 lbs each Warranty: 5 years inverter/controller, 10 years batteries, 25 years panels
Ready for off-grid living or reliable backup power? This RICH SOLAR 1600W Kit is in stock and ships fast from lithiumion-batteries.com!
