SunGold Power 13kW Off-Grid Solar Kit SGR-13K25E – 48VDC 120V/240V Inverter with 25.6kWh LiFePO4 Battery & 22x450W Panels for Home, RV & Off-Grid
Model #: SGR-13K25E SKU: SGR-13K25E
Product Details
Product Description for Sungold Power Off-Grid Solar Kit 13000W 48VDC 120V/240V LifePO4 25.6KWH Lithium Battery 22 X 450 Watt Solar Panels
SunGold Power 13kW Off-Grid Solar Kit SGR-13K25E – 48VDC 120V/240V Inverter with 25.6kWh LiFePO4 Battery & 22x450W Panels for Home, RV, Cabin & Off-Grid
Achieve ultimate energy independence with the SunGold Power 13kW Off-Grid Solar Kit (Model: SGR-13K25E). This complete, high-performance system delivers reliable off-grid power for whole-home backup, large cabins, RVs, or off-grid businesses.

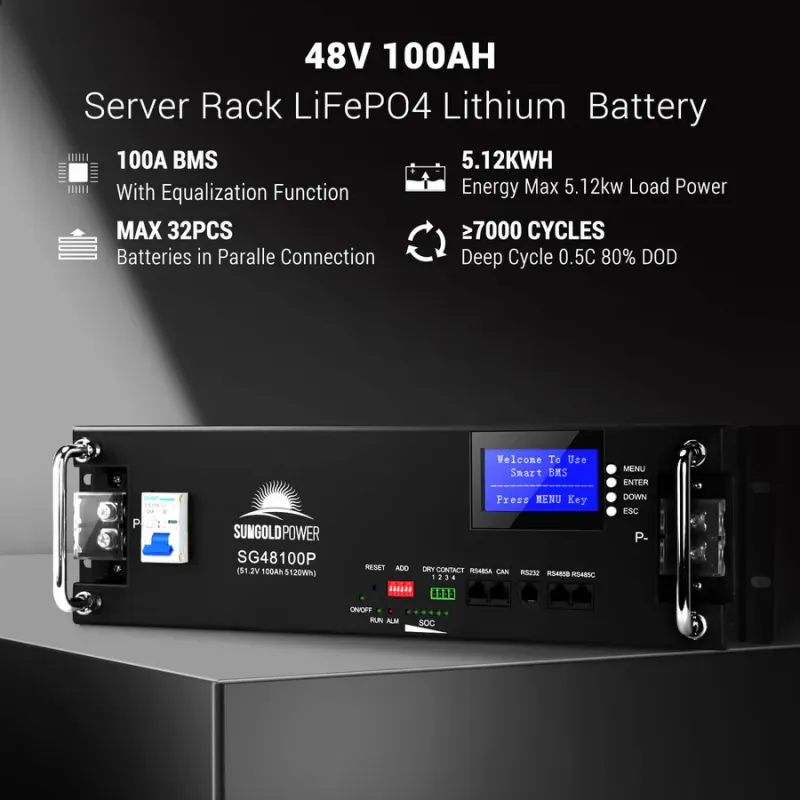

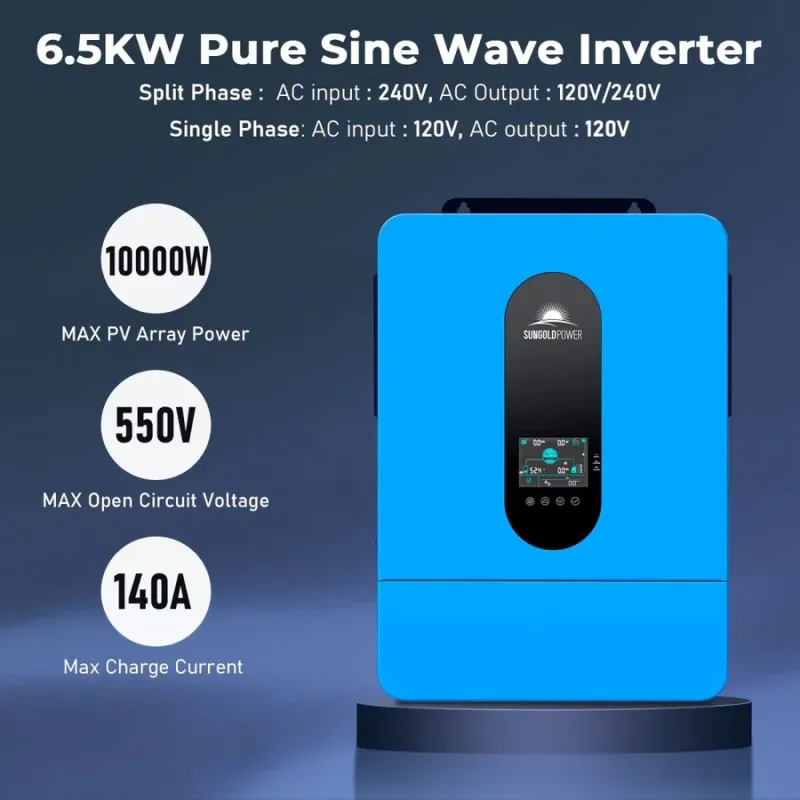

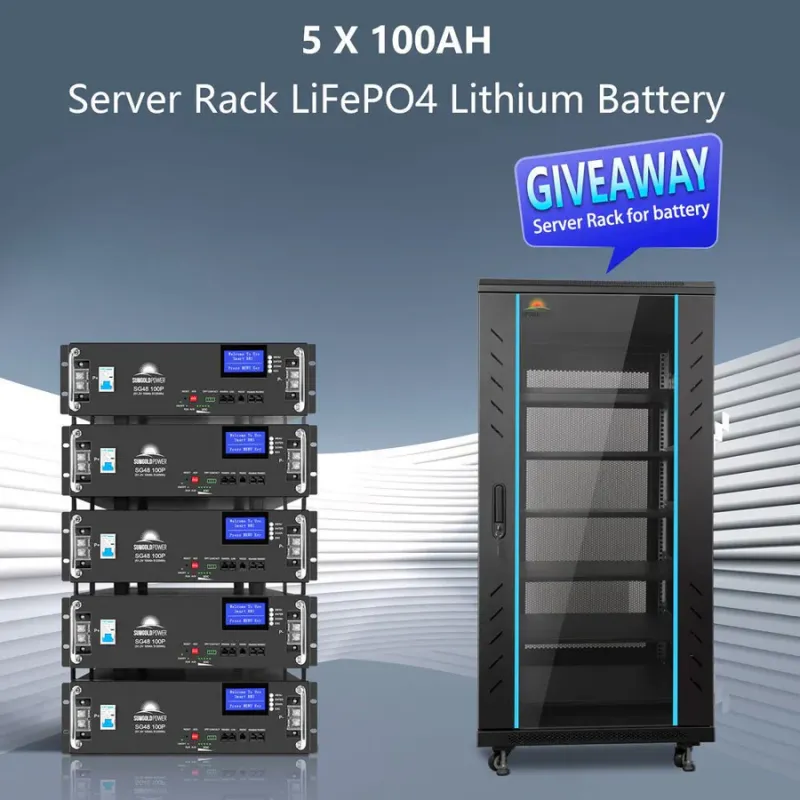

Key Features • High-Power 13kW System – two 6500W pure sine wave inverters (120V/240V split-phase), parallelable up to 6 units for 78kW total • Massive 25.6kWh LiFePO4 Storage – five 51.2V 100Ah rack/wall-mount batteries with 7000+ cycles and built-in BMS • 9.9kW Solar Array – twenty-two 450W bifacial N-Type monocrystalline panels (21.5% efficiency) for dual-side energy capture • Dual MPPT Controllers – up to 10,000W total PV input (5000W per channel, 120–500V) • Pre-Wired & Plug-and-Play – includes all cables, breakers, fuses, Z-brackets, and enclosed battery cabinet • Fully Expandable – add more panels or batteries anytime • Smart Monitoring – RS232/RS485/CAN communication + LCD display • All-Weather Performance – 14°F to 113°F operation with low-temp cutoff protection • Certified & Safe – UL1973 batteries, UL1741 inverters, UL61730 panels

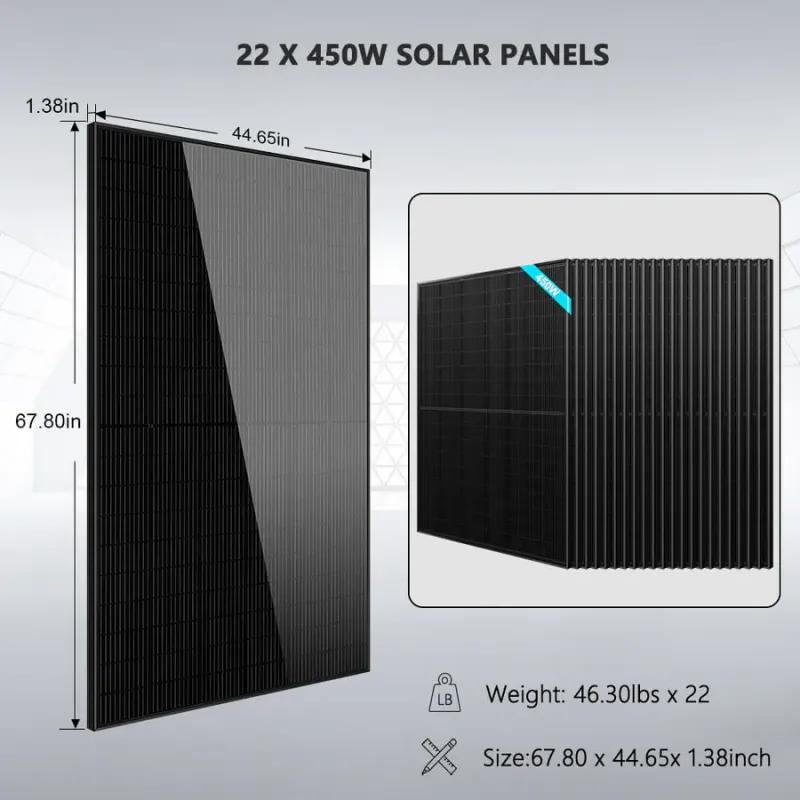

Specifications at a Glance Inverter Power: 13,000W continuous / 26,000W surge Battery Capacity: 25.6kWh (5 × 51.2V 100Ah) Solar Input: 10,000W max Panels: 450W × 22 (Vmp 33.57V, Voc 39.54V) Dimensions (approx): Inverters 23.0 × 16.2 × 5.3 in each | Batteries 19.3 × 18.9 × 5.5 in each | Panels 67.8 × 44.6 × 1.4 in each Weight: Inverters 42 lbs each | Batteries 93 lbs each | Panels 46.3 lbs each Warranty: 3 years inverters | 10 years batteries | 25 years panels (power output)
Ready to go 100% off-grid or add serious backup power? This SunGold Power 13kW kit is in stock and ships fast from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
