SunGold Power 5kW Off-Grid Solar Kit with 5.12kWh PowerWall LiFePO4 Battery & 6x200W Panels – 48VDC 120V System for Home, RV & Off-Grid
Model #: SGM-5K5E SKU: SGM-5K5E
Product Details
Product Description for Sungold Power Off-Grid Solar Kit 5000W 48VDC 120V 5.12KWH PowerWall Battery 6 X 200 Watts Solar Panels
SunGold Power 5kW Off-Grid Solar Kit with 5.12kWh PowerWall LiFePO4 Battery & 6x200W Panels – Complete 48VDC 120V System for Home, RV, Cabin & Off-Grid

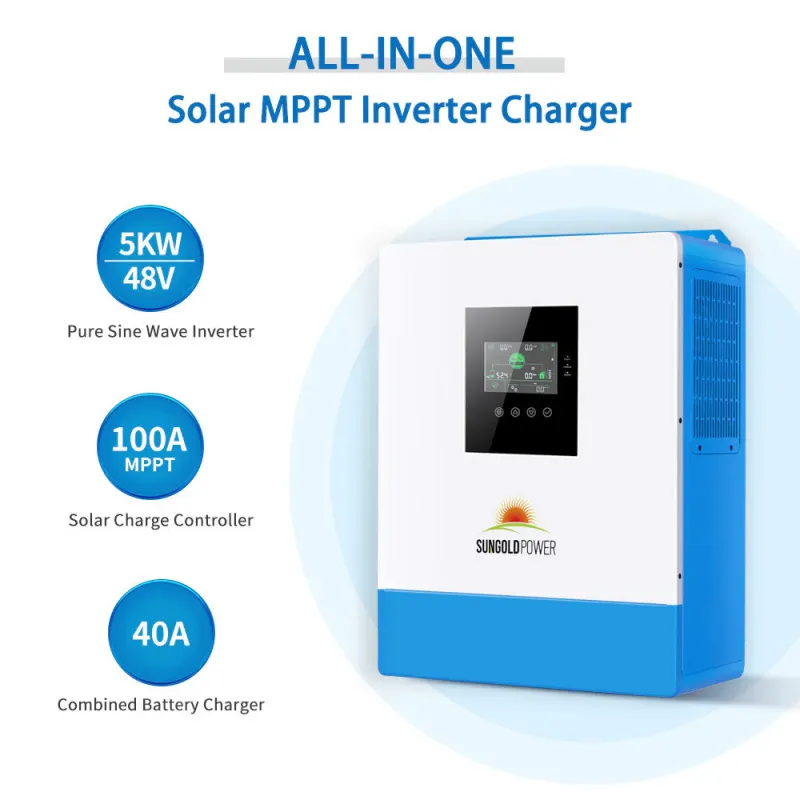

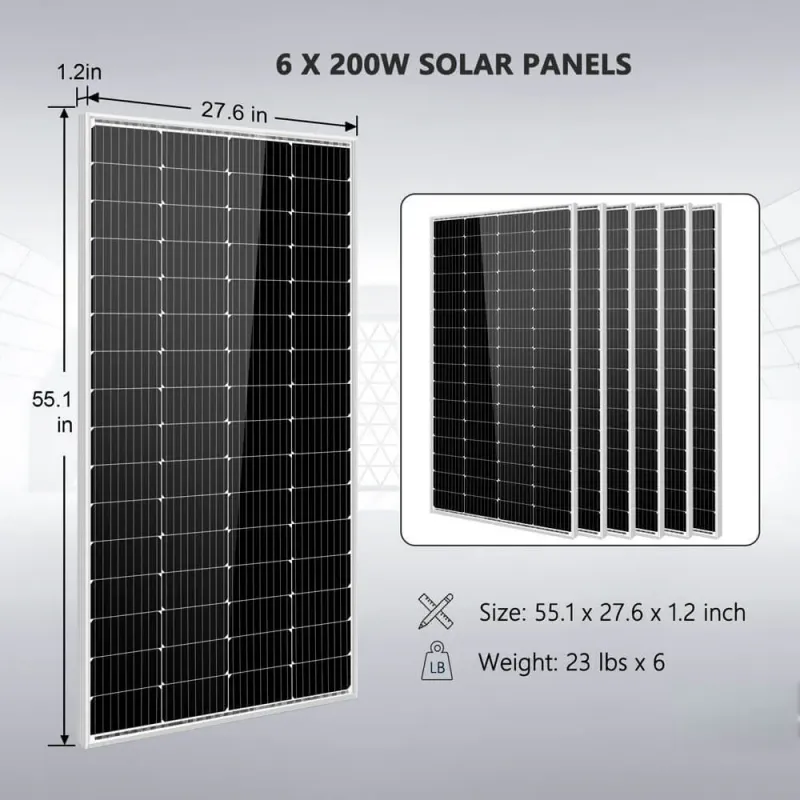

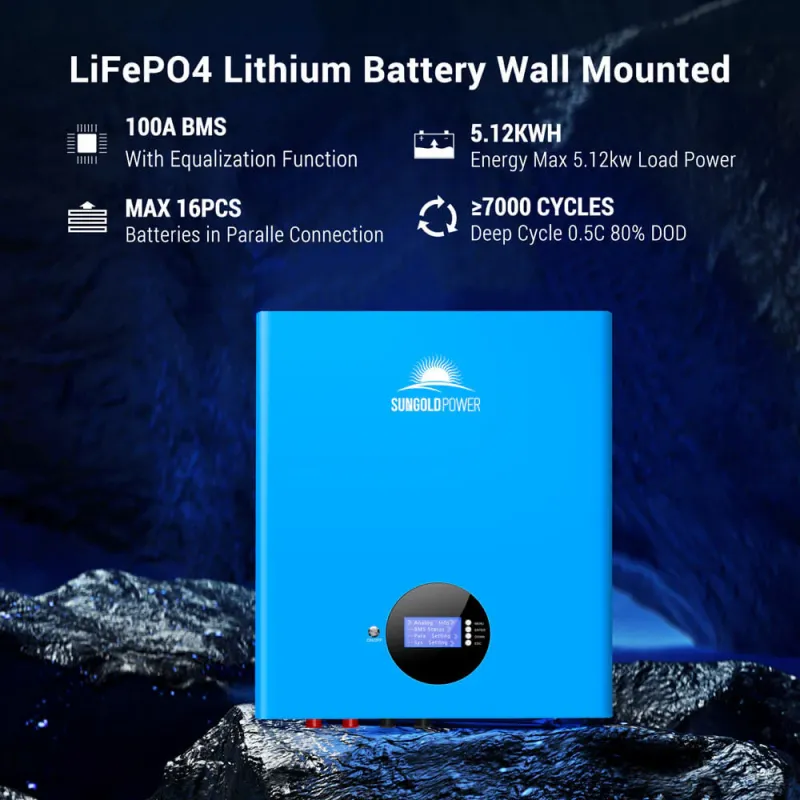

Achieve energy independence with the SunGold Power 5kW Off-Grid Solar Kit (Model: SGM-5K5E), a fully integrated, beginner-friendly system for reliable solar power. This complete package includes a 5000W pure sine wave hybrid inverter with 120V output, one 51.2V 100Ah PowerWall LiFePO4 battery (5.12kWh), six high-efficiency 200W monocrystalline solar panels, and a 100A MPPT charge controller — everything needed for RV living, remote cabins, home backup, or small off-grid setups.
Key Features High-Power 5000W Inverter supports up to 6 units in parallel for 30kW total output and seamless 120V power. Long-Lasting 5.12kWh PowerWall LiFePO4 Battery with 6000+ cycles at 80% DOD and built-in BMS for safe, efficient operation. 6x200W Monocrystalline Solar Panels deliver up to 1.2kW peak output with 22% efficiency and durable anodized aluminum frames. 100A MPPT Charge Controller handles up to 5500W PV input with 99.5% tracking efficiency for maximum solar harvest. Pre-Wired & Ready-to-Install includes all cables, breakers, Z-brackets, and fusing for hassle-free setup. Expandable Design adds more panels (up to 5500W) or batteries for growing energy needs. Smart Monitoring via LCD interface and optional Bluetooth app for real-time performance tracking. Wide Temperature Resilience operates from -4°F to 140°F with low-temp protection. Safe & Certified inverter UL1741 ETL-listed, panels UL61730/TUV/IEC/CEC/CE, batteries UN38.3 compliant, 3-year inverter warranty.
Specifications at a Glance Inverter Voltage: 48VDC input, 120V AC output • Continuous Power: 5000W • Surge Power: 10,000W • MPPT Solar Input: 5500W max (120–450V) • Battery: 51.2V 100Ah (5.12kWh) • Continuous Discharge: 100A • Max Charge Current: 100A • Solar Panels: 200W monocrystalline x6 • VMP: 18.2V • VOC: 22.1V • Efficiency: 22% • Efficiency: >95% overall • Dimensions: Inverter 25.6 × 17.7 × 5.1 in • Battery 23.6 × 16.5 × 5.9 in • Panels 58.7 × 26.8 × 1.4 in each • Weight: Inverter 53.5 lbs • Battery 99 lbs • Panels 26.5 lbs each • Certifications: UL1741 (inverter), UL61730 (panels), UN38.3 (batteries) • Warranty: 3 years inverter, 10 years battery, 25 years panels
Pair this kit with additional SunGold Power batteries or panels for endless scalability. Whether powering your RV on the road, a remote cabin, or home during outages, the SunGold Power 5kW Kit delivers commercial-grade performance at residential pricing. Order now — stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
