SunGold Power 7.6kW Hybrid Solar Kit SGH-7.6N3E – 48V Split-Phase Inverter with 15.36kWh LiFePO4 Battery & 12x500W Panels for Home, RV & Backup
Model #: SGH-7.6N3E SKU: SGH-7.6N3E
Product Details
Product Description for Sungold Power Hybrid Solar Kit 7600W 48V Split-Phase 15.36KWH LiFePO4 Lithium Battery 12 X 500 Watt Solar Panels
SunGold Power 7.6kW Hybrid Solar Kit SGH-7.6N3E – 48V Split-Phase Inverter with 15.36kWh LiFePO4 Battery & 12x500W Panels for Home, RV, Cabin & Backup
Achieve flexible energy independence with the SunGold Power 7.6kW Hybrid Solar Kit (Model: SGH-7.6N3E). This complete, high-performance system supports off-grid, grid-tied, and hybrid configurations for whole-home backup, RVs, cabins, or commercial setups.

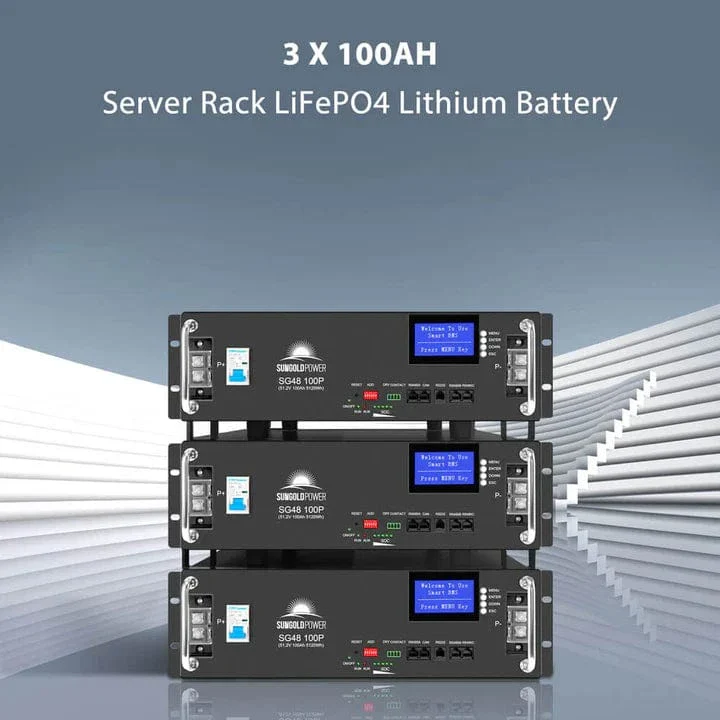

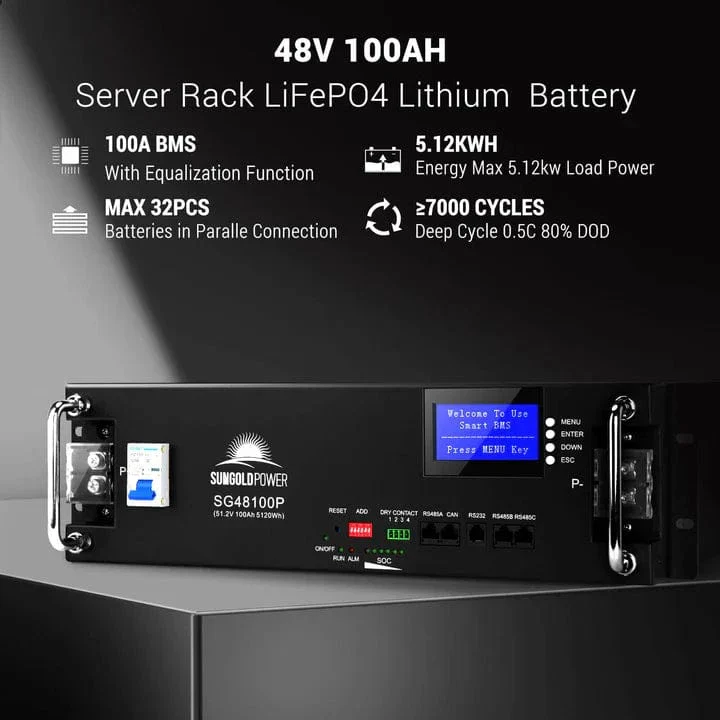

Key Features • High-Power 7.6kW Hybrid Inverter – 7600W pure sine wave (120V/240V split-phase), parallelable up to 9 units for 68kW total • 15.36kWh LiFePO4 Storage – three 51.2V 100Ah rack-mount batteries with 7000+ cycles and built-in BMS • 6kW Solar Array – twelve 500W monocrystalline panels (up to 21% efficiency) • Built-in MPPT Controller – up to 12,000W PV input (70–540V range) with 99% efficiency • Pre-Wired & Plug-and-Play – includes solar extension cables, battery cables, PV breakers, and DC breaker • Fully Expandable – add up to 32 batteries or more panels anytime • Smart Monitoring – WiFi/Bluetooth app + LCD display for remote control • All-Weather Performance – -4°F to 140°F operation with comprehensive protections (overvoltage, short circuit, overcurrent) • Certified & Safe – UL1741 inverter, UL61730 panels, UN38.3 batteries
Specifications at a Glance Inverter Power: 7,600W continuous / 15,200W surge Battery Capacity: 15.36kWh (3 × 51.2V 100Ah) Solar Input: 12,000W max Panels: 500W × 12 (Vmp 41.2V, Voc 49.5V) Dimensions (approx): Inverter 20.5 × 14.6 × 5.9 in | Batteries 19.3 × 17.1 × 3.5 in each | Panels 74.4 × 41.1 × 1.4 in each Weight: Inverter 48 lbs | Batteries 105 lbs each | Panels 48.5 lbs each Warranty: 3 years inverter | 10 years batteries | 25 years panels (power output)
Ready for hybrid, off-grid, or grid-tie power? This SunGold Power 7.6kW kit is in stock and ships fast from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
