RICH SOLAR 1250W 48VDC-120VAC Off-Grid Solar Kit – 48V 120V Inverter with 5.12kWh Alpha 5 PRO LiFePO4 Battery & 5x250W Panels for Tiny Home, Cabin & RV
Model #: H6548S + RS-B5121P1 x1 + RS-M250 x5 SKU: RS-CBK1250
Product Details
Product Description for RICH SOLAR 1250W 48VDC-120VAC Solar Kit – 6500W Inverter, 5.12kWh Alpha 5 PRO Lithium Battery, 5x250W Panels
RICH SOLAR 1250W 48VDC-120VAC Off-Grid Solar Kit – 48V 120V Inverter with 5.12kWh Alpha 5 PRO LiFePO4 Battery & 5x250W Panels for Tiny Home, Cabin, RV & Off-Grid

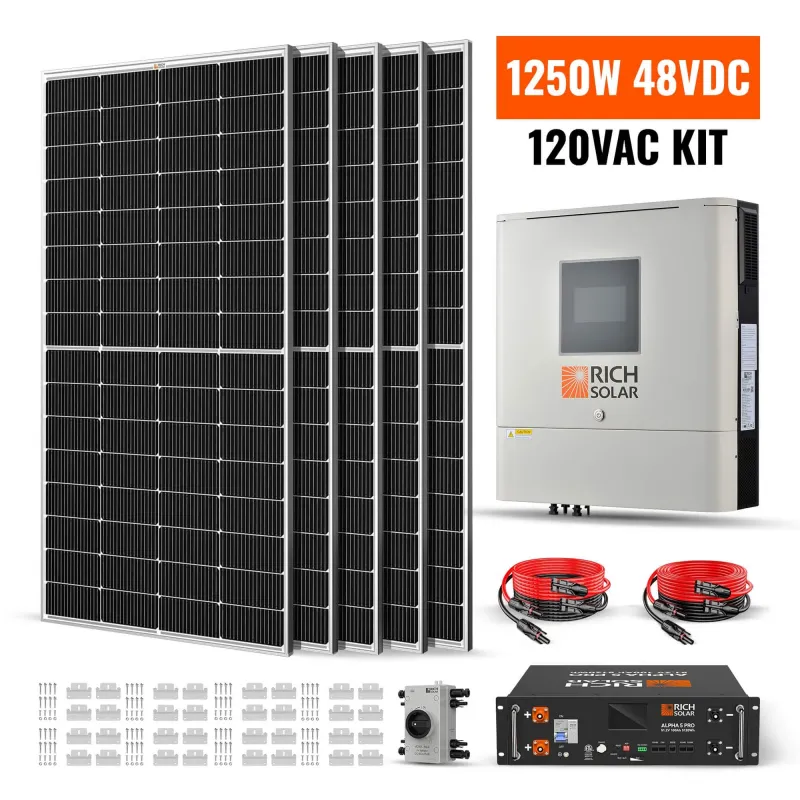

Achieve ultimate energy independence with the RICH SOLAR 1250W 48VDC-120VAC Off-Grid Solar Kit, a fully integrated, high-performance system for reliable solar power. This complete package includes a 6500W pure sine wave inverter with 120V output, one 51.2V 100Ah Alpha 5 PRO LiFePO4 battery (5.12kWh total), five high-efficiency 250W MEGA monocrystalline solar panels, and built-in MPPT charge controller — everything needed for tiny homes, cabins, RVs, or off-grid living.
Key Features High-Power 6500W Inverter (1250W continuous) supports up to 6 units in parallel for 7.5kW total output and stable 120V power. Long-Lasting 5.12kWh LiFePO4 Battery Bank with 7000+ cycles at 80% DOD, built-in BMS, self-heating, and IP65 rating for safe, efficient operation. 5x250W Monocrystalline Solar Panels deliver up to 1.25kW peak output with 21.3% efficiency and durable frames. Built-in MPPT Controller handles up to 8000W PV input (90–230V) with 99% tracking efficiency for maximum solar harvest. Pre-Wired & Ready-to-Install includes 10AWG extension cables (30ft + 10ft), PV DC quick disconnect, Z-brackets, and all fusing for hassle-free setup. Expandable Design adds more panels (up to 8000W) or batteries for growing energy needs. Smart Monitoring via Wi-Fi app, USB/RS232/RS485, and LCD interface for real-time performance tracking. Wide Temperature Resilience operates from -4°F to 185°F with low-temp protection. Safe & Certified inverter UL1741 compliant, panels UL61730/TUV/IEC, battery UL1973 compliant, 5-year inverter warranty.
Specifications at a Glance Inverter Voltage: 48VDC input, 120V AC output • Continuous Power: 1250W • Surge Power: 13,000W • MPPT Solar Input: 8000W max (90–230V) • Battery: 51.2V 100Ah x1 (5.12kWh total) • Continuous Discharge: 100A • Max Charge Current: 120A • Solar Panels: 250W monocrystalline x5 • VMP: 18.9V • VOC: 22.8V • Efficiency: 21.3% • Overall Efficiency: >95% • Dimensions: Inverter 5.8 × 17.0 × 21.8 in • Battery 17.7 × 17.8 × 5.2 in • Panels 60.6 × 29.9 × 1.2 in each • Weight: Inverter 40.6 lbs • Battery 99.2 lbs • Panels 26.9 lbs each • Certifications: UL1741 (inverter), UL61730 (panels), UL1973 (battery) • Warranty: 5 years inverter, 10 years battery, 25 years panels
Pair this kit with additional RICH SOLAR batteries or panels for endless scalability. Whether powering your tiny home, RV adventures, or cabin during outages, the RICH SOLAR 1250W Kit delivers commercial-grade performance at residential pricing. Order now — stocked and ready to ship from lithiumion-batteries.com!
