SunGold Power 12kW Off-Grid Solar Kit SGK-12MAX – 48VDC 120V/240V Inverter with 10.24kWh LiFePO4 Battery & 12x450W Panels for Home, RV & Off-Grid
Model #: SGK-12MAX SKU: SGK-12MAX
Product Details
Product Description for Sungold Power Off-Grid Solar Kit 12000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 12 X 450 Watt Solar Panels
SunGold Power 12kW Off-Grid Solar Kit SGK-12MAX – 48VDC 120V/240V Inverter with 10.24kWh LiFePO4 Battery & 12x450W Panels for Home, RV, Cabin & Off-Grid
Achieve ultimate energy independence with the SunGold Power 12kW Off-Grid Solar Kit (Model: SGK-12MAX). This complete, high-performance system delivers reliable off-grid power for whole-home backup, large cabins, RVs, or off-grid businesses.
Key Features • High-Power 12kW System – 12000W pure sine wave inverter (120V/240V split-phase), low frequency with 36kW surge (20s) and generator support, parallelable up to 6 units for 72kW total • Massive 10.24kWh LiFePO4 Storage – four 12.8V 200Ah batteries with 4000+ cycles, built-in BMS, self-heating, IP65 rating, and Bluetooth monitoring • 5.4kW Solar Array – twelve 450W bifacial N-Type monocrystalline panels (21.5% efficiency) for enhanced dual-side energy capture • Dual 100A MPPT Controllers – up to 7000W total PV input (3500W per channel, 250V max) with 99% tracking efficiency • Pre-Wired & Plug-and-Play – includes all cables (50ft solar extensions, battery to MPPT), 200A DC breaker, 2x25A PV breakers, Z-brackets, and fusing • Fully Expandable – add more panels or batteries anytime • Smart Monitoring – Bluetooth app + LCD display for real-time performance tracking • All-Weather Performance – -4°F to 140°F operation with low-temp protection • Certified & Safe – UL1741 inverter, UL61730/TUV/IEC/CEC/CE panels, ETL-listed

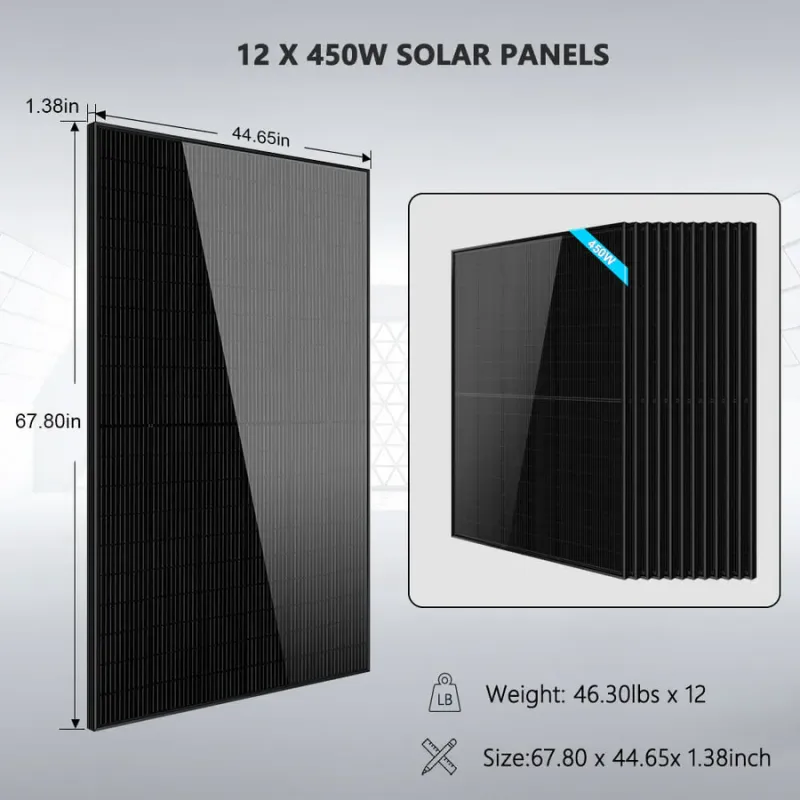

Specifications at a Glance Inverter Power: 12,000W continuous / 36,000W surge Battery Capacity: 10.24kWh (4 × 12.8V 200Ah) Solar Input: 7,000W max Panels: 450W × 12 (Vmp 34.2V, Voc 41.72V) Dimensions (approx): Inverter 27.6 × 16.5 × 8 in | Batteries 19.7 × 9.4 × 9.1 in each | Panels 67.8 × 44.65 × 1.38 in each | MPPT Controllers 12.4 × 8.9 × 4.8 in each Weight: Inverter 159.5 lbs | Batteries 48.5 lbs each | Panels 46.3 lbs each | MPPT Controllers 12.5 lbs each Warranty: 3 years inverter | 5 years batteries | 25 years panels (power output)
Ready to go 100% off-grid or add serious backup power? This SunGold Power 12kW kit is in stock and ships fast from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
