CHARGEX® 48V 150AH Lithium Telecom Battery ALP-248 Compatible
Model #: CXN48150 SKU: CXN48150-ALP-248 Weight: 130 lbs
Product Details
CHARGEX® CXN48150-V248 - 48V 150Ah LiFePO4 Battery Proven Nokia-Qualified • ALP-248E Compatible • SiFi Networks FiberCity® Edition
The CHARGEX CXN48150-V248 is the field-proven, custom-engineered 48V lithium iron phosphate (LiFePO4) battery solution developed in close collaboration with SiFi Networks and Nokia, for reliable backup power in streetside telecom cabinets and aggregation huts. This prismatic-cell battery was specifically designed, iterated, tested, and qualified to meet the rigorous demands of SiFi’s FiberCity® deployments, delivering superior runtime, hot-swap capability, earthquake resistance, and environmental protection compared to traditional VRLA lead-acid systems.
Key Features & Advantages
- Nokia-Qualified & ALP-248E Compatible - Fully tested and approved for integration into ALP-248E streetside cabinets (no modifications required) and Nokia-integrated fiber networks.
- SiFi Networks FiberCity® Proven - Deployed and validated across multiple live SiFi FiberCity® projects, including Simi Valley (CA), Oceanside (CA), Escondid (CA), Farmington Hills (MI), fiber deployments.

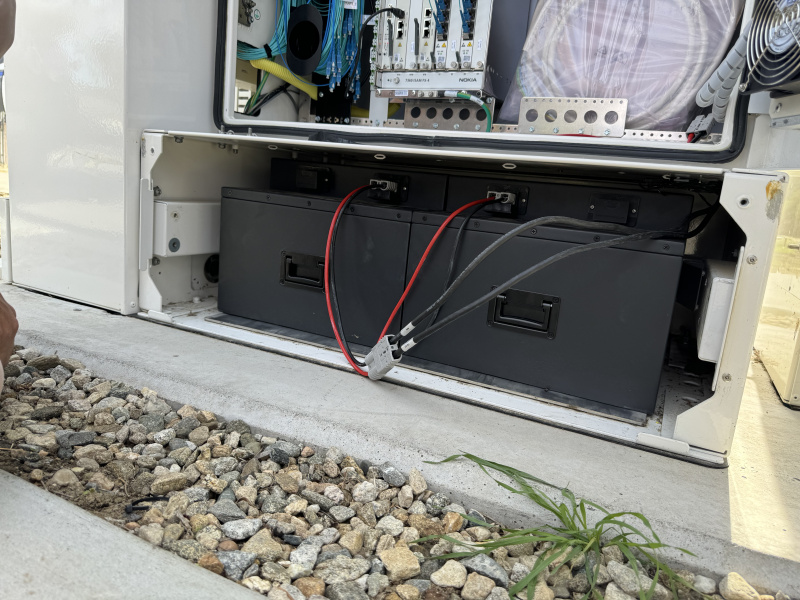

- Hot-Swap Ready - Seamless field exchange: one battery powers the load while the second is swapped, eliminating downtime.
- Extended Runtime - >12 hours full cabinet load support (paired 300Ah configuration); >6 hours at 50A discharge.

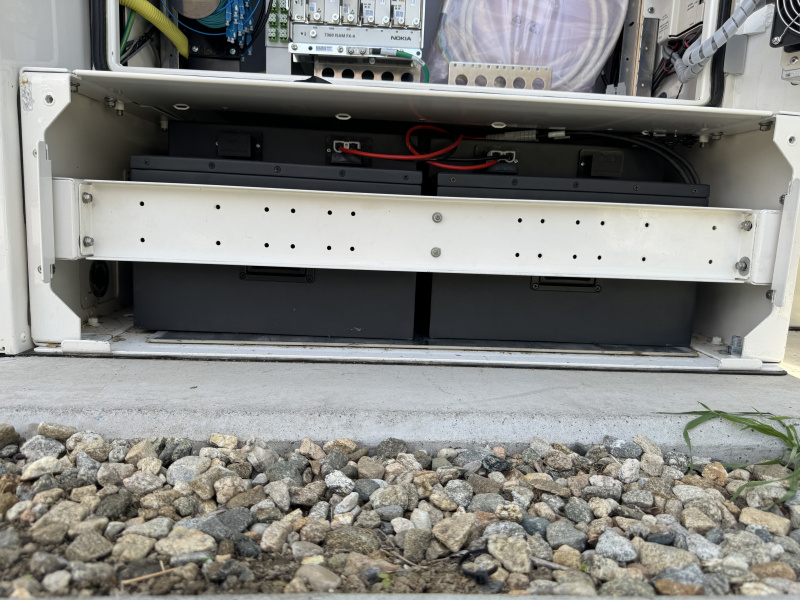

- Earthquake-Resistant Design - Customized mounting Brackets on existing cabinet beams + custom restraints for seismic stability.
- Rugged & Field-Ready - IP-rated enclosure (dust/water protection during operation and transport),
- Durable anodized aluminum enclosure - provides superior corrosion resistance and scratch protection, ensuring long-term reliability and safe, damage-free hot-swap handling in field environments.
recessed IP68 Anderson connectors (non-protruding, perpendicular mating), dual recessed handles (front + lid). - High Cycle Life & Safety - >6,000 cycles (80% capacity after 5,000 at 100% DOD), advanced BMS with cell balancing, OVP/UVP, OCP, short-circuit protection, auto-recovery, NSD (nail-penetration thermal runaway prevention), and OSD (overcharge fuse protection).
- Fast Charging & Efficiency - Compatible with 5kW rackmount chargers (0–90% SOC in <90 minutes), >90% round-trip efficiency.
- Lightweight & Modular - 130 lbs per unit; series (up to 96V) or unlimited parallel connections.
Technical Specifications
| Specification | Value |
|---|---|
| Nominal Voltage | 48V |
| Capacity | 150Ah (7.2kWh) |
| Usable Capacity | 150Ah (>100% DOD) |
| Continuous Charge/Discharge | 100A |
| Peak Discharge (5s) | 200A |
| Charge Voltage | 54V - 54.75V |
| Cycle Life | >5,000 cycles |
| Operating Temperature | 4°C - 40°C (no derating) |
| Dimensions (L × W × H) | 20.25" × 14.6" × 11" (508 × 362 × 279 mm) |
| Weight | 130 lbs (59 kg) |
| Chemistry | Prismatic LiFePO4 |
| Enclosure | Anodized aluminum, IP-rated |
| Connectors | Recessed IP68 Anderson (perpendicular) + custom harnesses |
Certifications & Qualifications
- Nokia Qualification - Successfully passed Nokia Labs testing and integration validation for ALP-248E cabinets and fiber network compatibility.

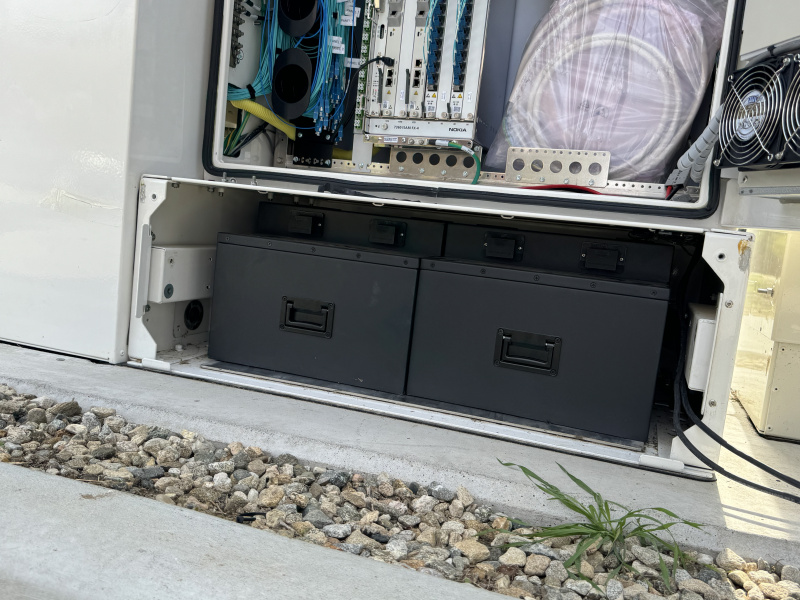

- ALP-248 Compatibility - Direct drop-in fitment with no cabinet modifications; confirmed through multiple rounds of physical test-fits and measurements at Nokia staging facilities.
- SiFi Networks Approval - Board-approved prototype and design iterations; deployed and operational in live FiberCity® networks across multiple U.S. cities.
- Safety & Compliance - UL cell-level certification, CE marking, RoHS compliant, internal thermal fuse, NSD/OSD fire-prevention features.
Ideal Applications

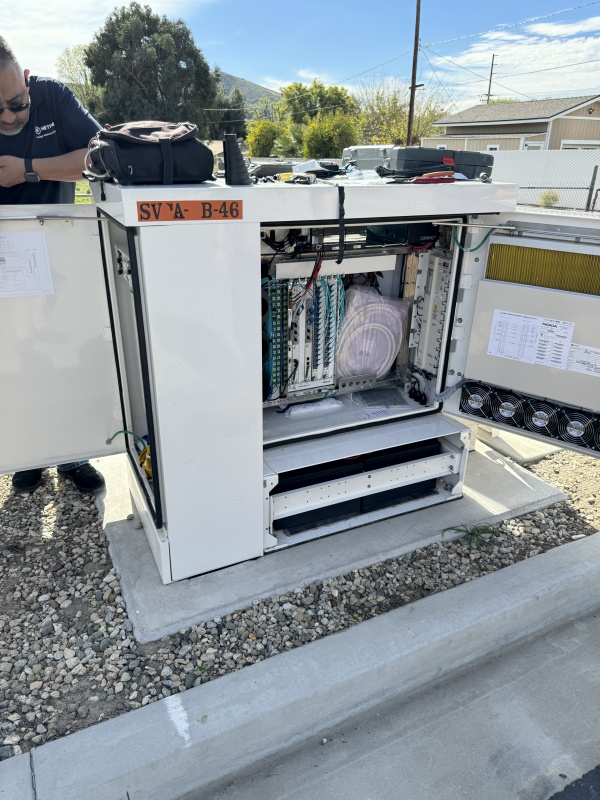

- Streetside telecom cabinets (ALP-248E / Nokia-integrated)
- Aggregation shelters & 19" racks (Thermobond huts)
- Fiber-optic network backup power (high-fire-risk areas)
- Hot-swap, high-reliability telecom and critical infrastructure
CHARGEX® - Trusted Lithium Power for Fiber Networks Developed over 24+ months in direct partnership with SiFi Networks and NOKIA, the CXN48150-ALP-248 is now a field-proven solution powering real-world fiber deployments. Contact us today for quotes, samples, or integration support.
