SunGold Power 8kW Off-Grid Solar Kit SGK-8MAX – 48VDC 120V/240V Inverter with 10.24kWh LiFePO4 Battery & 12x450W Panels for Home, RV & Off-Grid
Model #: SGK-8MAX SKU: SGK-8MAX
Product Details
Product Description for Sungold Power Off-Grid Solar Kit 8000W 48VDC 120V/240V LifePO4 10.24KWH Lithium Battery 12 X 450 Watt Solar Panels
SunGold Power 8kW Off-Grid Solar Kit SGK-8MAX – 48VDC 120V/240V Inverter with 10.24kWh LiFePO4 Battery & 12x450W Panels for Home, RV, Cabin & Off-Grid
Achieve ultimate energy independence with the SunGold Power 8kW Off-Grid Solar Kit (Model: SGK-8MAX). This complete, high-performance system delivers reliable off-grid power for whole-home backup, large cabins, RVs, or off-grid businesses.
Key Features • High-Power 8kW System – 8000W pure sine wave inverter (120V/240V split-phase), parallelable up to 6 units for 48kW total • Massive 10.24kWh LiFePO4 Storage – four 12.8V 200Ah batteries with 4000+ cycles, Bluetooth monitoring, and built-in BMS • 5.4kW Solar Array – twelve 450W monocrystalline panels (21.5% efficiency) • Integrated MPPT Controller – up to 11,000W PV input (500V max) with 200A charging current and 92% efficiency • Pre-Wired & Plug-and-Play – includes all cables, 200A DC breaker, 2x25A PV breakers, Z-brackets, and fusing • Fully Expandable – add more panels or batteries anytime • Smart Monitoring – Bluetooth app + LCD display for real-time tracking • All-Weather Performance – -4°F to 140°F operation with self-heating batteries and IP65 rating • Certified & Safe – UL1741 inverter, UL61730 panels, ETL-listed

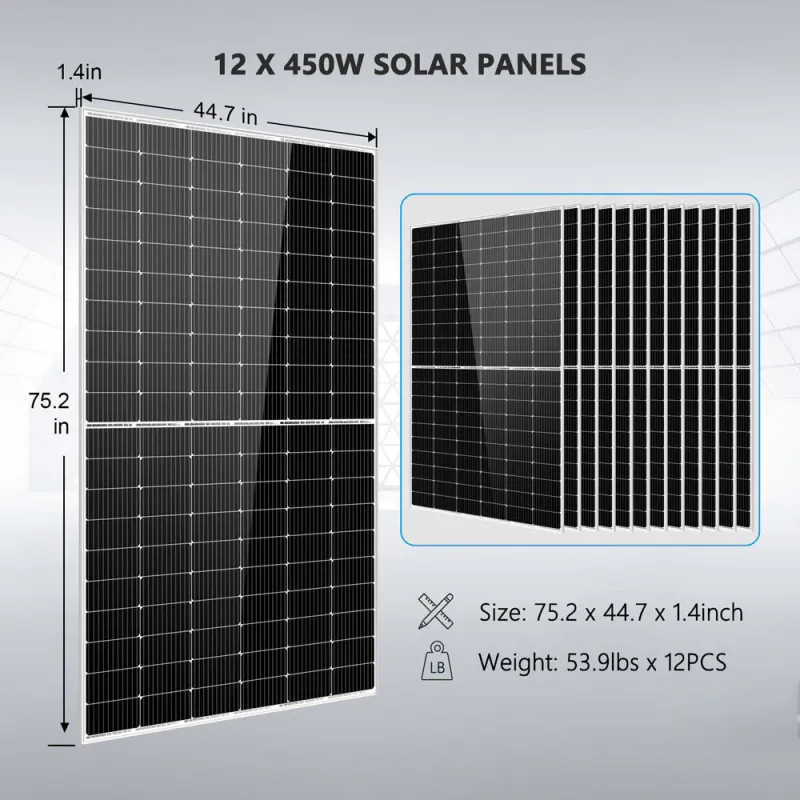

Specifications at a Glance Inverter Power: 8,000W continuous / 16,000W surge Battery Capacity: 10.24kWh (4 × 12.8V 200Ah) Solar Input: 11,000W max Panels: 450W × 12 (Vmp 34.2V, Voc 41.72V) Dimensions (approx): Inverter 25.6 × 17.7 × 5.1 in | Batteries 19.7 × 9.4 × 9.1 in each | Panels 75.2 × 44.7 × 1.4 in each Weight: Inverter 53.5 lbs | Batteries 48.5 lbs each | Panels 53.9 lbs each Warranty: 3 years inverter | 5 years batteries | 25 years panels (power output)
Ready to go 100% off-grid or add serious backup power? This SunGold Power 8kW kit is in stock and ships fast from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
