SunGold Power 11.4kW Hybrid Solar Kit SGH-11N2E-s – 48V Split-Phase with 20.48kWh LiFePO4 Battery & Single 11.4kW Inverter for Home, RV & Off-Grid
Model #: SGH-11N2E-s (11.4kW Inv + 4*100Ah Bat) SKU: SGH-11N2E-s
Product Details

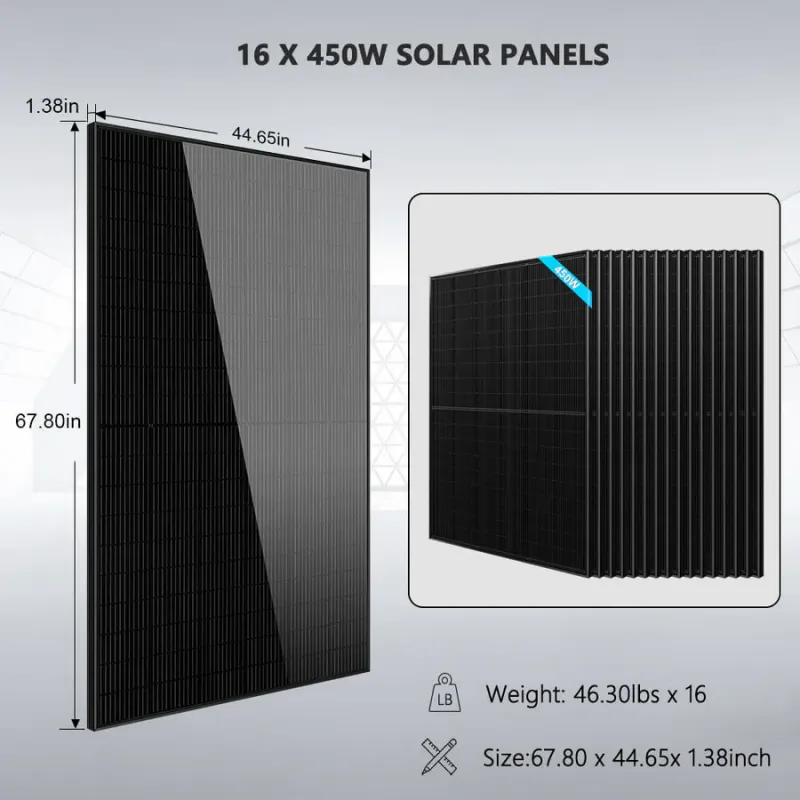

Product Description for SunGold Power Hybrid Solar Kit 11.4KW 48V Split Phase 20.48KWH Lithium Battery 450 Watt Solar Panel
SunGold Power 11.4kW Hybrid Solar Kit SGH-11N2E-s – Complete 48VDC 120V/240V Split-Phase System with 20.48kWh LiFePO4 Battery & Single 11.4kW Inverter for Home, RV, Cabin & Off-Grid

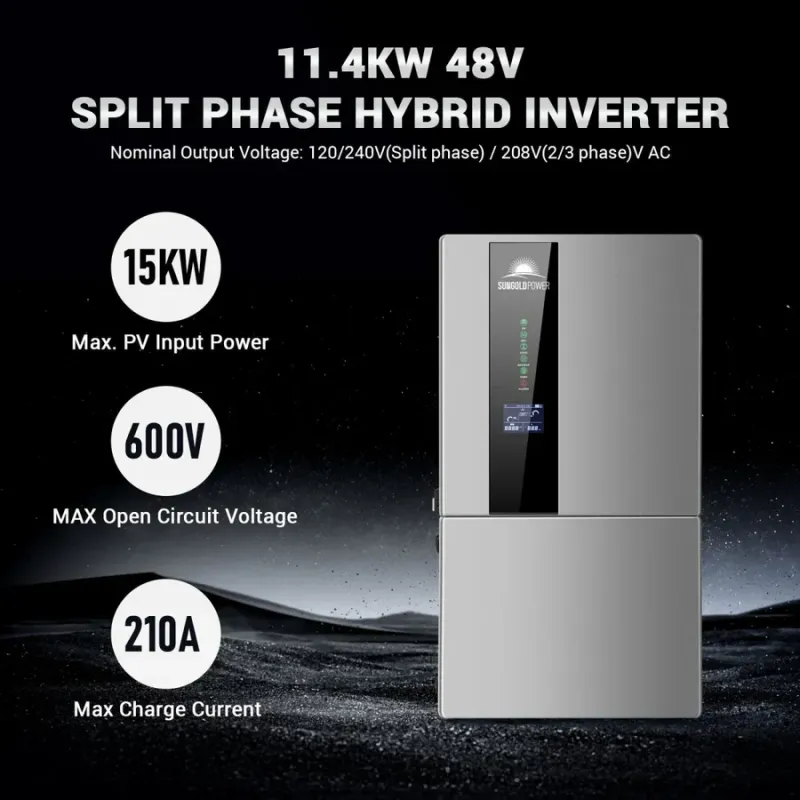

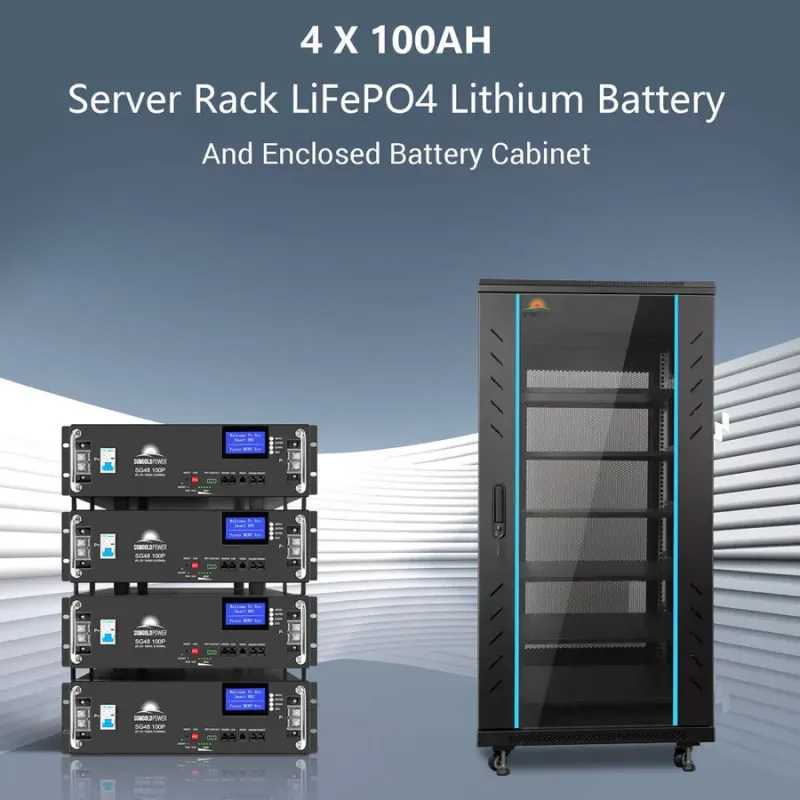

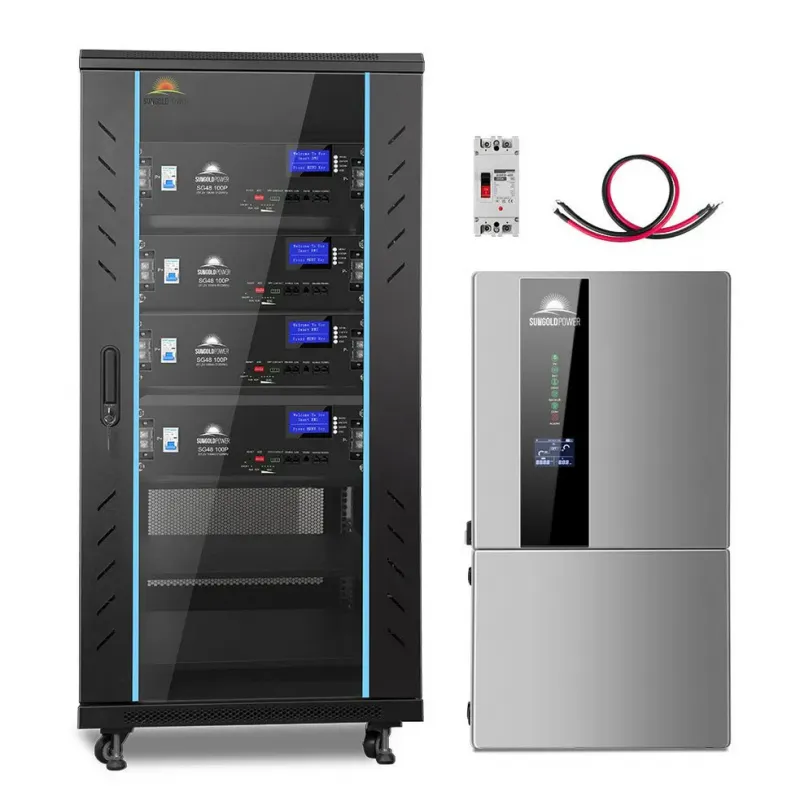

Achieve energy independence with the SunGold Power 11.4kW Hybrid Solar Kit (Model: SGH-11N2E-s), a fully integrated, high-performance system for reliable solar power. This complete package includes an 11.4kW pure sine wave hybrid inverter with 120V/240V split-phase output, four 51.2V 100Ah LiFePO4 batteries (20.48kWh total), and all necessary components — everything needed for whole-home backup, RV living, remote cabins, or off-grid businesses.
Key Features High-Power 11.4kW Hybrid Inverter supports grid-tied, off-grid, and hybrid modes with seamless 120V/240V split-phase output. Long-Lasting 20.48kWh LiFePO4 Battery Bank with 7000+ cycles at 80% DOD and built-in BMS for safe, efficient operation. Built-In MPPT Charge Controller handles up to 15kW PV input with 99.5% tracking efficiency for maximum solar harvest. Pre-Wired & Ready-to-Install includes all cables, breakers, and fusing for hassle-free setup. Expandable Design adds more panels or batteries for growing energy needs. Smart Monitoring via LCD interface and optional Bluetooth app for real-time performance tracking. Wide Temperature Resilience operates from -4°F to 140°F with low-temp protection. Safe & Certified inverter UL1741 ETL-listed, batteries UN38.3 compliant, 3-year inverter warranty.

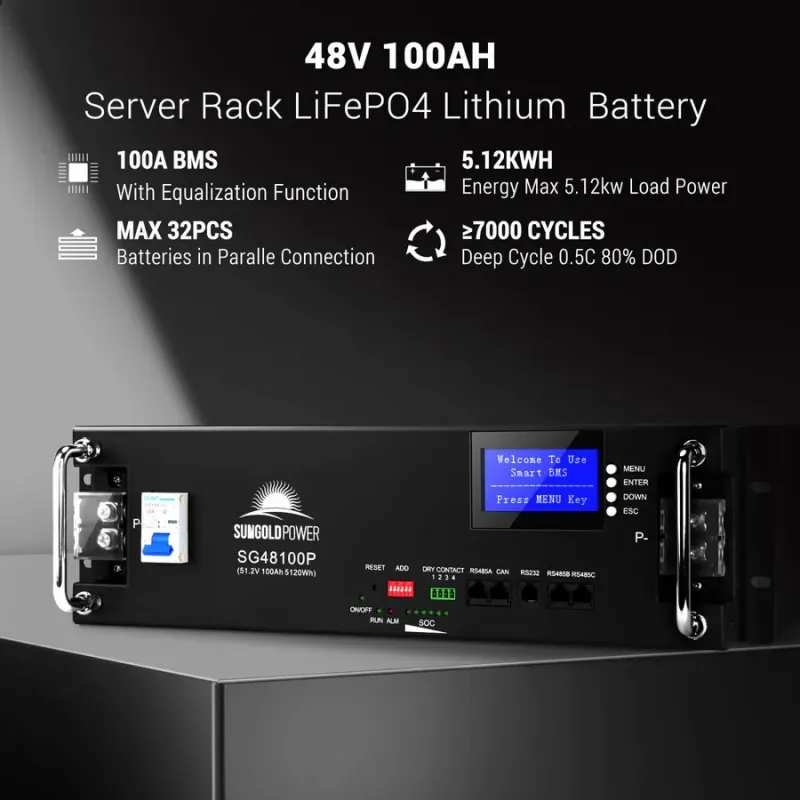

Specifications at a Glance Inverter Voltage: 48VDC input, 120/240V AC output • Continuous Power: 11,400W • Surge Power: 22,800W • Battery: 51.2V 100Ah x4 (20.48kWh total) • Continuous Discharge: 100A per battery • Max Charge Current: 100A per battery • Efficiency: >95% overall • Dimensions: Inverter 25.6 × 17.7 × 5.1 in • Batteries 19.3 × 18.9 × 5.5 in each • Weight: Inverter 53.5 lbs • Batteries 93 lbs each • Certifications: UL1741 (inverter), UN38.3 (batteries) • Warranty: 3 years inverter, 10 years batteries
Pair this kit with additional SunGold Power batteries or panels for endless scalability. Whether powering your off-grid cabin, RV adventures, or home during outages, the SunGold Power 11.4kW Hybrid Kit delivers commercial-grade performance at residential pricing. Order now — stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
