SunGold Power 11.4kW Hybrid Solar Kit SGH-11N5E-s – 48V Split-Phase Inverter with 51.2kWh LiFePO4 Battery for Home, RV & Backup
Model #: SGH-11N5E-s SKU: SGH-11N5E-s
Product Details
Product Description for Sungold Power Hybrid Solar Kit 11400W 48V Split-Phase 51.2KWH LiFePO4 Lithium Battery
SunGold Power 11.4kW Hybrid Solar Kit SGH-11N5E-s – 48V Split-Phase Inverter with 51.2kWh LiFePO4 Battery for Home, RV, Cabin & Backup
Achieve flexible energy independence with the SunGold Power 11.4kW Hybrid Solar Kit (Model: SGH-11N5E-s). This complete, high-performance system supports off-grid, grid-tied, and hybrid configurations for whole-home backup, RVs, cabins, or commercial setups.

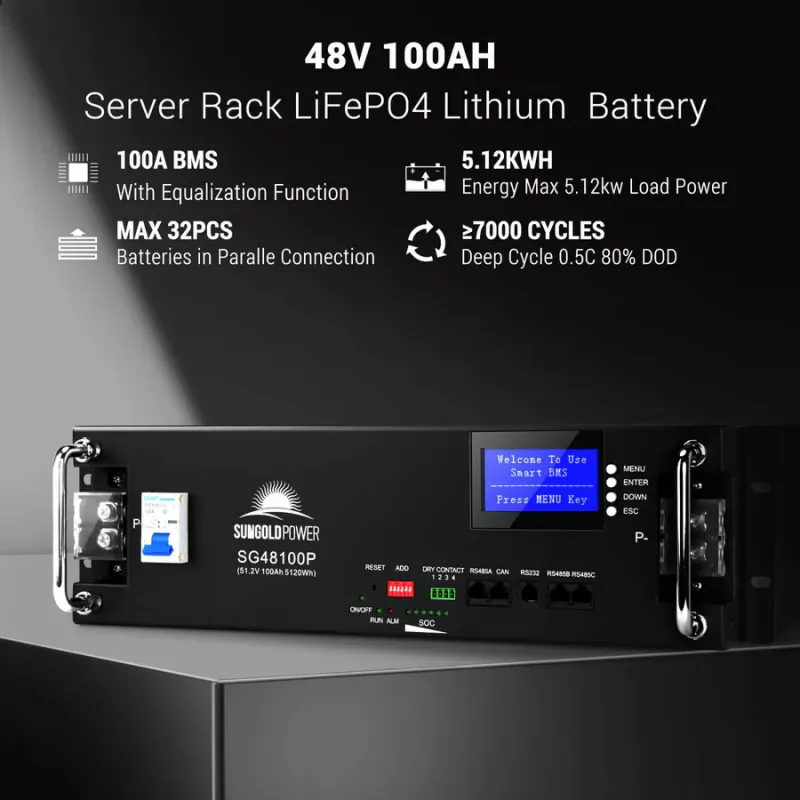

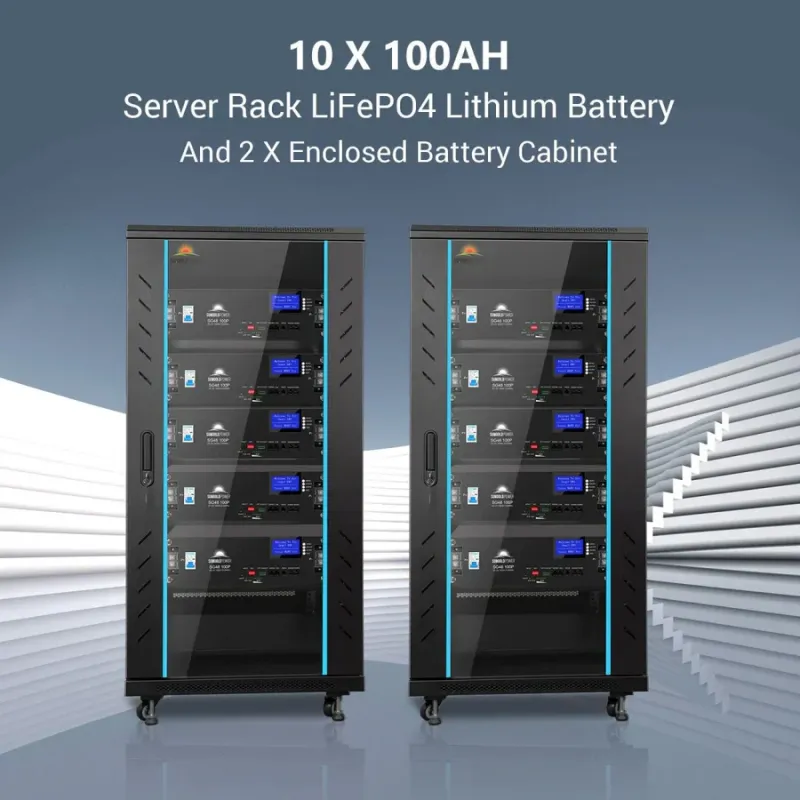

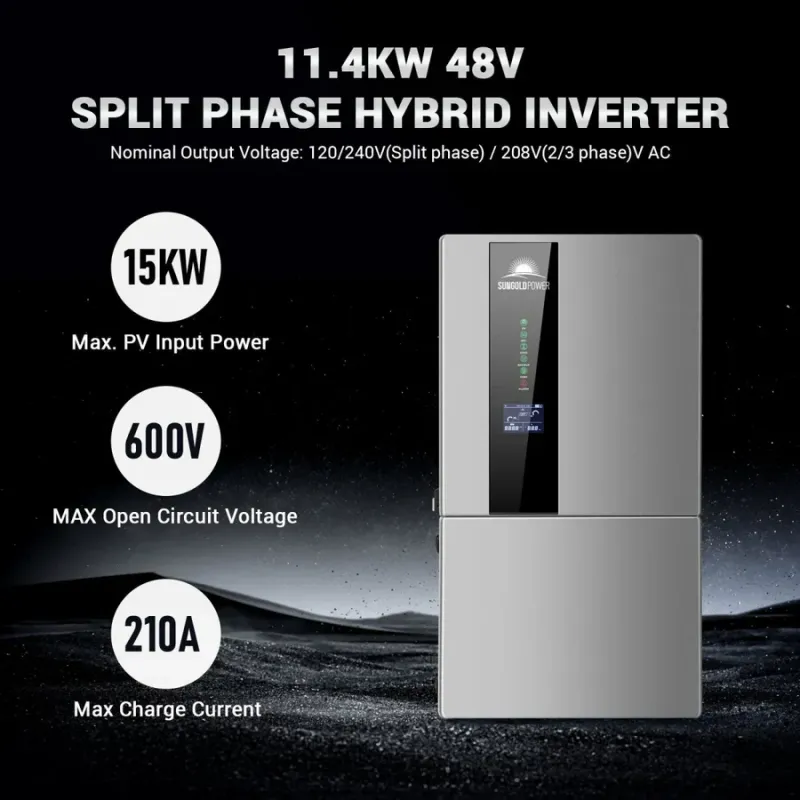

Key Features • High-Power 11.4kW Hybrid Inverter – 11400W pure sine wave (120V/240V split-phase), parallelable up to 9 units for 102kW total • 51.2kWh LiFePO4 Storage – ten 51.2V 100Ah rack-mount batteries with 7000+ cycles and built-in BMS • Built-in MPPT Controllers – up to 15,000W PV input per inverter (30,000W total, 70–600V range) with 99% efficiency (panels sold separately) • Pre-Wired & Plug-and-Play – includes battery cables, DC breakers, and enclosed battery cabinets • Fully Expandable – add up to 32 batteries or connect external solar panels anytime • Smart Monitoring – WiFi/Bluetooth app + LCD display for remote control • All-Weather Performance – -4°F to 140°F operation with comprehensive protections (overvoltage, short circuit, overcurrent) • Certified & Safe – UL1741 inverters, UL1973 batteries
Specifications at a Glance Inverter Power: 11,400W continuous / 22,800W surge (per unit) Battery Capacity: 51.2kWh (10 × 51.2V 100Ah) Solar Input: 30,000W max (external PV) Battery Voltage: 51.2V nominal; Cut-off Charge: 57.6V; Cut-off Discharge: 43.2V; Max Parallel: 32 Dimensions (approx): Inverters 16.5 × 31.5 × 9.4 in each | Batteries 19.3 × 18.9 × 5.5 in each Weight: Inverters 88 lbs each | Batteries 93 lbs each Warranty: 10 years inverters | 10 years batteries
Ready for hybrid, off-grid, or grid-tie power? This SunGold Power 11.4kW kit is in stock and ships fast from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
