Product Details
PRODUCT DETAILS

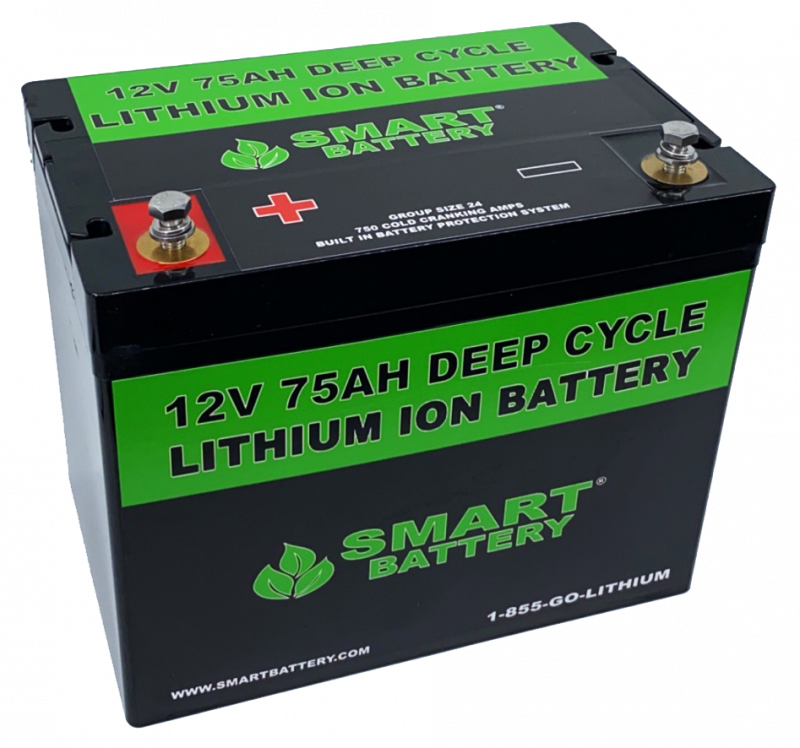

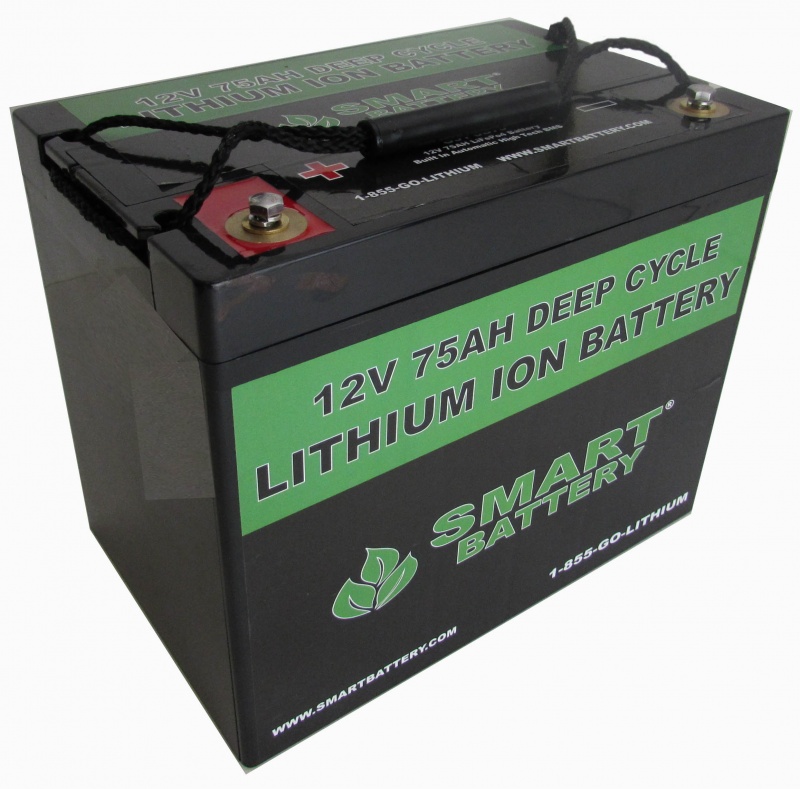

The Smart Battery 12V 75AH Lithium Ion Battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. The SB75 is plug and play for almost any application that currently uses a lead acid, gel or agm battery.
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage |
12.8V |
| Charge Voltage |
14.4V - 14.6V |
| Peak Discharge (5 Sec) |
750A |
| Continuous Charge / Discharge Rate |
75A |
| Capacity (amp hours) |
75AH |
| Capacity (watt hours) |
900WH |
SIZE & WEIGHT
ADVANTAGE
| Model |
SB75 |
| Group Size |
24 |
| Weight |
25 Lbs |
| Length |
10.25" |
| Width |
6.75" |
| Height |
9.88" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) |
75AH |
| Depth of Discharge |
100% DOD |
| Reserve Minutes @ 20A |
220 min |
| Self Discharge |
<3% per mo |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
| Cell Type |

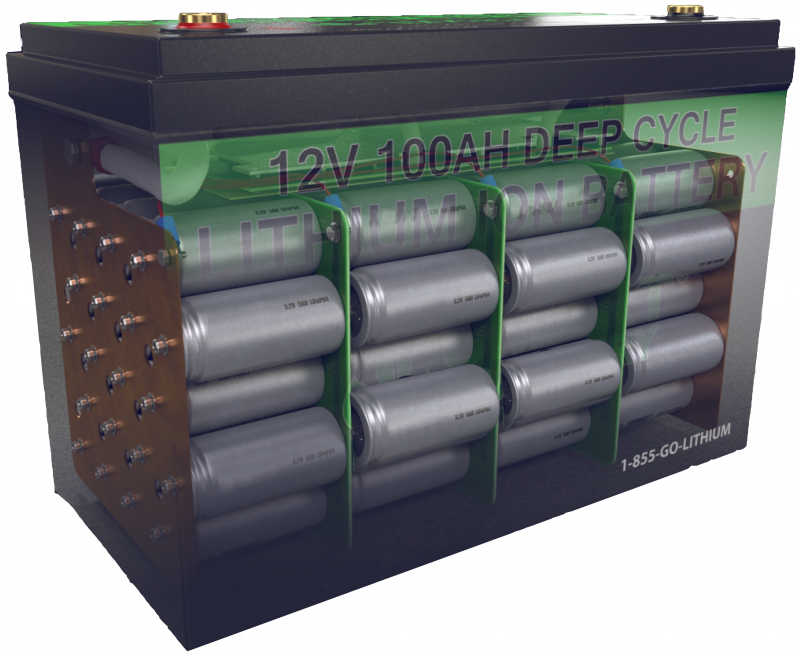

Cylindrical |
| Modular |
Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System |
Internal |
| Automatic Low Voltage Disconnect |
8V |
| Automatic Short Circuit Protection |
Instant |
| Automatic Over Voltage Protection |
15.8V |
| Automatic Reverse Polarity Protection |
Instant |
| Internal Cell Thermal Safety Fuse |
Yes |
| Flame Retardant Electrolyte |
Yes |
| Length Way Circuit Boards |
Yes |
| Automatic Internal Cell Balancing |
Yes |
| Automatic Fault Recovery |
Yes |
| Explosion Proof Stainless Steel Cells |
Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Temperature Performance |
| Celsius |
Fahrenheit |
Usable Capacity |
| 60 |
140 |
103% |
| 50 |
122 |
102% |
| 40 |
104 |
100% |
| 30 |
86 |
100% |
| 20 |
68 |
98% |
| 10 |
50 |
92% |
| 0 |
32 |
83% |
| -10 |
14 |
80% |
| -20 |
-4 |
70% |
| -30 |
-22 |
60% |
| -40 |
-40 |
10% |
| -50 |
-58 |
0% |
FAST SHIPPING
ADVANTAGE
| Standard Shipping |
UPS GROUND |
| Expedited Air Shipping |
UPS WORLDWIDE EXPRESS |
| Shipping Time |
Call for availability |
This Product Is Perfect For
Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
The Smart Battery SB75 12V 75AH Lithium Ion Battery is the perfect replacement from a AGM, GEL or Lead Acid Battery. The SB75 is designed as a "drop in replacement" meaning all you have to do is take out your old battery and place the SB75 in the same way.
12V 75HA Lithium Ion Battery Data Sheet
