Product Details
| COMMERCIAL |
MARINE |
RV |
AUTOMOTIVE |

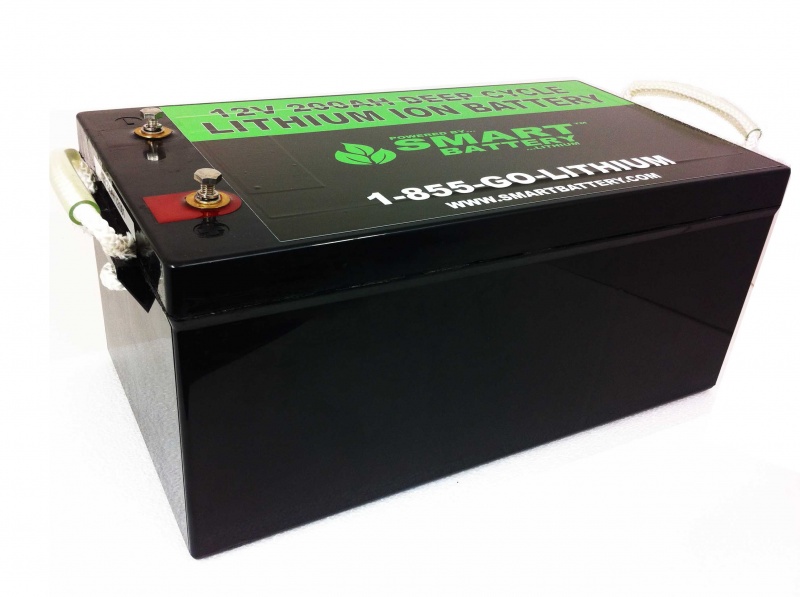

The Smart Battery 12V 200AH Lithium Ion Battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. The SB200 is plug and play for any application that currently uses a lead acid, gel or agm battery.
POWER & ENERGY
THE ELECTRIC ADVANTAGE
| Nominal Voltage |
12.8V |
| Charge Voltage |
14.4V - 14.6V |
| Peak Discharge (5 Sec) |
2000A |
| Continuous Charge / Discharge Rate |
100A |
| Capacity (amp hours) |
200AH |
| Capacity (watts) |
2560W |
SIZE & WEIGHT
ADVANTAGE
| Model |
SB200 |
| Group Size |
8D |
| Weight |
72 Lbs |
| Length |
19.25" |
| Width |
10.25" |
| Height |
8.75" |
TECHNOLOGY
ADVANTAGE
| Usable Capacity (AH) |
200AH |
| Depth of Discharge |
100% DOD |
| Reserve Minutes @ 20A |
600 min |
| Reserve Minutes @ 50A |
240 min |
| Self Discharge |
<3% per mo |
| Chemistry |
Lithium Iron Phosphate (LiFePO4) |
| Cell Type |
Cylindrical |
| Modular |
Series or Parallel Connection |
SAFETY & PROTECTION
ADVANTAGE
| Built in Automatic Battery Protection System |
Internal |
| Automatic Low Voltage Disconnect |
8V |
| Automatic Short Circuit Protection |
Instant |
| Automatic Over Voltage Protection |
15.8V |
| Automatic Reverse Polarity Protection |
Instant |
| Internal Cell Thermal Safety Fuse |
Yes |
| Flame Retardant Electrolyte |
Yes |
| Length Way Circuit Boards |
Yes |
| Automatic Internal Cell Balancing |
Yes |
| Automatic Fault Recovery |
Yes |
| Explosion Proof Stainless Steel Cells |
Yes |
TEMPERATURE PERFORMANCE
ADVANTAGE
| Celsius |
Fahrenheit |
Usable Capacity |
| 60 |
140 |
103% |
| 50 |
122 |
102% |
| 40 |
104 |
100% |
| 30 |
86 |
100% |
| 20 |
68 |
98% |
| 10 |
50 |
92% |
| 0 |
32 |
83% |
| -10 |
14 |
80% |
| -20 |
-4 |
70% |
| -30 |
-22 |
60% |
| -40 |
-40 |
10% |
| -50 |
-58 |
0% |
FAST SHIPPING
ADVANTAGE
| Standard Shipping |
UPS FREIGHT |
| Expedited Air Shipping |
UPS WORLDWIDE EXPRESS |
| Shipping Time |
24 HOURS |
LIFETIME WARRANTY
ADVANTAGE
| Repair or Replace |
First 5 Years |
| Repair or Pro Rate |
Life Time |
| Detailed Warranty Information |
Warranty |
This Product Is Perfect For
Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.
The Smart Battery 12V 200AH Lithium Ion Battery is the perfect replacement from a group 8D AGM, GEL or Lead Acid Battery. The SB200 is designed as a "drop in replacement" meaning all you have to do is take out your old group 8D battery and place the SB200 in the same way.
