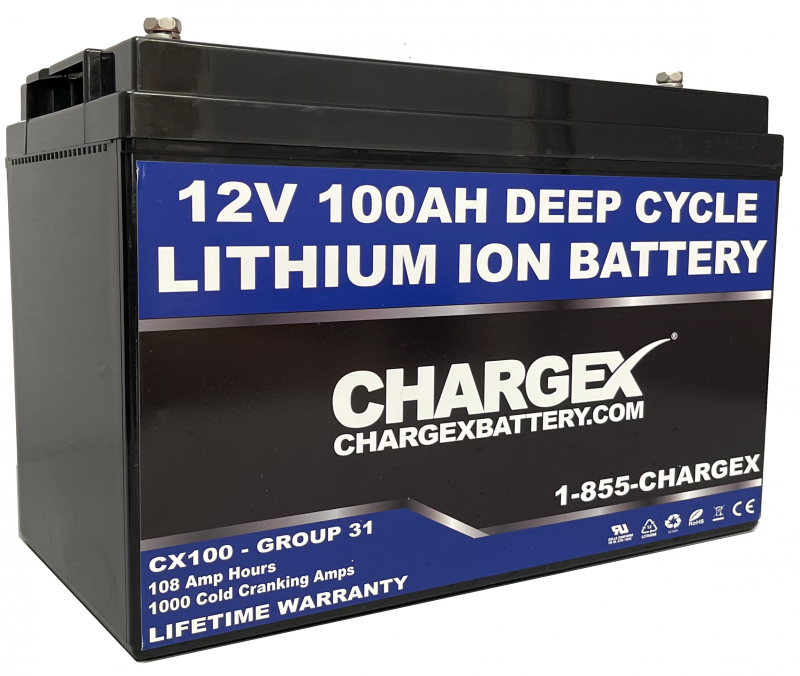

12V 100AH Lithium Ion Battery | Deep Cycle | Engine Starting
A Drop In Replacement & Upgrade from AGM, Gel or Lead Acid Batteries.
This 12V 100AH Lithium Ion Battery is the Ultimate High Performance solution for virtually any application. Backed by a Limited Lifetime Warranty, this battery will exceed your expectations and can provide over 10 years of worry free operation. This battery features an automatic built in battery protection system (BPS) that keeps the battery running at peak performance and protects the cells for thousands of cycles. This battery is plug and play for any application that currently uses a lead acid, gel or agm battery.
| Specifications | |||
 |
Model | 12V100AH | |
| Group Size | 31 | ||
| Nominal Voltage | 12.8V | ||
| Charge Voltage | 14.4V to 14.6V | ||
| Max Charge / Discharge Current | 100A (amps) | ||
| Cold Cranking Amps | 1000A (amps) | ||
| Length | 12.75" | ||
| Width | 6.5" | ||
| Height | 8.7" | ||
| Weight | 28 lbs. | ||
| Type | LiFePO4 | ||
| Performance | |||
| |
Usable Capacity (amp hours) | 108AH | |
| Depth of Discharge | 100% | ||
 |
Peak amps 5 seconds | 1000A | |
| Reserve Minutes @ 20A | 300 | ||
| Reserve Minutes @ 50A | 120 | ||
| Self Discharge | <3% a year | ||
| Capacity % @ 100 Cycles | 102% | ||
| Capacity % @ 500 Cycles | 96.3% | ||
| Capacity % @ 1000 Cycles | 90.8% | ||
| Capacity % @ 1500 Cycles | 85.4% | ||
| Capacity % @ 2000 Cycles | 80.1% | ||
| Temperature Performance | Automatic Battery Protection System | ||
| Fahrenheit | Usable Capacity | Low Voltage Disconnect | 8V |
| 140 | 103% | Over Voltage Disconnect | 15.8V |
| 122 | 102% | Short Circuit Protection | Instant |
| 104 | 100% | Reverse Polarity Protection | Instant |
| 86 | 100% | Cell Balancing | Automatic |
| 68 | 98% | ||
| 50 | 92% | Cell Specifications | |
| 32 | 83% | Connection | Bolted |
| 14 | 80% | Type | Cylindrical |
| -4 | 70% | Internal Impedance | ≤10mΩ |
| -22 | 60% | ||
| -40 | 10% | Warranty |
|
| -58 | 0% | Repair or Replace | First 5 years |
| Repair or Pro Rate | Life Time | ||
| Detailed Warranty Information | Warranty | ||
This 12V 100AH Lithium Ion Battery is the perfect replacement from a group 31 AGM, GEL or Lead Acid Battery. This battery is designed as a "drop in replacement" meaning all you have to do is take out your old group 31 battery and place the lithium battery in the same way.
