Chargex® 36V 40AH Lithium Battery Kit

Product: CXK3640 SKU: 36-LIB-40-K Weight: 57 lbs

Quantity

Product Details

This is a special order item, lead time is 4 weeks to arrive from the time you place your order

The Chargex® CXK3640 - 36V 40AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.

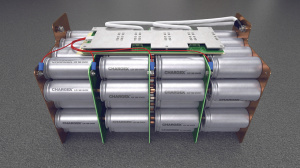

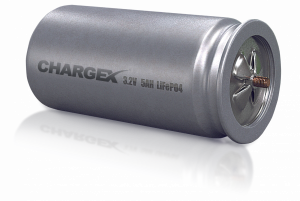

Designed for Deep Cycle applications, the CXK3640 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CXK3640 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.

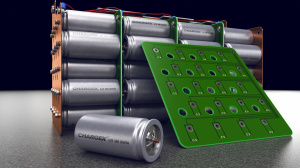

The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CXK3640, one of the world's safest and most advanced lithium batteries.


The Chargex® CXK3640 comes with the industries leading - Lifetime Warranty.


12V 300AH Lithium Battery Data Sheet
CX40 - 12V Lithium Ion Battery Data Sheet
CX40 - Material Safety Data Sheet  (MSDS)


PLUG AND PLAY  |  This 36V 40AH kit Includes everything you need to convert your 36V Golf Cart from Lead Acid to Lithium Batteries.

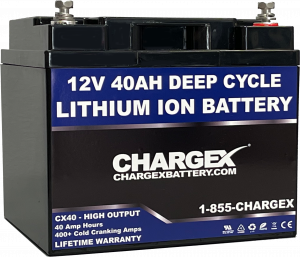

3 - 12V 40AH Lithium Ion Batteries

12V 40AH Deep Cycle Lithium Ion Battery12V 40AH Deep Cycle Lithium Ion Battery12V 40AH Deep Cycle Lithium Ion Battery

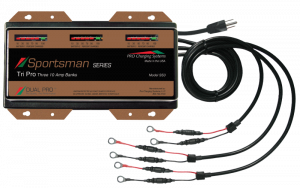

Free - 3 Bank 10A Lithium Battery Charger

12v 3 bank 10 amp lithium ion battery charger

FREE SHIPPING - CONTINENTAL US ONLY


POWER & ENERGY
THE ELECTRIC ADVANTAGE

Nominal Voltage 12.8V (x3) 38.4V
Charge Voltage 14.4V - 14.6V
Peak Discharge (5 Sec) 400A
Continuous Charge / Discharge Rate 40A
Capacity (amp hours) 40AH
Capacity (watts) 1440W
Chemistry Lithium Iron Phosphate (LiFePO4)


SIZE & WEIGHT
ADVANTAGE

Model CXK3640
Group Size N/A
Weight 13 Lbs x3 / 39 Lbs total
Length 7.7"
Width 6.45"
Height 6.75"


TECHNOLOGY
ADVANTAGE

Usable Capacity (AH) 40AH
Depth of Discharge >100% DOD
Reserve Minutes @ 20A 120 min
Reserve Minutes @ 50A 60 min
Self Discharge <3% per mo
Chemistry Lithium Iron Phosphate (LiFePO4)
Cell Type Cylindrical
Modular Series or Parallel Connection



SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System        Internal
Automatic Low Voltage Disconnect 30V
Automatic Short Circuit Protection Instant
Automatic Over Voltage Protection 47.4V
Automatic Reverse Polarity Protection Instant
Internal Cell Thermal Safety Fuse Yes
Flame Retardant Electrolyte Yes
Length Way Circuit Boards Yes
Automatic Internal Cell Balancing Yes
Automatic Fault Recovery Yes
Explosion Proof Stainless Steel Cells Yes



TEMPERATURE PERFORMANCE
ADVANTAGE

Celsius Fahrenheit Usable Capacity
60 140 103%
50 122 102%
40 104 100%
30 86 100%
20 68 98%
10 50 92%
0 32 83%
-10 14 80%
-20 -4 70%
-30 -22 60%
-40 -40 10%
-50 -58 0%



FAST SHIPPING
ADVANTAGE

Standard Shipping UPS GROUND
Expedited Air Shipping UPS WORLDWIDE EXPRESS
Shipping Time 24 HOURS



LIFETIME WARRANTY
ADVANTAGE

Repair or Replace First 5 Years
Repair or Pro Rate Life Time
Detailed Warranty Information Warranty



This Product Is Perfect For

Motorhomes, Travel Trailers, Fifth Wheels, Boats, Yachts, Sailing, Trolling Motors, Electronics, Solar Backup Power, and Other Deep Cycle Applications.


This 36V 40AH Lithium Ion Battery Kit is the perfect replacement from an AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement
" meaning all you have to do is take out your old battery and place the Lithium Battery in the same way.
