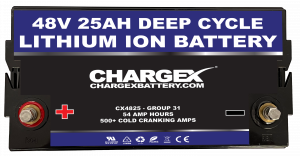

Chargex® 48V 25AH Deep Cycle Lithium Ion Battery

Product: CX4825 SKU: 48-LIB-25

Quantity

Product Details

The Chargex® CX4825 - 48V 25AH Lithium Ion Battery features the latest and most advanced Lithium Iron Phosphate - LiFePO4 Battery Technology.


Designed for Deep Cycle applications, the CX4825 is engineered with our - High Output 3.2V Stainless Steel LiFePO4 Cells that are bolted together for Rigid Strength and Current Conductivity vs. the tab welded method. The CX4825 is Plug and Play for any application that currently uses lead acid, gel or agm batteries.


The fully automatic Built In Battery Management System provides cell balancing, over charge or over discharge protection, short circuit and reverse polarity protection all making the Chargex CX4825, one of the world's safest and most advanced lithium batteries.


The Chargex® CX4825 comes with the industries leading - Lifetime Warranty.



CX25 - Material Safety Data Sheet  (MSDS)



POWER & ENERGY
THE ELECTRIC ADVANTAGE

Nominal Voltage 51.2V (48V)
Charge Voltage 57.6V - 58.4V
Peak Discharge / Cranking Amps (5 Sec) 250A
Continuous Charge / Discharge Rate 25A
Capacity (amp hours) 25AH
Capacity (watts) 1200W
Chemistry Lithium Iron Phosphate (LiFePO4)


SIZE & WEIGHT
ADVANTAGE

Model CX4825
Group Size 31
Weight 30 Lbs
Length 13"
Width 6.75"
Height 8.5"


TECHNOLOGY
ADVANTAGE

Usable Capacity (AH) 27AH
Depth of Discharge >100% DOD
Reserve Minutes @ 25A 60 min
Self Discharge <3% per mo
Chemistry Lithium Iron Phosphate (LiFePO4)
Cell Type Cylindrical
Modular Series or Parallel Connection



SAFETY & PROTECTION
ADVANTAGE

Built in Automatic Battery Protection System        Internal
Automatic Low Voltage Disconnect 40V
Automatic Short Circuit Protection Instant
Automatic Over Voltage Protection 63.2V
Automatic Reverse Polarity Protection Instant
Internal Cell Thermal Safety Fuse Yes
Flame Retardant Electrolyte Yes
Length Way Circuit Boards Yes
Automatic Internal Cell Balancing Yes
Automatic Fault Recovery Yes
Explosion Proof Stainless Steel Cells Yes



TEMPERATURE PERFORMANCE
ADVANTAGE

Celsius Fahrenheit Usable Capacity
60 140 103%
50 122 102%
40 104 100%
30 86 100%
20 68 98%
10 50 92%
0 32 83%
-10 14 80%
-20 -4 70%
-30 -22 60%
-40 -40 10%
-50 -58 0%



FAST SHIPPING
ADVANTAGE

Standard Shipping UPS GROUND
Expedited Air Shipping UPS WORLDWIDE EXPRESS
Shipping Time 24 HOURS



LIFETIME WARRANTY
ADVANTAGE

Repair or Replace First 5 Years
Repair or Pro Rate Life Time
Detailed Warranty Information Warranty



STAINLESS STEEL BOLTED CELLS FOR SUPERIOR STRENGTH
Stainless Steel Bolted Cells
Explosion Proof
BOLTED BMS



LENGTHWAY CIRCUIT BOARDS
Rigid Strength
Cell Balancing
Short Circuit Protection



BUILT IN FULLY AUTOMATIC HEAVY DUTY BMS / BPS
Over Voltage Protection
Low Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
Automatic Cell Balancing



3.2V 5.5AH CHARGEX® STAINLESS STEEL LITHIUM IRON PHOSPHATE BATTERY CELL
Explosion Proof Stainless Steel
High Pressure Safety Vent
Flame Retardant Electrolyte Additive
Bolted for Superior Strength and Conductivity
Safe - LiFePO4 Lithium Iron Phosphate Chemistry



This 48V 25AH Lithium Ion Battery is the perfect replacement from an AGM, GEL or Lead Acid Battery. Designed as a "drop in replacement
" meaning all you have to do is take out your old battery and place the Lithium Battery in the same way.
