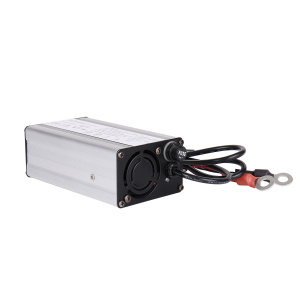

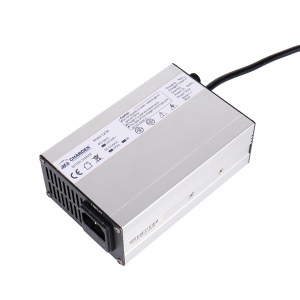

12V 6A Lithium Ion Battery Charger

Product: CXC1206M SKU: 12-CHG-06

Quantity

Product Details

Brief Description:
Sealed Lithium-ion battery charger 12 volts 6 amps, input with worldwide 110 to 230Vac and rated output voltage is 12V 6A. Smart max charging voltage is 14.7V for SLA type batteries or AGM batteries. Intelligent 4 stages charging with pre-charge, CC, CV and floating / trickle steps, this charger will charge your battery powered electric vehicles very fast, with high efficiency and protect your battery life maximumly. High quality, factory price and 2 years warranty.

Features

1) Optional charging methods: Lithium or SLA / AGM batteries.
2) Advanced high frequency switching mode power supply technology.
3) DC output isolated from AC input.
4) Automatic worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz ~ 60Hz.
5) Charging parameters are insensitive to the AC input line voltage variations.
6) Completely automatic 4 steps charge: pre-charge, CC, CV, floating/trickle or shut-off.
7) Protections: Short circuit, Over - voltage, Over - temperature, Reverse Polarity.
8) Aluminum casing, light weight, portable.
9) 100% full load burn-in test.
10) 2 years warranty.

Technical Specs.:
1) Dimensions(LxWxH): 135 x 90 x 50 mm
2) Net weight: 0.8 KG
3) Max charging voltage(CV): 14.4 / 14.7 volts
4) Floating voltage: 13.8Vdc
5) Max output current (CC): 6 amps
6) Charging method: auto. CC, CV, floating / trickle or shut off
7) AC input voltage: 110 - 240Vac
8) AC input freq.: 50 / 60 Hz
9) AC plug: customized by users country
10) Output connector type: customized by applications
11) Enclosure: Aluminum
