Chargex 12V 150AH Solid State Lithium Battery Group Size 31
Model #: CXSS150
Product Details
12V 150Ah Solid State Lithium Battery
Electrical Specifications:
Nominal Voltage: 12.8V
Nominal Capacity: 150Ah
Parallel Connection: No Limit
Serial Connection: No Limit
BMS: 4S150A
Bluetooth Monitoring: Android/iOS compatible
Circuit Protection: Overcharge, Over-discharge, Over-current, Over-temperature, Short circuit, Cell balancing, Low temperature protection

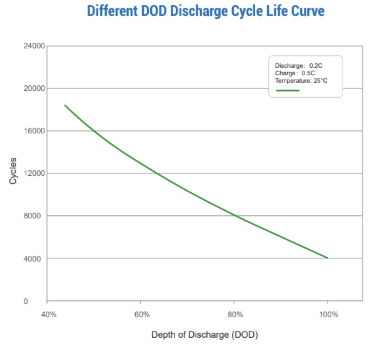

Cycle Life: 4000 cycles @ 100% DOD / 8000 cycles @ 80% DOD
Self-Discharge Rate: <3% per month
Charge Efficiency: 100% @ 0.2C
Discharge Efficiency: 98–100% @ 1C
Charge Specifications:
Charge Voltage: 14.4 ± 0.2V
Standard Charge Current: 30A
Fast Charge Current: 75A
Discharge Specifications:
Standard Discharge Current: 30A
Max Continuous Current: 150A
Peak Current: 800A (300ms)
Cut-off Voltage: 10V
Mechanical Specifications:
Dimensions: 330 × 173 × 216 mm (Group 31)
Approximate Weight: 15.2 kg
Terminal Type: M8
Case Material: Black Plastic (ABS)
IP Rating: IP65 (water and dust resistant)
Cell Type: 3.2V 150Ah solid state cell
Cell Holder: Yes
Temperature Specifications:
Charge Temperature: 0°C to 55°C (32°F to 131°F)
Discharge Temperature: -20°C to 60°C (-4°F to 140°F)
Storage Temperature: -5°C to 45°C (23°F to 113°F)
