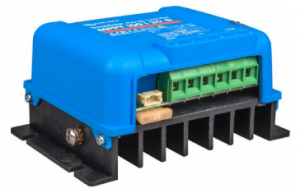

Victron 12V or 24V 20A Solar Controller

Model #: Victron 12V or 24V 20A Solar Controller

Quantity

Product Details

  • SmartSolar MPPT 100/20 Charge Controller
  • Bluetooth Smart Built-in for wireless setup, monitoring, and updates
  • VE.Direct gives a wired connection to a Color Control Panel, PC, or other devices
  • Load Output Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a preset voltage
  • Battery Voltage 12/24VDC
  • Rated Charge Current 15A
  • Nominal PV Power at 12VDC 290W
  • Nominal PV Power at 24VDC 580W
  • Max PV Short Circuit Current 20A
  • Automatic Load Disconnect Yes, maximum load 20A
  • Maximum PV Open Circuit Voltage 100VDC
  • Peak Effiecency 98%
  • Self Consumption 10mA
  • Charge Voltage Absorption 14.4VDC / 28.8VDC (adjustable)
  • Charge Voltage Float 13.8VDC / 27.6VDC (adjustable)
  • Charge Algorithim Multi-stage adaptive
  • Continuous Load Current 20A
  • Low voltage load disconnect 11.1VDC / 22.2VDC or 11.8VDC / 23.6VDC ir Battery Life algorithm
  • Low voltage load reconnect 13.1VDC / 26.2VDC
  • Protection Battery reverse polarity (fuse) / Output short circuit / Over temperature
  • Operating Temperature -30 to +60 deg C
  • Humidity 95% non-condensing
