LiTime 48V 100Ah Server Rack LiFePO4 Solar Battery Bank
Model #: 48V 100Ah Server Rack
Product Details
Product Description for LiTime 48V 100Ah Server Rack LiFePO4 Solar Battery Bank
LiTime 48V 100Ah Server Rack LiFePO4 Deep Cycle Lithium Battery – High-Capacity Rack-Mount Power Solution for Off-Grid Solar, Home Storage, Marine, RV, and Renewable Energy Systems
Elevate your energy storage with the LiTime 48V 100Ah Server Rack LiFePO4 battery (Model: 48V 100Ah Server Rack), a lightweight, rack-mount deep cycle battery designed for demanding off-grid solar, home backup, marine, RV, and renewable energy applications. Delivering 4800Wh of energy with a 100A continuous discharge (280A peak for 5s, 400A for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged environments with a durable SPCC steel enclosure. Key Features:

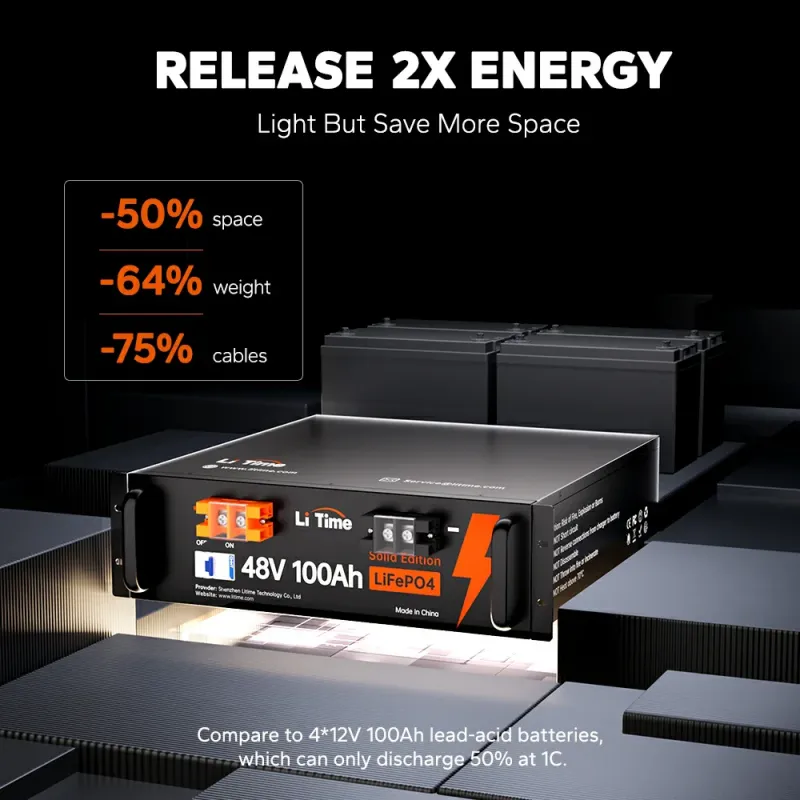

- Rack-Mount Design: Standard 19-inch server rack compatible, ideal for home energy storage and solar systems as a drop-in replacement for 4x 12V 100Ah lead-acid batteries in series.

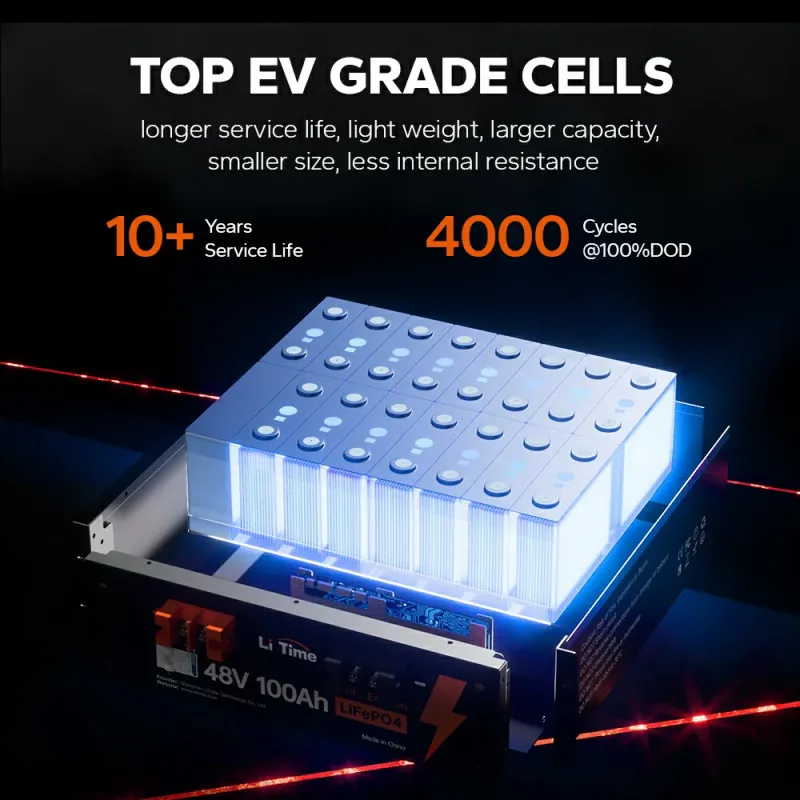

- EV-Grade A Cells: High-quality LiFePO4 cells with 4000 cycles at 100% DOD, 6000 at 80% DOD, and 15000 at 60% DOD for superior reliability and longevity.
- Exceptional Cycle Life: Up to 4,000 cycles at 100% depth of discharge, backed by a 5-year limited warranty for unmatched value and reduced replacement costs.
- Lightweight & Efficient: Only 96.21 lbs with 99% round-trip efficiency and low self-discharge for easy installation and minimal maintenance—no watering or equalization needed.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) for reliable all-season use.
- Safe & Certified: UL-1973, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with no gassing or fumes for eco-friendly, indoor-safe operation.

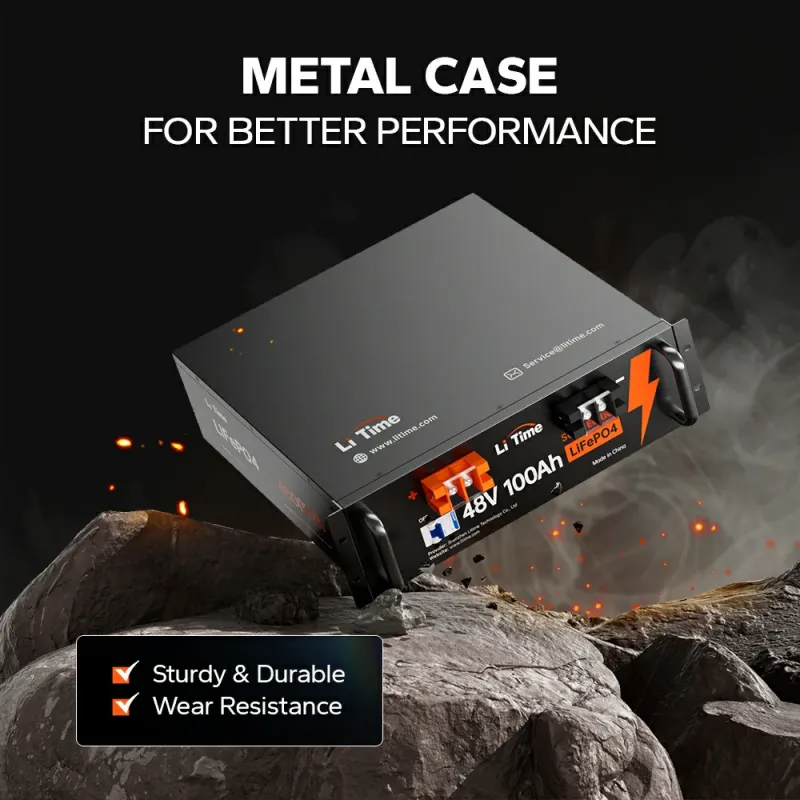

- Rugged SPCC Steel Enclosure: Moisture-proof, salt-spray-resistant metal case with M8 bolt terminals for secure, vibration-resistant connections.

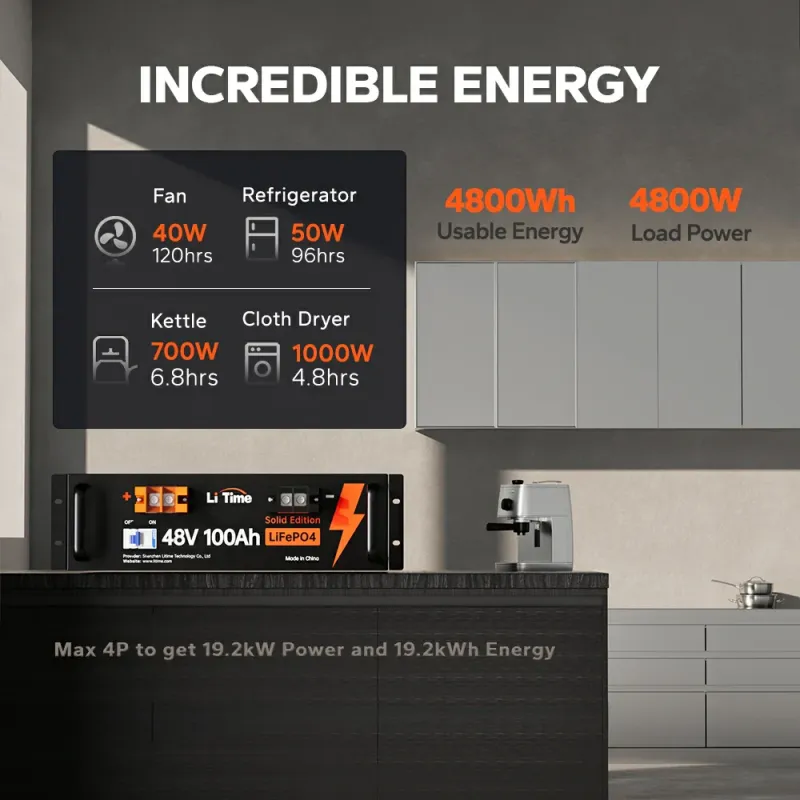

- Scalable & Compatible: Up to 4 in parallel for 19.2kWh systems; pairs seamlessly with Victron, Renogy, and other inverters for expanded 48V setups.
Specifications at a Glance:
- Voltage: 51.2V nominal; Capacity: 100Ah; Energy: 4800Wh.
- Discharge: 100A continuous (4800W), 280A peak (5s), 400A peak (1s); Charge: 100A max.
- Efficiency: 99%; Self-Discharge: Low (<3% per month).
- Dimensions: 19.45 x 17.32 x 5.24 in; Weight: 96.21 lbs (43.64 kg).
- Enclosure: IP20 SPCC Steel; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for off-grid solar banks, home energy storage, marine adventures, or RV excursions, the LiTime 48V 100Ah Server Rack delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
