LiTime 12V 560Ah LiFePO4 Battery for Off Grid Solar System with Low Temp Protection
Model #: 12V 560Ah Solid SKU: 12V560-250-LTCP-8-S560
Product Details
Product Description for LiTime 12V 560Ah LiFePO4 Battery for Off Grid Solar System with Low Temp Protection
LiTime 12V 560Ah LiFePO4 Deep Cycle Lithium Battery – Ultra High-Capacity Low-Temp Protected Power Solution for Off-Grid Solar, Marine, RV, and Home Energy
Systems Elevate your energy storage with the LiTime 12V 560Ah LiFePO4 battery (Model: 12V 560Ah Solid), a lightweight, solid-edition deep cycle battery designed for demanding off-grid solar, marine, RV, home backup, and renewable energy applications. Delivering 7168Wh of energy with a 250A continuous discharge (1000A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced 250A BMS with 20+ protections and low-temp cut-off (charge off below 32°F/0°C, discharge off below -4°F/-20°C, recovery at ≥41°F/5°C) ensures safe, efficient performance in rugged environments with a sturdy SPCC steel housing. Key Features:

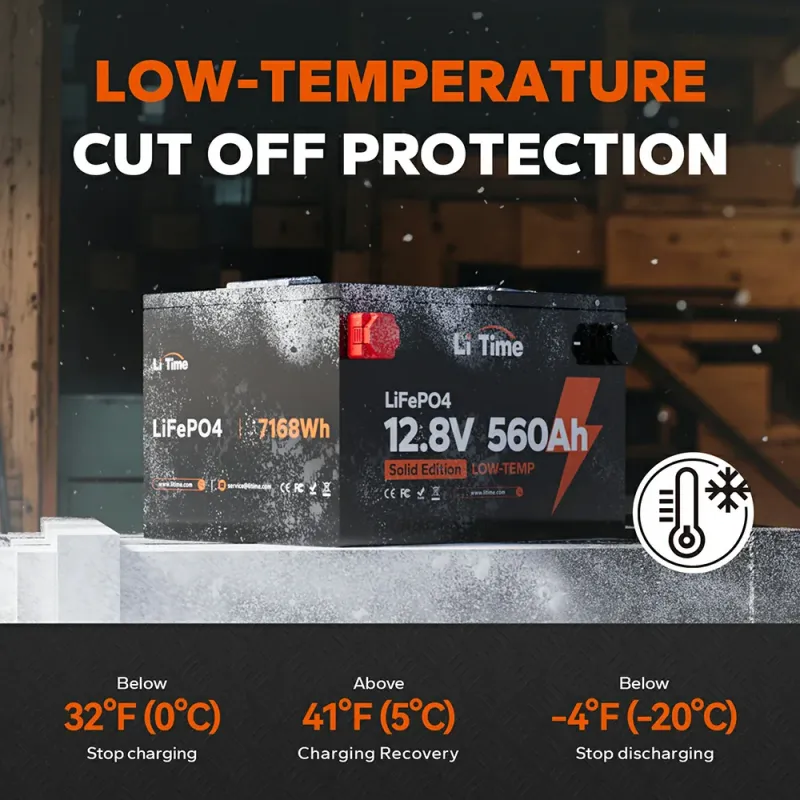

- Low-Temp Protection: Automatic safeguards prevent charging below 32°F and discharging below -4°F, with auto-recovery at 41°F for reliable cold-weather operation.
- Ultra High-Capacity Performance: 250A continuous and 1000A peak discharge, ideal for large solar arrays, trolling motors, or high-drain devices without derating.
- Exceptional Cycle Life: Up to 4,000+ cycles at 100% DoD (6,000+ at 80% DoD, 15,000+ at 60% DoD), backed by a 5-year limited warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 133 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) for reliable all-season use.
- Safe & Certified: UL-1973 tested, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with EV-grade cells for eco-friendly, indoor-safe operation.
- Rugged SPCC Steel Housing: Sturdy, moisture- and salt-spray-resistant enclosure with M8 bolt terminals for secure, vibration-resistant connections.

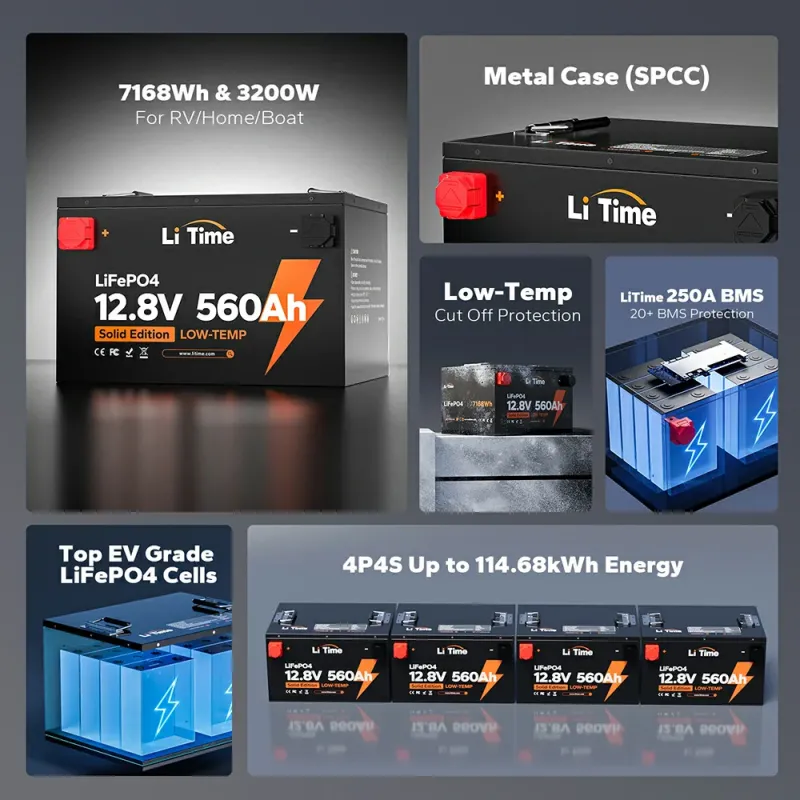

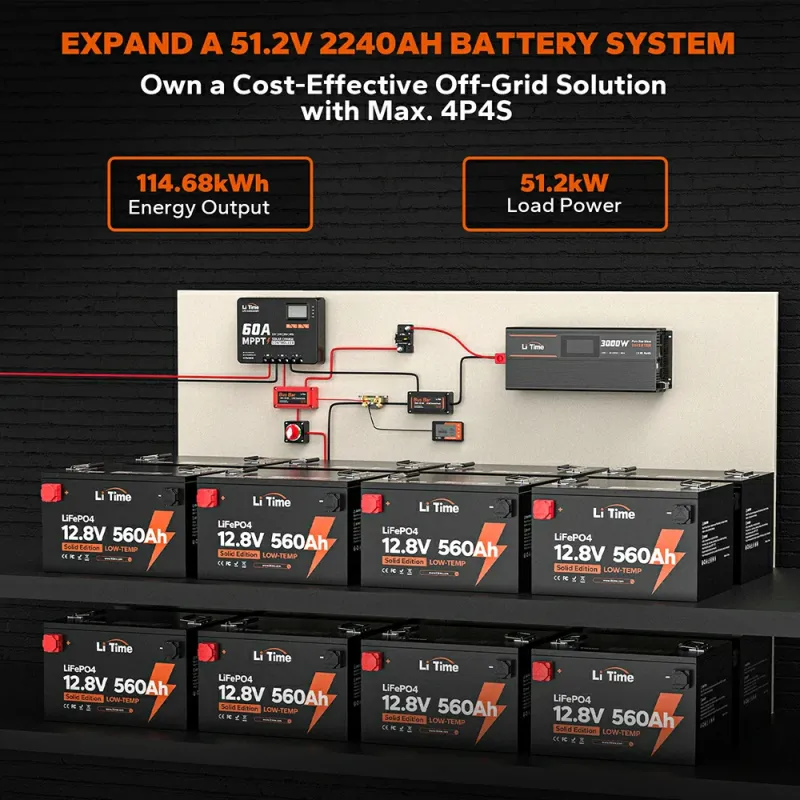

- Scalable & Compatible: Up to 4S4P configuration (114.688kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 560Ah; Energy: 7168Wh.
- Discharge: 250A continuous, 1000A peak (1s); Charge: 250A max.
- Efficiency: 99%; Self-Discharge: <3% per month.

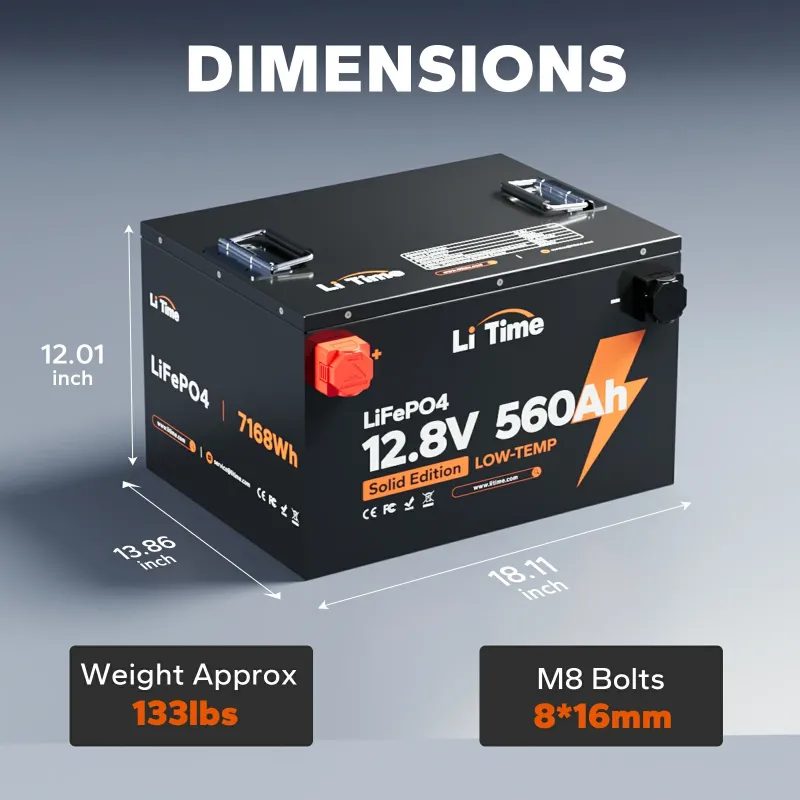

- Dimensions: 18.11 x 15.16 x 11.42 in (459.74 x 385.06 x 290.03 mm); Weight: 133 lbs (60.33 kg).
- Enclosure: SPCC Steel; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for off-grid solar setups, marine adventures, RV excursions, or home backup, the LiTime 12V 560Ah delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
