Renogy PUH 12V 1000W Pure Sine Wave Inverter with UPS Transfer Switch and Built-in Bluetooth
Model #: PUH 12V 1000W SKU: RIV1210PU-126-US
Product Details
Product Description for PUH 12V 3000W/2000W/1000W Pure Sine Wave Inverter with UPS Transfer Switch and Built-in Bluetooth
Renogy PUH 12V 1000W Pure Sine Wave Inverter with UPS Transfer Switch and Built-in Bluetooth – High-Efficiency Power Conversion for RV, Marine, Solar, and Off-Grid Systems
Elevate your power independence with the Renogy PUH 12V 1000W Pure Sine Wave Inverter (Model: PUH 12V 1000W), a versatile, high-performance DC-to-AC converter designed for seamless integration with lithium-ion batteries in demanding RV, marine, solar, and off-grid applications. Delivering 1000W continuous power (2000W surge for 2s) with >92% efficiency and ultra-low THD ≤3%, this inverter provides clean, stable 120V AC output for sensitive electronics and high-demand appliances. Its built-in 30A UPS transfer switch ensures automatic, uninterrupted switching between battery and AC sources in <20ms, while integrated Bluetooth enables real-time monitoring via the Renogy DC Home App for effortless remote control and diagnostics. Key Features:

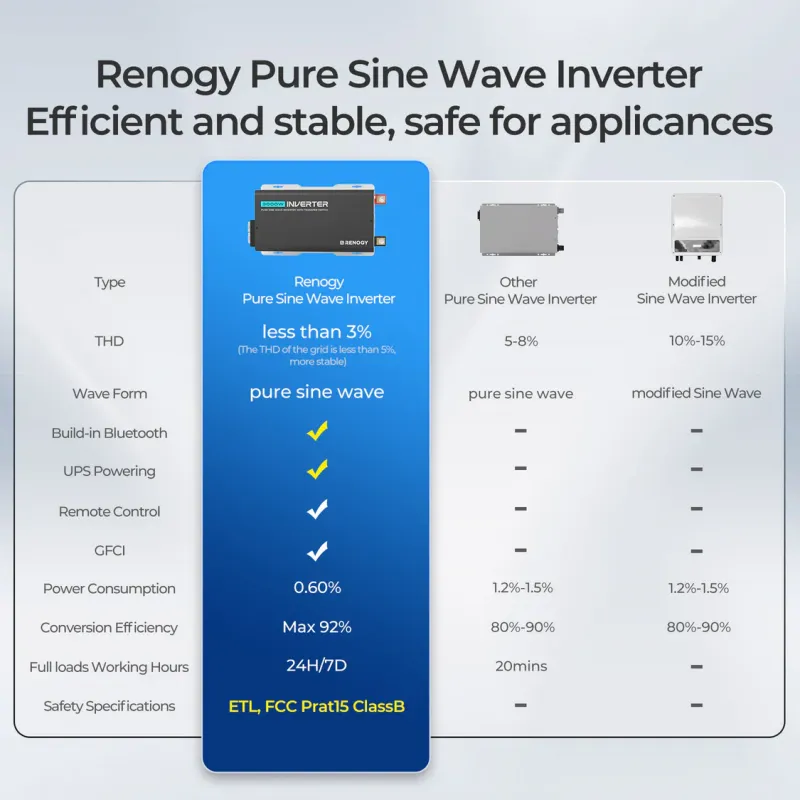

- Pure Sine Wave Output: Clean, stable 120V AC power with ≤3% THD, ideal for sensitive devices like medical equipment, TVs, and laptops without humming or interference.
- UPS Transfer Switch: 30A automatic switching between grid/shore power and battery mode in <20ms for blackout-proof operation, perfect for RVs and marine setups.
- Built-in Bluetooth Monitoring: Connect via Renogy DC Home App (iOS/Android) for real-time data on power production, consumption, voltage, current, and customizable alerts.
- Advanced Protections: Comprehensive safeguards against over-voltage (shutdown at 16.0V), low-voltage (alarm at 11.0V, shutdown at 10.5V), over-current, short-circuit, and overload; thermally controlled fans for quiet cooling (<55dB).
- High Surge Capacity: 2000W peak for 2s to handle motor startups like microwaves, fridges, or power tools without tripping.
- Efficient & Reliable: >92% inverter efficiency (>87% at full load), <18W no-load consumption, and 1.5A power factor for optimal energy use with lithium, AGM, or flooded batteries.
- Remote Control Included: Wired remote with 16.4ft cable for easy on/off and mode switching from a distance.
- Rugged & Certified: IP20-rated aluminum alloy enclosure for durability in harsh environments; operating temperature -4°F to 113°F (-20°C to 45°C); UL458 and FCC Part 15 Class B certified for safety and compliance.
Specifications at a Glance:
- Input Voltage: 12VDC (11-15.5V range); Output Voltage: 120V AC ±3%.
- Continuous Power: 1000W; Surge Power: 2000W (2s); Efficiency: >92%.
- Transfer Switch: 30A; Max Battery Current: 103A.
- Dimensions: 13.5 x 7.9 x 3.5 in (343 x 200 x 89 mm); Weight: 8.4 lbs (3.8 kg).
- Certifications: UL458, FCC Part 15 Class B.
Pair this inverter with our premium lithium-ion batteries and solar panels for a complete, high-efficiency power ecosystem. Whether powering RV adventures, marine voyages, or solar backups, the Renogy PUH 12V 1000W delivers unmatched reliability, smart connectivity, and seamless UPS functionality. Order now and experience Renogy’s innovative power excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
