Xantrex Freedom XC 1000W 12V Inverter/Charger (817-1050)
Model #: 817-1050 SKU: XANTREX-817-1050
Product Details

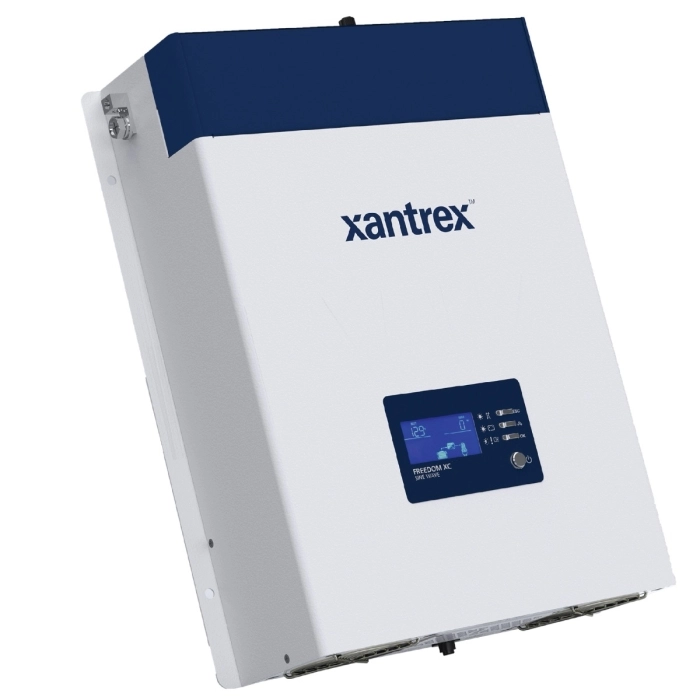

Xantrex Freedom XC 1000W 12V Inverter/Charger (817-1050)
Xantrex Freedom XC 1000W 12V Inverter/Charger (Model: 817-1050) – Compact Pure Sine Wave Power Solution for RV, Marine, and Off-Grid Systems
Elevate your mobile power setup with the Xantrex Freedom XC 1000W 12V Inverter/Charger (Part No: 817-1050), a versatile unit combining a 1000W pure sine wave inverter, 50A multi-stage battery charger, and 30A automatic transfer switch in a compact, lightweight design. Perfect for RV camping, marine applications, and off-grid systems, it delivers clean, reliable power for sensitive electronics and small appliances while efficiently recharging 12V batteries from shore or generator power. With extended surge capacity, wide DC input range, and advanced features like ignition control and configurable settings, it’s ideal for demanding mobile environments. Key Features:
- Pure Sine Wave Inverter: Delivers 1000W continuous (2000W surge for 2 seconds) for clean, stable power, perfect for laptops, TVs, and sensitive devices.
- Multi-Stage Battery Charger: 50A output with customizable profiles for flooded, AGM, gel, or lithium (LiFePO4) batteries, featuring temperature compensation.
- Automatic Transfer Switch: 30A relay switches between inverter and AC input in under 10ms for seamless power transitions.
- Extended Surge Capacity: Handles high startup loads for short durations, ideal for pumps and motors.
- Wide DC Input Range: Operates from 10.1–16.5V DC, supporting lithium battery deep discharges and high-voltage alternators.
- Ignition Control: Prevents operation without vehicle ignition to avoid battery drain.
- Configurable Settings: Adjustable AC input, charge rates, and low battery cut-off via built-in display or optional remote panel.
- Rugged Design: Conformal-coated electronics for corrosion and vibration resistance in harsh environments.
Specifications at a Glance:
- Inverter: 1000W continuous / 2000W surge @ 120V AC, 60Hz; 12V DC input.
- Charger: 50A multi-stage, 12V DC output.
- Transfer Switch: 30A automatic.
- Efficiency: Up to 87%; No-load draw: <1.1A (ignition on).
- Operating Temperature: -20°C to 60°C (-4°F to 140°F).
- Certifications: ETL certified to UL458, CSA C22.2 No. 107.1; FCC Class B.

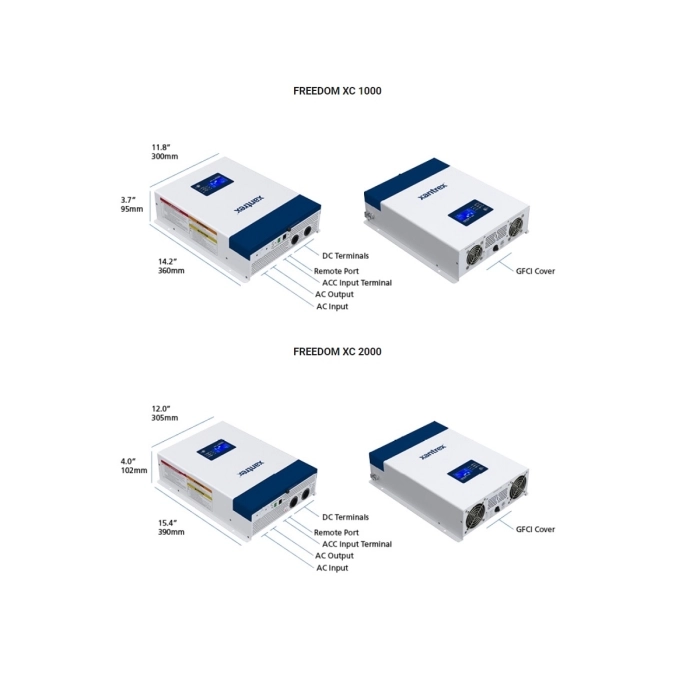

- Dimensions: 14.2" L x 9.7" W x 3.7" H (360 x 246 x 94 mm); Weight: 13.9 lbs (6.3 kg).
Pair this inverter/charger with Xantrex lithium batteries or solar controllers for a complete, high-efficiency power ecosystem. Whether powering your RV adventures, marine voyages, or off-grid setup, the Freedom XC 1000W delivers compact, reliable performance. Order now and experience Xantrex's proven engineering—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
