Vatrer 48V (51.2V) 100Ah Wall-Mounted LiFePO4 Lithium Battery with Smart BMS – 5.12kWh Slim-Profile Storage for Home Solar, RV & Off-Grid
Model #: 48V 100Ah Wall-Mounted Lithium Battery SKU: VT-LFP48V100A-WALL
Product Details
Product Description for Vatrer 48V (51.2V) 100Ah Wall-Mounted Lithium Battery
Vatrer 48V (51.2V) 100Ah Wall-Mounted LiFePO4 Lithium Battery – Slim 5.12kWh High-Density Solution for Home Solar, RV, Marine & Off-Grid Energy Storage
The Vatrer Wall-Mounted is a sleek, space-saving 48V lithium powerhouse designed to mount flush on any wall — perfect for garages, utility rooms, RVs, or marine bulkheads. Delivering 5120Wh of 100% usable energy with a 100A continuous discharge, it integrates seamlessly with solar inverters for whole-home backup, RV house banks, or off-grid cabins. Built with automotive-grade cells and a smart BMS supporting RS485/CAN communication, it's the ideal blend of form, function, and scalability.

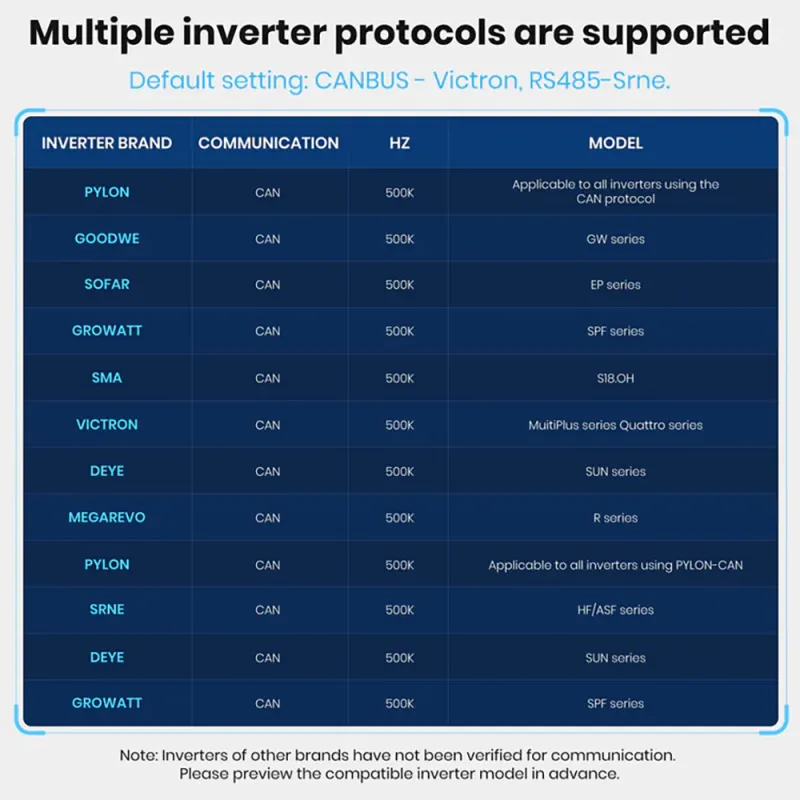

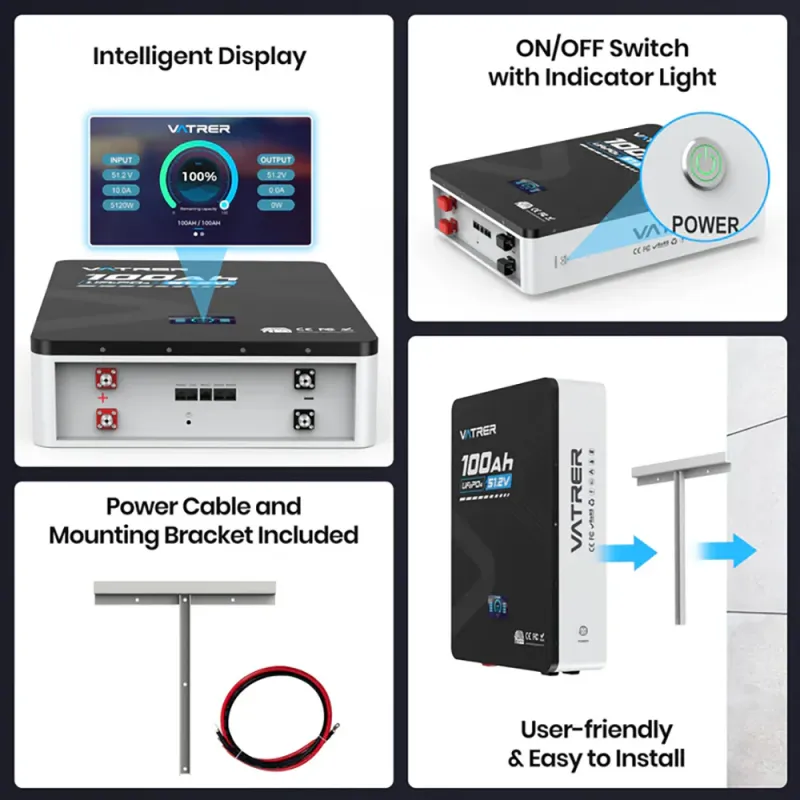

Key Features Slim Wall-Mount Design only 5.9 in deep — saves floor space and blends into any setup. 100% Usable Capacity with 100A continuous / 200A peak discharge — powers 5.12kW loads effortlessly. Smart BMS with RS485, CAN & Bluetooth for compatibility with Victron, Growatt, EG4, and most inverters. 6000+ Cycles at 80% DOD and >99% efficiency for long-term reliability. Parallel Scalable up to 16 units (81.92kWh) — grow your system as needed. Real-Time Monitoring via app or LCD for SOC, voltage, current, and health. Wide Operating Range: discharge -4°F to 140°F, charge 32°F to 122°F. Built-In Safety: overcharge, over-discharge, short-circuit protection with active balancing. Rugged & Reliable steel cabinet, UL1973 (cells), UN38.3, FCC, CE, RoHS certified, 10-year warranty.
Specifications at a Glance Nominal Voltage: 51.2V • Capacity: 100Ah • Energy: 5120Wh (5.12kWh) • Continuous Discharge: 100A • Peak Discharge: 200A (30s) • Max Charge Current: 100A • Efficiency: >99% • Self-Discharge: <3% per month • Dimensions: 23.6 × 16.5 × 5.9 in (600 × 420 × 150 mm) • Weight: 97 lbs (44 kg) • Communication: RS485 / CAN / Bluetooth • Terminals: M8 bolt • Enclosure: Painted steel wall-mount • Certifications: UL1973 (cells), UN38.3, FCC, CE, RoHS • Warranty: 10 years
Pair with our 48V inverters and MPPT controllers for a complete, wall-hugging energy ecosystem. Whether backing up your home solar, powering an RV van conversion, or securing marine electronics, the Vatrer 48V 100Ah Wall-Mounted battery delivers clean, quiet, and compact power. Order now — stocked and ready to ship from lithiumion-batteries.com!
