Vatrer 48V (51.2V) 100Ah Stacked 2 Cells Modular LiFePO4 Battery Pack – All-In-One 5kW Inverter Solution with 6,000+ Cycles & Parallel Up to 6 Units
Model #: 48V 100Ah Stacked Modular LFP Battery Pack SKU: VT-ALLINONE-48V100A-STACK
Product Details
Product Description for Vatrer 48V (51.2V) 100Ah Stacked 2 Cells Modular LFP Battery Pack, All-In-One battery, 5,000W Inverter, 6,000+ Cycles Life, Up to 6 Batteries in Parallel
Vatrer 48V (51.2V) 100Ah Stacked 2 Cells Modular LiFePO4 Battery Pack – Revolutionary All-In-One 5kW Inverter Solution for Solar, Home Backup, RV & Off-Grid
The future of modular energy storage arrives with the Vatrer All-In-One Stacked Battery Pack — a groundbreaking 48V 100Ah LiFePO4 module that integrates a 5,000W pure sine wave inverter, 100A MPPT solar charger, and smart BMS into a single, stackable unit. Delivering 5.12kWh of usable energy per module with 6,000+ cycles, this 2-cell stacked design allows up to 6 units in parallel (30.72kWh total) for scalable power. Perfect for DIY solar systems, home backups, RV conversions, and off-grid cabins — all with zero wiring hassle.

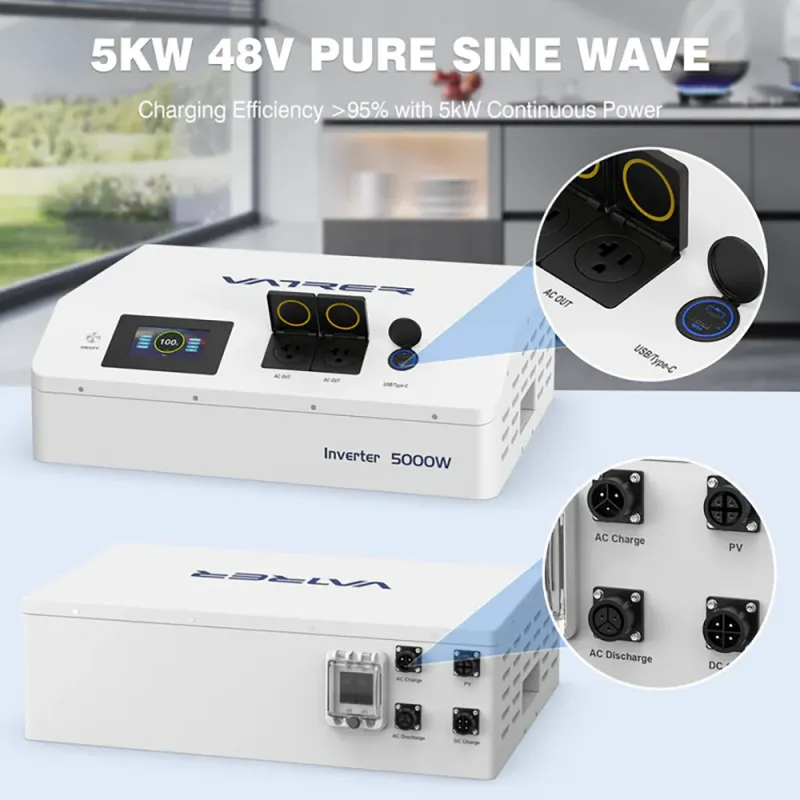

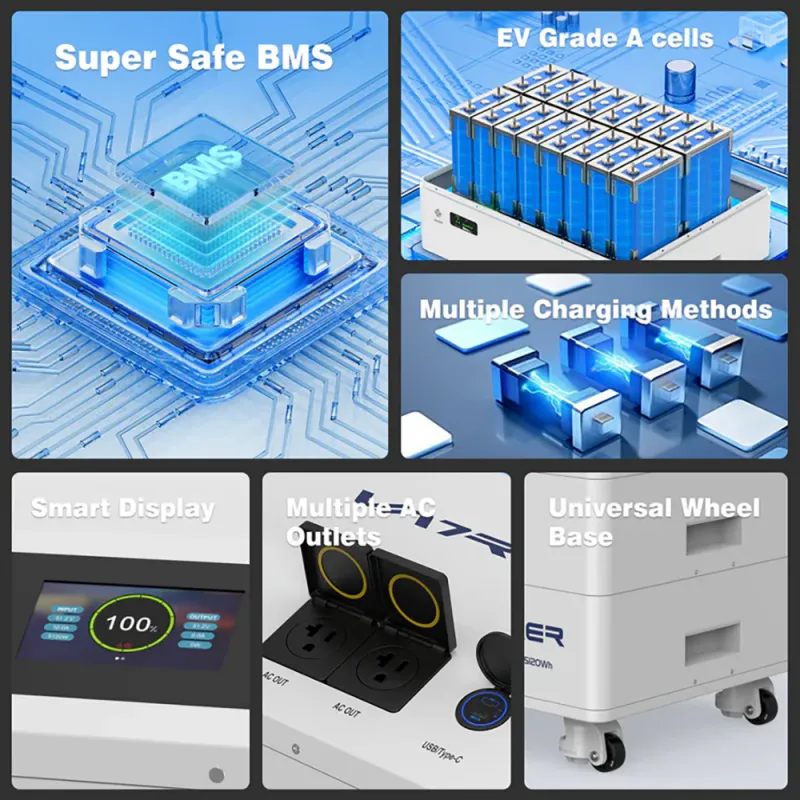

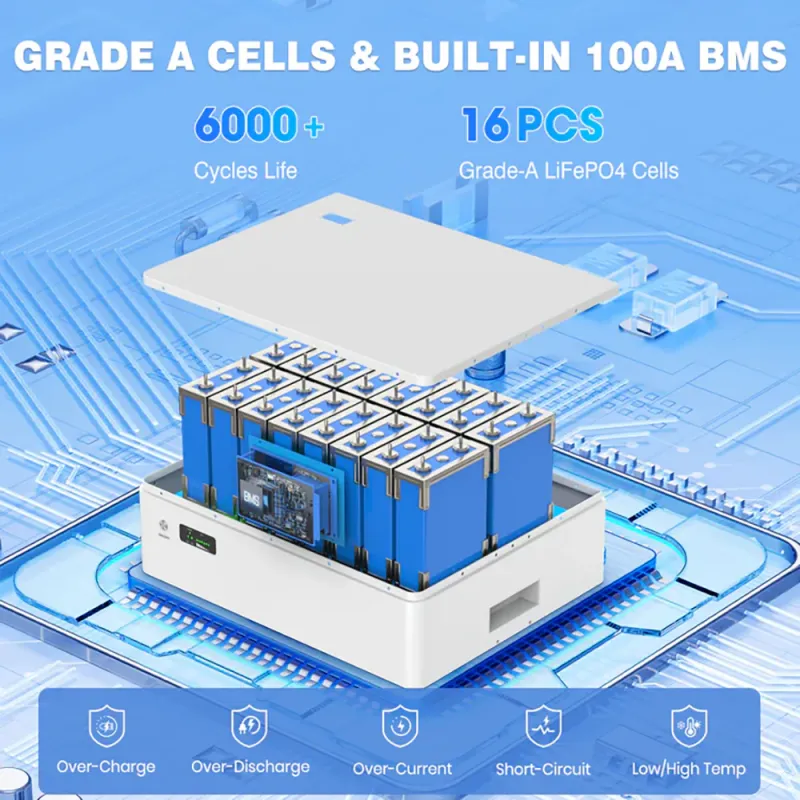

Key Features All-In-One Design – built-in 5kW inverter, 100A MPPT (5500W PV max), and 60A AC charger in one compact module. Stacked Modular Architecture – 2 cells per unit, stack up to 6 for massive capacity and redundancy. 6000+ Cycles at 80% DOD with automotive-grade prismatic cells for unbeatable longevity. Smart BMS with RS485/CAN/Bluetooth – real-time monitoring and compatibility with Victron, Growatt, EG4, Deye. 5kW Pure Sine Wave Output (10kW surge) – powers whole homes, RVs, or appliances seamlessly. Parallel Scalable to 6 Units – up to 30kW inverter output and 30.72kWh storage. Wide Operating Range – discharge -4°F to 140°F, charge 32°F to 122°F. Built-In Safety – overcharge/over-discharge/short-circuit/thermal protection with active balancing. Rugged & Compact – IP65 enclosure, UL1973 (cells), UN38.3, FCC, CE certified, 10-year warranty.

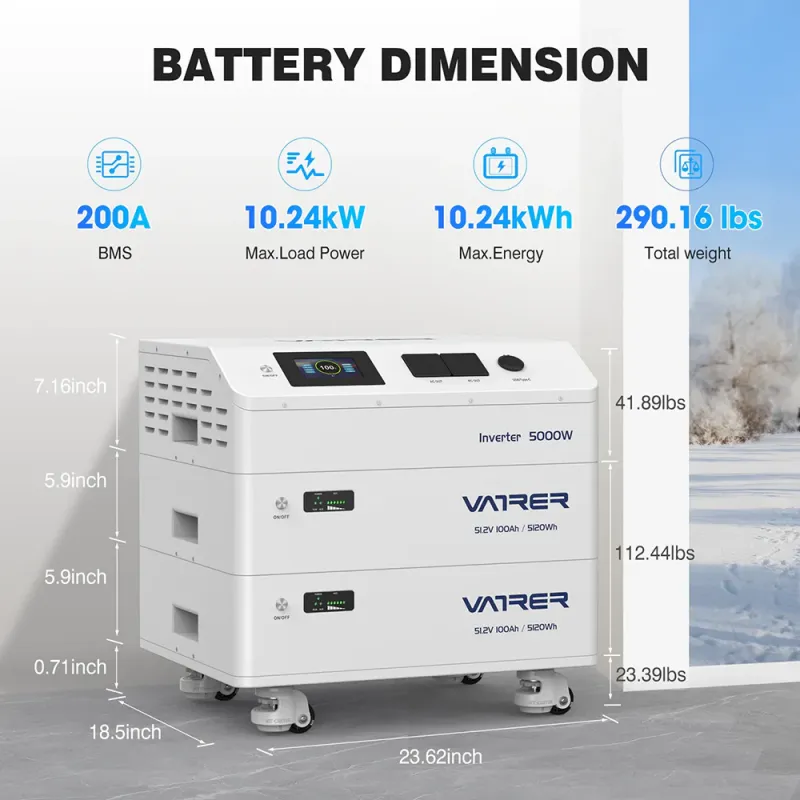

Specifications at a Glance Nominal Voltage: 51.2V • Capacity: 100Ah • Energy: 5120Wh (5.12kWh) • Continuous Output: 5000W • Surge Output: 10,000W • MPPT Solar Input: 100A / 5500W max (120–450V) • AC Charger: 60A • Efficiency: >95% • Cycles: 6000+ at 80% DOD • Dimensions: 23.6 × 16.5 × 7.9 in (per module) • Weight: 99 lbs (per module) • Communication: RS485 / CAN / Bluetooth • Terminals: M8 • Enclosure: IP65 steel • Certifications: UL1973 (cells), UN38.3, FCC, CE • Warranty: 10 years
Revolutionize your energy setup with true modular freedom — no separate components, just stack and power. Whether building a massive home solar fortress or a mobile RV command center, the Vatrer Stacked All-In-One delivers commercial-grade performance in a residential package. Order now — stocked and ready to ship from lithiumion-batteries.com!
