SunGold Power 6.5kW 48V Split Phase Solar Inverter – SPH6548P 100A MPPT Hybrid Inverter (Only Inverter) for Off-Grid, Grid-Tie & Whole-Home Backup
Model #: SPH6548P SKU: SPH6548P
Product Details
Product Description for SunGold Power 6.5kW 48V Split Phase Solar Inverter SPH6548P 100A MPPT (Only Inverter)
SunGold Power 6.5kW 48V Split Phase Solar Inverter – SPH6548P 100A MPPT Hybrid Inverter (Only Inverter) for Off-Grid, Grid-Tie & Whole-Home Backup

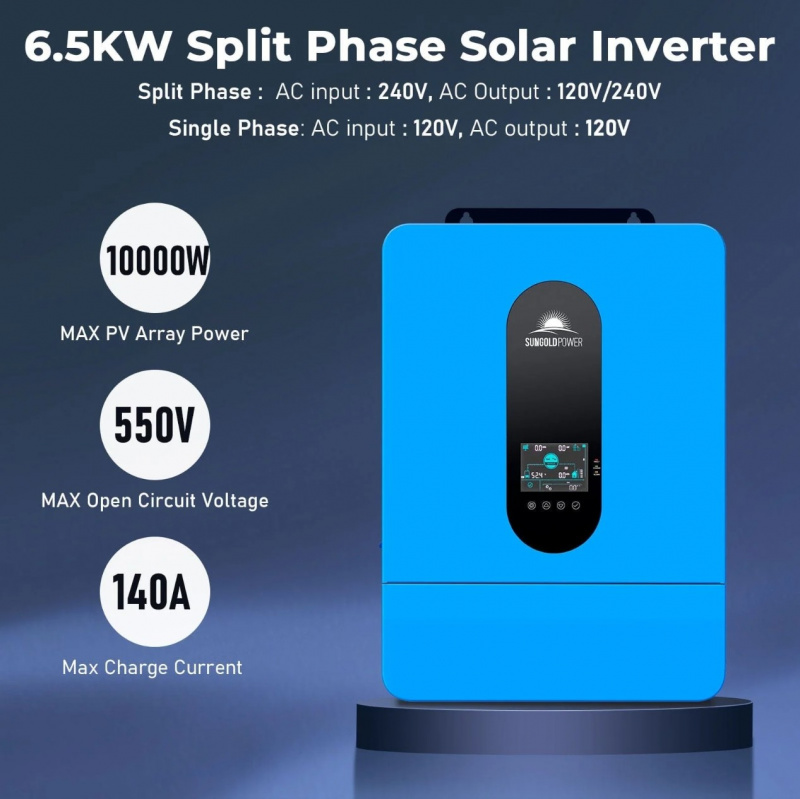

The SunGold Power SPH6548P is a high-power, all-in-one hybrid solar inverter with integrated 100A MPPT charge controller, designed for demanding off-grid, grid-tie, and backup power systems. With true 120V/240V split-phase output and robust 48V battery compatibility, it's ideal for whole-home backup, large RV setups, cabins, workshops, or off-grid living (batteries and panels sold separately).

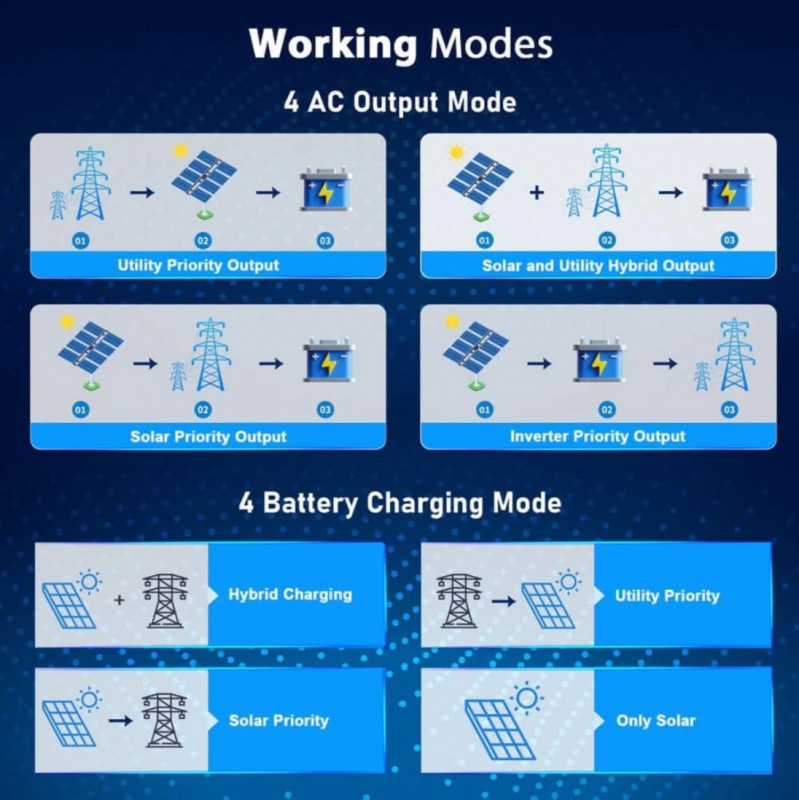

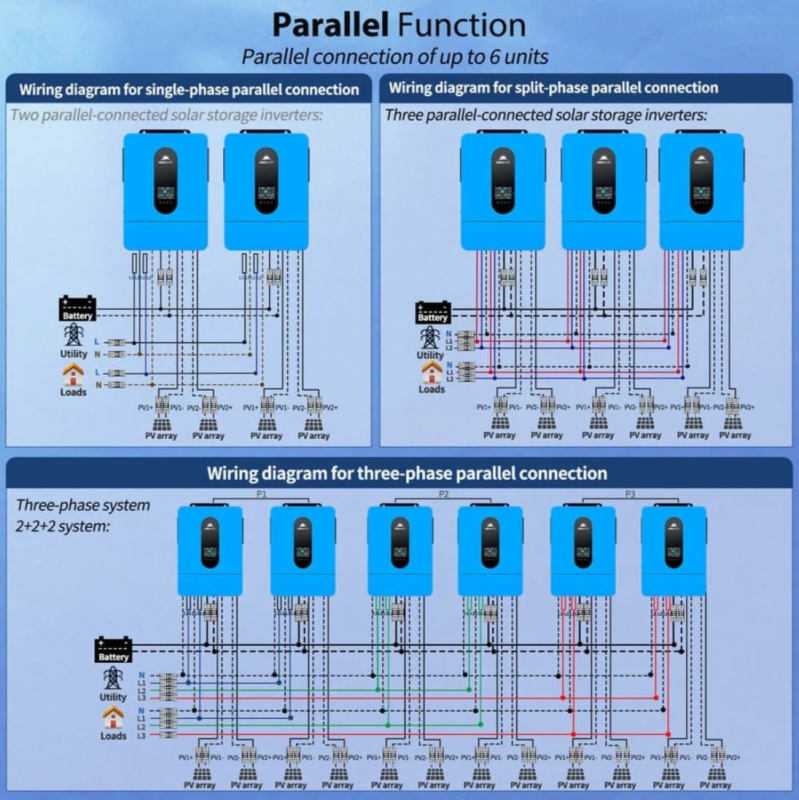

Key Features • 6500W Continuous Output – True 120V/240V split-phase with high surge for heavy loads like central AC, well pumps, dryers, and full-home appliances. • 100A MPPT Charge Controller – Efficient solar charging with up to high PV input voltage for maximum renewable harvest. • Hybrid Functionality – Works off-grid, grid-tie, or as backup with automatic transfer switch. • 48V Battery Input – Compatible with lithium (LiFePO4), AGM, gel, or flooded batteries. • Built-in Protections – Overload, over-temperature, short-circuit, low-battery, and reverse polarity safeguards. • Advanced Monitoring – LCD display and Wi-Fi monitoring for real-time system status. • Parallel Capable – Stack multiple units for increased power output. • Rugged & Reliable – Durable construction for indoor/outdoor use with cooling fans.
Specifications at a Glance Output Power: 6500W continuous / high surge • Voltage: 48VDC input, 120/240V AC split-phase output • MPPT Charger: 100A • PV Input: High-capacity (specific max per spec sheet) • Efficiency: >95% • Dimensions: ~20.0 × 15.0 × 8.0 in • Weight: ~60 lbs • Operating Temp: Wide range with protections • Warranty: Manufacturer warranty
Whether for whole-home backup, large off-grid systems, or grid-tie with battery storage, the SunGold Power SPH6548P (inverter only) delivers professional-grade reliability and performance. Order now — stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the manual linked on the product page.)
