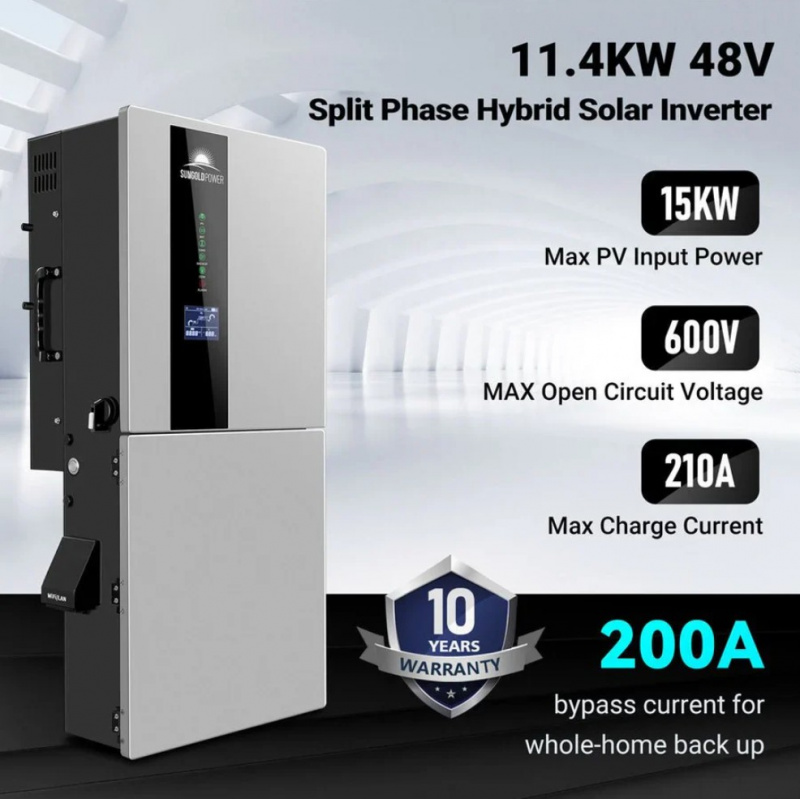

Sungold Power 11.4kW 48V Split Phase Hybrid Solar Inverter – SGN-11K15PRO 200A Whole-Home Backup Inverter for Off-Grid, Grid-Tie & Large Solar Systems
Model #: SGN-11K15PRO SKU: SGN-11K15PRO
Product Details
Product Description for Sungold Power 11.4kW 48V Split Phase Hybrid Solar Inverter Whole Home Backup 200A SGN-11K15PRO
Sungold Power 11.4kW 48V Split Phase Hybrid Solar Inverter – SGN-11K15PRO 200A Whole-Home Backup Inverter for Off-Grid, Grid-Tie & Large Solar Systems
The Sungold Power SGN-11K15PRO is a high-power, all-in-one hybrid solar inverter designed for residential and light commercial applications. With 11.4kW output, massive PV input, and 200A charging capability, it's ideal for whole-home backup, large off-grid systems, cabins, workshops, or grid-tie with battery storage.

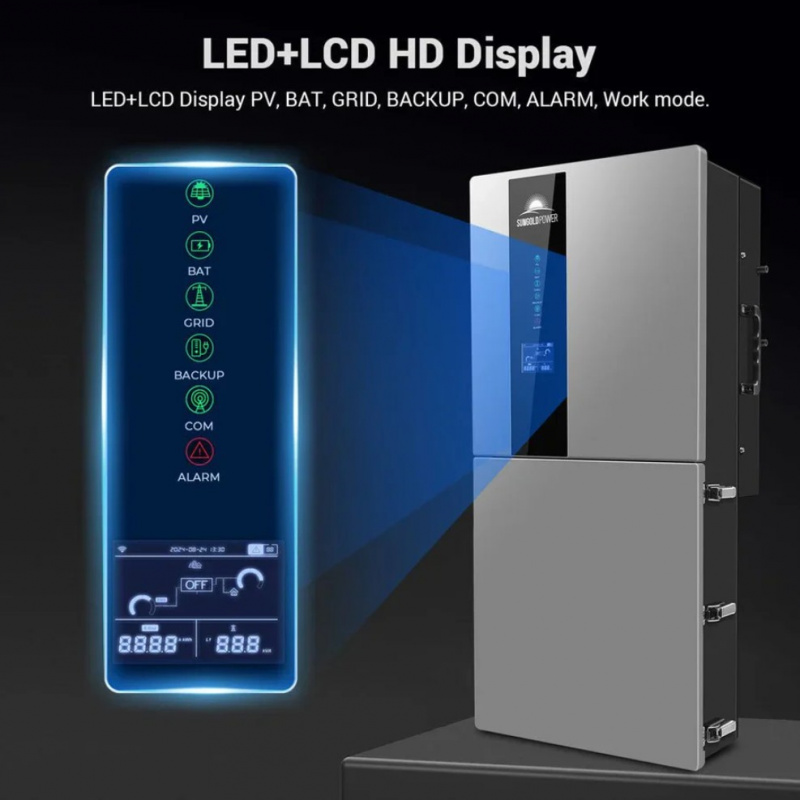

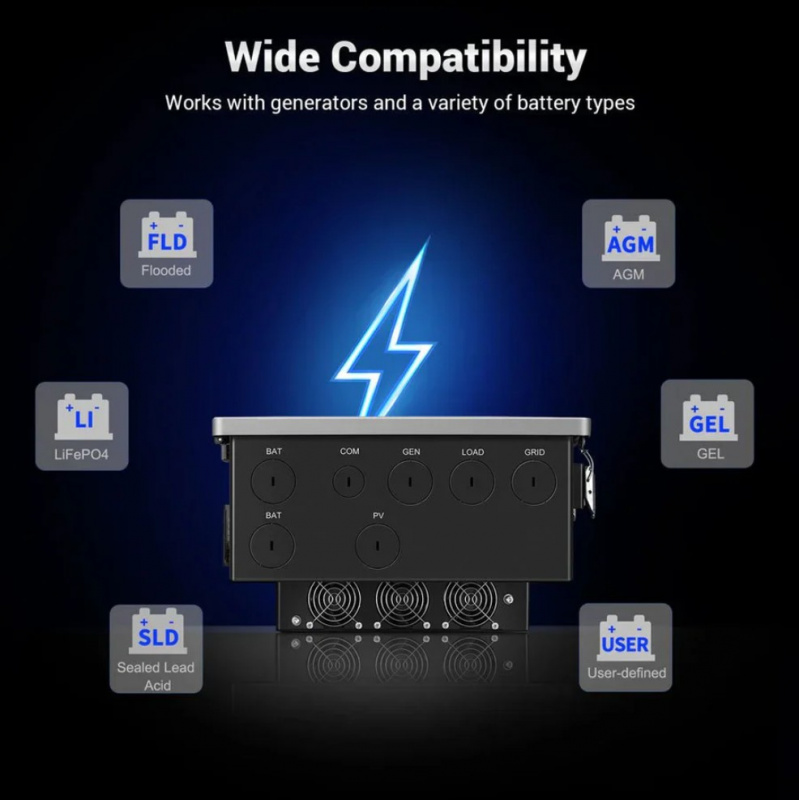

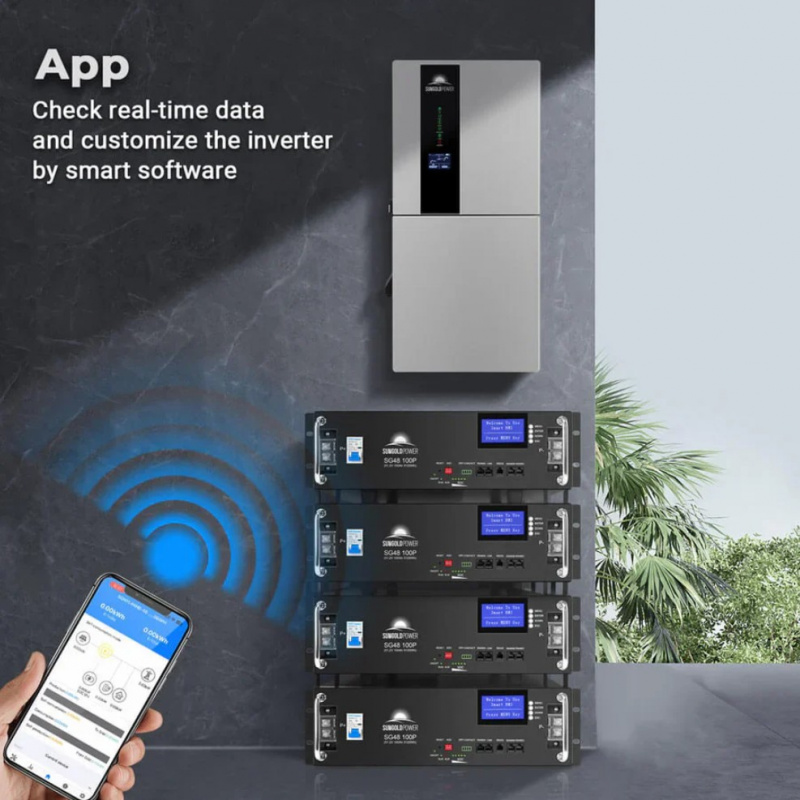

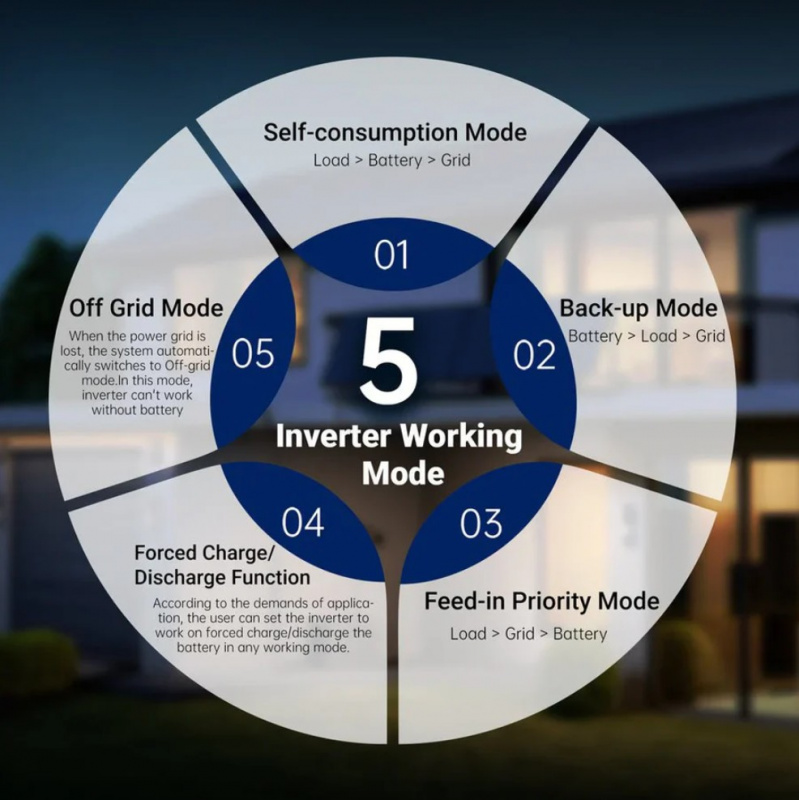

Key Features • 11.4kW Continuous Output – True 120V/240V split-phase with high surge for heavy loads like central AC, well pumps, dryers, and full-home appliances. • 200A High-Current Charger – Rapid charging for large 48V battery banks from AC or generator sources. • Hybrid Functionality – Works off-grid, grid-tie, or as backup with automatic transfer switch. • 48V Battery Input – Compatible with lithium (LiFePO4), AGM, gel, or flooded batteries. • High PV Input – Supports large solar arrays with dual MPPTs for maximum renewable harvest. • Built-in Protections – Overload, over-temperature, short-circuit, low-battery, and reverse polarity safeguards. • Advanced Monitoring – LCD display and optional app/Wi-Fi for real-time system status. • Rugged & Reliable – Durable construction for indoor/outdoor use with cooling fans.
Specifications at a Glance Output Power: 11.4kW continuous / high surge • Voltage: 48VDC input, 120/240V AC split-phase output • Charger: 200A integrated • PV Input: High-capacity dual MPPT • Efficiency: >95% • Dimensions: ~24.0 × 16.0 × 10.0 in • Weight: ~80 lbs • Operating Temp: Wide range with protections • Warranty: Manufacturer warranty
Whether for whole-home backup, large off-grid systems, or grid-tie with battery storage, the Sungold Power SGN-11K15PRO delivers professional-grade reliability and performance. Order now — stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the manual linked on the product page.)
