Sungold Power 10KW 48V Split Phase Solar Inverter – 10000W Hybrid Inverter with 48V Battery Input for Off-Grid, Grid-Tie & Whole-Home Backup
Model #: 10KW 48V Split Phase SKU: SG10K-48V-SP
Product Details
Product Description for Sungold Power 10KW 48V Split Phase Solar Inverter – 10000W Hybrid Inverter
Sungold Power 10KW 48V Split Phase Solar Inverter – 10000W Hybrid Inverter with 48V Battery Input for Off-Grid, Grid-Tie & Whole-Home Backup

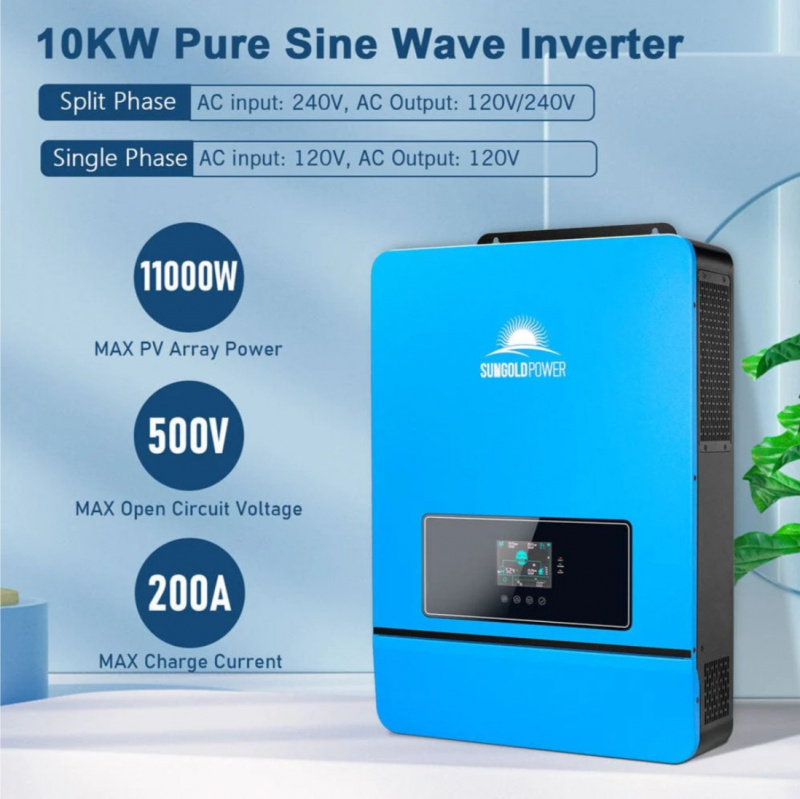

The Sungold Power 10KW 48V Split Phase Solar Inverter is a high-power, hybrid inverter designed for demanding off-grid, grid-tie, and backup power systems. With true 120V/240V split-phase output and robust 48V battery compatibility, it's ideal for whole-home backup, large RV setups, cabins, workshops, or off-grid living.

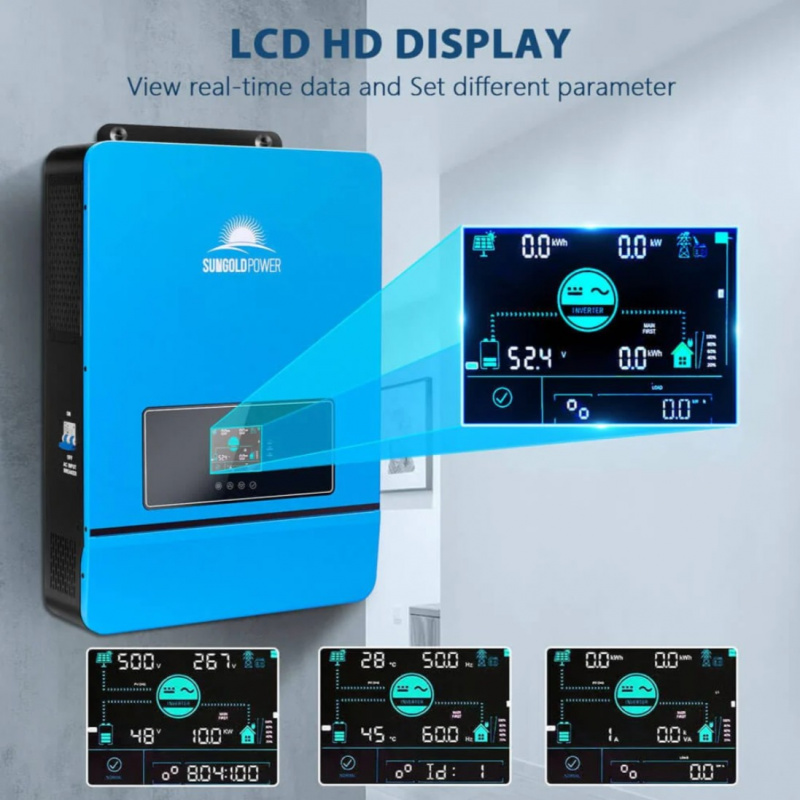

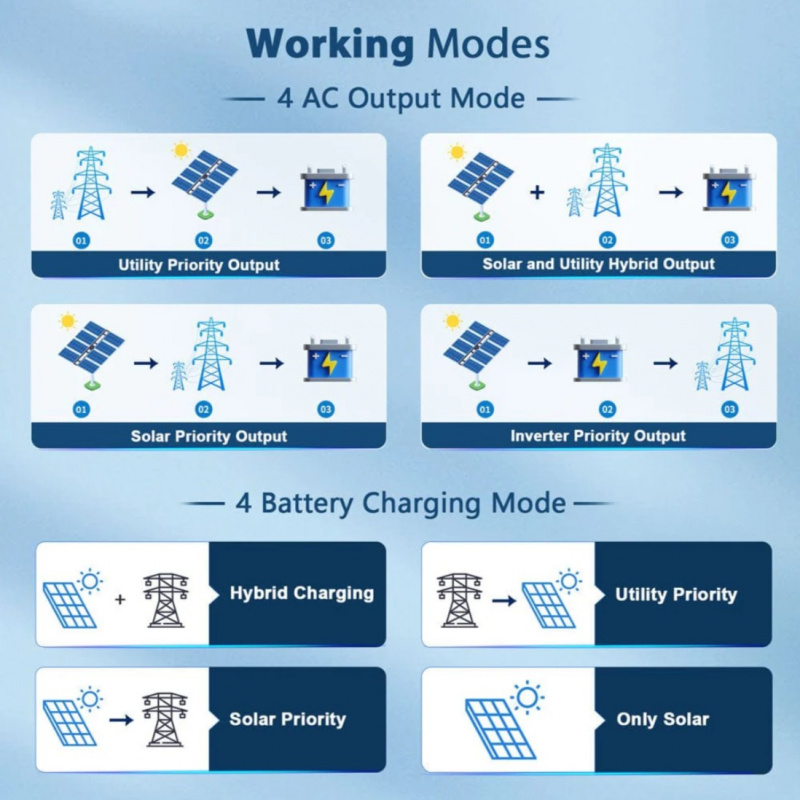

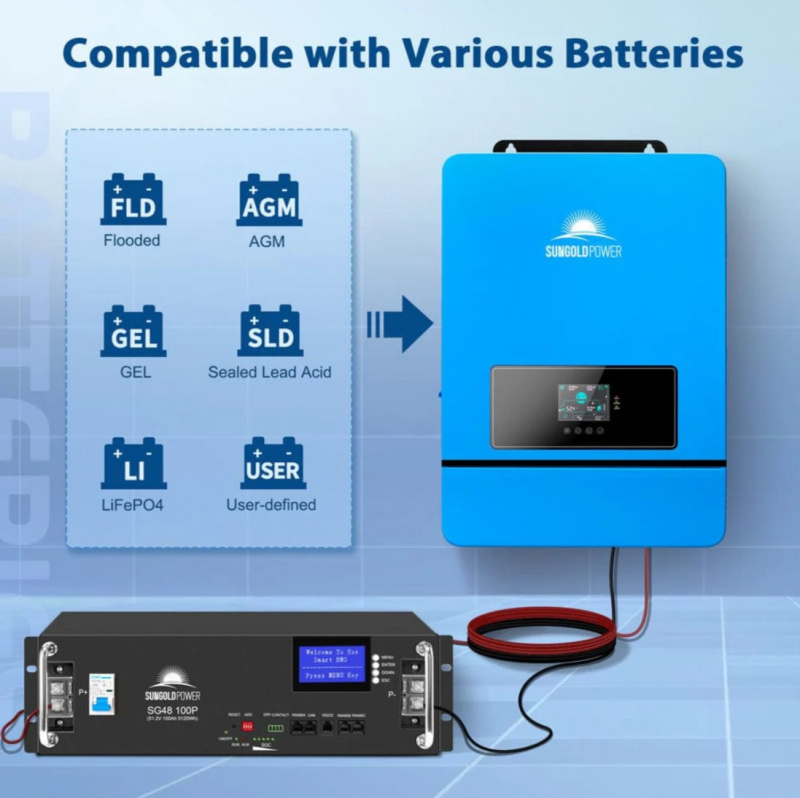

Key Features • 10000W Continuous Output – True 120V/240V split-phase with high surge capability for heavy loads like central AC, well pumps, dryers, and full kitchens. • Hybrid Functionality – Works off-grid, grid-tie, or as a backup system with automatic transfer switch. • 48V Battery Input – Compatible with lithium, AGM, gel, or flooded batteries (LiFePO4 recommended). • High Solar Input – Supports large PV arrays for fast renewable charging (specific max varies by config). • Built-in MPPT Charge Controller – Efficient solar charging directly from panels. • Multiple Protection Layers – Overload, over-temperature, short-circuit, low-battery, and reverse polarity safeguards. • Smart Monitoring – LCD display and optional app/Wi-Fi for remote monitoring. • Durable Design – Rugged construction for indoor/outdoor use with cooling fans.
Specifications at a Glance Output Power: 10000W continuous / high surge • Voltage: 48VDC input, 120/240V AC split-phase output • Charger: Integrated high-current • Solar Input: High-capacity MPPT • Ports: Multiple AC, DC, PV inputs • Efficiency: >95% • Dimensions: ~24.0 × 16.0 × 10.0 in • Weight: ~80 lbs • Operating Temp: Wide range with protections • Warranty: Manufacturer warranty
Whether for whole-home backup, large off-grid systems, or heavy-duty RV power, the Sungold Power 10KW 48V Split Phase Inverter delivers robust, reliable energy. Order now — stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the manual linked on the product page.)
