Renogy Solar Suitcase N-Type 300W Lightweight Portable Solar Panel – High-Efficiency Foldable Anti-Shading Monocrystalline Panel for RV, Camping, and Off-Grid Systems
Model #: N-Type 300W Lightweight Portable Solar Suitcase SKU: RSP300LSC-N-US
Product Details
Product Description for Renogy Solar Suitcase N-Type 300W 100W Lightweight Portable Solar Panel
Renogy Solar Suitcase N-Type 300W Lightweight Portable Solar Panel – High-Efficiency Foldable Anti-Shading Monocrystalline Panel for RV, Camping, and Off-Grid Systems

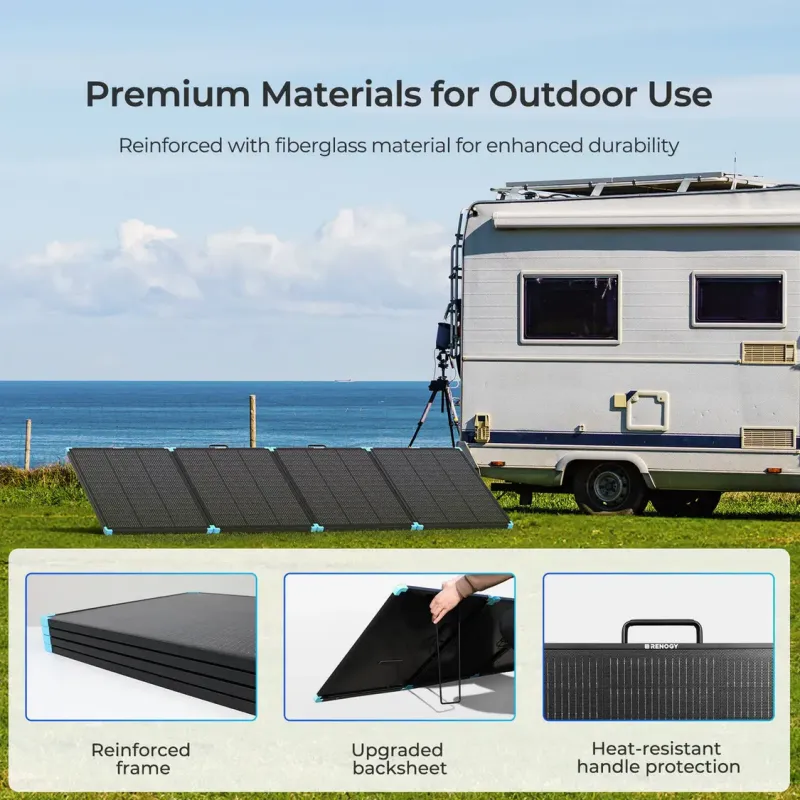

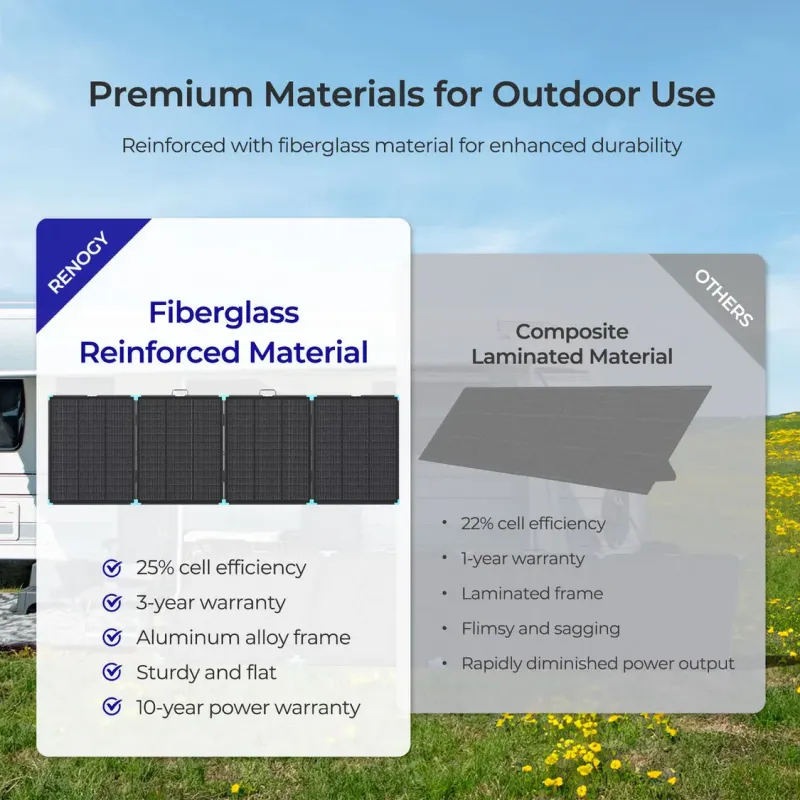

Elevate your portable energy harvest with the Renogy Solar Suitcase N-Type 300W Lightweight Portable Solar Panel, a sleek, foldable monocrystalline panel featuring advanced N-Type TOPCon cell technology for superior shading tolerance and performance in real-world conditions. Designed for demanding RV, camping, marine, and off-grid applications, this lightweight suitcase delivers 300W of high-efficiency output (up to 23% cell efficiency) with minimal power loss from partial shading—up to 80% more output in shaded scenarios compared to traditional panels. Its ETFE coating and fiberglass reinforcement ensure durability against harsh weather, light hail, rust, scratches, and stains, while IP67-rated protection and IP68 solar connectors provide weatherproof reliability. Aluminum kickstands enable quick, stable setup, and parallel wiring minimizes shading losses for consistent performance. Key Features:
- N-Type Anti-Shading Technology: TOPCon cells with integrated bypass diodes maintain 80%+ performance even with 50% shading from trees, awnings, or debris, ideal for portable use.

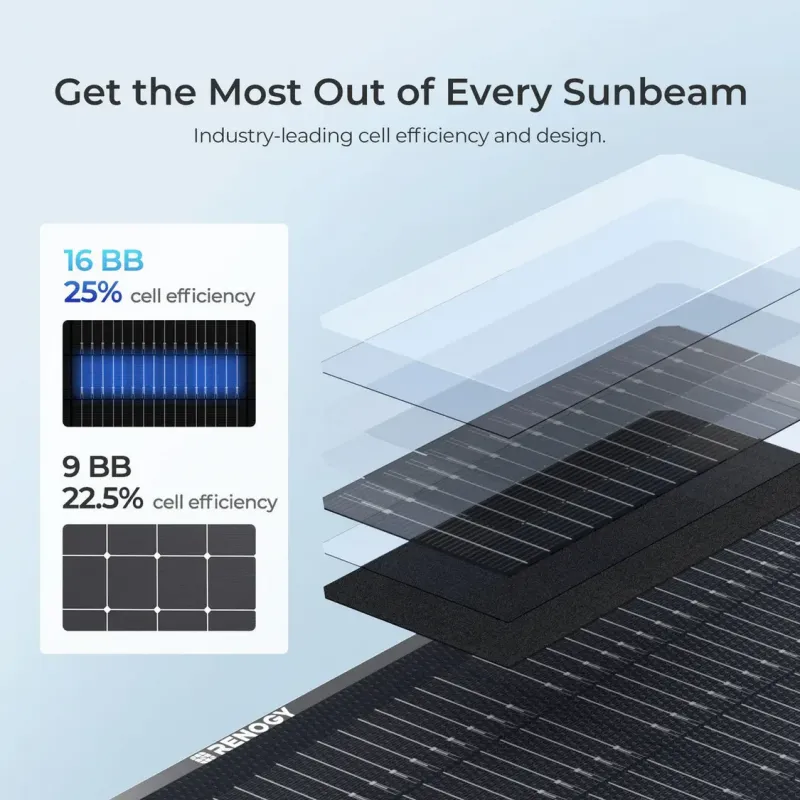

- High-Efficiency Monocrystalline Cells: 23% cell efficiency with low LID/LETID degradation (<1% first year, 0.4% annual) for maximum energy yield in low-light and high-temperature environments.
- Portable & Foldable Design: Folds to 27.9 x 33.7 x 3.2 in for easy transport; weighs only 28.7 lbs with protective case and corner guards for impact resistance during travel.

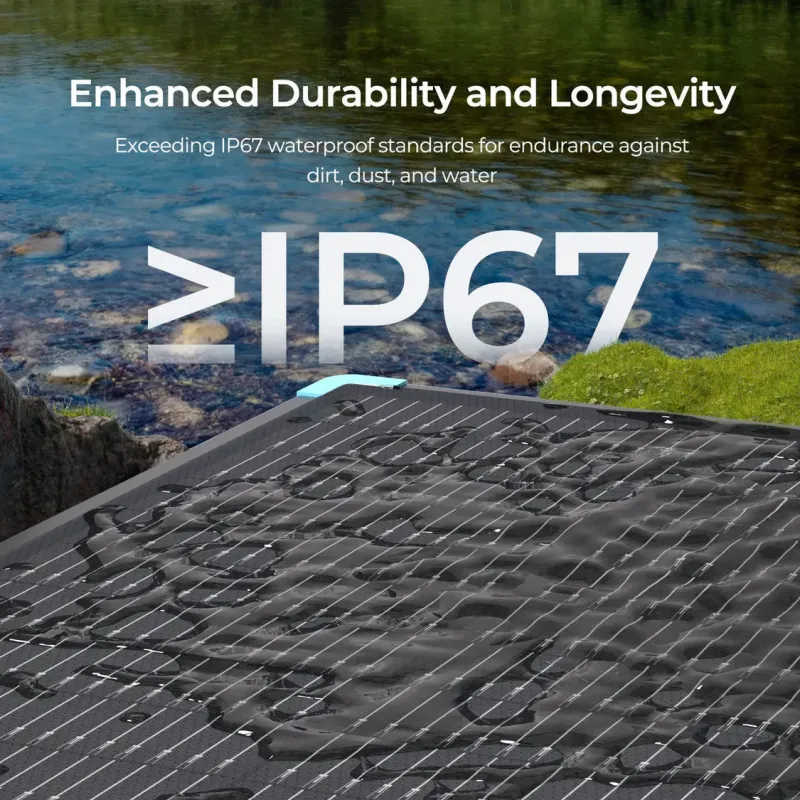

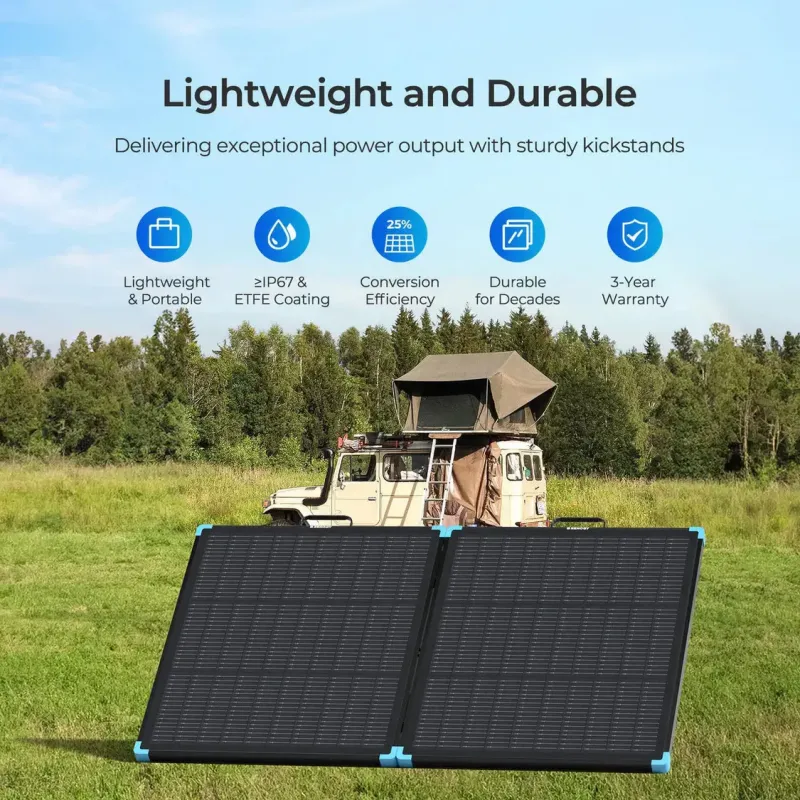

- Rugged Durability: ETFE top layer for UV and scratch resistance; ≥IP67 enclosure rating for dust and water resistance in extreme conditions from -40°F to 185°F.

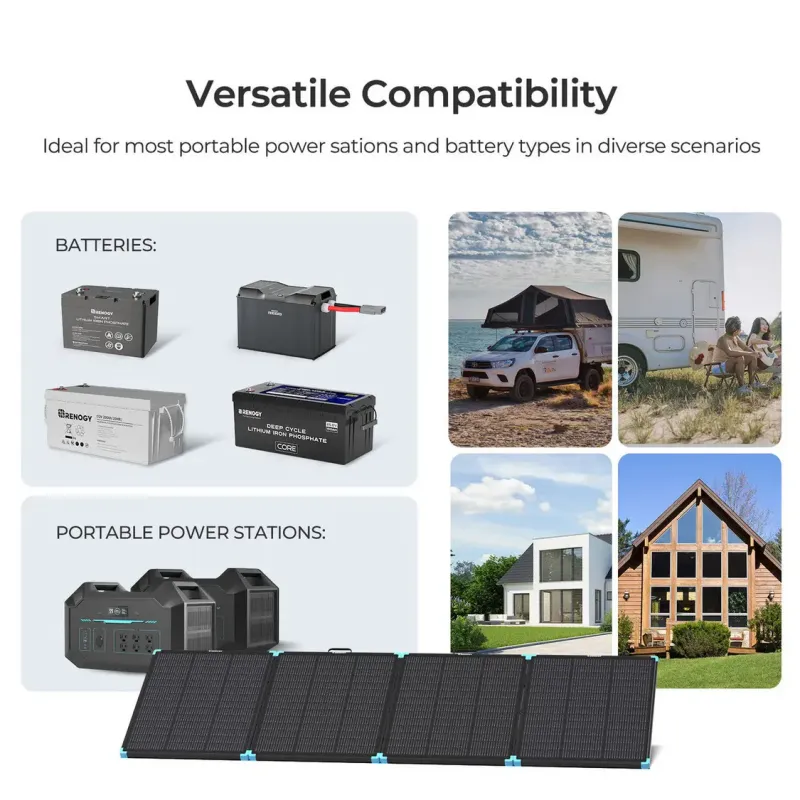

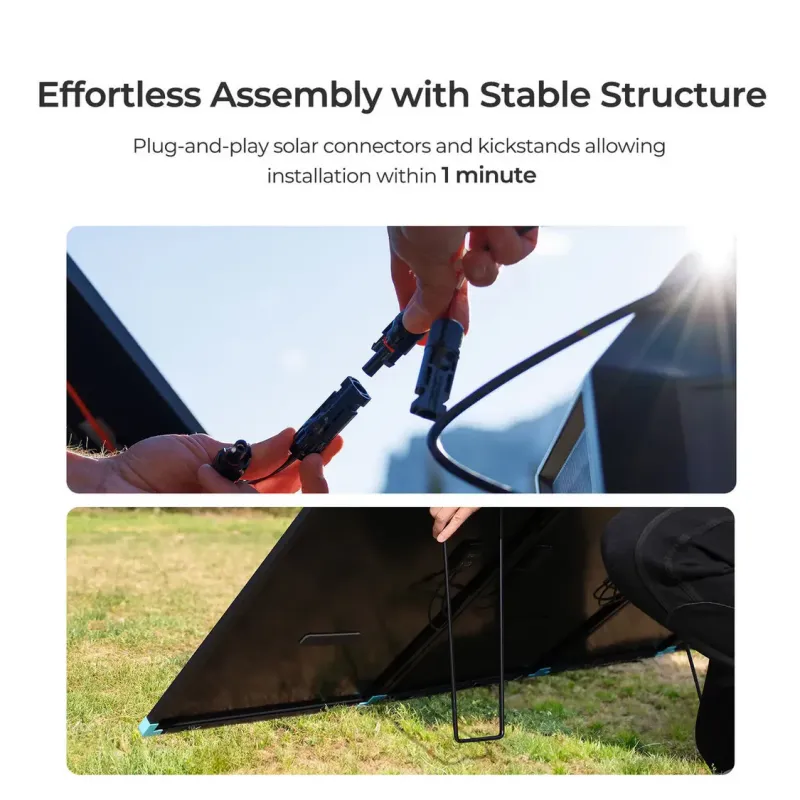

- Easy Setup & Versatility: Built-in aluminum kickstands for adjustable angles; parallel wiring ensures uninterrupted output in shaded scenarios; compatible with most portable power stations (DC input >48V) and requires a separate charge controller.
- Safe & Certified: Maximum system voltage 600VDC; 15A series fuse rating; RoHS compliant with MC4 connectors for secure, weatherproof connections; UL 61730, IEC 61215/61701 certified.

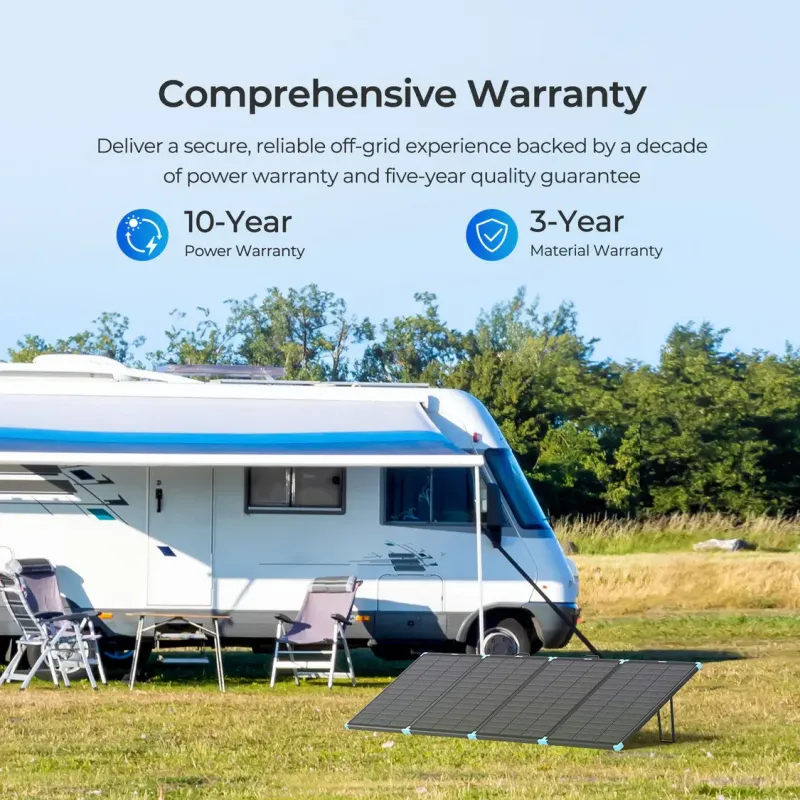

- Long-Term Reliability: Expected 10-year lifespan maintaining ≥80% output; backed by a 5-year material/workmanship warranty for peace of mind.
Specifications at a Glance:
- Rated Power: 300W; Open Circuit Voltage: 47.2V; Optimum Operating Voltage: 40V; Short Circuit Current: 8.25A; Optimum Operating Current: 7.5A.
- Efficiency: 23%; Dimensions (Unfolded): 111.8 x 33.7 x 0.8 in (2838 x 855 x 20 mm); Folded: 27.9 x 33.7 x 3.2 in (708 x 855 x 80 mm); Weight: 28.7 lbs (13 kg).
- Enclosure: IP67; Connectors: IP68 MC4.
Pair this solar suitcase with our premium lithium-ion batteries, charge controllers, and inverters for a complete, sustainable portable power ecosystem. Whether for RV road trips, camping adventures, or emergency backups, the Renogy Solar Suitcase N-Type 300W delivers unmatched portability, shading resistance, efficiency, and durability. Order now and power your journey with Renogy’s innovative solar excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
