Renogy Solar Suitcase 220W Lightweight Portable Foldable Monocrystalline Solar Panel – High-Efficiency Power for RV, Camping, and Off-Grid Systems
Model #: 220W Lightweight Portable Solar Suitcase SKU: RSP220LSC-US
Product Details
Product Description for Renogy Solar Suitcase 220W Lightweight Portable Solar Panel
Renogy Solar Suitcase 220W Lightweight Portable Foldable Monocrystalline Solar Panel – High-Efficiency Power for RV, Camping, and Off-Grid Systems
Elevate your portable energy harvest with the Renogy Solar Suitcase 220W Lightweight Portable Solar Panel, a durable, reliable, and foldable monocrystalline design engineered for effortless power on the go in RV, camping, marine, and off-grid applications. Delivering 220W of high-efficiency output (22.7% cell efficiency) with a compact folded design, this suitcase unfolds to capture maximum sunlight via advanced ETFE coating and superior fiberglass reinforcement, ensuring exceptional durability against harsh weather, light hail, rust, scratches, and stains. Its IP68-rated protection and MC4 connectors provide weatherproof reliability, while robust aluminum kickstands enable quick, stable setup in just 1 minute; parallel wiring minimizes shading losses for consistent performance even in partial cover. Key Features:
- High-Efficiency Monocrystalline Cells: 22.7% cell efficiency with compact layout for superior power density; open circuit voltage of 47.2V and optimum operating voltage of 40V for versatile compatibility.

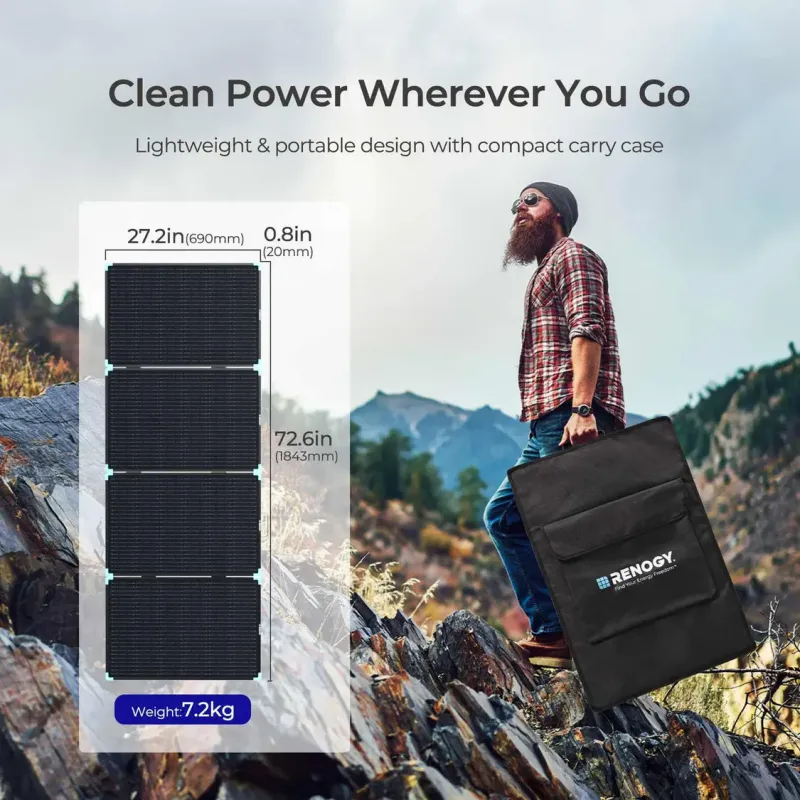

- Ultra-Lightweight & Foldable Design: Folds to 27.17 x 18.11 x 3.15 in for easy transport; weighs only 15.87 lbs with protective case and corner guards for impact resistance during travel.
- Superior Durability: Fiberglass material and ETFE coating withstand decades of use; ≥IP68 enclosure rating for dust and water resistance in extreme conditions from -40°F to 185°F.

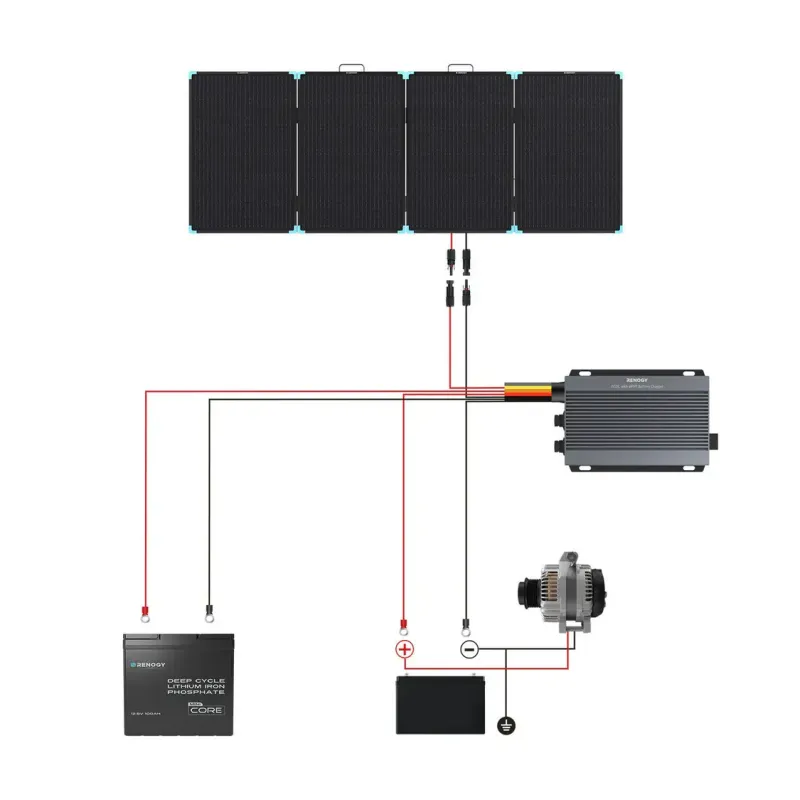

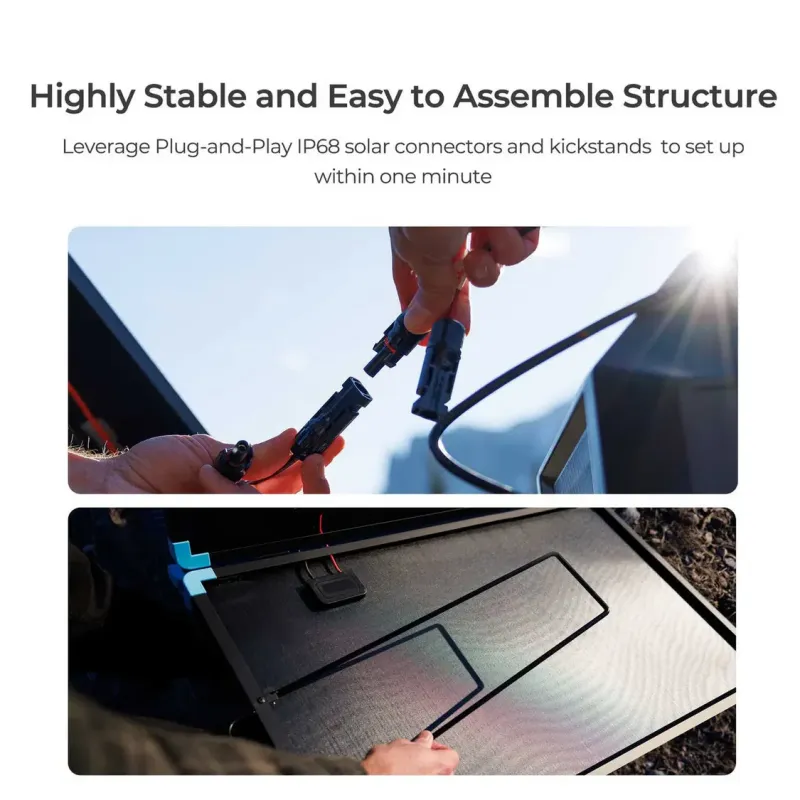

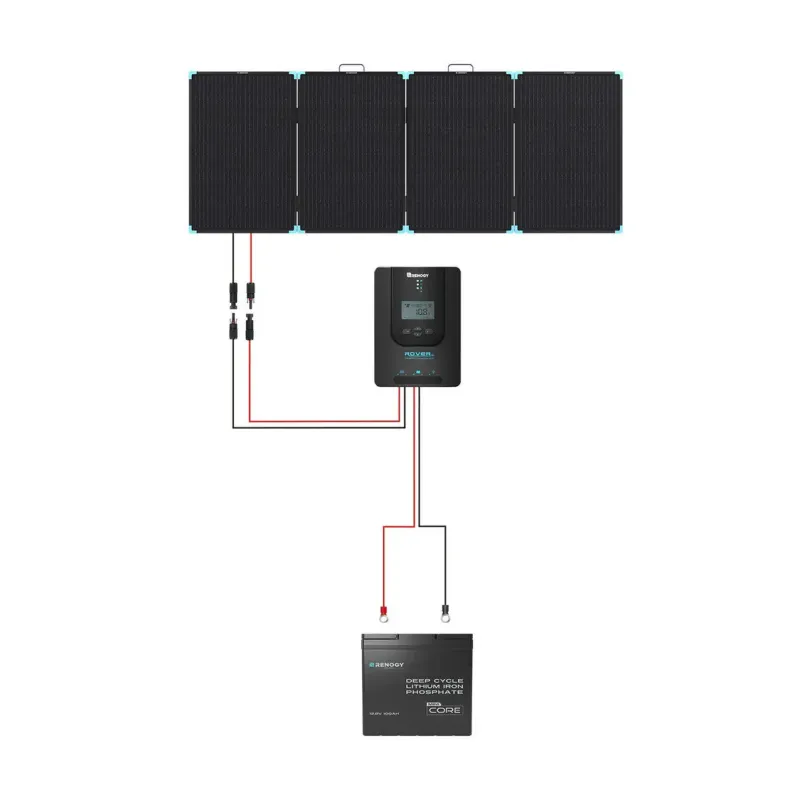

- Easy Setup & Versatility: Sturdy, rust-resistant aluminum kickstands for adjustable angles and maximum power generation; parallel wiring ensures uninterrupted output in shaded scenarios; compatible with most portable power stations and batteries (requires separate charge controller).
- Safe & Certified: Maximum system voltage 600VDC; 15A series fuse rating; RoHS compliant with MC4 connectors for secure, weatherproof connections; UL 61730, IEC 61215/61701 certified.
- Long-Term Reliability: Expected 10-year lifespan maintaining ≥80% output; backed by a 3-year material/workmanship warranty plus 2-year extended warranty for peace of mind.
Specifications at a Glance:
- Rated Power: 220W; Open Circuit Voltage: 47.2V; Optimum Operating Voltage: 40V; Short Circuit Current: 6.05A; Optimum Operating Current: 5.5A.
- Efficiency: 22.7%; Dimensions (Unfolded): 111.8 x 33.7 x 0.8 in (2838 x 855 x 20 mm); Folded: 27.17 x 18.11 x 3.15 in (690 x 460 x 80 mm); Weight: 15.87 lbs (7.2 kg).
- Enclosure: IP68; Connectors: MC4.
Pair this solar suitcase with our premium lithium-ion batteries, charge controllers, and inverters for a complete, sustainable portable power ecosystem. Whether for RV road trips, camping adventures, or emergency backups, the Renogy Solar Suitcase 220W delivers unmatched portability, efficiency, and durability. Order now and power your journey with Renogy’s innovative solar excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
