Renogy Solar Suitcase 200W 12V Monocrystalline Portable Solar Panel with Voyager 20A PWM Charge Controller – Foldable High-Efficiency Kit for RV, Camping, and Off-Grid Systems
Model #: 200W Solar Suitcase with Voyager SKU: RPS200M-1-VOY-US
Product Details
Product Description for Renogy Solar Suitcase 200W 12V Monocrystalline Portable Solar Panel with Voyager
Renogy Solar Suitcase 200W 12V Monocrystalline Portable Solar Panel with Voyager 20A PWM Charge Controller – Foldable High-Efficiency Kit for RV, Camping, and Off-Grid Systems

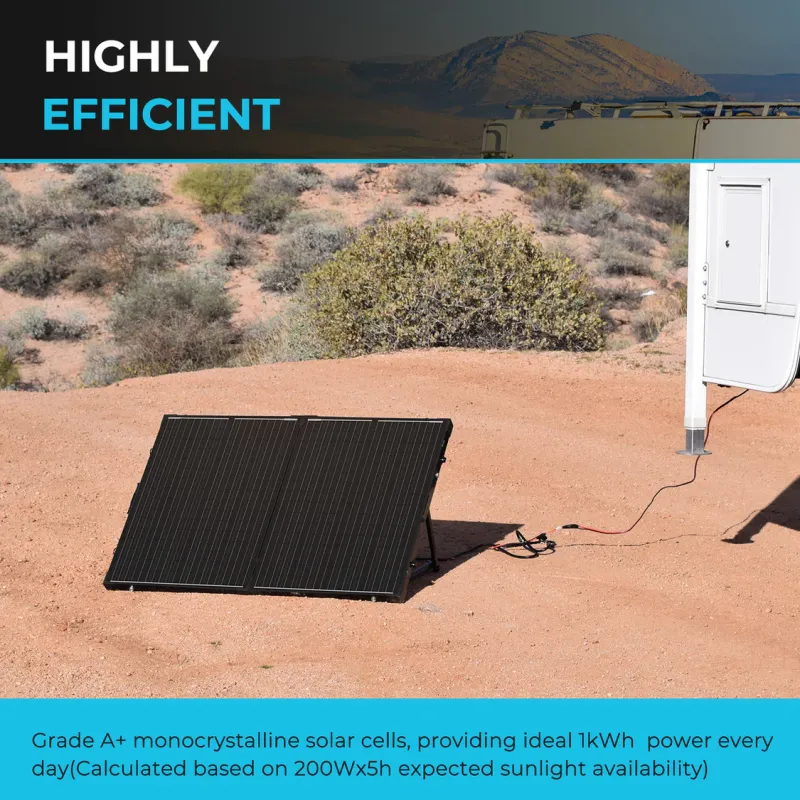

Elevate your portable energy harvest with the Renogy Solar Suitcase 200W 12V Monocrystalline Portable Solar Panel Kit, featuring a foldable monocrystalline panel and integrated Voyager 20A PWM charge controller for plug-and-play convenience in RV, camping, marine, and off-grid applications. Delivering 200W of high-efficiency output (up to 22% cell efficiency) with a compact folded design, this suitcase unfolds to capture maximum sunlight via tempered glass and aluminum frame, ensuring durability against harsh weather and impacts. The Voyager controller provides intelligent 3-stage charging (bulk, boost, float) for 12V batteries (lead-acid or lithium), with LCD display for real-time monitoring of voltage, current, and status; its IP65-rated protection and MC4 connectors ensure weatherproof reliability, while adjustable kickstands enable quick setup in just minutes. Key Features:
- High-Efficiency Monocrystalline Cells: 22% cell efficiency with compact layout for superior power density; open circuit voltage of 21.6V and optimum operating voltage of 18V for versatile 12V system compatibility.
- Portable & Foldable Design: Folds to 27.2 x 20 x 3.2 in for easy transport; weighs only 26.5 lbs with protective case and handles for impact resistance during travel.

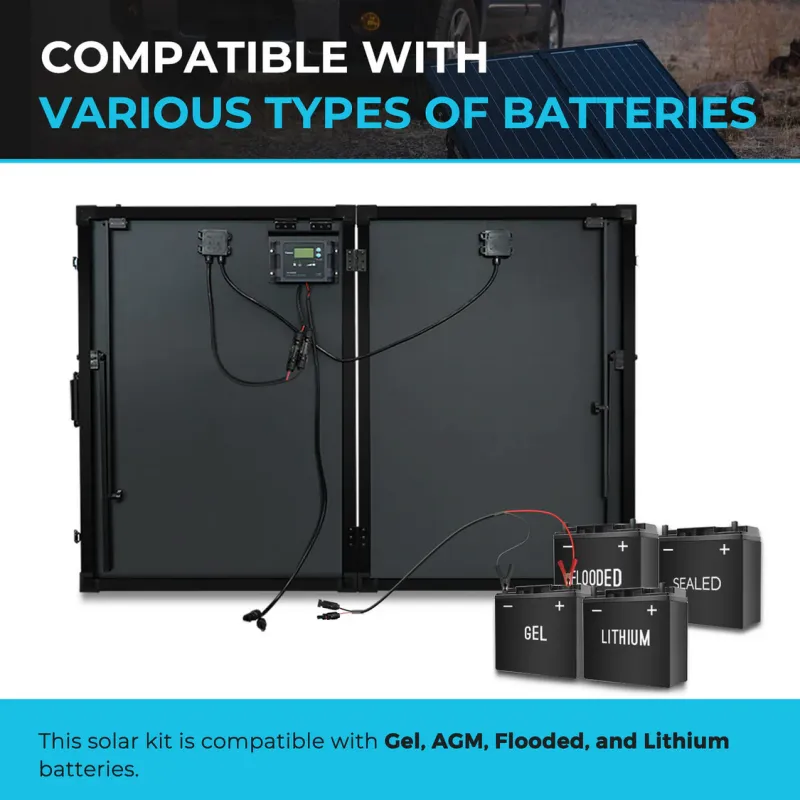

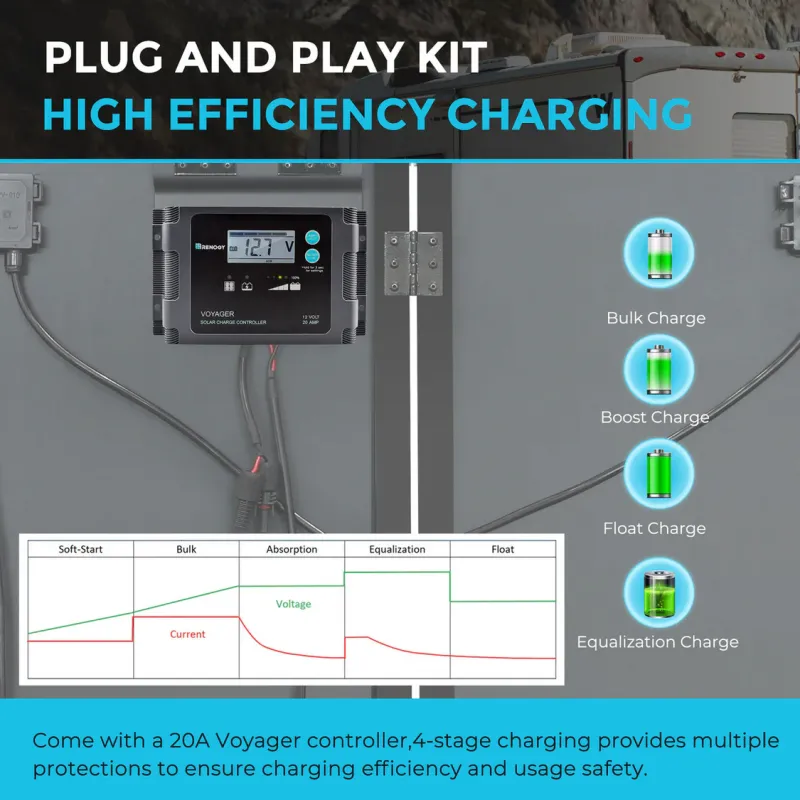

- Integrated Voyager 20A PWM Controller: 3-stage charging algorithm optimizes battery life; LCD screen displays real-time data; supports lead-acid (AGM, gel, flooded) and lithium batteries; overcharge/over-discharge/short-circuit protection.

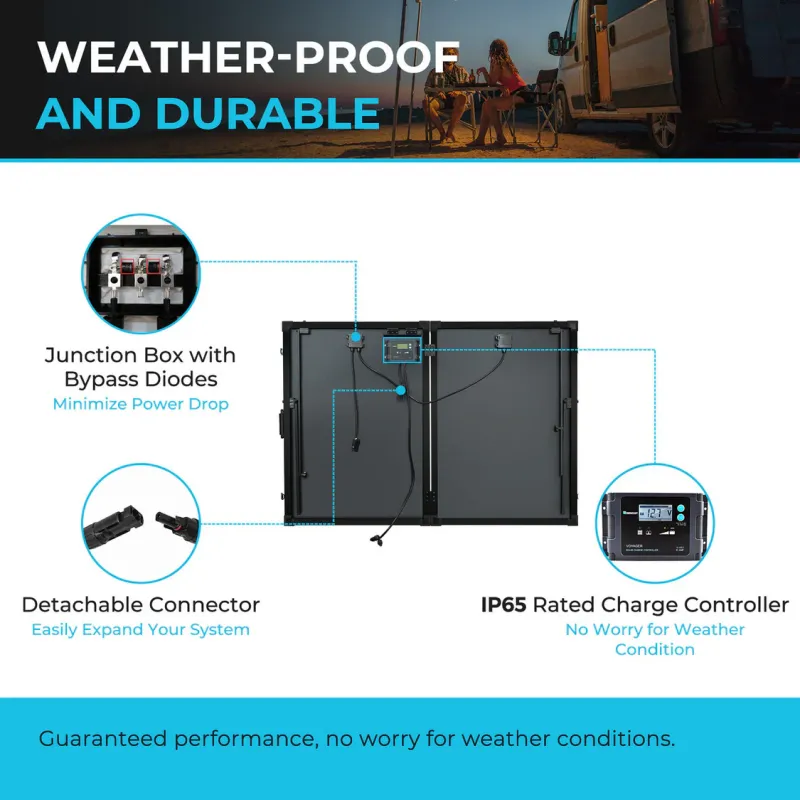

- Rugged Durability: Tempered glass and aluminum frame withstand light impacts and weather; IP65-rated controller and IP67 connectors for dust and water resistance from -4°F to 140°F.

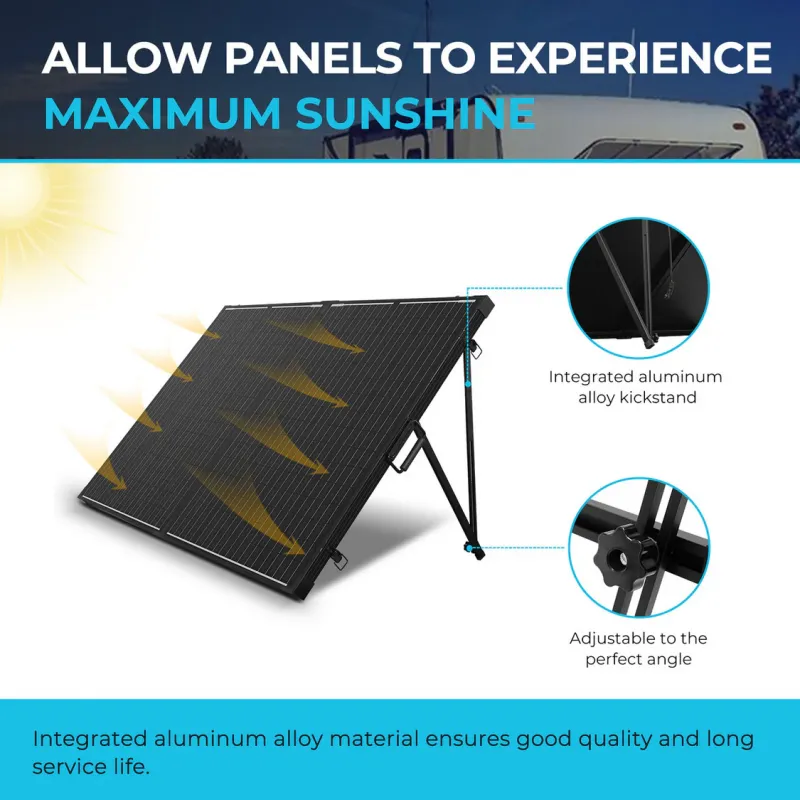

- Easy Setup & Versatility: Adjustable kickstands for optimal tilt; pre-wired MC4 connectors for direct battery hookup; parallel wiring option for expanded arrays; compatible with Renogy batteries and power stations.
- Safe & Certified: Maximum system voltage 600VDC; 20A fuse rating; RoHS compliant; UL 1703, ETL listed for safety.
- Long-Term Reliability: 5-year warranty on panel and controller; expected 25-year lifespan maintaining ≥80% output.
Specifications at a Glance:
- Rated Power: 200W; Open Circuit Voltage: 21.6V; Optimum Operating Voltage: 18V; Short Circuit Current: 11.67A; Optimum Operating Current: 11.11A.
- Efficiency: 22%; Dimensions (Unfolded): 54.8 x 27.5 x 1.4 in (1392 x 698 x 35 mm); Folded: 27.2 x 20 x 3.2 in (690 x 508 x 81 mm); Weight: 26.5 lbs (12 kg).
- Controller: Voyager 20A PWM (12V); Enclosure: IP65; Connectors: MC4.
Pair this solar suitcase kit with our premium lithium-ion batteries and inverters for a complete, sustainable portable power ecosystem. Whether for RV road trips, camping adventures, or emergency backups, the Renogy Solar Suitcase 200W with Voyager delivers unmatched portability, smart charging, efficiency, and durability. Order now and power your journey with Renogy’s innovative solar excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
