Renogy ShadowFlux N-Type Anti-Shading 200W Monocrystalline Solar Panel – High-Efficiency Shading-Resistant Power for RV, Marine, and Off-Grid Systems
Model #: ShadowFlux N-Type 200W SKU: SP-SHADOWFLUX200W-N-US
Product Details
Product Description for Renogy ShadowFlux™ N-Type Anti-Shading 200W 120W Solar Panel
Renogy ShadowFlux N-Type Anti-Shading 200W Monocrystalline Solar Panel – High-Efficiency Shading-Resistant Power for RV, Marine, and Off-Grid Systems
Elevate your solar energy harvest with the Renogy ShadowFlux N-Type Anti-Shading 200W Solar Panel, featuring cutting-edge N-Type TOPCon cell technology for superior shading tolerance and real-world performance. Designed for demanding RV, marine, off-grid, and renewable energy applications, this lightweight, durable panel delivers up to 23% efficiency with minimal power loss from partial shading—up to 80% more output in shaded conditions compared to traditional panels. Advanced bypass diodes and a robust ETFE/TPT construction ensure reliable, long-lasting power generation with a 25-year linear power warranty.
Key Features:

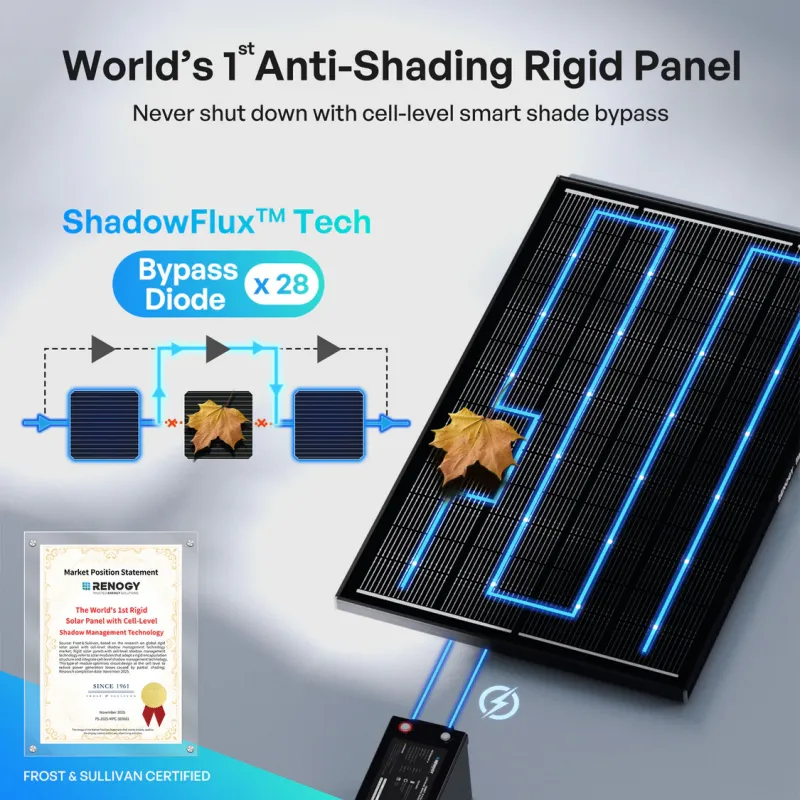

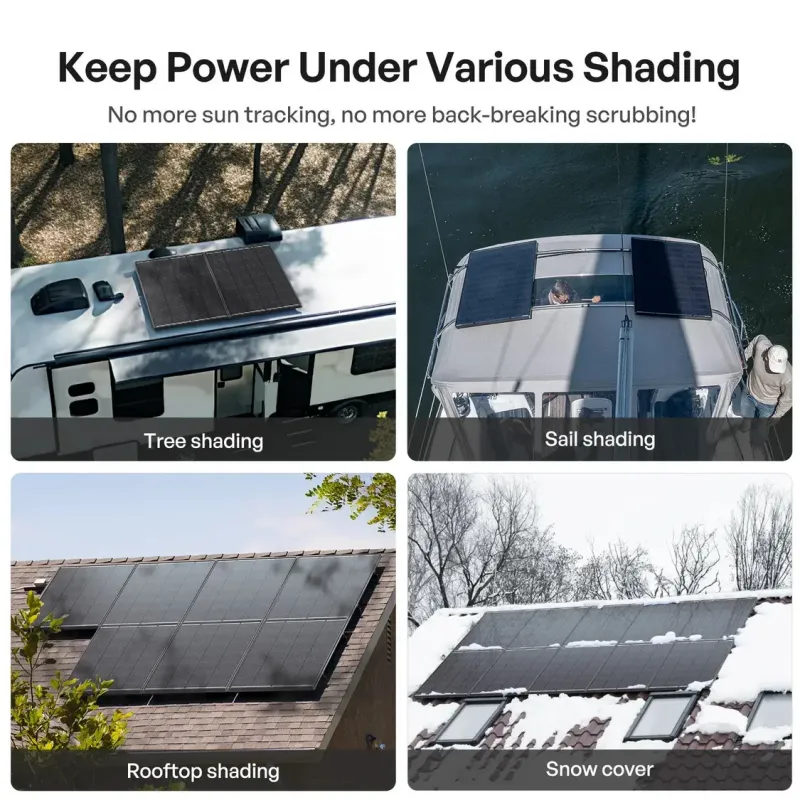

- Anti-Shading Technology: N-Type TOPCon cells with integrated bypass diodes maintain 80%+ performance even when 50% of the panel is shaded by trees, awnings, or debris.

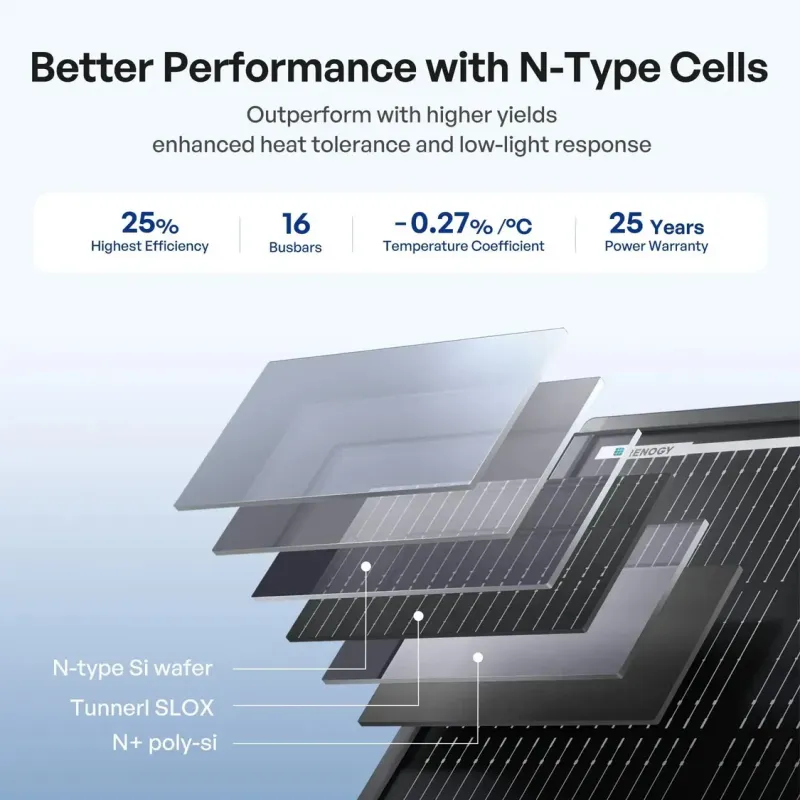

- High-Efficiency N-Type Cells: Up to 23% module efficiency with ultra-low degradation (<1% first year, 0.4% annual) for maximum energy yield in low-light and high-temperature conditions.

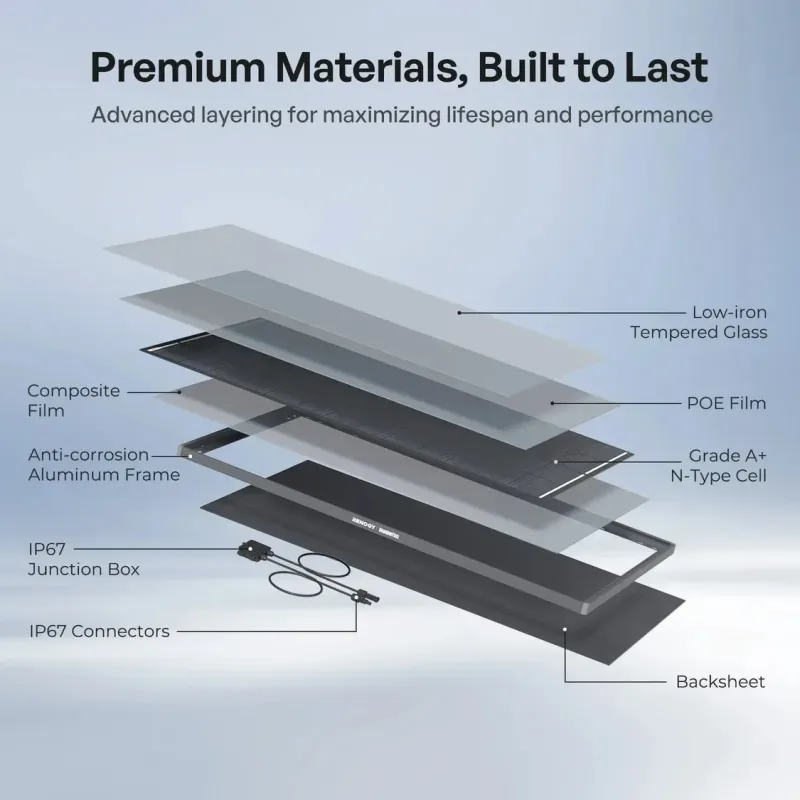

- Lightweight & Durable: Only 8.8 lbs with marine-grade ETFE top layer for UV and scratch resistance; IP68 junction box and MC4 connectors for full waterproofing.
- Versatile Installation: Pre-drilled aluminum frame compatible with tilt mounts, Z-brackets, and pole mounts; supports parallel/series wiring for scalable arrays.
- Exceptional Longevity: 25-year linear power output warranty, 12-year product warranty; withstands 5400Pa snow load and 2400Pa wind load.
- Wide Temperature Resilience: Operates from -40°F to 185°F (-40°C to 85°C) with -0.35%/°C temperature coefficient.
- Safe & Certified: UL 61730, IEC 61215/61701 certified; RoHS compliant.
Specifications at a Glance:
- Rated Power: 200W
- Max Power Voltage (Vmp): 34.2V
- Max Power Current (Imp): 5.85A
- Open Circuit Voltage (Voc): 41.5V
- Short Circuit Current (Isc): 6.18A
- Efficiency: 23%
- Dimensions: 58.3 x 26.4 x 1.4 in (1480 x 670 x 35 mm)
- Weight: 8.8 lbs (4 kg)
- Cell Type: N-Type Monocrystalline
- Connectors: MC4
Pair this panel with our premium lithium-ion batteries, charge controllers, and inverters for a complete, sustainable solar ecosystem. Whether for RV excursions, marine adventures, or off-grid cabins, the Renogy ShadowFlux 200W N-Type delivers unmatched shading resistance, efficiency, and peace of mind. Order now and harness the sun's power without compromise—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
