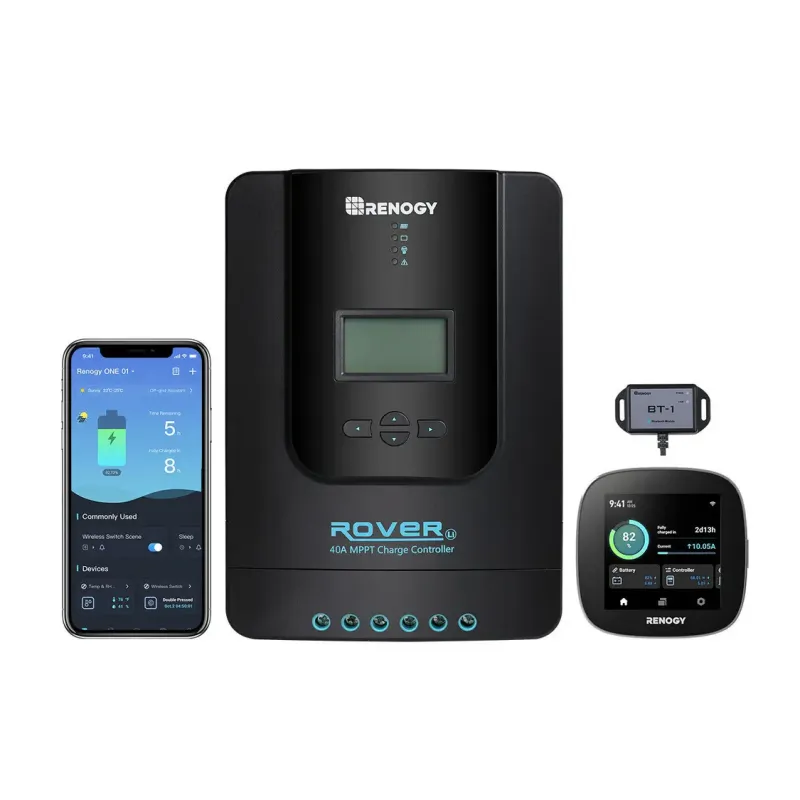

Renogy Rover Li 100 Amp MPPT Solar Charge Controller with Renogy ONE Core Bundle
Model #: RNG-CTRL-RVR100-US-ONE SKU: RoverLi100A-ONE-US
Product Details
Product Description for Renogy Rover Li 30/40/60/100 Amp MPPT Solar Charge Controller with Renogy ONE Core
Renogy Rover Li 100 Amp MPPT Solar Charge Controller with Renogy ONE Core Bundle – Intelligent Solar Charging and Energy Management Solution for RV, Marine, Solar, and Off-Grid Systems

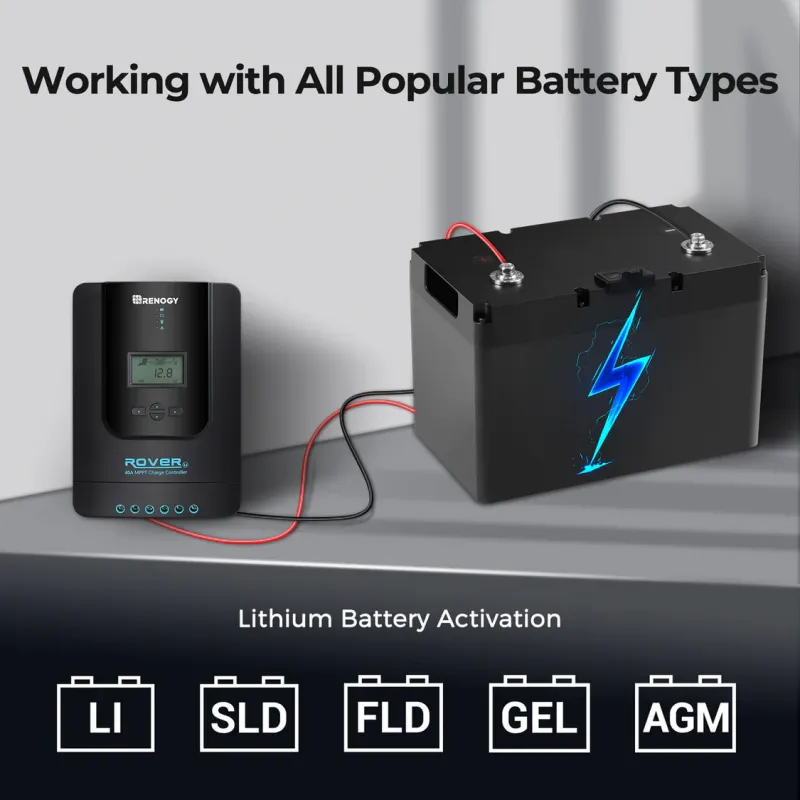

Elevate your solar charging and system monitoring with the Renogy Rover Li 100 Amp MPPT Solar Charge Controller bundled with Renogy ONE Core (Model: RNG-CTRL-RVR100-US-ONE), a high-efficiency, lithium-optimized MPPT controller designed for seamless integration with lithium-ion, AGM, gel, and flooded batteries in demanding RV, marine, solar, and off-grid applications. Delivering up to 100A charging current with >99% MPPT efficiency and a max PV input of 150VDC (1300W for 12V systems), this controller features intelligent 4-stage charging (bulk, boost, float, equalization) for optimal battery health, while the included ONE Core G3 provides all-in-one energy monitoring, RV-C compatibility, and Zigbee smart automation via the DC Home App. This bundle ensures rapid charging—fully charging a 12V 100Ah battery in just 1 hour—along with real-time insights and automated control for extended adventures. Key Features:

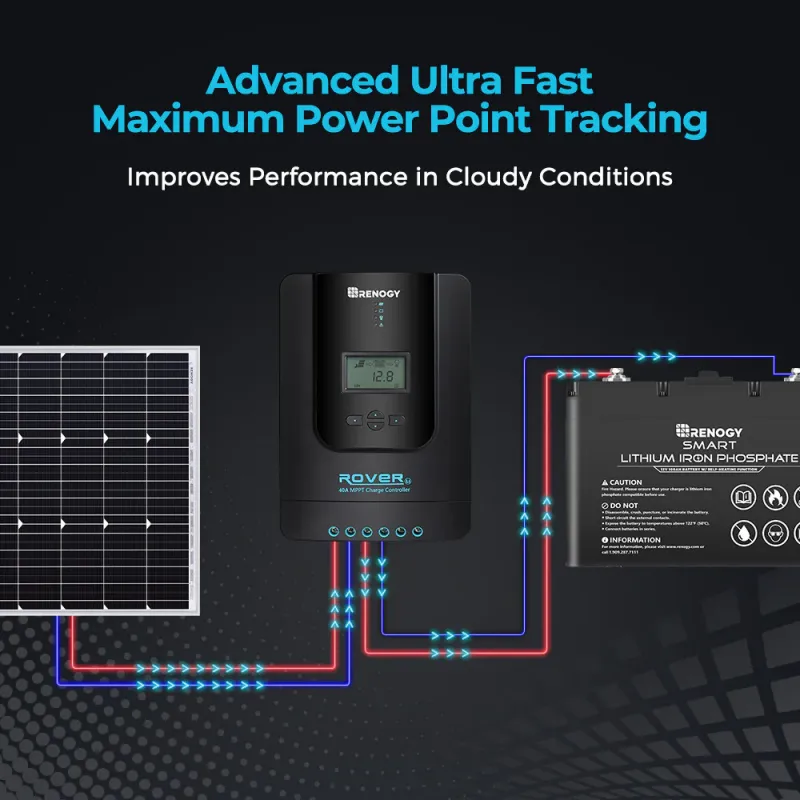

- Advanced MPPT Technology: Maximizes solar energy harvest with >99% efficiency, supporting up to 1300W PV input for 12V systems; automatic 12V/24V/36V/48V detection for versatile setups.
- Lithium-Optimized Charging: Dedicated profiles for LiFePO4 with low-temperature protection (disables below 32°F/0°C), lithium activation to revive over-discharged batteries, and multi-stage charging for longer lifespan.
- Built-in Bluetooth Monitoring: Connect via DC Home App for real-time data on charge status, voltage, current, SOC, and customizable alerts; firmware updates and parameter adjustments.

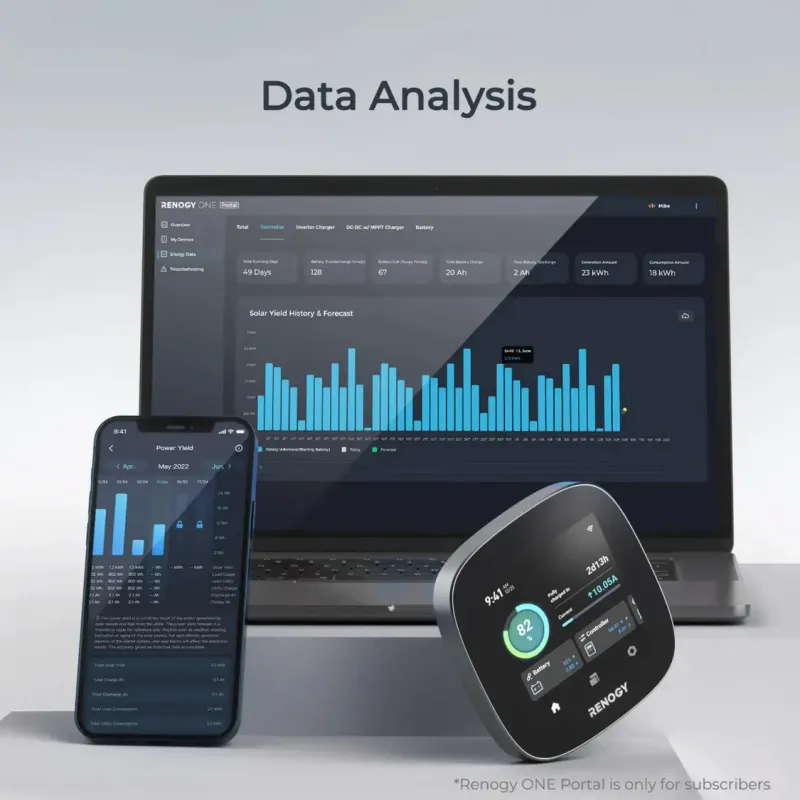

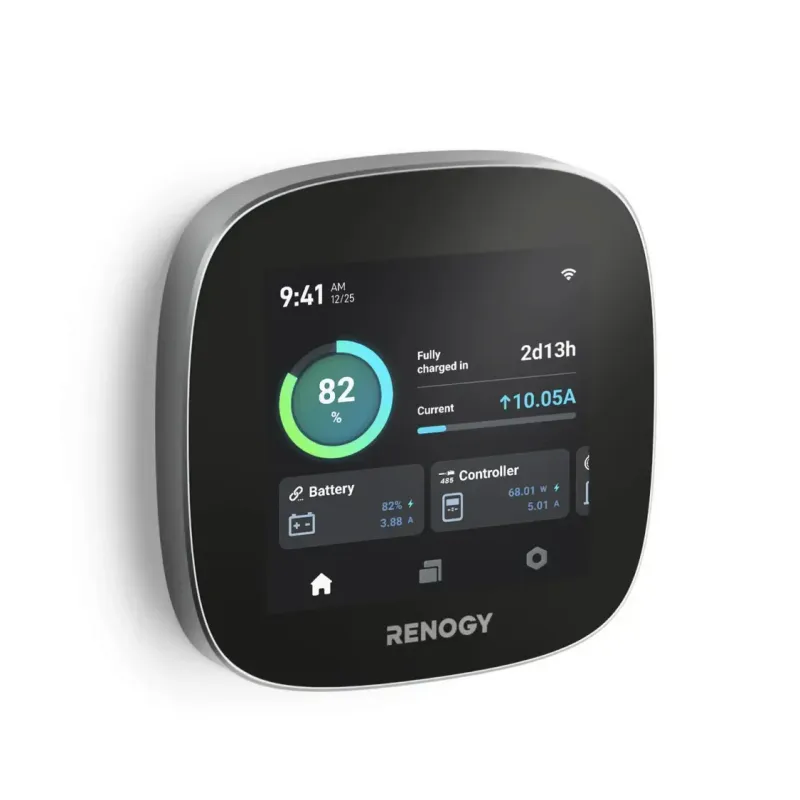

- Renogy ONE Core Integration: All-in-one hub for 24/7 energy tracking, RV leveling assistant, Zigbee 3.0 automation (scenes with sensors/relays), and WiFi/Bluetooth cloud access; RV-C compatible for Victron integration.
- Comprehensive Protections: Safeguards against overcharge, over-discharge, overload, short-circuit, reverse polarity, and reverse current; multiple electronic protections for safety.
- Superior Heat Dissipation: Innovative design with aluminum heat sink and large surface area for reliable performance in high-heat environments without fans.
- Efficient & Reliable: <10mA self-consumption; compatible with up to 4 units in parallel; supports RS485 for expanded monitoring with BT-2 module.
- Rugged & Certified: IP32-rated enclosure for dust/moisture resistance; operating temperature -35°F to 113°F (-35°C to 45°C); CE, RoHS compliant.
Specifications at a Glance:
- Rated Charge Current: 100A; Max PV Input: 150VDC (1300W/12V, 2600W/24V, 3900W/36V, 5200W/48V).
- Battery Voltage: 12V/24V/36V/48V auto; Efficiency: >99% MPPT.
- Charging Stages: Bulk/Boost/Float/Equalization; Self-Consumption: <10mA.

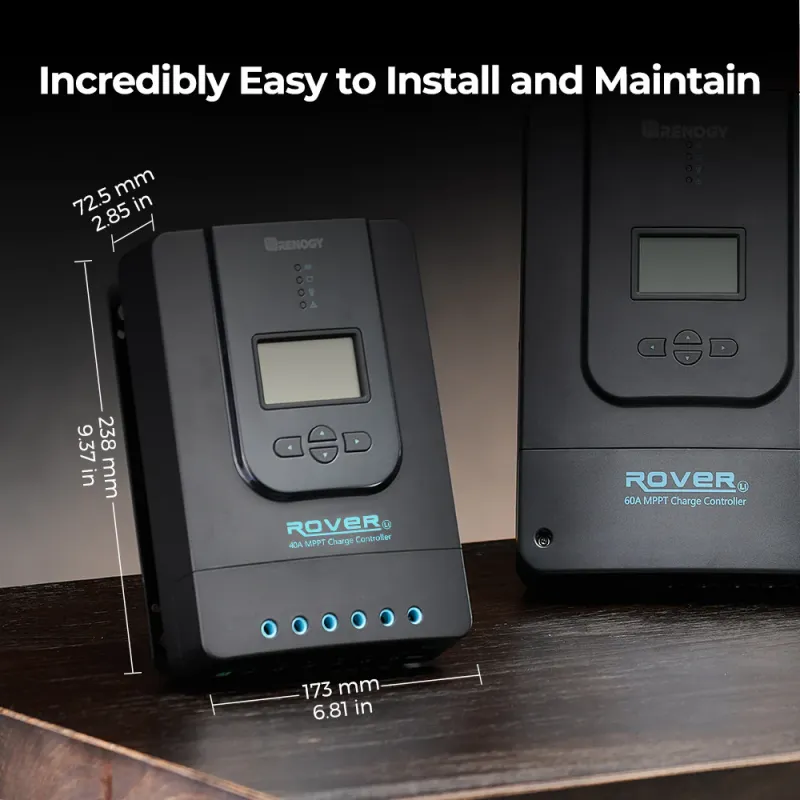

- Dimensions (Controller): 10.0 x 7.0 x 3.3 in (254 x 178 x 84 mm); Weight (Controller): 8.8 lbs (4.0 kg); ONE Core: 8.66 x 5.12 x 1.18 in, 1.1 lbs.
- Enclosure: IP32 Aluminum; Terminals: Up to 4AWG.
- Certifications: CE, RoHS.
Pair this bundle with our premium lithium-ion batteries and solar panels for a complete, connected solar ecosystem. Whether powering RV adventures, marine voyages, or off-grid cabins, the Renogy Rover Li 100A with ONE Core delivers unmatched efficiency, smart monitoring, and automation. Order now and experience Renogy’s innovative solar excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
