Renogy REGO 3000W 12V Pure Sine Wave HF Inverter Charger with Split-Phase Design and Built-in Bluetooth
Model #: RIV1230RCH-SPS SKU: RIV1230RCH-SPS
Product Details
Product Description for Renogy REGO 3000W 12V Pure Sine Wave HF Inverter Charger Split-phase Design
Renogy REGO 3000W 12V Pure Sine Wave HF Inverter Charger with Split-Phase Design and Built-in Bluetooth – Compact High-Frequency Power Solution for RV, Marine, Solar, and Off-Grid Systems

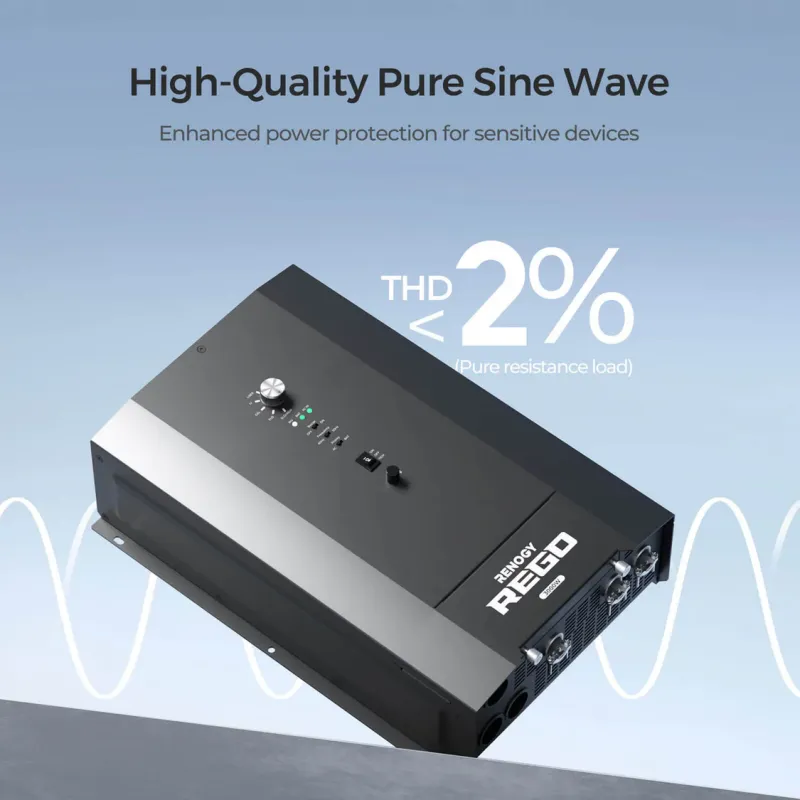

Elevate your power independence with the Renogy REGO 3000W 12V Pure Sine Wave HF Inverter Charger (Model: RIV1230RCH-SPS), a compact, high-frequency split-phase inverter charger designed for seamless integration with lithium-ion batteries in demanding RV, marine, solar, and off-grid applications. Delivering 3000W continuous power (9000W surge) at 120/240V split-phase with >92% efficiency and ultra-low THD ≤3%, this unit provides clean, stable AC output for sensitive electronics and high-demand appliances. Its integrated 50A 4-stage charger optimizes battery life, while the built-in Bluetooth enables real-time monitoring via the Renogy DC Home App; seamless 10ms UPS transfer ensures uninterrupted power during outages. Key Features:
- Split-Phase 120/240V Output: Supports North American 120/240V AC split-phase for higher load capacity, ideal for heavy-duty appliances like dryers, welders, or EV chargers without derating.

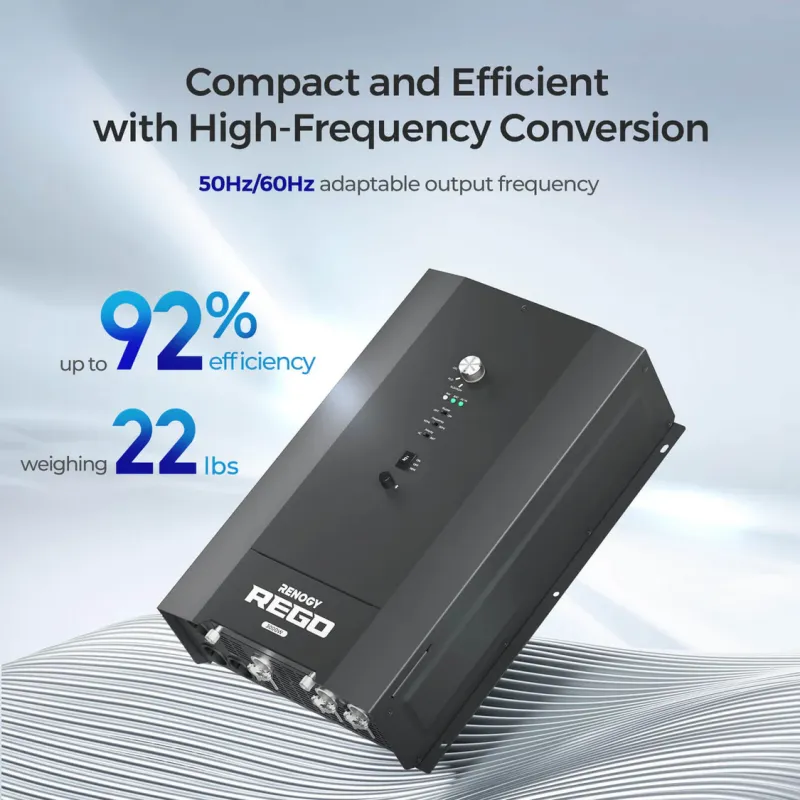

- High-Frequency Design: Compact and lightweight (under 30 lbs) with quiet operation (<50dB), outperforming bulky low-frequency models for portable RV and marine use.

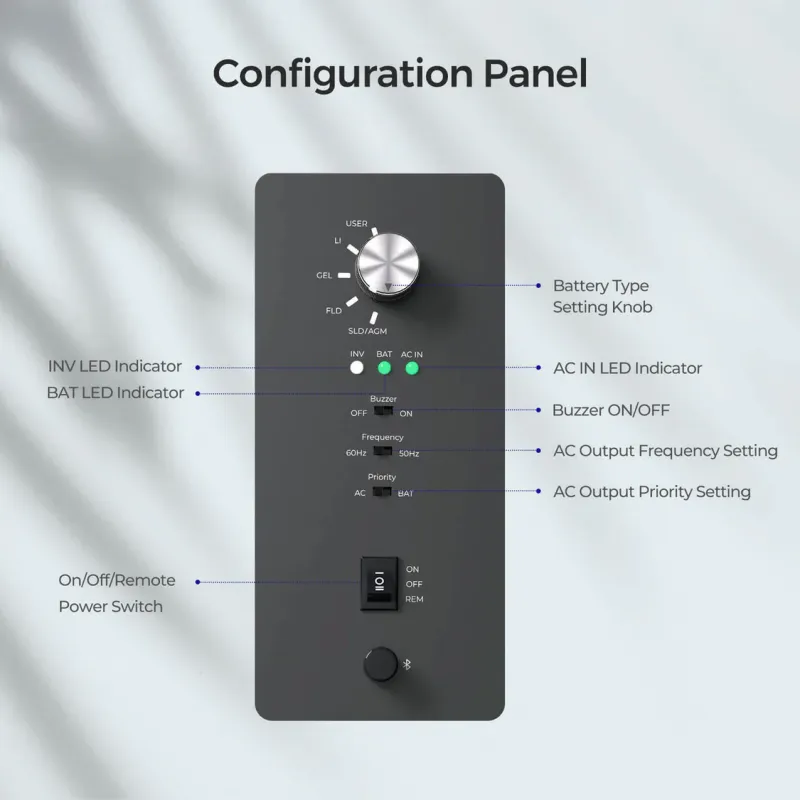

- 4-Stage Smart Charger: Configurable 5-50A output with bulk, boost, float, and equalization modes for GEL, AGM, SLA, FLD, CAL, LI, and USER battery types; supports LiFePO4 activation and self-heating.
- Built-in Bluetooth Monitoring: Connect via Renogy DC Home App (iOS/Android) for real-time data on power production, consumption, voltage, current, and customizable alerts; compatible with Renogy ONE M1/Core.
- Seamless Transfer Switch: 30A automatic switching between grid/shore power and battery mode in 10ms for blackout-proof operation.
- Advanced Protections: Comprehensive safeguards against over-voltage, low-voltage, over-current, short-circuit, overload, and reverse polarity; battery temperature sensor for safe charging.

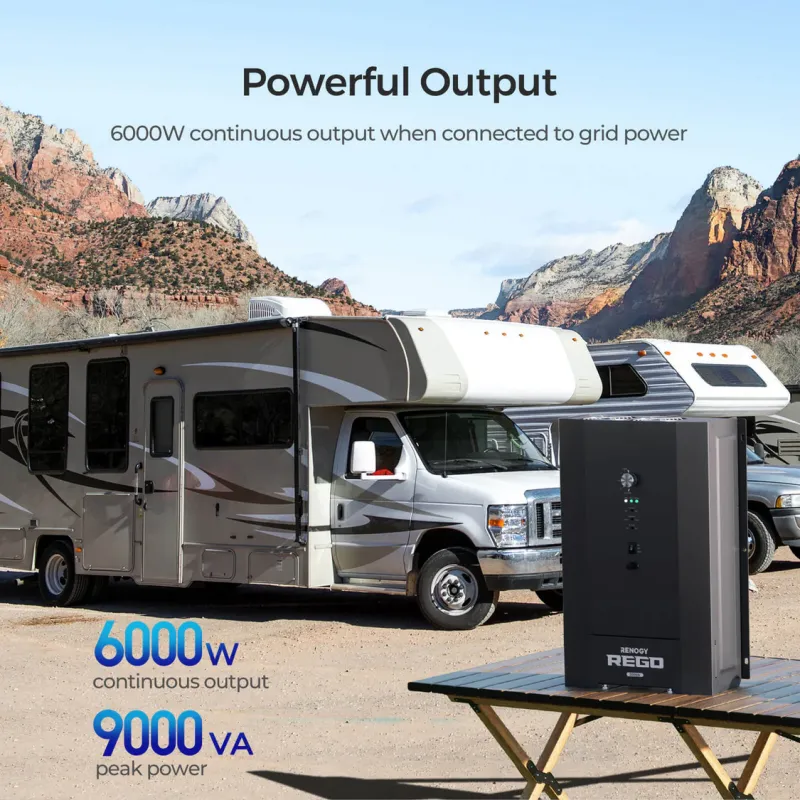

- High Surge Capacity: 9000W peak to handle motor startups like microwaves, fridges, or power tools without tripping.
- Efficient & Reliable: >92% inverter efficiency, >85% charger efficiency, <20W no-load consumption; humidity 0-95% tolerance for versatile environments.

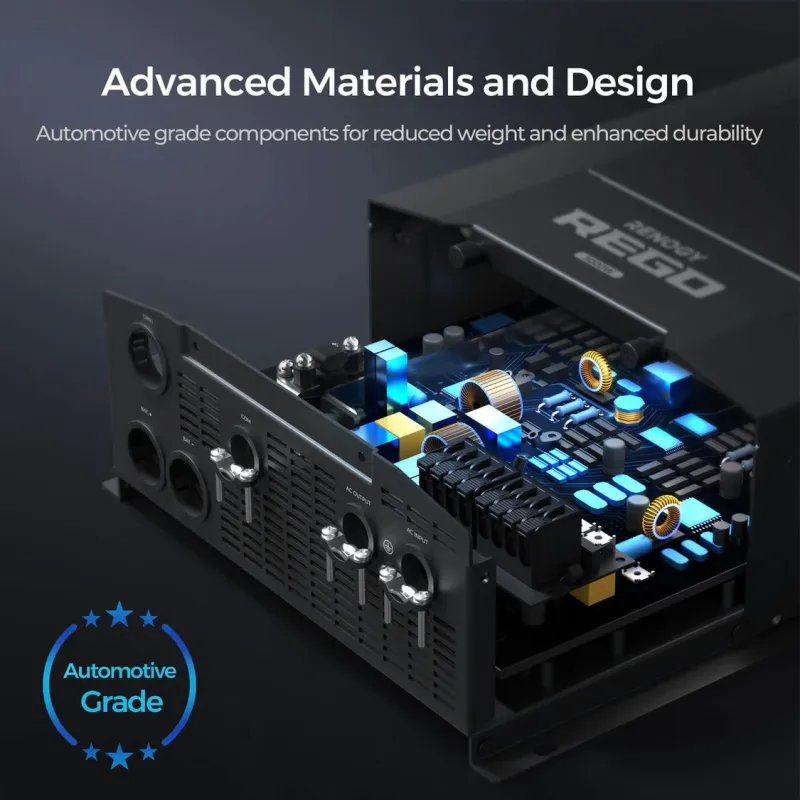

- Rugged & Certified: IP20-rated aluminum alloy enclosure for durability; operating temperature -4°F to 104°F (-20°C to 40°C); UL458, FCC Part 15 Class B, CSA-C22.2 No 107.1 certified.
Specifications at a Glance:
- Input Voltage: 12VDC / 90-138VAC (charger); Output Voltage: 120/240V AC split-phase.
- Continuous Power: 3000W; Surge Power: 9000W; Charger: 50A max.
- Efficiency: >92% (inverter); Transfer Switch: 30A (10ms).
- Dimensions: 17.3 x 9.8 x 7.5 in (440 x 250 x 190 mm); Weight: 29.7 lbs (13.5 kg).
- Certifications: UL458, FCC Part 15 Class B, CSA-C22.2 No 107.1.
Pair this inverter charger with our premium lithium-ion batteries and solar panels for a complete, high-efficiency power ecosystem. Whether powering RV adventures, marine voyages, or solar backups, the Renogy REGO 3000W HF delivers unmatched compactness, split-phase versatility, and smart performance. Order now and experience Renogy’s innovative power excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
