Renogy Core Mini 12V 20Ah LiFePO4 Trolling Motor Deep Cycle Lithium Battery
Model #: Core Mini - 12.8V 20Ah SKU: RBT1220LFP-TM-US
Product Details
Product Description for Renogy Core Mini - 12V 20Ah Trolling Motor Lithium Iron Phosphate Battery
Renogy Core Mini 12V 20Ah LiFePO4 Trolling Motor Deep Cycle Lithium Battery – Compact High-Performance Power Solution for Trolling Motors, Marine, Solar, RV, and Off-Grid Systems

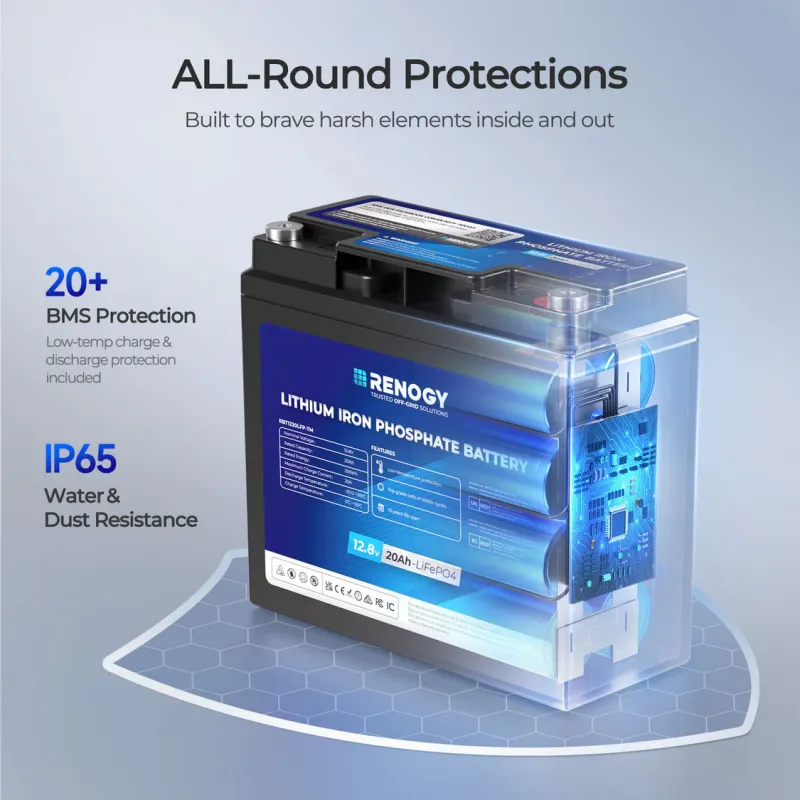

Elevate your boating experience with the Renogy Core Mini 12V 20Ah LiFePO4 battery (Model: Core Mini - 12.8V 20Ah), a ultra-lightweight, high-performance deep cycle battery optimized for trolling motors, marine applications, solar setups, RVs, and renewable energy systems. Delivering 256Wh of energy with a 20A continuous discharge (40A peak for 10s), this compact battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged marine environments with an IP65-rated enclosure. Key Features:
- Trolling Motor Optimized: 20A continuous discharge tailored for low-to-medium thrust trolling motors, providing extended runtime and quiet operation on the water.
- High-Capacity Performance: 20A continuous and 40A peak discharge, ideal for marine electronics, small solar arrays, or portable off-grid devices without derating.
- Exceptional Cycle Life: Up to 5,000 cycles at 80% depth of discharge, backed by a 5-year prorated warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 5.1 lbs with 99% round-trip efficiency and <3% monthly self-discharge for effortless portability and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 149°F (-20°C to 65°C), charge from 32°F to 140°F (0°C to 60°C), and store from -4°F to 140°F (-20°C to 60°C) for reliable all-season use.
- Safe & Certified: MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS, UKCA compliant; non-toxic LiFePO4 chemistry with Grade-A prismatic cells for eco-friendly, indoor-safe operation.
- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with M6 threaded terminals for secure, vibration-resistant connections in marine conditions.
- Scalable & Compatible: Up to 4S4P configuration (5.12kWh max); pairs seamlessly with Victron, Renogy, and other inverters or trolling motor controllers for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 20Ah; Energy: 256Wh.
- Discharge: 20A continuous, 40A peak (10s); Charge: 20A max.
- Efficiency: 99%; Self-Discharge: <3% per month.
- Dimensions: 6.02 x 3.03 x 6.30 in (153 x 77 x 160 mm); Weight: 5.1 lbs (2.3 kg).
- Enclosure: IP65 ABS; Terminals: M6 x 1.0.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for quiet trolling sessions, marine outings, RV excursions, or solar storage, the Renogy Core Mini 12V 20Ah delivers unmatched efficiency, portability, safety, and peace of mind. Order now and experience Renogy’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
