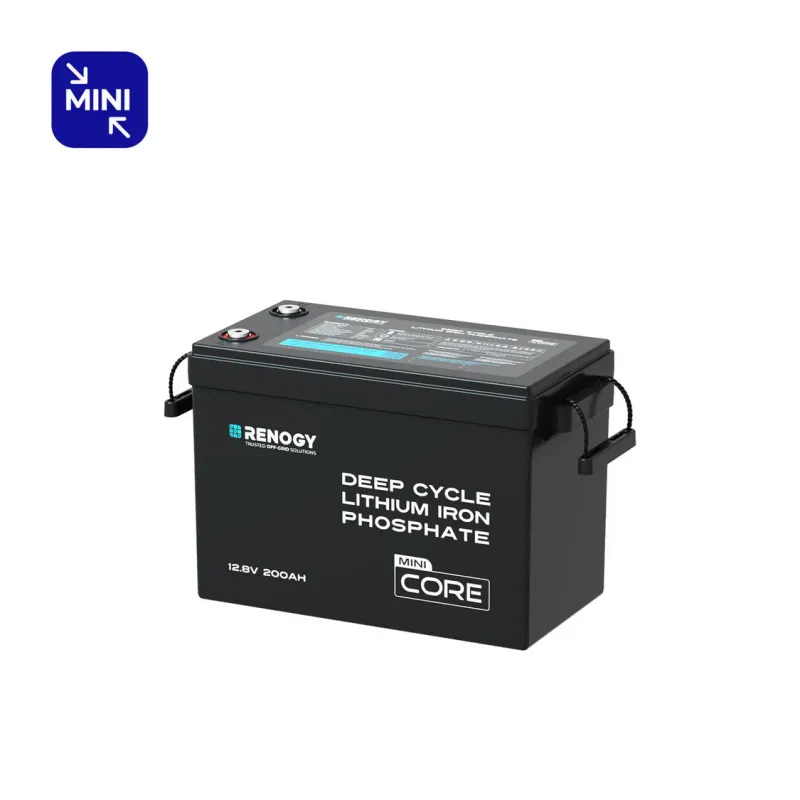

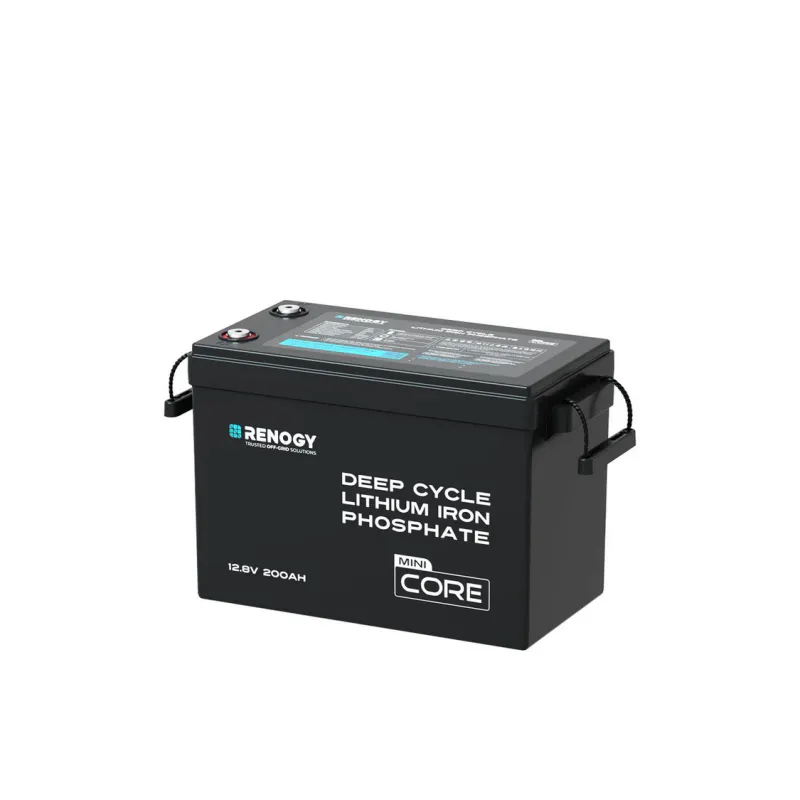

Renogy Core Mini 12V 200Ah LiFePO4 Deep Cycle Lithium Battery with Low-Temp Protection
Model #: Core Mini - 12.8V 200Ah SKU: RBT12200LFP-M-US
Product Details
Product Description for Renogy Core Mini - 12V 200Ah LiFePO4 Battery w/ Low-Temperature Protection
Renogy Core Mini 12V 200Ah LiFePO4 Deep Cycle Lithium Battery with Low-Temp Protection – Compact High-Capacity Power Solution for Marine, Solar, RV, and Off-Grid Systems
Elevate your energy storage with the Renogy Core Mini 12V 200Ah LiFePO4 battery (Model: Core Mini - 12.8V 200Ah), a lightweight, compact deep cycle battery designed for demanding marine, solar, RV, and renewable energy applications. Delivering 2560Wh of energy with a 100A continuous discharge (200A peak for 5s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:
- Low-Temperature Cut-Off: Built-in BMS prevents charging below 32°F (0°C) and discharging below -4°F (-20°C) for reliable cold-weather operation.
- Compact Design: 31% smaller than other 12V 200Ah LFP batteries, fitting various battery boxes with simplified power (one unit replaces three-battery setups, eliminating cell imbalance).
- High-Capacity Performance: 100A continuous and 200A peak discharge, ideal for trolling motors, solar arrays, or high-drain devices without derating.
- Exceptional Cycle Life: Up to 5,000 cycles at 80% depth of discharge, backed by a 5-year prorated warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 41.89 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 149°F (-20°C to 65°C), charge from 32°F to 140°F (0°C to 60°C), and store from -4°F to 140°F (-20°C to 60°C) for reliable all-season use.
- Safe & Certified: MSDS, UN38.3, FCC, CE, PSE, RCM, RoHS, UKCA compliant; non-toxic LiFePO4 chemistry with Grade-A prismatic cells for eco-friendly, indoor-safe operation.
- Scalable & Compatible: Up to 4S4P configuration (40.96kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 200Ah; Energy: 2560Wh.
- Discharge: 100A continuous, 200A peak (5s); Charge: 100A max.
- Efficiency: 99%; Self-Discharge: <3% per month.
- Dimensions: 20.55 x 9.45 x 8.62 in (522 x 240 x 219 mm); Weight: 41.89 lbs (19 kg).
- Enclosure: IP65 ABS; Terminals: M8 x 1.25.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for marine adventures, RV excursions, or solar storage, the Renogy Core Mini 12V 200Ah delivers unmatched efficiency, safety, and peace of mind. Order now and experience Renogy’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
