Renogy 400W Lightweight Portable Solar Suitcase – High-Efficiency Foldable Monocrystalline Panel for RV, Camping, and Off-Grid Systems
Model #: 400W Lightweight Portable Solar Suitcase SKU: RSP400LSC-US
Product Details
Product Description for Renogy Solar Suitcase 400W Lightweight Portable Solar Panel
Renogy 400W Lightweight Portable Solar Suitcase – High-Efficiency Foldable Monocrystalline Panel for RV, Camping, and Off-Grid Systems
Elevate your portable energy harvest with the Renogy 400W Lightweight Portable Solar Suitcase, a sleek, foldable monocrystalline panel designed for effortless power on the go in RV, camping, marine, and off-grid applications. Delivering 400W of high-efficiency output (23% cell efficiency) with a compact folded design, this suitcase unfolds to capture maximum sunlight via advanced ETFE coating and fiberglass reinforcement, ensuring durability against harsh weather, light hail, rust, scratches, and stains. Its IP67-rated protection and IP68 solar connectors provide weatherproof reliability, while aluminum kickstands enable quick, stable setup; parallel wiring minimizes shading losses for consistent performance even in partial cover. Key Features:
- High-Efficiency Monocrystalline Cells: 23% cell efficiency with compact layout for superior power density; open circuit voltage of 47.2V and optimum operating voltage of 40V for versatile compatibility.

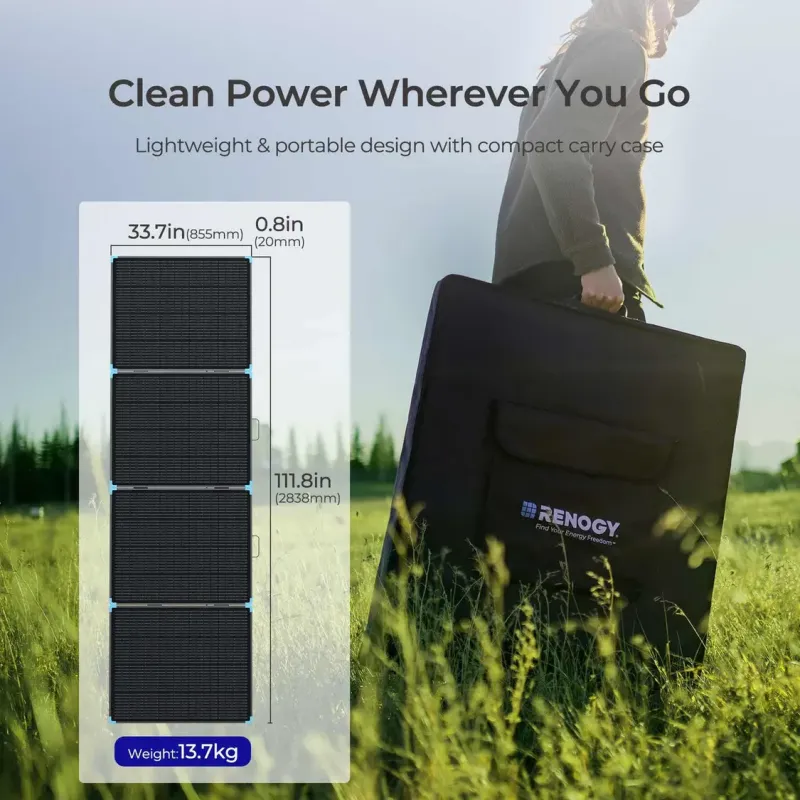

- Portable & Foldable Design: Folds to 27.9 x 33.7 x 3.2 in for easy transport; weighs only 30.2 lbs with protective case and corner guards for impact resistance during travel.

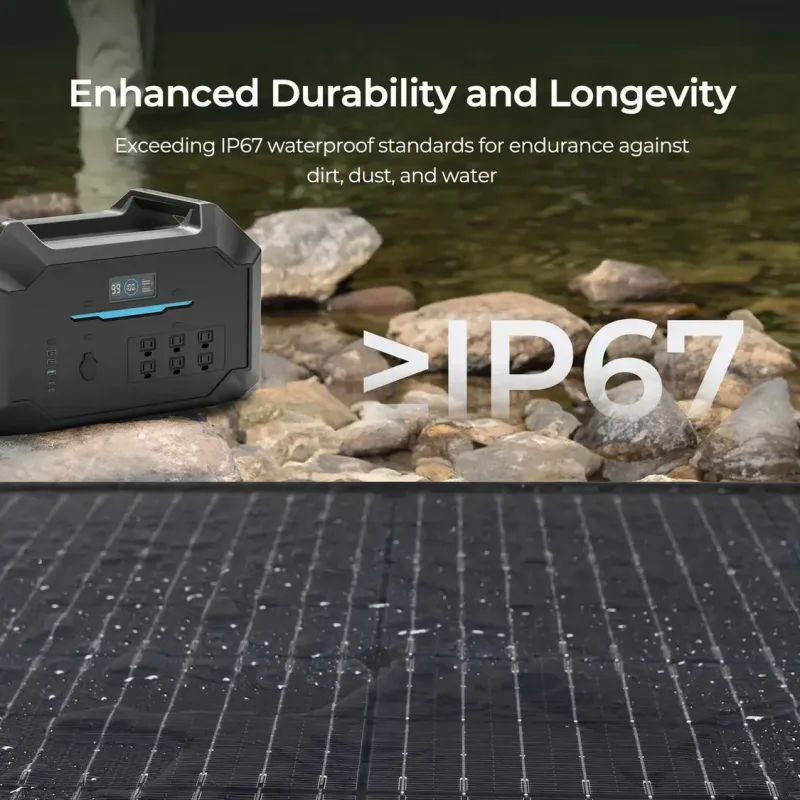

- Rugged Durability: ETFE coating and fiberglass material withstand extended outdoor exposure; ≥IP67 enclosure rating for dust and water resistance in extreme conditions from -40°F to 185°F.

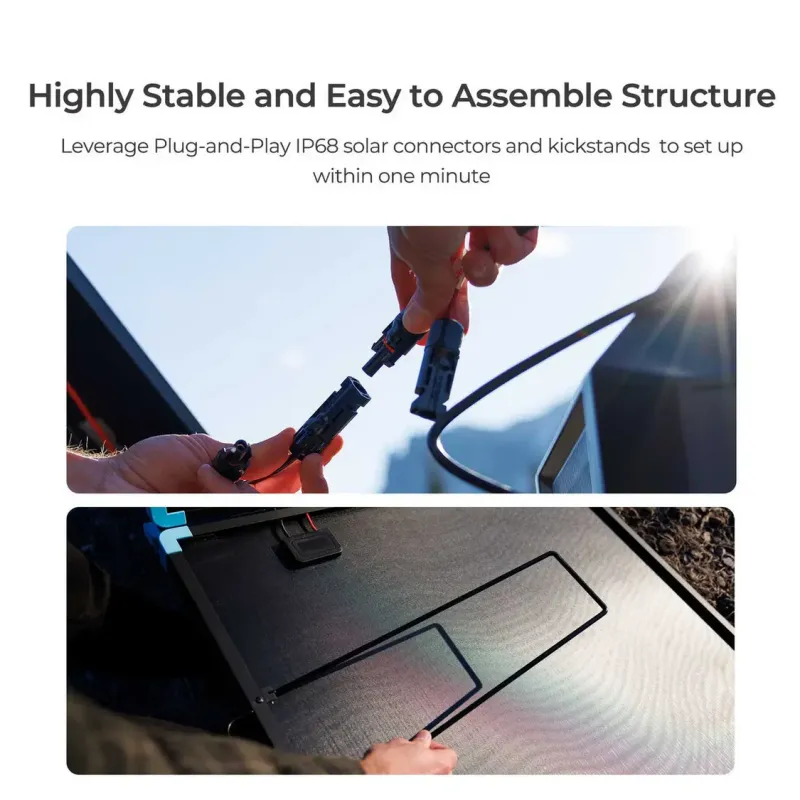

- Easy Setup & Versatility: Built-in aluminum kickstands for adjustable angles; parallel wiring ensures uninterrupted output in shaded scenarios; compatible with most portable power stations (DC input >48V) and requires a separate charge controller.
- Safe & Certified: Maximum system voltage 600VDC; 15A series fuse rating; RoHS compliant with MC4 connectors for secure, weatherproof connections.
- Long-Term Reliability: Expected 10-year lifespan maintaining ≥80% output; backed by a 3-year material/workmanship warranty plus 2-year extended warranty for peace of mind.
Specifications at a Glance:
- Rated Power: 400W; Open Circuit Voltage: 47.2V; Optimum Operating Voltage: 40V; Short Circuit Current: 11A; Optimum Operating Current: 10A.
- Efficiency: 23%; Self-Discharge: N/A.
- Dimensions (Unfolded): 111.8 x 33.7 x 0.8 in (2838 x 855 x 20 mm); Folded: 27.9 x 33.7 x 3.2 in (708 x 855 x 80 mm); Weight: 30.2 lbs (13.7 kg).
- Enclosure: IP67; Connectors: IP68 MC4.
Pair this solar suitcase with our premium lithium-ion batteries, charge controllers, and inverters for a complete, sustainable portable power ecosystem. Whether for RV road trips, camping adventures, or emergency backups, the Renogy 400W Lightweight Portable Solar Suitcase delivers unmatched portability, efficiency, and durability. Order now and power your journey with Renogy’s innovative solar excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
