RB60 12V 60Ah Deep Cycle Lithium Battery Group 24
Model #: RB60 SKU: RB60
Product Details

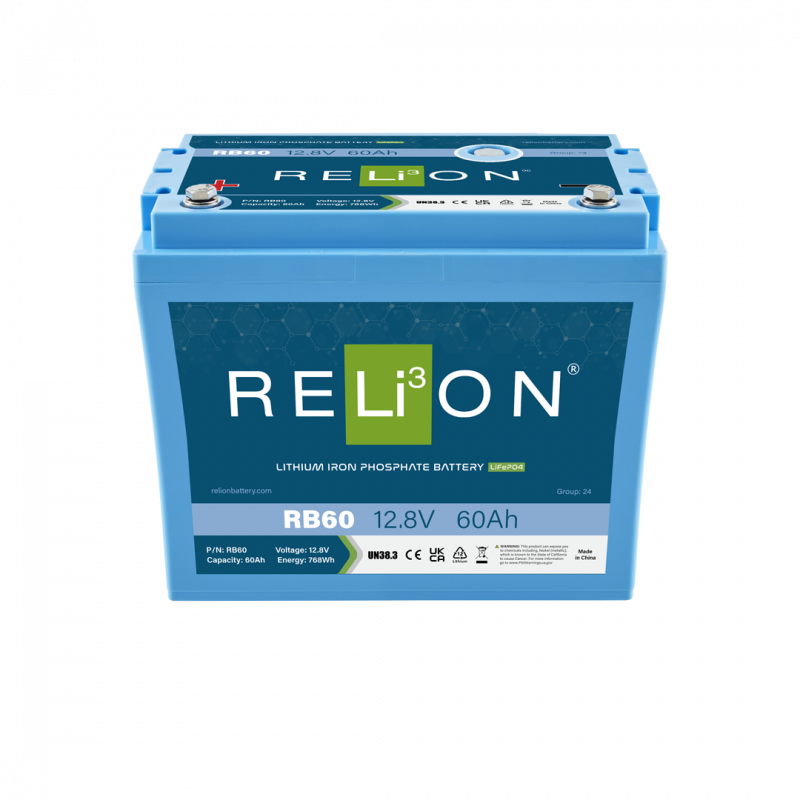

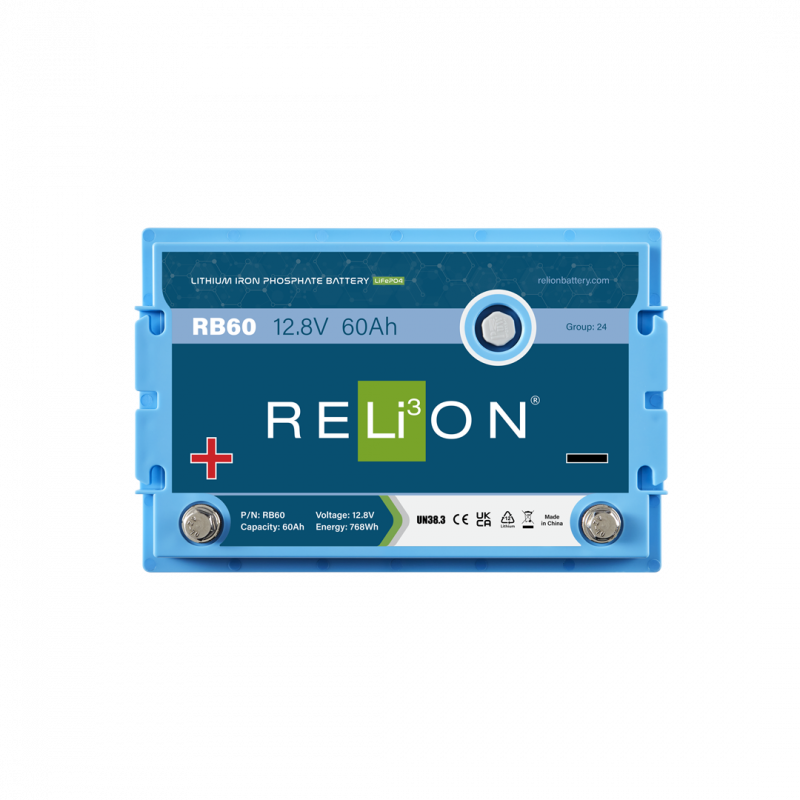

Product Description for RELiON RB60 12V 60Ah Deep Cycle Lithium Battery Group 24
RELiON RB60 12V 60Ah LiFePO4 Deep Cycle Lithium Battery – High-Capacity Group 24 Power Solution for Marine, Solar, RV, and Off-Grid Systems
Elevate your energy storage with the RELiON RB60 12V 60Ah LiFePO4 battery (Model: RB60), a lightweight, Group 24-sized deep cycle battery designed for demanding marine, solar, RV, and renewable energy applications. Delivering 768Wh of energy with a 60A continuous discharge (140A peak for 1.5s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP67 waterproof enclosure. Key Features:
- High-Capacity Performance: 60A continuous and 140A peak discharge, ideal for small trolling motors, solar arrays, or high-drain devices without derating.
- Exceptional Cycle Life: Up to 3,500 cycles at 80% depth of discharge, backed by a 10-year limited warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 15.9 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 113°F (0°C to 45°C), and store from 23°F to 95°F (-5°C to 35°C) for reliable all-season use.
- Safe & Certified: UN38.3, CE, UKCA, UL1642 (cells), IEC62133 (cells), and UN 3480 compliant; non-toxic LiFePO4 chemistry with no gassing or fumes for eco-friendly, indoor-safe operation.
- Rugged IP67 Enclosure: Fully waterproof and dust-tight ABS case with M8 threaded terminals for secure, vibration-resistant connections.
- Fast Charging Capability: Up to 60A max charge with low internal resistance for quick recharges, even at low temperatures (reduced rates below 32°F).
- Scalable & Compatible: Up to 3 batteries in series; pairs seamlessly with Victron, Renogy, and other inverters for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 60Ah; Energy: 768Wh.
- Discharge: 60A continuous, 140A peak (1.5s); Charge: 60A max.
- Efficiency: 99%; Self-Discharge: <3% per month.
- Dimensions: 10.2 x 6.6 x 8.2 in (260 x 168 x 210 mm); Weight: 15.9 lbs (7.20 kg).
- Enclosure: IP67 ABS; Terminals: M8 x 1.25.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for marine adventures, RV excursions, or solar storage, the RB60 delivers unmatched efficiency, safety, and peace of mind. Order now and experience RELiON’s USA-engineered lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
