RB24V100 24V 100Ah Deep Cycle Lithium Battery Group 8D
Model #: RB24V100 SKU: RB24V100
Product Details
Product Description for RELiON RB24V100 24V 100Ah Deep Cycle Lithium Battery Group 8D

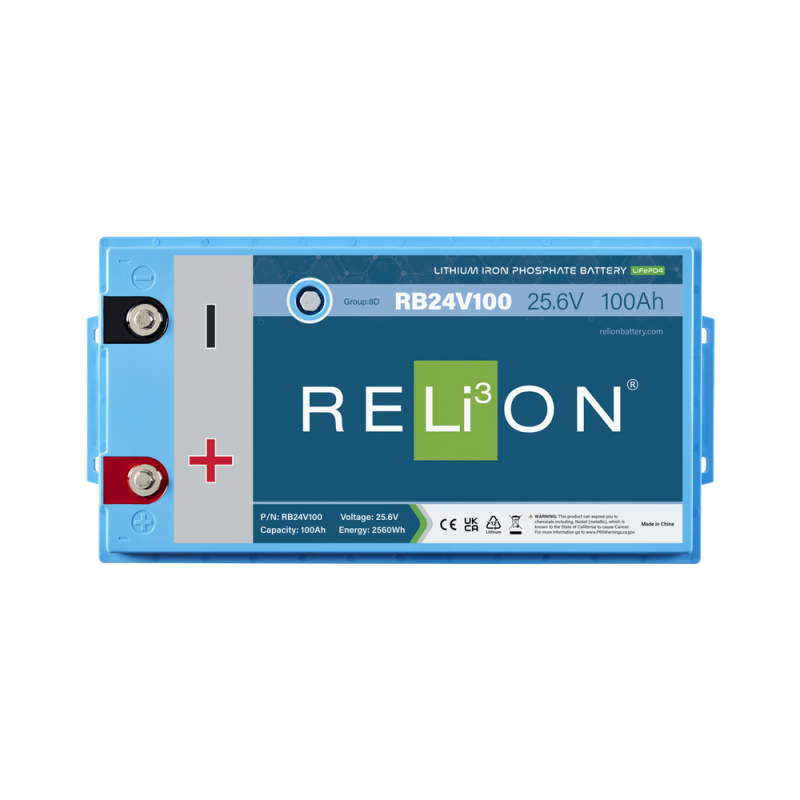

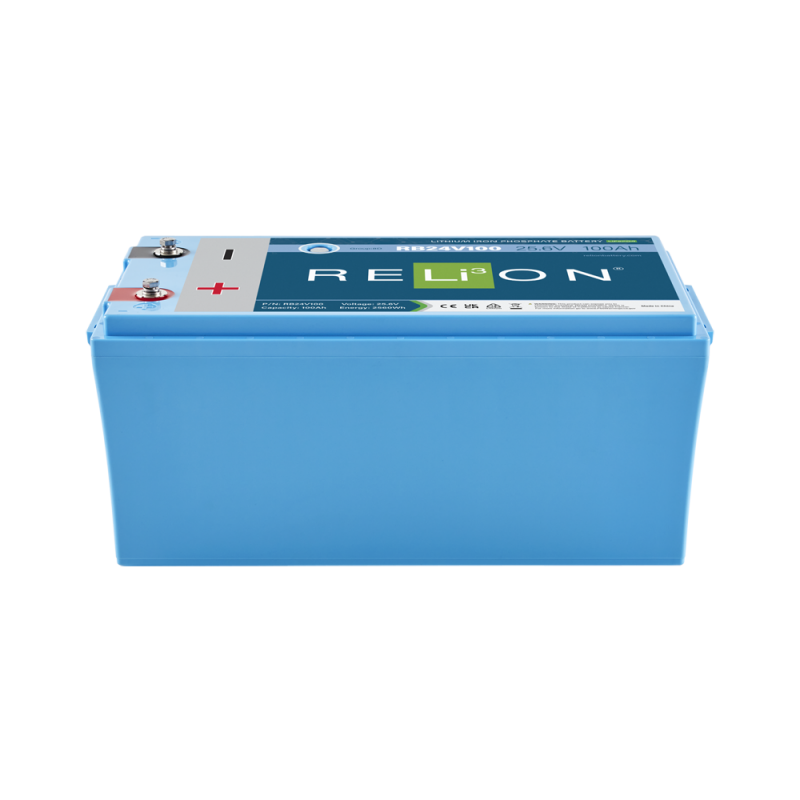

RELiON RB24V100 24V 100Ah LiFePO4 Deep Cycle Lithium Battery – High-Capacity Group 8D Power Solution for Solar, RV, Marine, and Off-Grid Systems
Elevate your 24V energy storage with the RELiON RB24V100 24V 100Ah LiFePO4 battery (Model: RB24V100), a lightweight, Group 8D-sized deep cycle battery designed for demanding solar, renewable energy, marine, RV, and backup power applications. Delivering 2560Wh of energy with a 100A continuous discharge (200A peak for 7.5s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP67 waterproof enclosure. Key Features:
- High-Capacity Performance: 100A continuous and 200A peak discharge, ideal for large solar arrays, marine equipment, or high-drain devices without derating.
- Exceptional Cycle Life: Up to 3,500 cycles at 80% depth of discharge, backed by a 10-year limited warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 61.1 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from -4°F to 113°F (-20°C to 45°C), and store from 23°F to 95°F (-5°C to 35°C) for reliable all-season use.
- Safe & Certified: UN38.3, CE, UKCA, UL1642 (cells), IEC62133 (cells), and UN 3480 compliant; non-toxic LiFePO4 chemistry with no gassing or fumes for eco-friendly, indoor-safe operation.
- Rugged IP67 Enclosure: Fully waterproof and dust-tight ABS case with M8 threaded terminals for secure, vibration-resistant connections.
- Fast Charging Capability: Up to 100A max charge with low internal resistance for quick recharges (recommended 5A-50A), even at low temperatures (reduced rates below 32°F).
- Scalable & Compatible: Single battery use (max 1 in series); pairs seamlessly with Victron, Renogy, and other inverters for expanded 24V systems.
Specifications at a Glance:
- Voltage: 25.6V nominal; Capacity: 100Ah; Energy: 2560Wh.
- Discharge: 100A continuous, 200A peak (7.5s); Charge: 100A max.
- Efficiency: 99%; Self-Discharge: <3% per month.
- Dimensions: 20.6 x 10.5 x 8.7 in (522 x 267 x 220 mm); Weight: 61.1 lbs (27.7 kg).
- Enclosure: IP67 ABS; Terminals: M8 x 1.25.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for solar storage, RV adventures, marine outings, or backup power, the RB24V100 delivers unmatched efficiency, safety, and peace of mind. Order now and experience RELiON’s USA-engineered lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
