Quattro-II Inverter/Charger 24/3000/70-50/50 2x120 volt | Victron QUA242305130
Model #: QUA242305130 SKU: VICTRON-QUA242305130
Product Details
Product Description for Victron Quattro-II 24/3000/70-50/50 2 x 120V (QUA242305130)

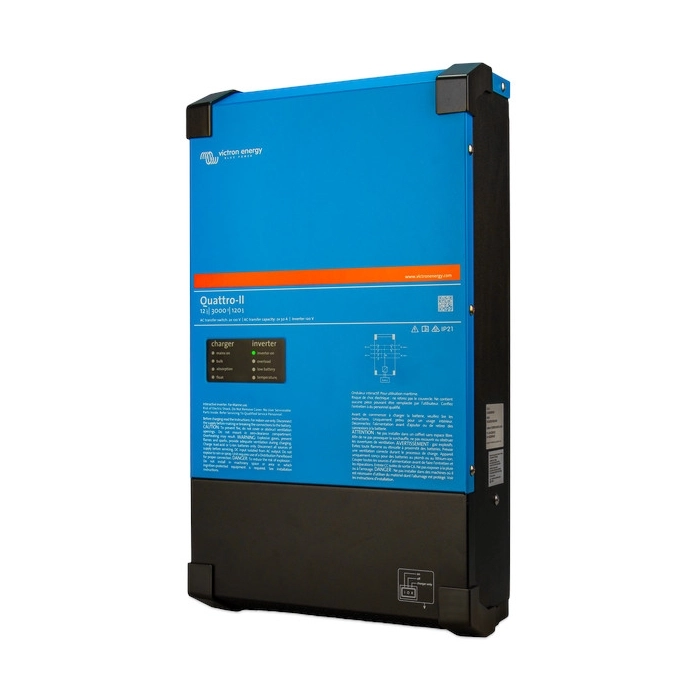

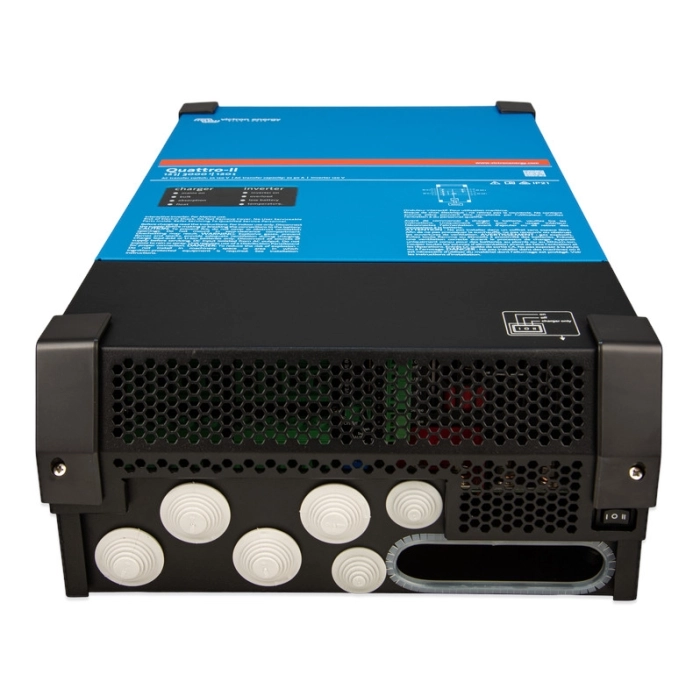

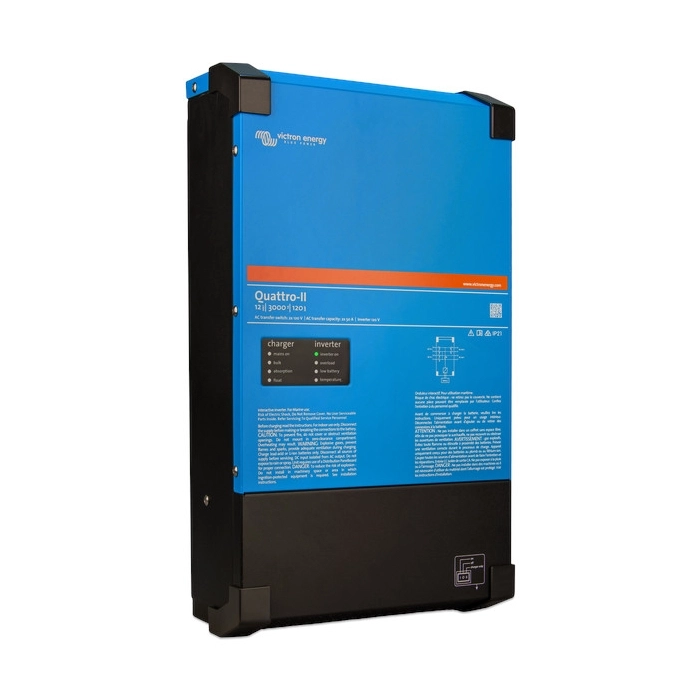

Victron Energy Quattro-II 24/3000/70-50/50 2 x 120V Inverter/Charger – High-Performance Power Solution for Off-Grid, RV, Marine, and Solar Systems
Unlock reliable power with the Victron Quattro-II 24/3000/70-50/50 2 x 120V (Model: QUA242305130), a versatile inverter/charger optimized for lithium-ion batteries. This advanced unit features dual AC inputs and outputs, delivering 3000VA (2400W continuous) of pure sine wave AC power from a 24V DC battery bank, paired with a robust 70A adaptive charger. Perfect for off-grid solar systems, RV camping, marine vessels, and backup power applications, the Quattro-II ensures seamless energy delivery with exceptional efficiency and battery protection.
Key Features:

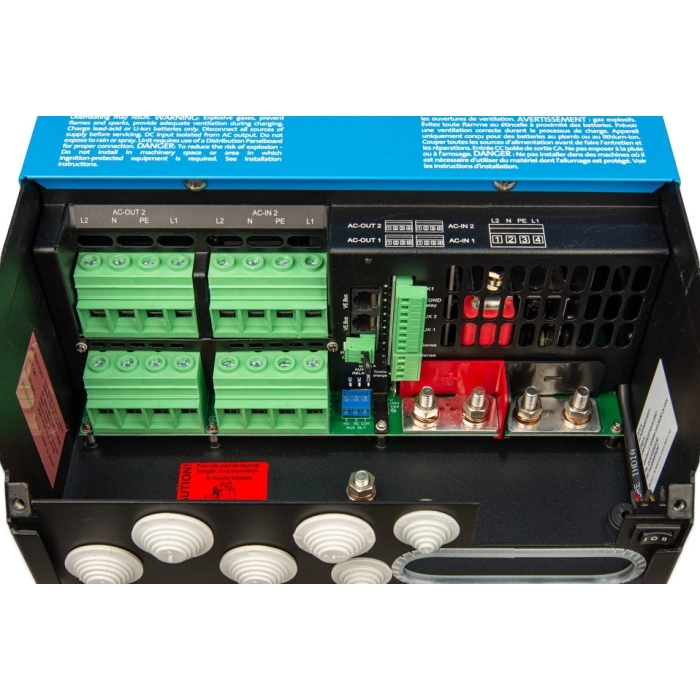

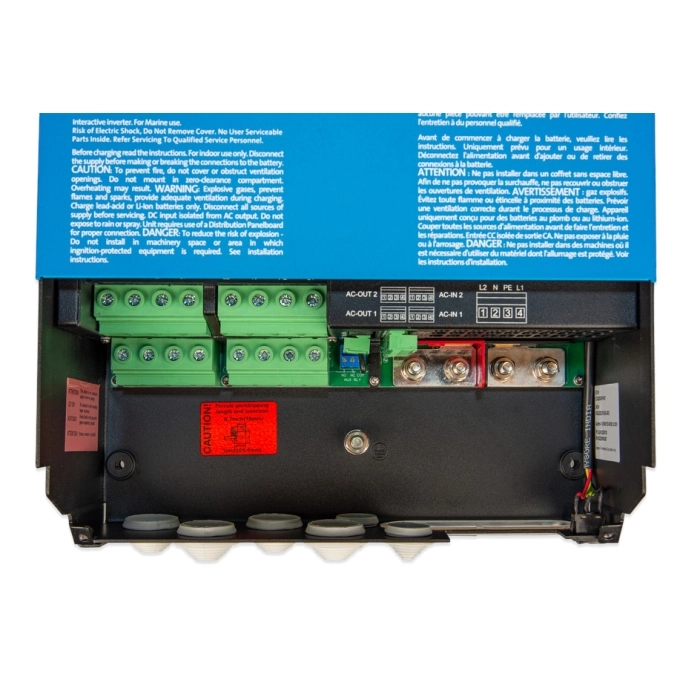

- Dual AC Inputs & Outputs: Supports two independent 120V AC inputs (e.g., grid and generator) and dual 120V outputs, ideal for split-phase configurations.
- Pure Sine Wave Inverter: Provides clean, stable 3000VA (2400W) AC power with low idle consumption, suitable for sensitive electronics and high-demand appliances.
- 70A Adaptive Battery Charger: Intelligently charges lithium-ion, AGM, or gel batteries with multi-stage profiles and temperature compensation for extended battery life.
- PowerControl & PowerAssist: Prevents overloads on limited AC sources (e.g., shore power or generators) by dynamically managing charge current; boosts weak AC inputs with battery power for peak loads up to 6000VA surge.
- High-Speed 50A Transfer Switch: Switches between AC sources and inverter mode in under 20ms for uninterrupted power.
- Scalable Design: Parallel up to 6 units for 18kVA output and 420A charging; configure for 240V split-phase or three-phase systems for high-power needs.
- ESS Ready: Advanced firmware supports Energy Storage Systems with anti-islanding for safe grid interaction and optimized self-consumption.
- VE.Bus Integration: Compatible with Victron’s Cerbo GX, VRM app, and remote monitoring for full control via smartphone, tablet, or PC—monitor, configure, and automate generator start-up effortlessly.
- Rugged & Reliable: Engineered for marine, RV, and harsh off-grid environments with lithium-ion compatibility and a 5-year limited warranty.
Specifications at a Glance:
- Inverter: 3000VA / 2400W continuous @ 25°C; 6000VA peak; 24V DC input.
- Charger: 70A adaptive, dual 120V AC input.
- Efficiency: Up to 94%; Zero-load power: 11W.
- Dimensions: 22.7 x 10.8 x 5.4 in (576 x 274 x 136 mm); Weight: 42 lbs (19 kg).
- Certifications: UL 1741, CSA-C22.2, FCC Part 15 Class B.
Pair this inverter/charger with our premium lithium-ion batteries for a complete, high-efficiency power solution. Whether for RV adventures, yacht voyages, or off-grid solar setups, the Victron Quattro-II delivers unmatched performance and reliability. Order now from lithiumion-batteries.com and experience Dutch-engineered excellence—stocked and ready to ship!
(For full technical details, download the datasheet or manual linked on the product page.)
