NOCO GEN5X3 12V 3-Bank 15A On-Board Battery Charger

Model #: GEN5X3 SKU: GEN5X3

Quantity
Price $199.95 +Add to wishlist +Add to gift registry

Product Details

Product Description for NOCO GEN5X3 12V 3-Bank 15A On-Board Battery Charger

NOCO GEN5X3 12V 3-Bank 15A On-Board Battery Charger – Compact, Waterproof Triple Maintainer and Desulfator for Marine, Automotive, and Lithium Batteries Maximize onboard battery performance with the NOCO GEN5X3 12V 3-Bank 15A On-Board Battery Charger (Model: GEN5X3), a cutting-edge, fully sealed charger engineered for the harshest marine and vehicle environments. Suited for boats, trolling motors, generators, cars, trucks, SUVs, ATVs, RVs, and powersports, this 15A (5A per bank) smart charger supports lead-acid (flooded, gel, AGM, maintenance-free, calcium, EFB) and 12V lithium-ion (LiFePO4) batteries up to 120Ah per bank, with modes for charging, maintenance, desulfation, and repair. Its IP68 waterproof rating and thermal compensation guarantee safe, efficient operation, even submerged or in extreme conditions.

Key Features:

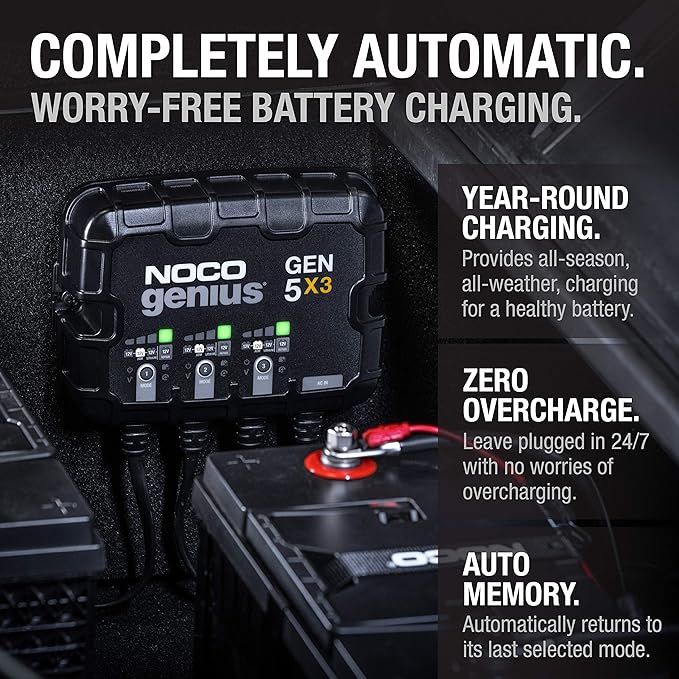

  • Smart Automatic Charging: Multi-stage profiles optimize charging, detect and repair sulfation/acid stratification, and provide float maintenance without overcharging for enhanced battery life.
  • Multi-Chemistry Support: Selectable modes per bank for 12V lead-acid (wet, gel, AGM, EFB), 12V lithium-ion with BMS, and 12V repair mode for batteries below 1V—manages diverse types independently.

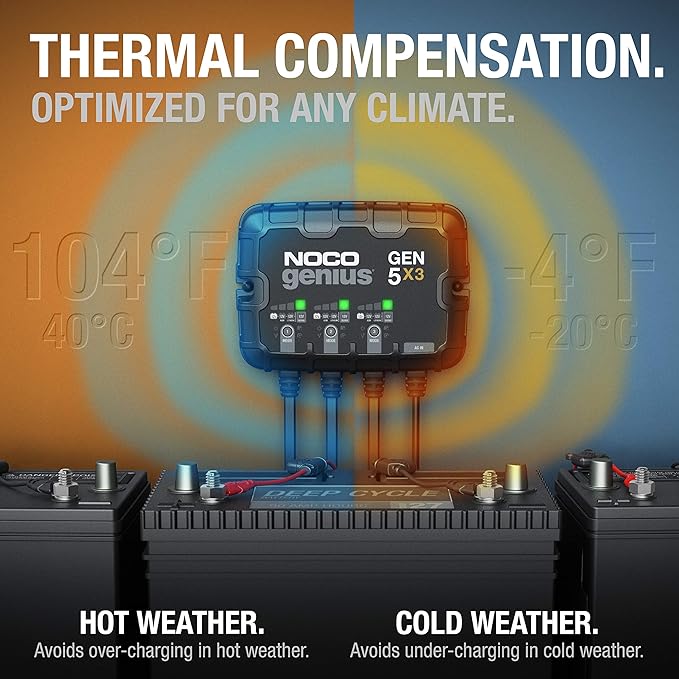

  • Temperature Compensation: Built-in sensor adjusts charging for optimal results in -4°F to 104°F environments.

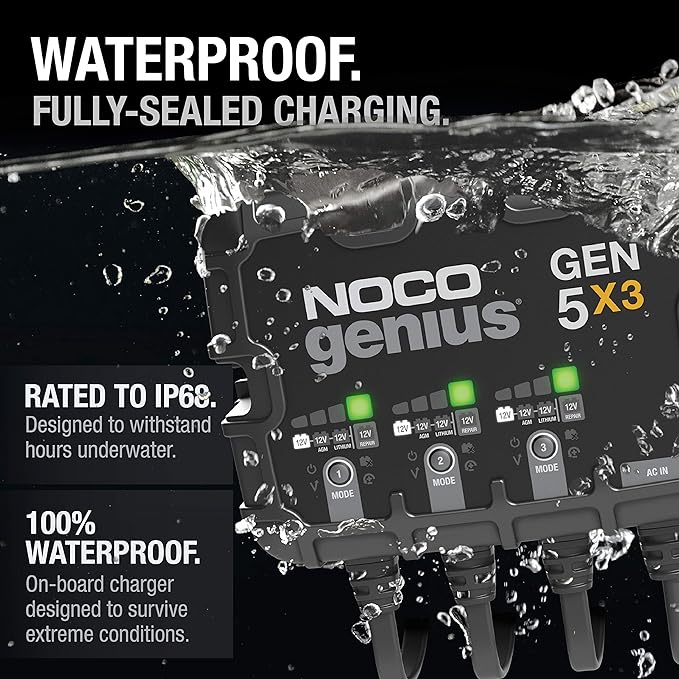

  • On-Board Waterproof Design: 37% smaller and 43% more powerful than the GENM3, with IP68 rating (fully submersible) for shock, vibration, and underwater resistance.

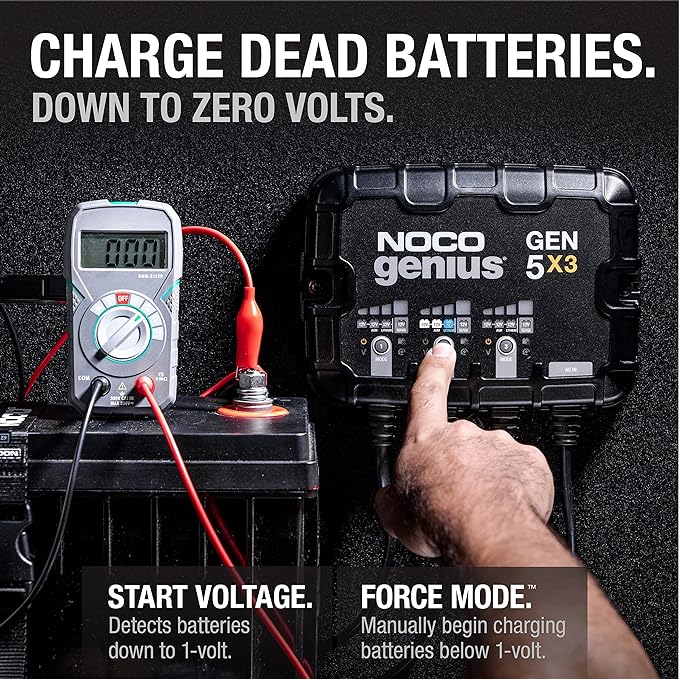

  • Force Mode: Manually activates to revive extremely depleted batteries down to 0V.
  • Safety Optimized: Spark-proof, reverse polarity protection, overcharge safeguards, and short-circuit prevention for secure, permanent installation.

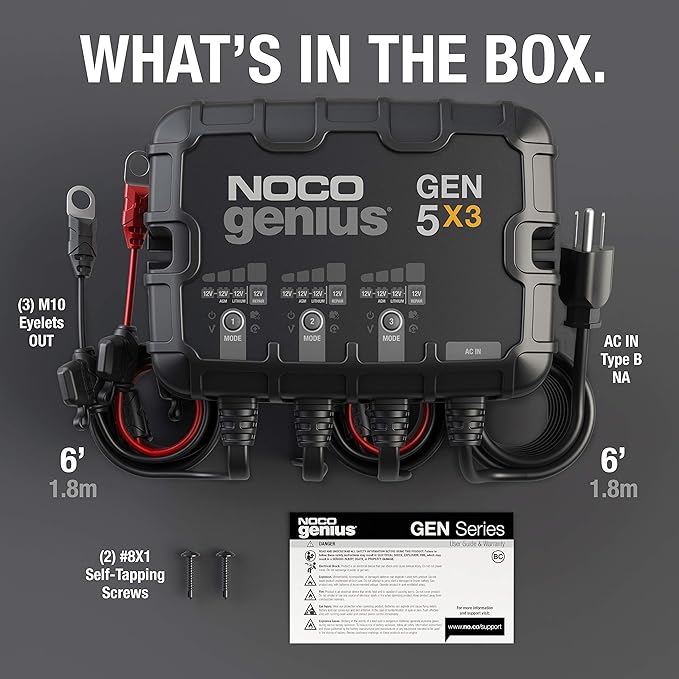

  • Versatile Mounting: Includes self-tapping screws and 72-inch DC cables with 3/8-inch eyelets for permanent triple-bank onboard setup.
  • Warranty: Backed by a 3-year limited warranty for rugged, USA-engineered quality.

Specifications at a Glance:

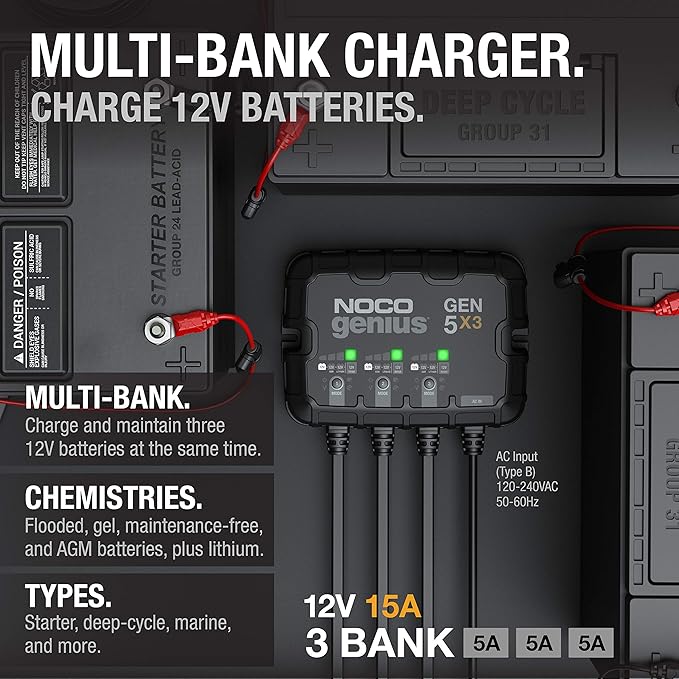

  • Charging Current: 15A total (5A per bank); Voltage: 12V.
  • Battery Types: Lead-Acid (Flooded, Gel, AGM, MF, CA, EFB), 12V Lithium (LiFePO4 with BMS).
  • Capacity Range: Up to 120Ah per bank (maintenance for all sizes).
  • Input: 120-240V AC, 50/60Hz.
  • Power Consumption: 220W max.
  • Dimensions: 7.8" x 3.9" x 2.4" (198 x 99 x 61 mm); Weight: 2.2 lbs (1.0 kg).
  • Operating Temperature: -4°F to 104°F (-20°C to 40°C); Storage: -22°F to 140°F (-30°C to 60°C).
  • Certifications: FCC Part 15 Class B, RoHS compliant; IP68 rating.

Pair this triple-bank onboard smart charger with our premium lithium-ion batteries for a marine-grade maintenance system. Whether triple-powering your boat or RV setup, the NOCO GEN5X3 ensures triple readiness. Order now and master the waves—stocked and ready to ship from lithiumion-batteries.com!
