Mastervolt Mass Sine 24/1500 Pure Sine Wave Inverter (MV-24021500)
Model #: Mass Sine 24/1500 SKU: MV-24021500
Product Details
Mastervolt Mass Sine 24/1500 Pure Sine Wave Inverter (MV-24021500)

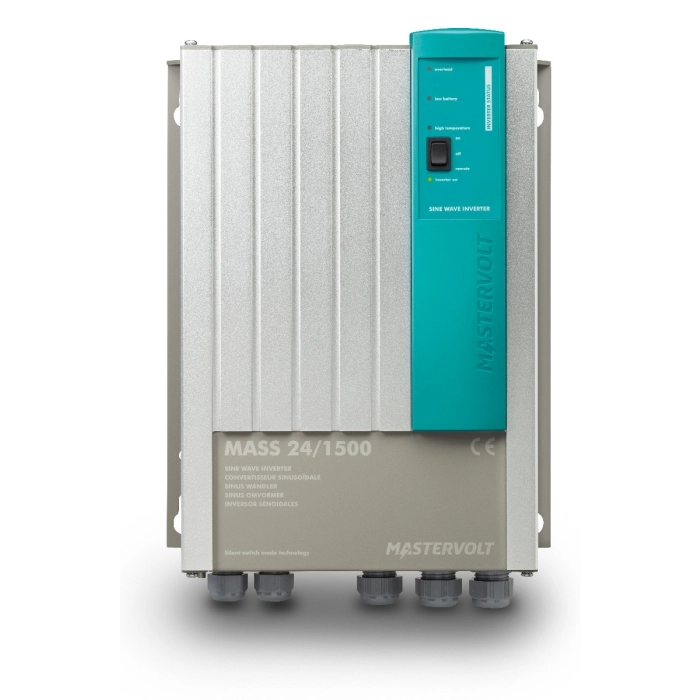

Mastervolt Mass Sine 24/1500 Pure Sine Wave Inverter (Model: Mass Sine 24/1500) – Reliable Power Solution for Marine, RV, and Off-Grid Systems
Elevate your mobile and off-grid power systems with the Mastervolt Mass Sine 24/1500 Pure Sine Wave Inverter (Part No: MV-24021500), a high-performance unit designed for professional, semi-professional, and recreational applications. This 24V DC to 230V/50Hz AC inverter delivers clean, stable pure sine wave output to power sensitive electronics, appliances, and moderate loads without humming or faults, even in demanding environments. With an MTBF of 180,000 hours at full capacity and 24/7 operation, it’s ideal for marine vessels, RVs, and solar setups. Fully MasterBus compatible for seamless integration, it features automatic protections, high peak capacity up to 3000W, and easy controls for reliable, uninterrupted performance. Key Features:
- Pure Sine Wave Output: Provides faultless 230V/50Hz AC power for sensitive equipment like communication devices, laptops, and appliances.
- High Peak Capacity: 1500W continuous (3000W surge) for seamless startup of demanding loads like motors and compressors.
- MasterBus Compatibility: Integrates with MasterBus networks via Inverter Interface or AC Power Analyser for remote monitoring and control.
- Automatic Protections: Over-temperature, overload, short-circuit, and high/low battery voltage safeguards with LED indicators.
- Economy Mode: Reduces no-load consumption to <0.5W for extended battery life.

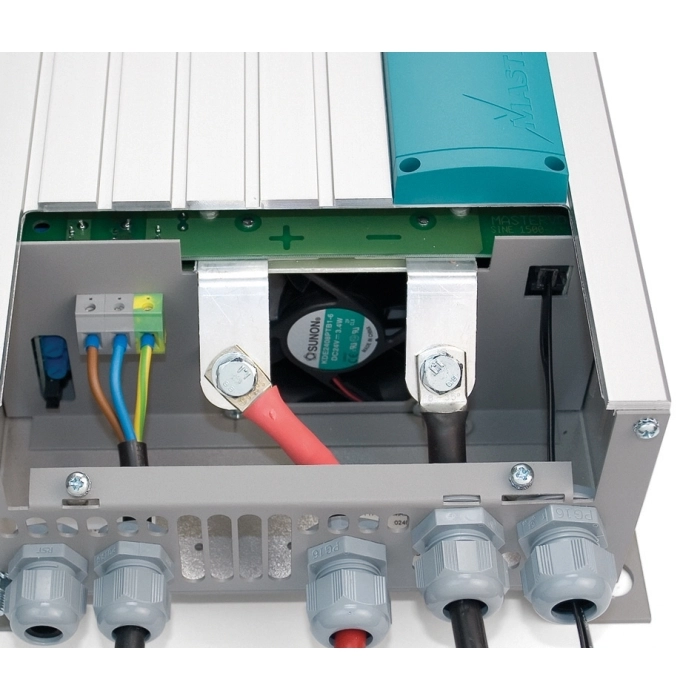

- Robust Connections: Professional internal AC terminals for fast, safe installation.
- Remote Control Options: Compatible with C4-RI panel or EasyView 5 display for intuitive operation.
- Rugged Design: HF switch technology ensures silent, efficient performance in harsh marine and mobile environments.
Specifications at a Glance:
- Inverter: 1500W continuous / 3000W surge @ 230V AC, 50Hz; 24V DC input.
- Efficiency: 92%; No-load draw: 5W (ON mode), 0.5W (economy mode).
- Input Current: 68A at nominal load; Low voltage cutoff: 20V (±1.0V).
- Operating Temperature: -25°C to 80°C (-13°F to 176°F), derating >40°C.
- Certifications: CE, E-mark, ABYC A-31.
- Dimensions: 14.6" L x 10.2" W x 4.9" H (370 x 260 x 125 mm); Weight: 22.0 lbs (10.0 kg).
Pair this inverter with Mastervolt battery chargers or solar controllers for a complete, high-efficiency power ecosystem. Whether powering your marine voyages, RV adventures, or off-grid solar system, the Mass Sine 24/1500 delivers proven reliability and durability. Order now and experience Mastervolt's legendary engineering—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
