LiTime 48V(51.2V)100Ah ComFlex Edition Server Rack LiFePO4 Battery with CAN/RS485 Communication
Model #: 48V(51.2V)100Ah ComFlex Edition Server Rack LiFePO4 Battery SKU: 51.2V100-100-COM-16-S3U
Product Details
Product Description for LiTime 48V(51.2V) 100Ah ComFlex LiFePO4 Battery|Server Rack
LiTime 48V 100Ah ComFlex Server Rack LiFePO4 Deep Cycle Lithium Battery – Intelligent CAN/RS485-Compatible Power Solution for Off-Grid Solar, Home Storage, Marine, RV, and Renewable Energy
Systems Elevate your energy storage with the LiTime 48V 100Ah ComFlex Server Rack LiFePO4 battery (Model: 48V(51.2V)100Ah ComFlex Edition Server Rack LiFePO4 Battery), a lightweight, rack-mount deep cycle battery featuring T5.0 Tech for seamless Victron integration via CAN/RS485 communication—no SmartShunt required. Delivering 5120Wh of energy with a 100A continuous discharge (500A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and ultra-fast charging (full in ~1 hour at 1C). Its advanced 100A BMS with 20+ protections, low-temp charging cut-off, and 3.5-inch smart touchscreen display ensures safe, efficient operation in rugged environments with a durable SPCC steel enclosure. Key Features:

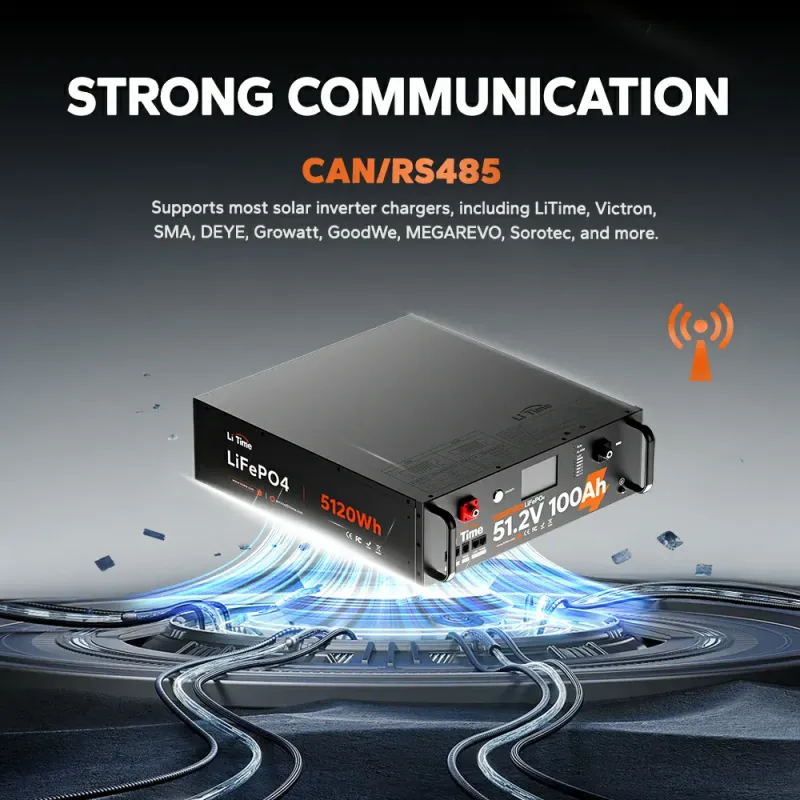

- ComFlex CAN/RS485 Communication: Plug-and-play integration with Victron systems for precise battery bank management; supports up to 16 units in parallel.

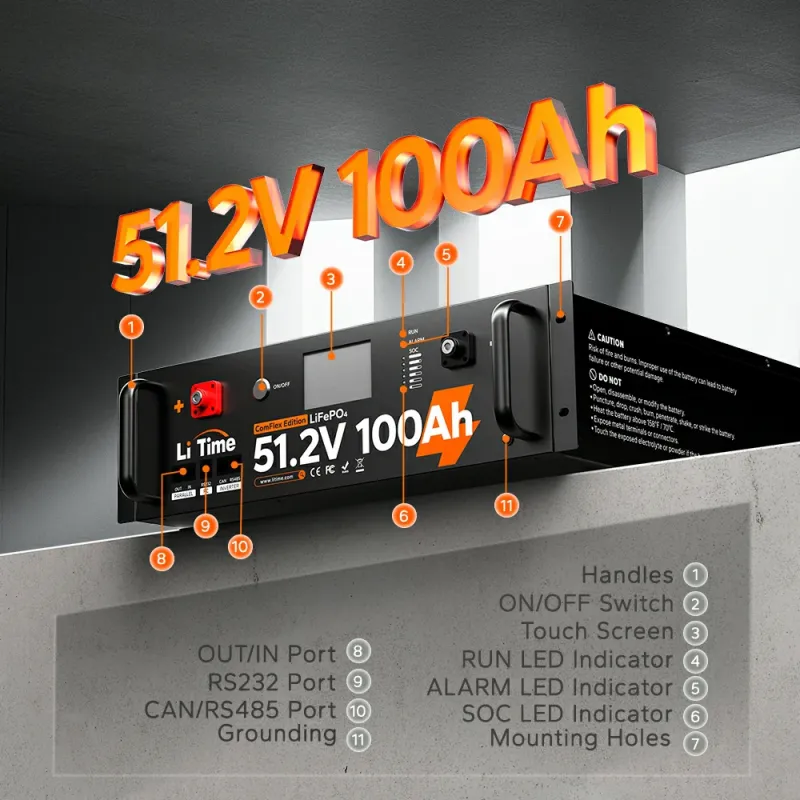

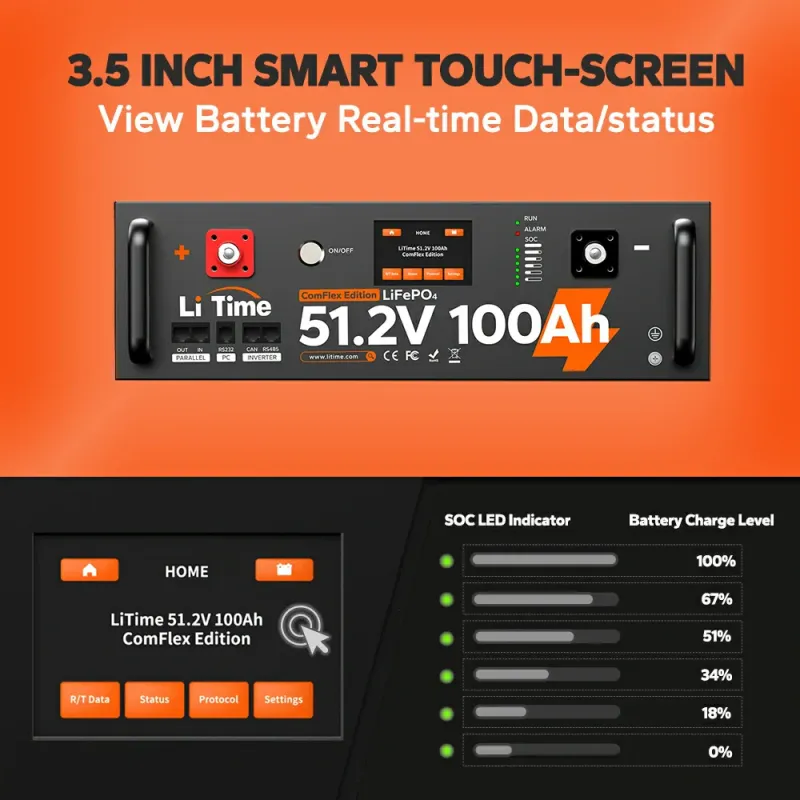

- Smart 3.5-Inch Touchscreen: Real-time display of SOC, alarms, voltage, and status with LED indicators for effortless monitoring.
- Exceptional Cycle Life: Up to 4,000+ cycles at 100% depth of discharge, backed by a 5-year limited warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 99 lbs with 99% round-trip efficiency and <3% monthly self-discharge—80% lighter than lead-acid equivalents.

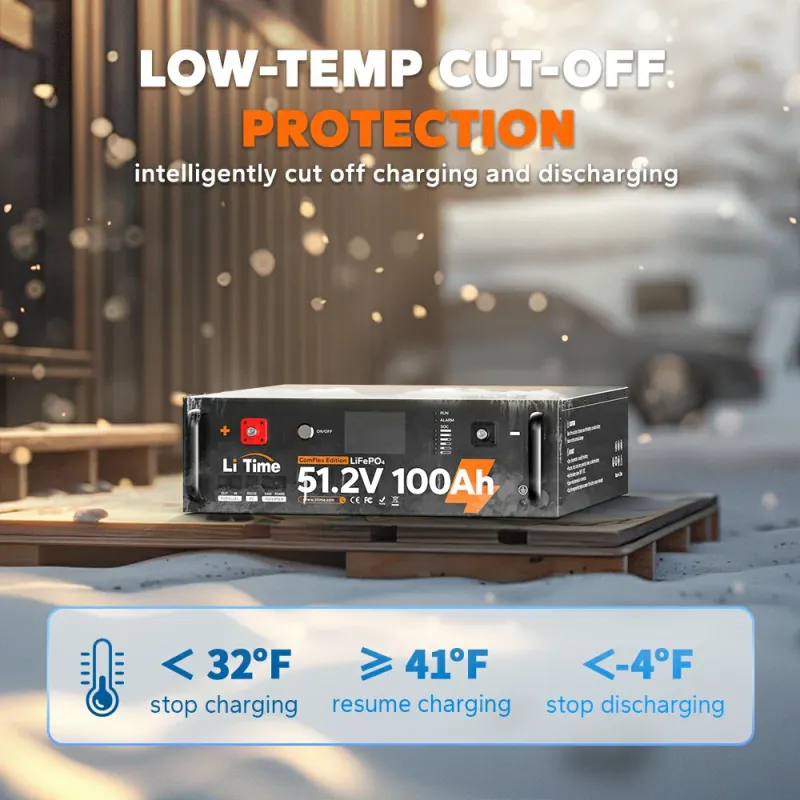

- Low-Temp Protection: Automatic charging cut-off below 32°F (0°C) with auto-recovery at 41°F (5°C); discharge from -4°F to 140°F (-20°C to 60°C).
- Safe & Certified: UL-1973, FCC, CE, RoHS, and UN38.3 compliant; EV-grade LiFePO4 cells with patented metal constraint, salt-spray resistance, and moisture-proof design.
- Rugged 3U Rack-Mount Enclosure: SPCC steel plate housing for optimal heat dissipation and durability in server racks or stacked setups.
- Versatile Charging: Up to 100A max via LiFePO4 charger, solar + MPPT, or generator at 57.6V CC/CV; pre-charge function for inverter compatibility.
Specifications at a Glance:
- Voltage: 51.2V nominal; Capacity: 100Ah; Energy: 5120Wh.
- Discharge: 100A continuous, 500A peak (1s); Charge: 100A max.
- Efficiency: 99%; Self-Discharge: <3% per month.

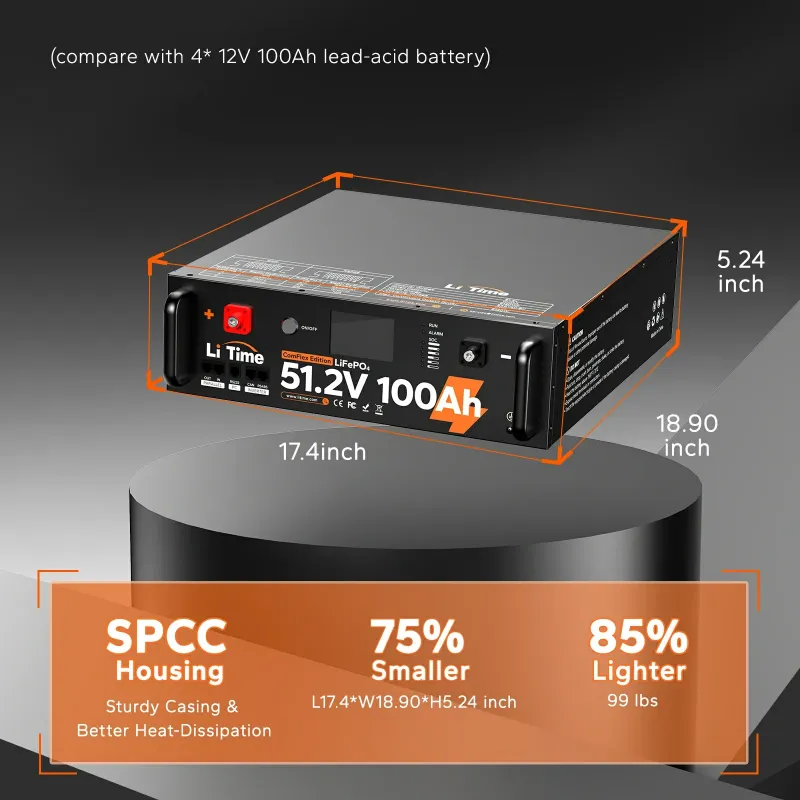

- Dimensions: 17.40 x 18.90 x 5.24 in (442 x 480.66 x 133 mm); Weight: 99 lbs (44.91 kg).
- Enclosure: IP20 SPCC Steel; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for home energy storage, off-grid solar banks, marine adventures, or RV excursions, the LiTime 48V 100Ah ComFlex delivers unmatched smart connectivity and peace of mind. Order now and experience LiTime’s innovative lithium technology—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
