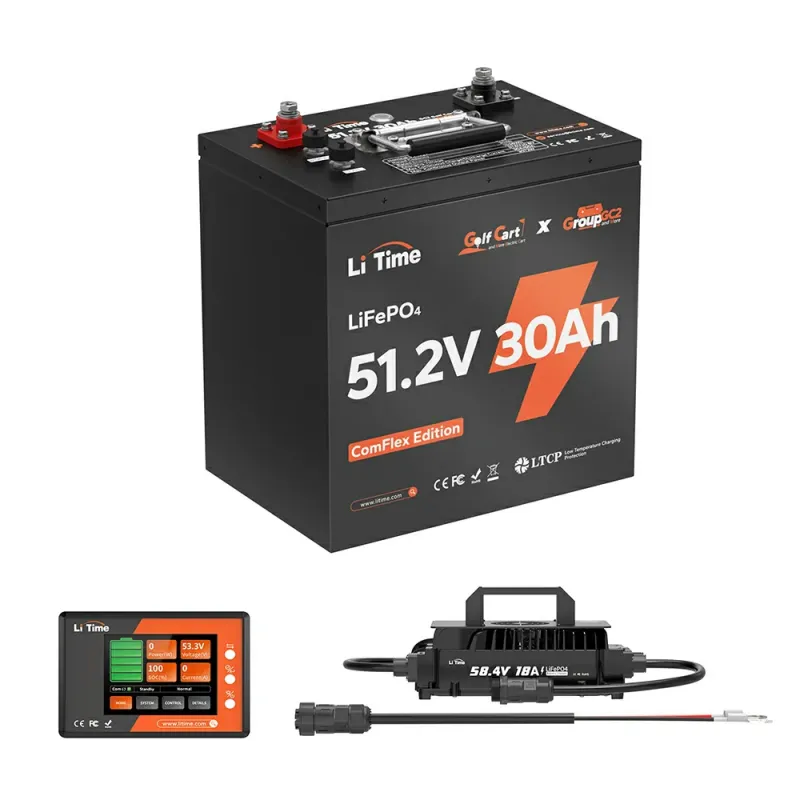

LiTime 48V 30Ah Lithium Golf Cart GC2 Metal Case RS485 Monitor Battery | 6V Battery Replacement
Model #: 48V 30Ah GC ComFlex SKU: 51.2V30-60-GC-COM-32-SGC2
Product Details
Product Description for LiTime 48V 30Ah Lithium Golf Cart GC2 Metal Case RS485 Monitor Battery | 6V Battery Replacement
LiTime 48V 30Ah GC2 LiFePO4 Deep Cycle Lithium Battery – Smart ComFlex Power Solution for Golf Carts, Electric Vehicles, Solar, RV, and Off-Grid Systems

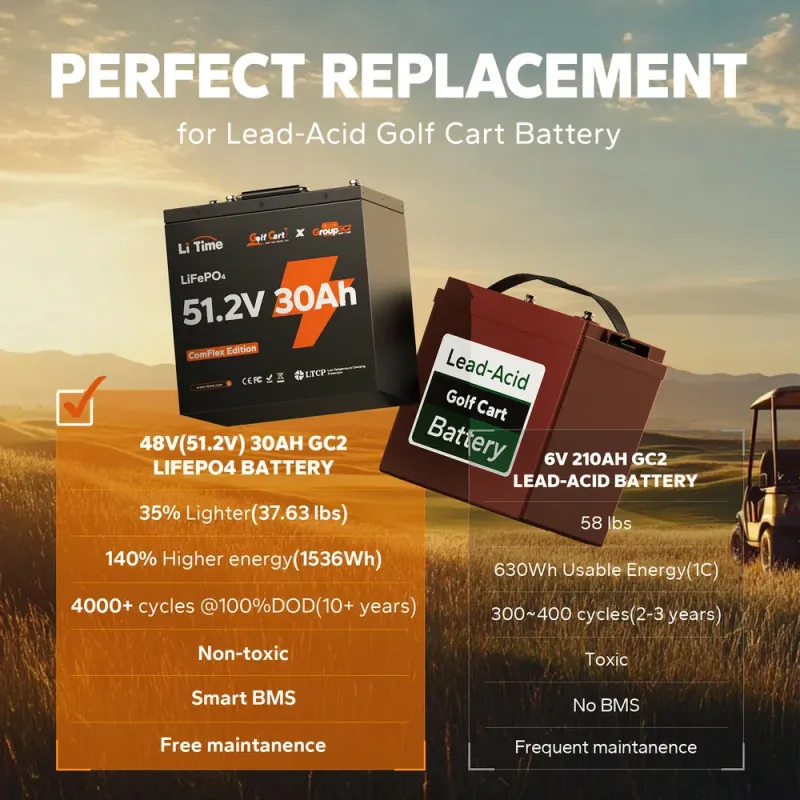

Elevate your mobility with the LiTime 48V 30Ah GC2 LiFePO4 battery (Model: 48V 30Ah GC ComFlex), a lightweight, high-performance deep cycle battery with Bluetooth 5.0 and ComFlex (CAN/RS485) communication for real-time monitoring via the LiTime APP or Victron systems. Designed as a drop-in replacement for 6V/8V GC2 lead-acid batteries (e.g., T-105/T-125/T-145/T-605/T-875/T-890 from Trojan), it powers demanding golf carts (Club Car, EZGO, ICON, Yamaha), electric shuttle buses, street-legal carts, electric trike scooters (≤21 mph / 35 km/h), LSV, ATV, NEV, lawn mowers, recreational vehicles, boathouses, trolling motors, and home backup. Delivering 1536Wh of energy with a 60A continuous discharge (300A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced 60A BMS with 20+ protections and low-temp cut-off ensures safe, efficient performance in rugged environments with an IP65-rated steel plate enclosure. Key Features:
- ComFlex RS485/CAN Communication: Seamless integration with Victron systems for precise battery bank management; supports up to 16 units in parallel.
- Smart Bluetooth Monitoring: Bluetooth 5.0 for instant app-based tracking of SOC, voltage, power, and status—control and diagnostics in real-time.
- Exceptional Cycle Life: Up to 4,000 cycles at 100% DOD, 6,000 at 80% DOD, and 15,000 at 60% DOD, backed by a 5-year limited warranty for superior longevity.
- Lightweight & Efficient: Only 37.63 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Low-Temp Protection: Automatic charge cut-off below 32°F (0°C) with recovery at 41°F (5°C); discharge from -4°F to 140°F (-20°C to 60°C).
- Safe & Certified: UL-2271, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with EV-grade cells for zero off-gassing and safe indoor use.
- Rugged IP65 Metal Enclosure: Durable steel plate cold common (SPCC) case with M8 bolt terminals for secure, vibration-resistant connections.
- Scalable & Compatible: Up to 8P1S configuration (12.288kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 48V systems.
Specifications at a Glance:
- Voltage: 51.2V nominal; Capacity: 30Ah; Energy: 1536Wh.

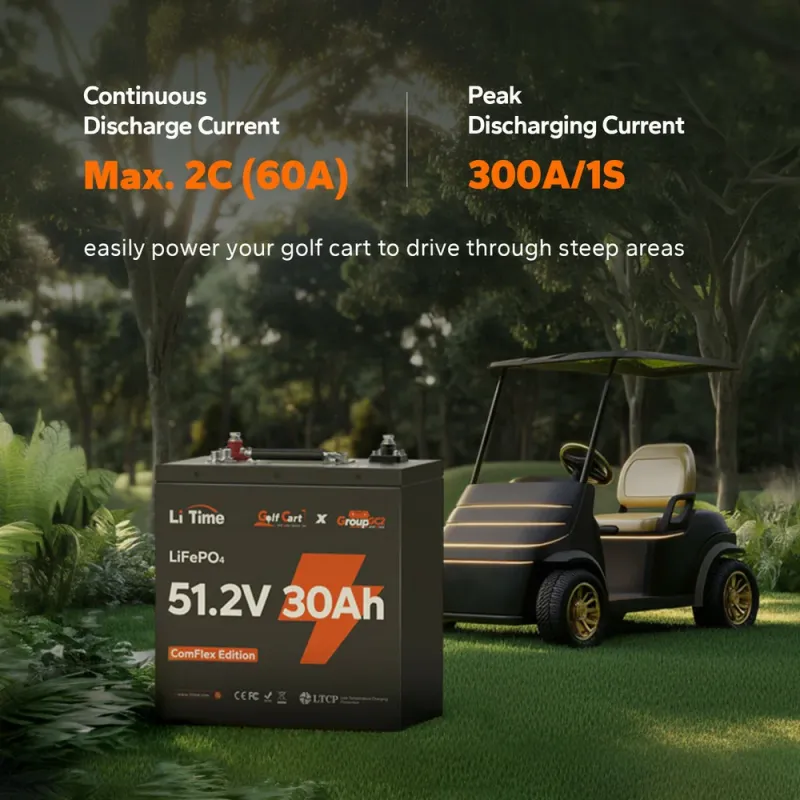

- Discharge: 60A continuous, 300A peak (1s); Charge: 30A max.
- Efficiency: 99%; Self-Discharge: <3% per month; Internal Resistance: ≤40 mΩ.

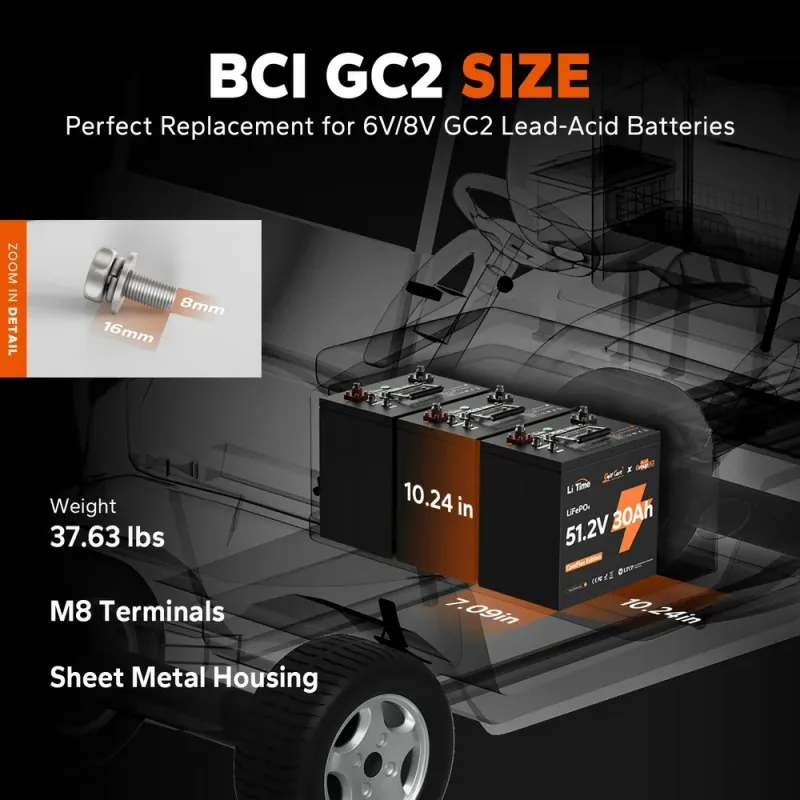

- Dimensions: 10.24 x 7.09 x 10.24 in (260 x 180 x 260 mm); Weight: 37.63 lbs (17.07 kg).
- Enclosure: IP65 SPCC Steel; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether powering golf carts, electric vehicles, or solar storage, the LiTime 48V 30Ah GC2 delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
