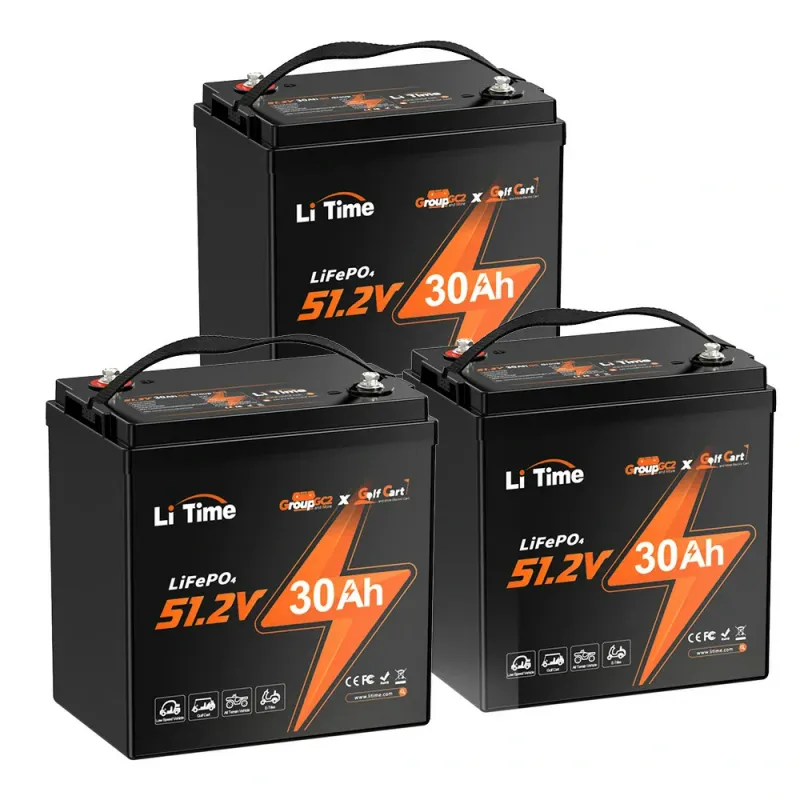

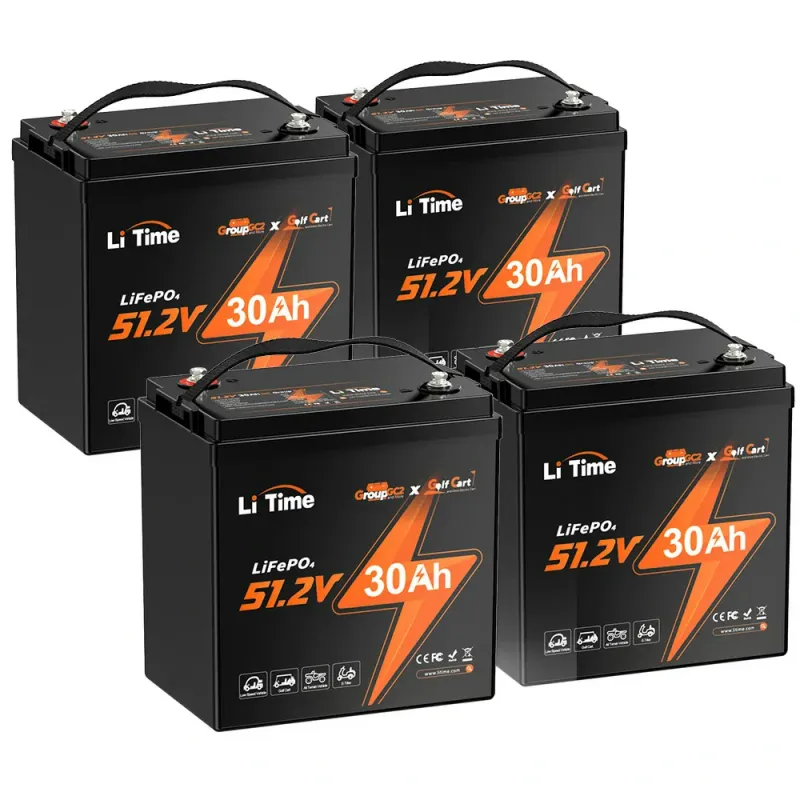

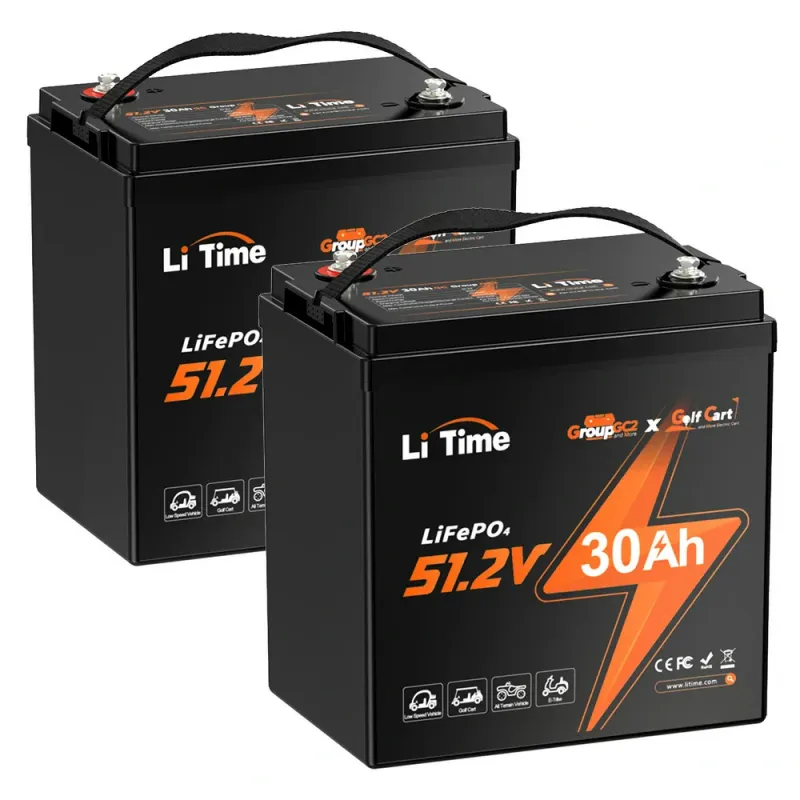

LiTime 48V 30Ah GC2 Lithium Golf Carts LiFePO4 Battery
Model #: 48V 30Ah GC2 SKU: 51.2V30-60-GC-32-AGC2
Product Details
Product Description for LiTime 48V 30Ah GC2 Lithium Golf Carts LiFePO4 Battery
LiTime 48V 30Ah GC2 LiFePO4 Deep Cycle Lithium Battery – High-Performance Power Solution for Golf Carts, Electric Vehicles, Solar, RV, and Off-Grid Systems
Elevate your mobility with the LiTime 48V 30Ah GC2 LiFePO4 battery (Model: 48V 30Ah GC2), a lightweight, high-performance deep cycle battery designed for demanding golf carts (including Club Car, EZGO, ICON, Yamaha), electric shuttle buses, street-legal carts, electric trike scooters (≤21 mph / 35 km/h), LSV, ATV, NEV, lawn mowers, recreational vehicles, boathouses, trolling motors, and home backup power supply. Delivering 1536Wh of energy with a 60A continuous discharge (300A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated 60A Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, over-current, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:

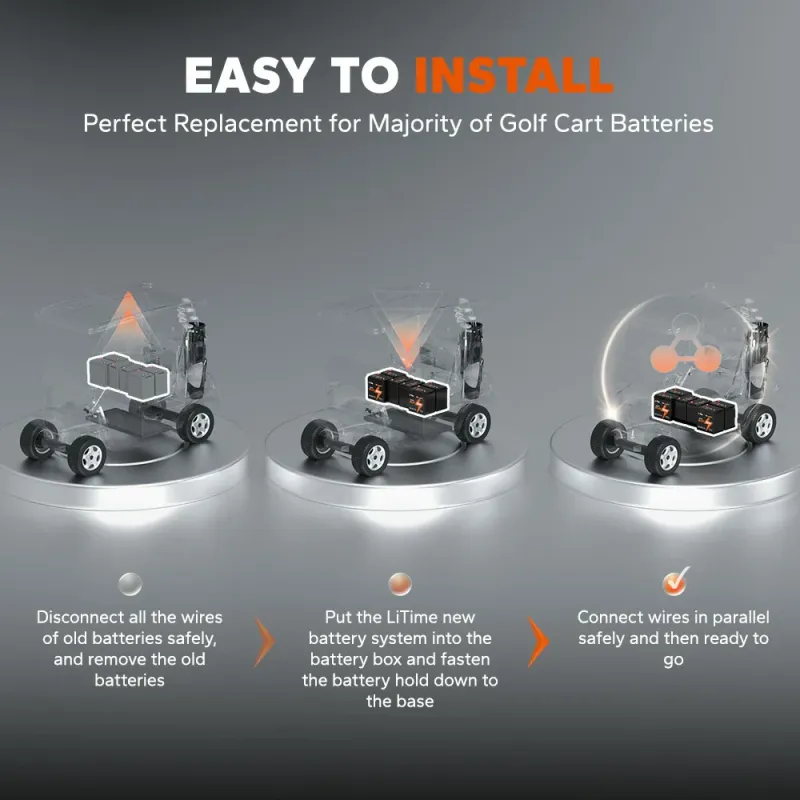

- Drop-In GC2 Compatibility: Seamless replacement for lead-acid GC2 batteries (e.g., T-105, T-875) with 2C discharge rate for powerful acceleration.
- Exceptional Cycle Life: Up to 4,000 cycles at 100% DOD, 6,000 at 80% DOD, and 15,000 at 60% DOD, backed by a 5-year limited warranty for superior longevity.
- Lightweight & Efficient: Only 28 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) for reliable all-season use.
- Safe & Certified: UL-2271, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with EV-grade cells for zero off-gassing and safe indoor operation.

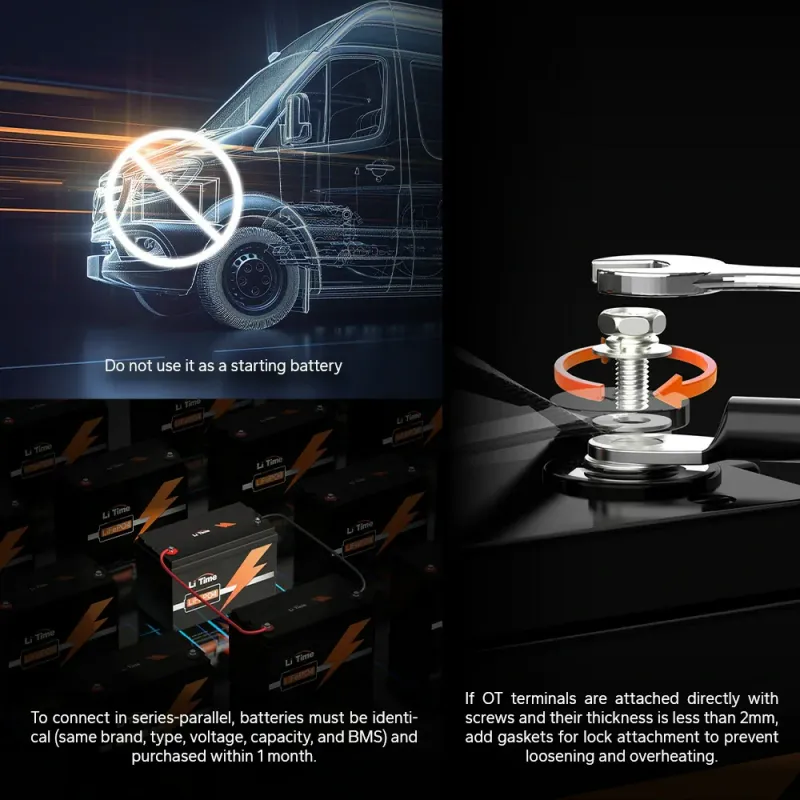

- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with M8 bolt terminals for secure, vibration-resistant connections.

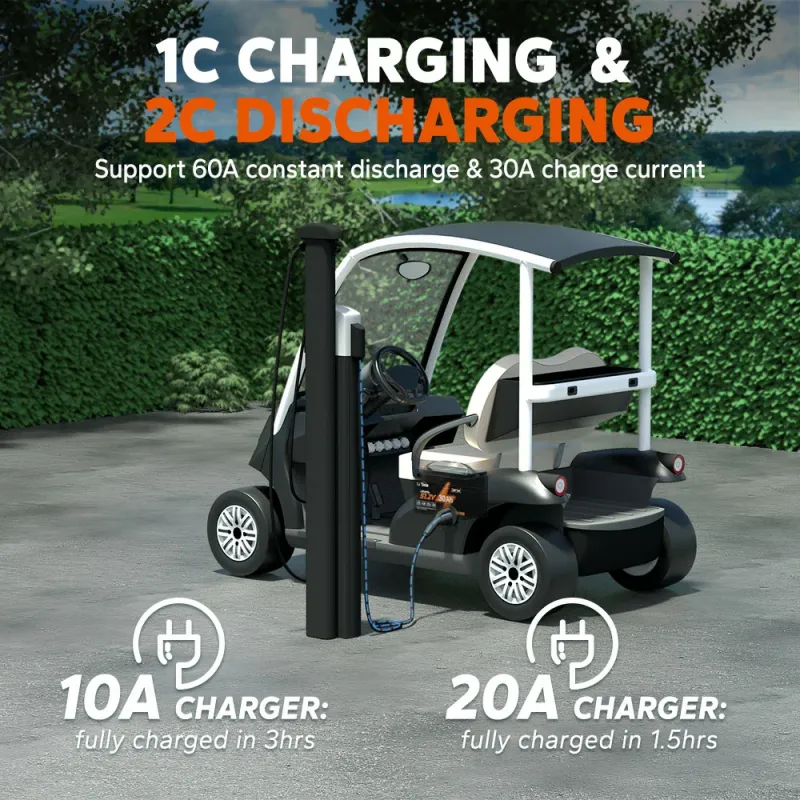

- Fast Charging Capability: Up to 30A max charge with low internal resistance (≤40 mΩ) for quick recharges (full in 3 hours with 10A charger).
- Scalable & Compatible: Up to 8 in parallel for 51.2V 240Ah (12.28kWh) systems; pairs seamlessly with Victron, Renogy, and other inverters.
Specifications at a Glance:
- Voltage: 51.2V nominal; Capacity: 30Ah; Energy: 1536Wh.

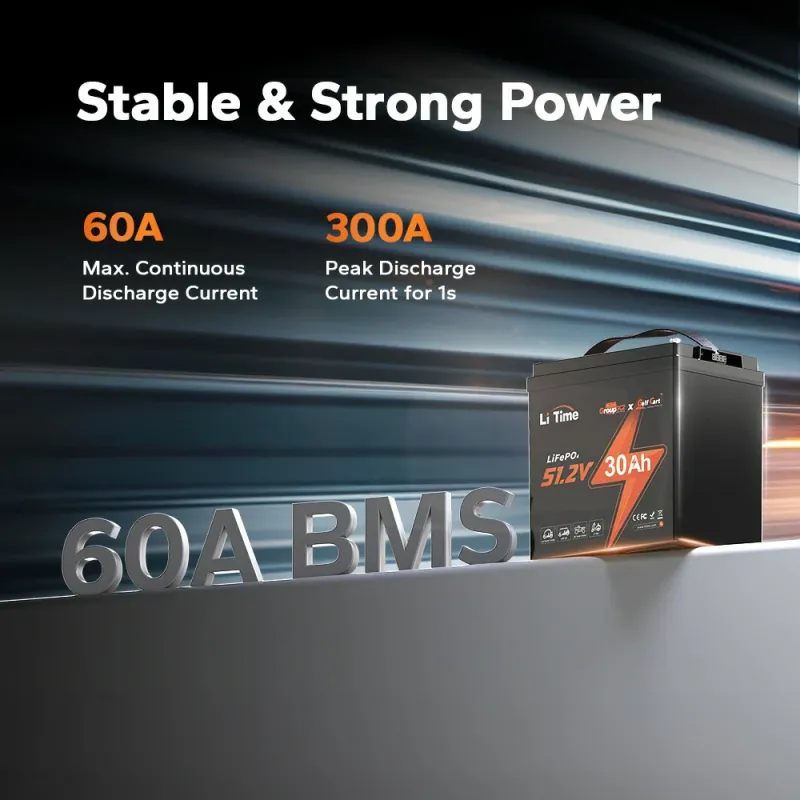

- Discharge: 60A continuous, 300A peak (1s); Charge: 30A max.
- Efficiency: 99%; Self-Discharge: <3% per month.

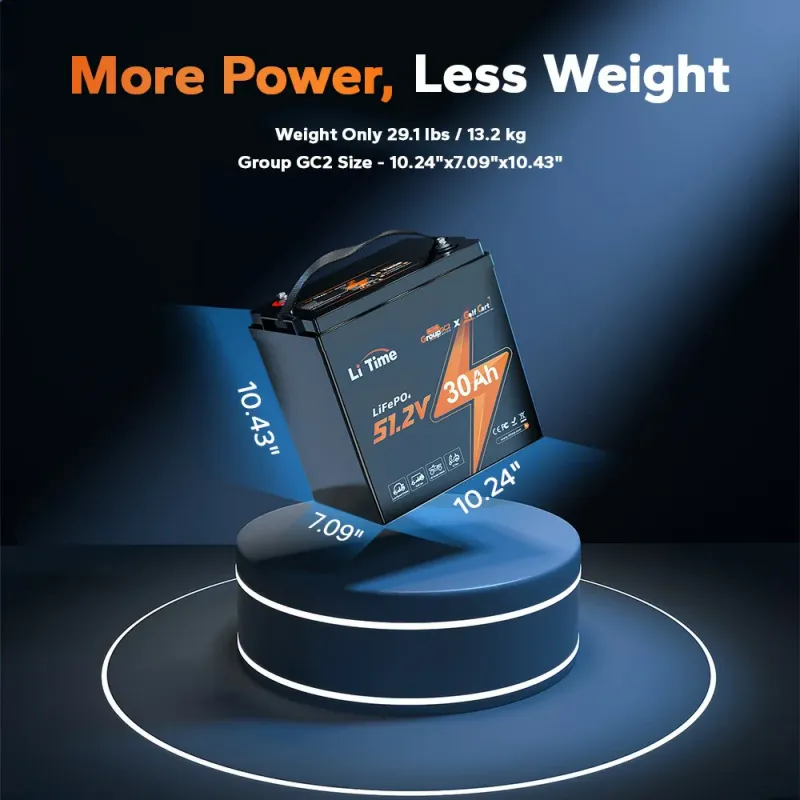

- Dimensions: 10.24 x 7.09 x 10.43 in (260 x 180 x 265 mm); Weight: 28 lbs (12.7 kg).
- Enclosure: IP65 ABS; Terminals: M8 Bolts.

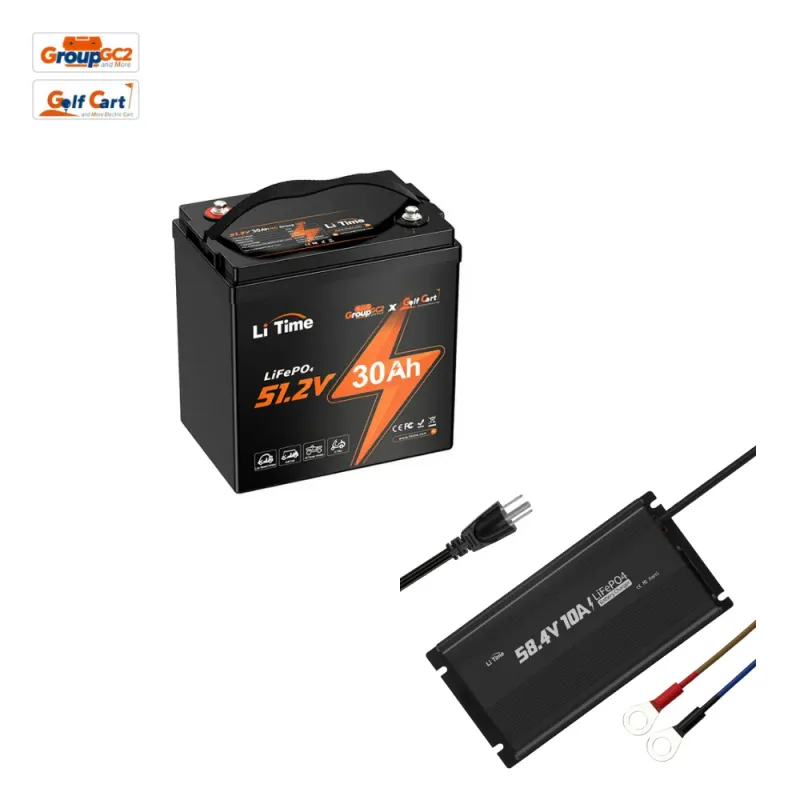

Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether powering golf carts, electric vehicles, or solar storage, the LiTime 48V 30Ah GC2 delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
