LiTime 48V 100Ah Golf Cart Lithium Battery Conversion Kit
Model #: 48V 100Ah GC Smart Battery Kit
Product Details
Product Description for LiTime 48V 100Ah Golf Cart Lithium Battery Conversion Kit
LiTime 48V 100Ah GC2 LiFePO4 Bluetooth Deep Cycle Lithium Battery Conversion Kit – Complete Smart Power Upgrade for Golf Carts, Electric Vehicles, Solar, RV, and Off-Grid Systems
Elevate your mobility with the LiTime 48V 100Ah GC2 LiFePO4 battery conversion kit (Model: 48V 100Ah GC Smart Battery Kit), a lightweight, high-performance deep cycle battery with Bluetooth 5.0 for real-time app monitoring via the LiTime APP (SOC, voltage, power, and more). This all-in-one kit is designed as a drop-in replacement for lead-acid batteries in golf carts (including Club Car, EZGO, ICON, Yamaha), electric shuttle buses, street-legal carts, electric trike scooters (≤21 mph / 35 km/h), LSV, ATV, NEV, lawn mowers, recreational vehicles, boathouses, trolling motors, and home backup power supply. Delivering 5120Wh of energy with a 100A continuous discharge (600A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated 200A BMS with 20+ protections and low-temp cut-off ensures safe, efficient performance in rugged environments with an IP65-rated enclosure. The kit includes everything needed for a seamless upgrade: the battery, 58.4V 18A IP65 waterproof charger, heavy-duty hold-down kit, 500A battery monitor with shunt, and manuals. Key Features:
- Bluetooth 5.0 Monitoring: Real-time app tracking of SOC, voltage, power, and status for effortless management on the course or off-grid.

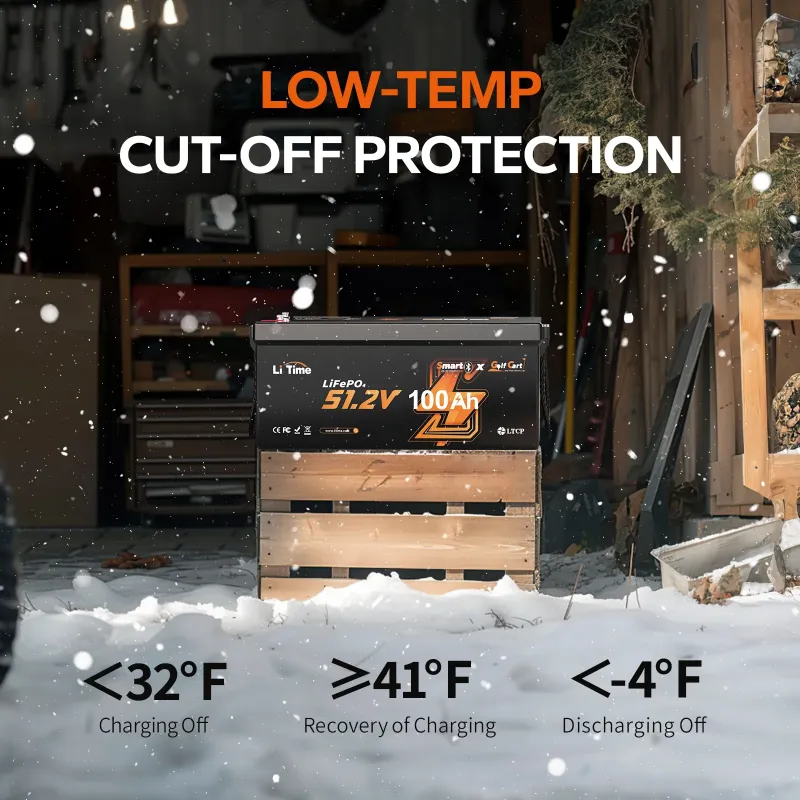

- Low-Temperature Cut-Off Protection: Stops charging below 32°F (0°C), resumes at 41°F (5°C); automatic discharge off below -4°F (-20°C).
- Self-Developed Smart BMS: 20+ protections including overload with auto-recovery and salt spray defense for reliable operation.
- EV Grade A LiFePO4 Cells: Uniform force and better heat dissipation for 1C continuous charging/discharging.
- 5120Wh Energy: 40-47 miles runtime, double that of 51.2V 100Ah AGM batteries.
- Larger Output Power: Max 5000W for golf cart, max 5120W for energy storage.
- Drop-In Replacement: 80% lighter and 50% smaller than 86V/68V lead-acid batteries.

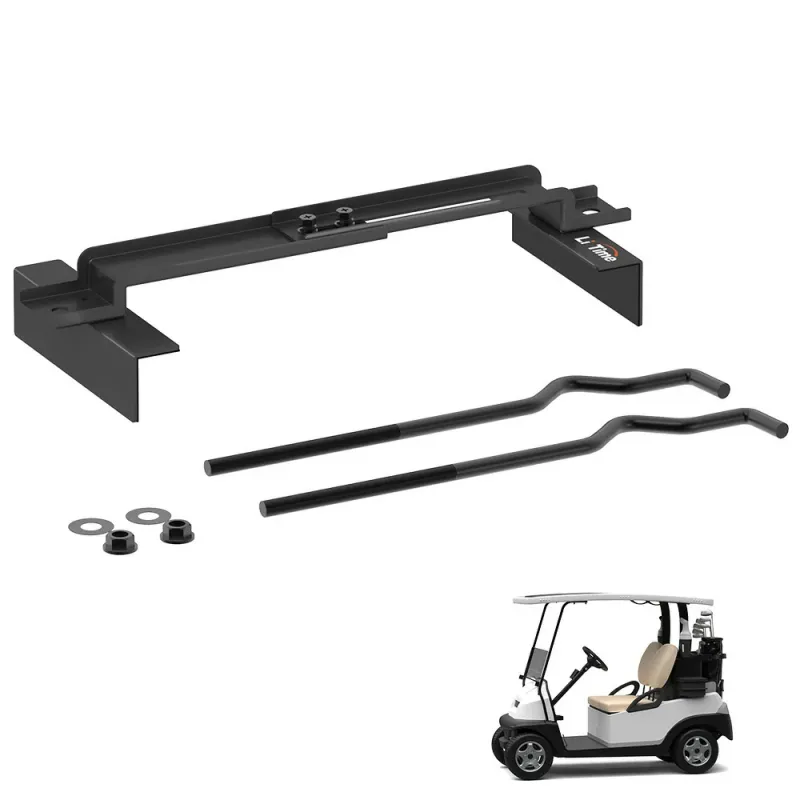

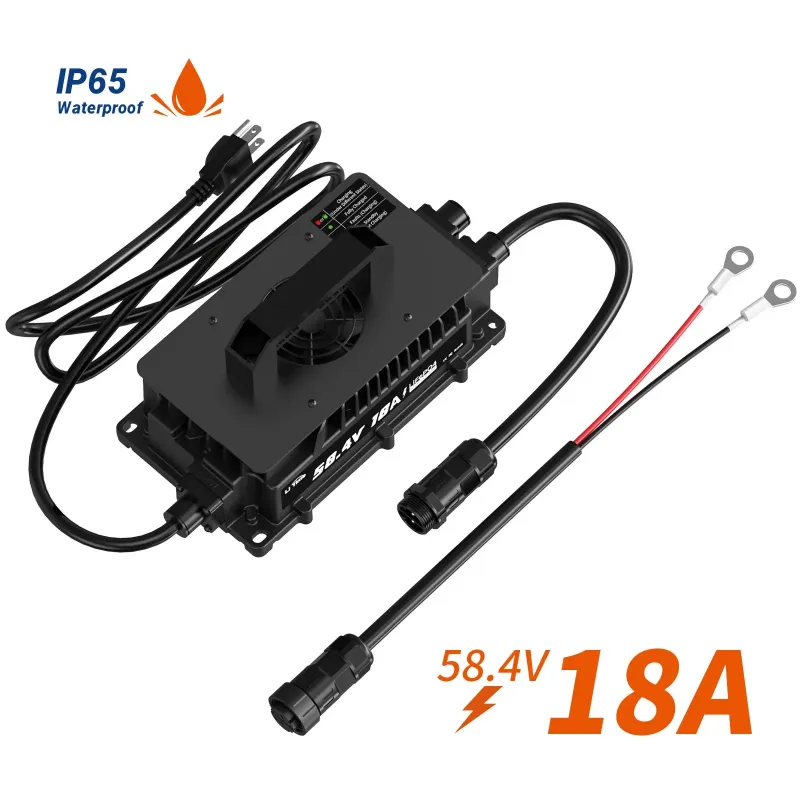

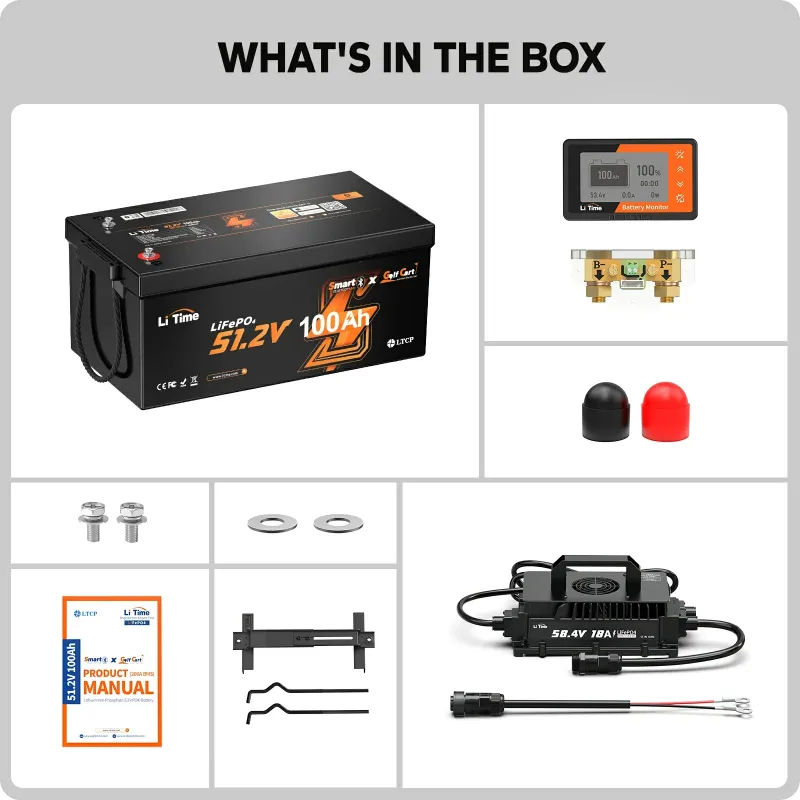

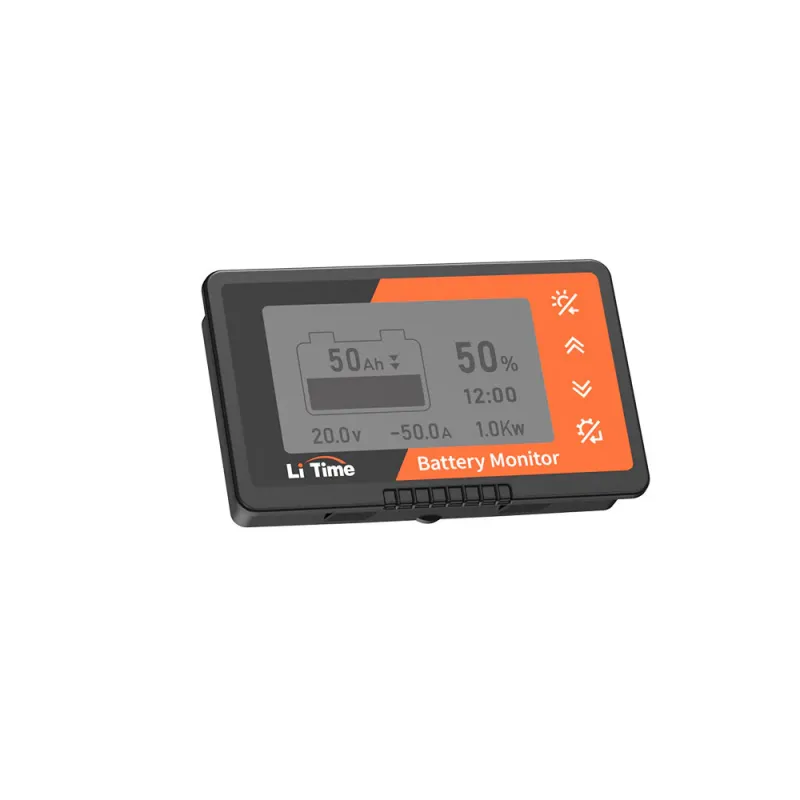

- Kit Components: Includes lithium battery, 58.4V 18A charger (IP65 waterproof, 100-240V input, CE/FCC/ETL certified), heavy-duty hold-down kit (rust-resistant clamps and bolts), 500A battery monitor with shunt (displays voltage, current, power, capacity, charge/discharge time, percentage; backlit with buzzer alarm), and manuals.
Specifications at a Glance:
- Voltage: Nominal 51.2V (48V system); Capacity: 100Ah; Energy: 5120Wh (5.12kWh).
- Discharge: Continuous 100A (1C), Peak 600A (1s); Max Continuous Output Power: 5000W for golf cart.
- Charge: Continuous 100A (1C), Charge Voltage 57.6V ± 0.8V, Recommended 20A; Charger: 58.4V 18A.
- Efficiency: 99%; Internal Resistance: ≤40mΩ.

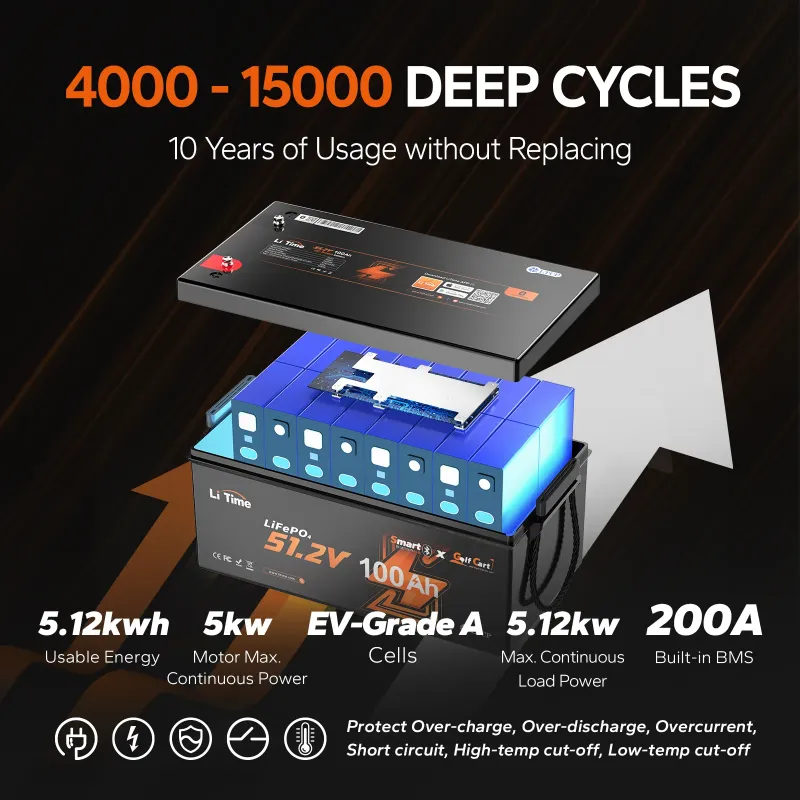

- Cycle Life: 4000 cycles at 100% DOD, 6000 at 80% DOD, 15000 at 60% DOD.

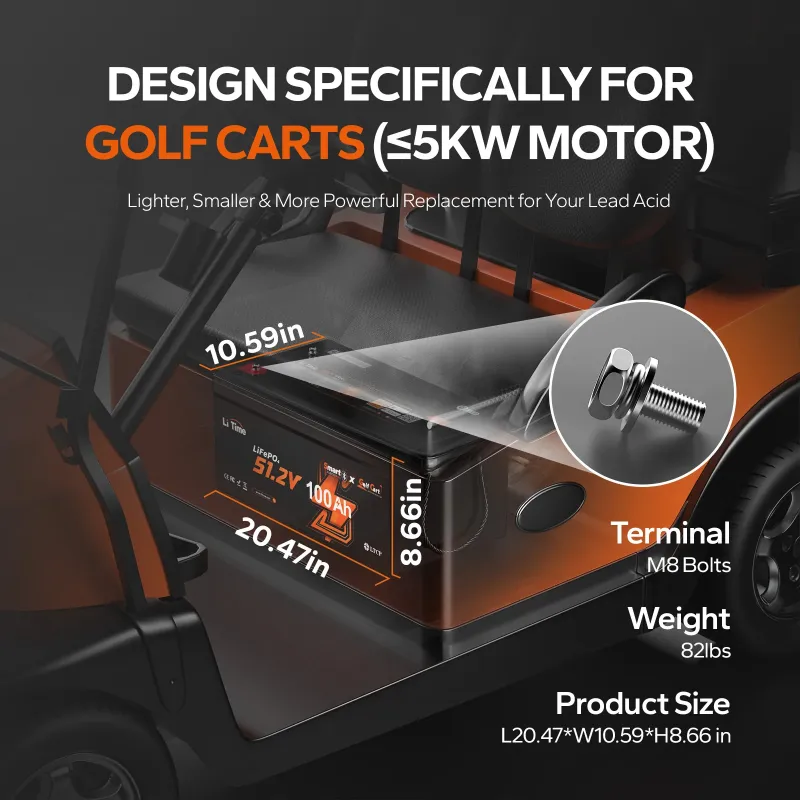

- Dimensions: L20.47 × W10.59 × H8.66 in; Weight: 82 lbs.
- Enclosure: IP65 ABS; Terminals: M8 Bolts.
- Certifications: FCC, CE, RoHS, UN38.3, UL-2271.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether powering golf carts, electric vehicles, or solar storage, the LiTime 48V 100Ah GC2 delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
