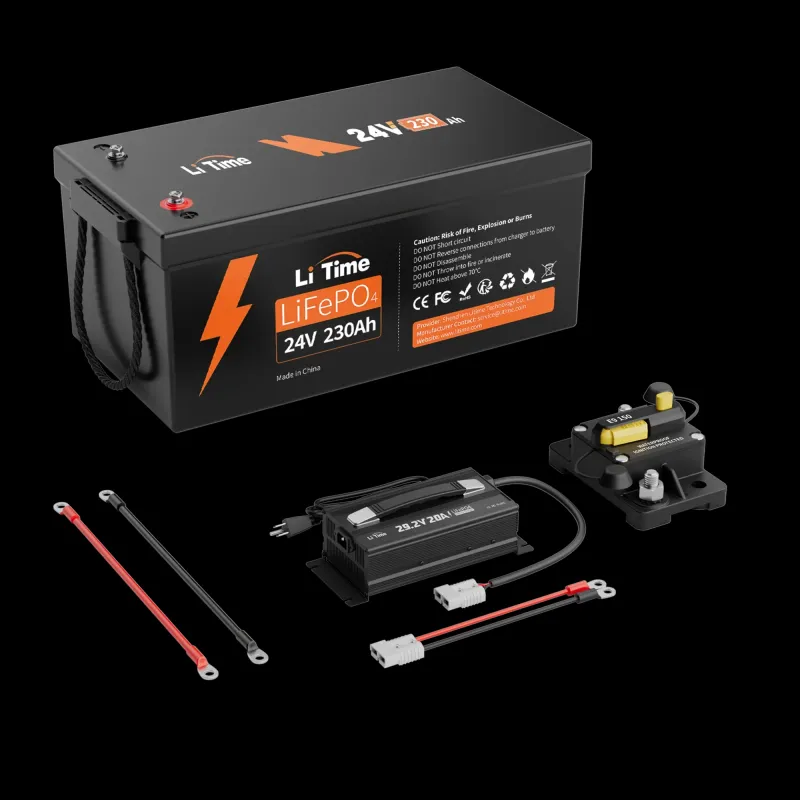

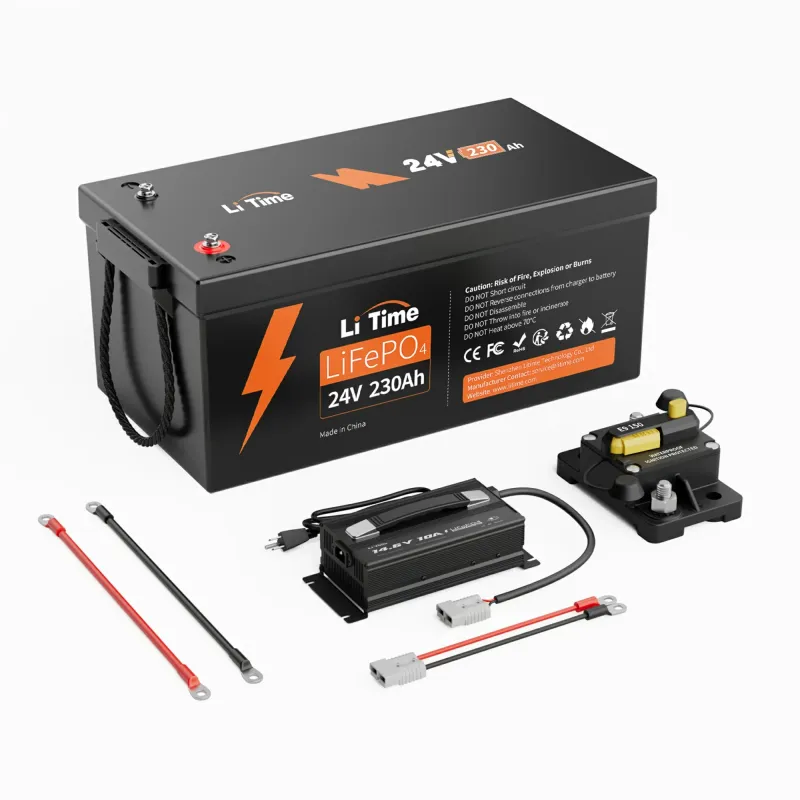

LiTime 24V 230Ah Deep Cycle LiFePO4 Group 8D Battery
Model #: 24V 230Ah SKU: 24V230-200-BASIC-8-A250
Product Details
Product Description for LiTime 24V 230Ah Deep Cycle LiFePO4 Group 8D Battery
LiTime 24V 230Ah LiFePO4 Deep Cycle Lithium Battery – High-Capacity Group 8D Power Solution for Marine, Solar, RV, and Off-Grid Systems

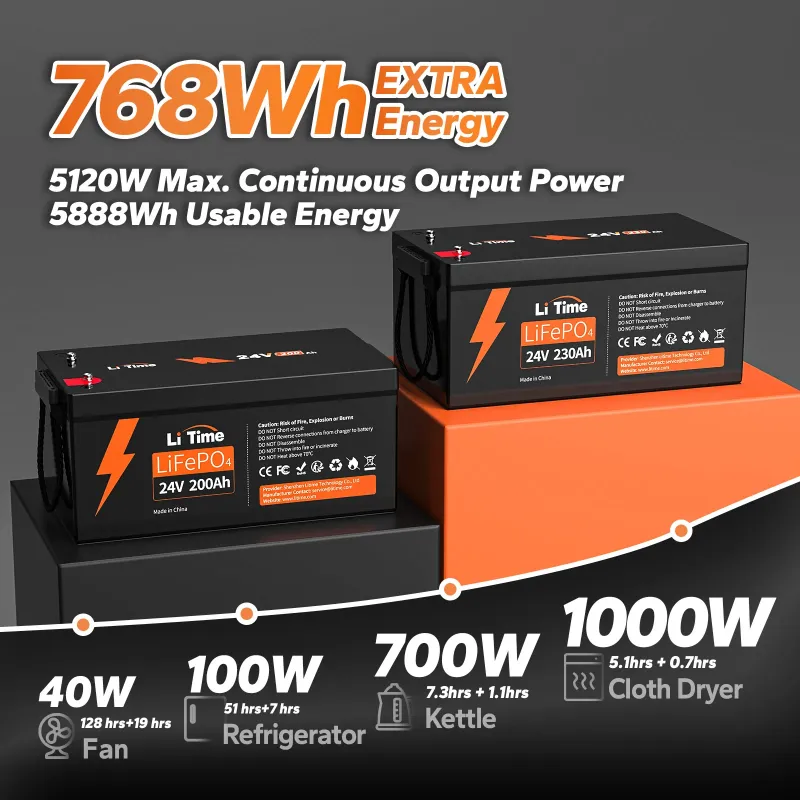

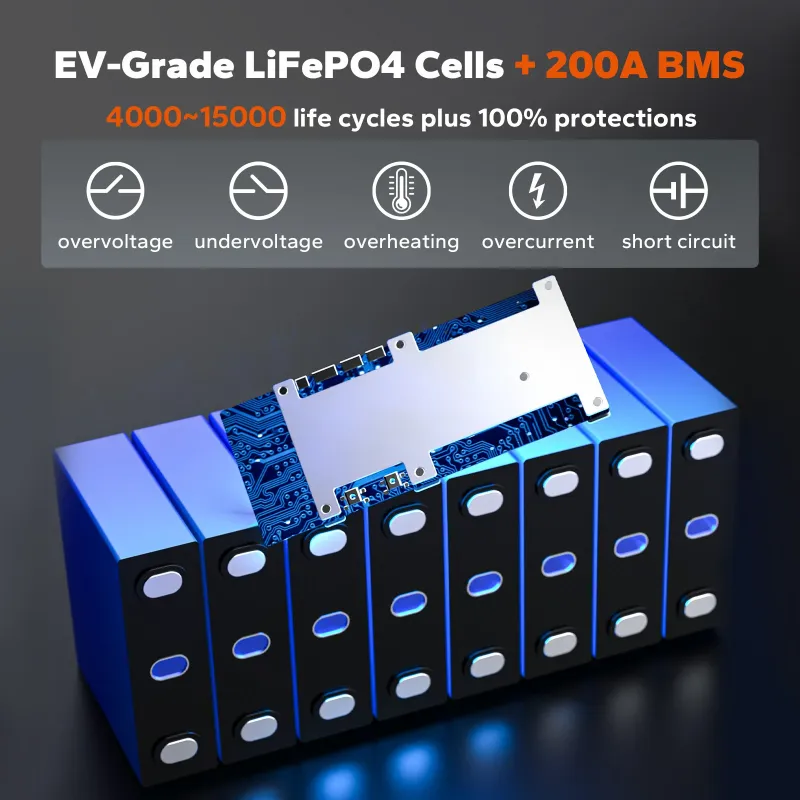

Elevate your energy storage with the LiTime 24V 230Ah LiFePO4 battery (Model: 24V 230Ah), a lightweight, Group 8D-sized deep cycle battery designed for demanding marine, solar, RV, and renewable energy applications. Delivering 5888Wh of energy with a 200A continuous discharge (400A peak for 5s, 800A peak for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced integrated Battery Management System (BMS) protects against overcharge, over-discharge, short circuits, and thermal extremes, ensuring safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:
- High-Capacity Performance: 200A continuous and 800A peak discharge, ideal for trolling motors, solar arrays, or high-drain devices without derating.
- Exceptional Cycle Life: Up to 4,000 cycles at 100% depth of discharge, backed by a 5-year limited warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 86.6 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) for reliable all-season use.
- Safe & Certified: UL-1973, FCC, CE, RoHS, and UN38.3 compliant; non-toxic LiFePO4 chemistry with no gassing or fumes for eco-friendly, indoor-safe operation.
- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with M8 bolt terminals for secure, vibration-resistant connections.
- Fast Charging Capability: Up to 200A max charge with low internal resistance for quick recharges (recommended 46A), even at low temperatures.

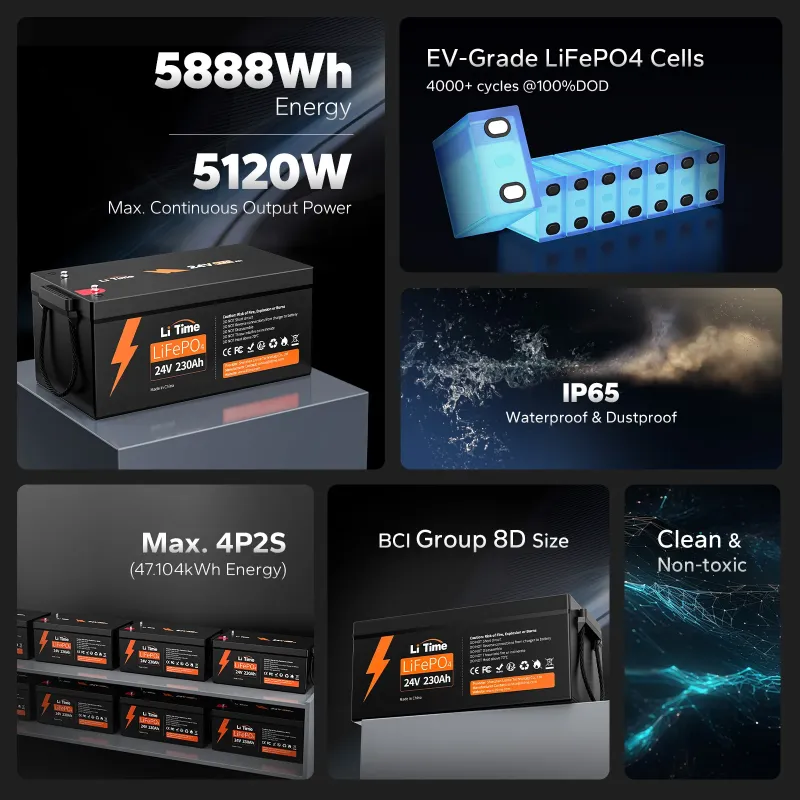

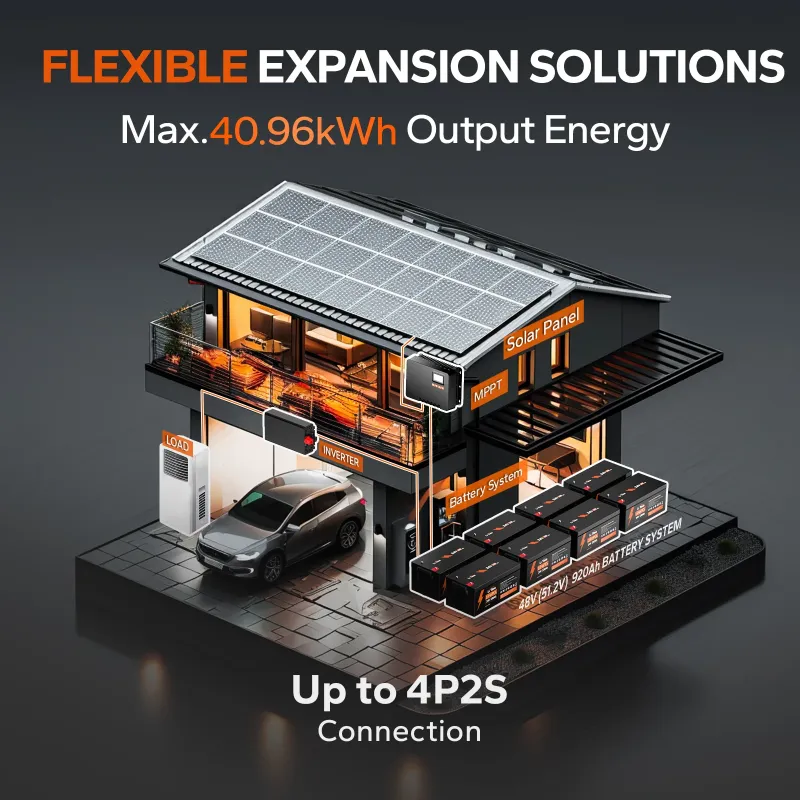

- Scalable & Compatible: Up to 4P2S configuration (94.208kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 24V systems.
Specifications at a Glance:
- Voltage: 25.6V nominal; Capacity: 230Ah; Energy: 5888Wh.
- Discharge: 200A continuous, 400A peak (5s), 800A peak (1s); Charge: 200A max.
- Efficiency: 99%; Self-Discharge: <3% per month.

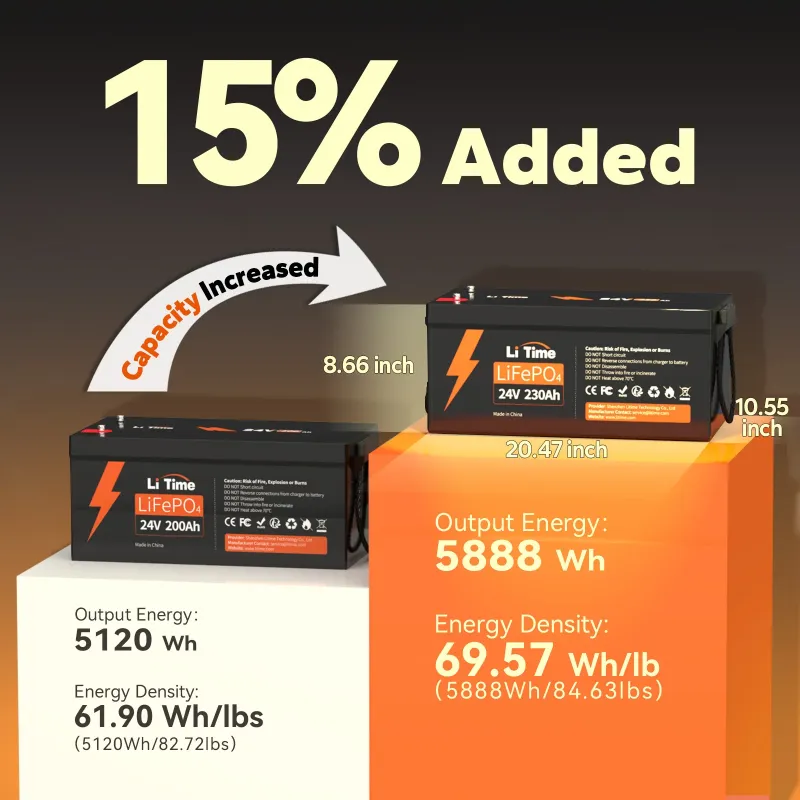

- Dimensions: 20.47 x 10.59 x 8.66 in (520 x 269 x 220 mm); Weight: 86.6 lbs (39.3 kg).
- Enclosure: IP65 ABS; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for marine adventures, RV excursions, or solar storage, the LiTime 24V 230Ah delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
