LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection
Model #: 12V 230Ah Plus SKU: 12V230-200-LTCP-4-A150
Product Details
Product Description for LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery with Low-Temp Protection
LiTime 12V 230Ah Plus LiFePO4 Deep Cycle Lithium Battery – High-Capacity Low-Temp Protected Power Solution for Marine, Solar, RV, and Off-Grid Systems

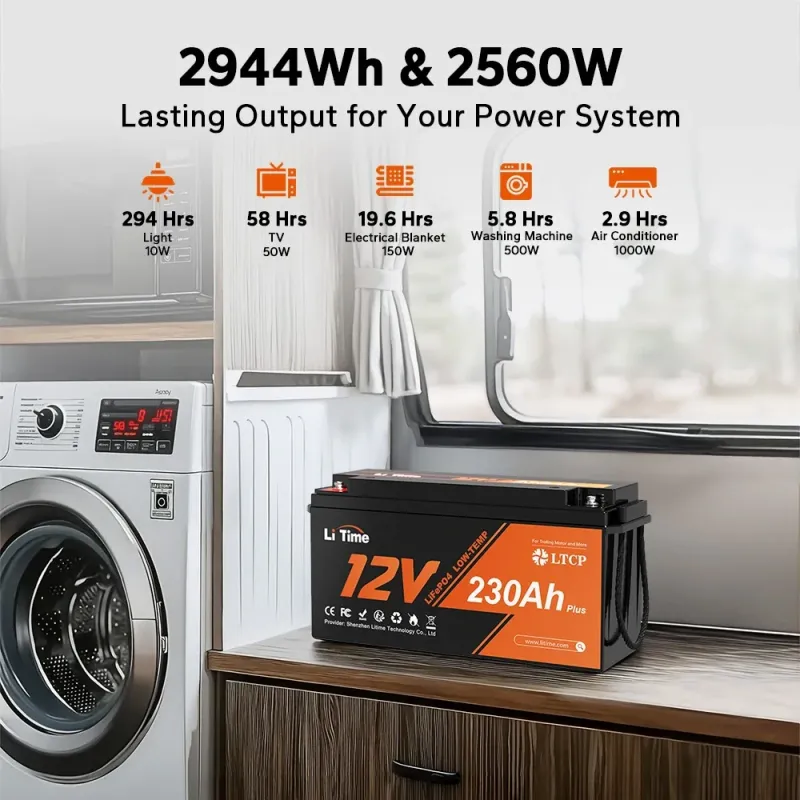

Elevate your energy storage with the LiTime 12V 230Ah Plus LiFePO4 battery (Model: 12V 230Ah Plus), a lightweight, high-performance deep cycle battery designed for demanding marine, solar, RV, and renewable energy applications. Delivering 2944Wh of energy with a 200A continuous discharge (600A peak for 5s, 1000A for 1s), this battery provides 100% usable capacity, up to 10x longer life than lead-acid, and fast charging with partial state-of-charge tolerance. Its advanced 200A BMS with 20+ protections and low-temp cut-off (charge off below 32°F/0°C, discharge off below -4°F/-20°C, recovery at ≥41°F/5°C) ensures safe, efficient performance in rugged environments with an IP65-rated enclosure. Key Features:
- Low-Temp Protection: Automatic safeguards prevent charging below 32°F and discharging below -4°F, with auto-recovery at 41°F for reliable cold-weather operation.
- High-Capacity Performance: 200A continuous and 1000A peak discharge, ideal for trolling motors, solar arrays, or high-drain devices without derating.

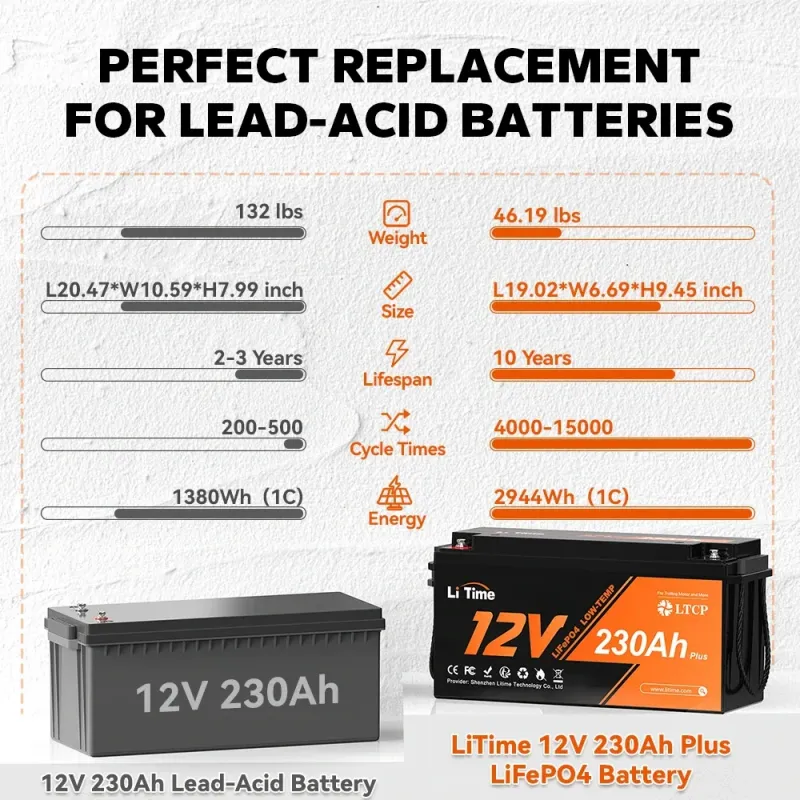

- Exceptional Cycle Life: Up to 4,000 cycles at 100% DoD (6,000 at 80% DoD, 15,000 at 60% DoD), backed by a 5-year limited warranty for superior longevity and cost savings.
- Lightweight & Efficient: Only 45.22 lbs with 99% round-trip efficiency and <3% monthly self-discharge for easy handling and minimal maintenance.
- Wide Temperature Resilience: Discharge from -4°F to 140°F (-20°C to 60°C), charge from 32°F to 122°F (0°C to 50°C), and store from 14°F to 122°F (-10°C to 50°C) for reliable all-season use.

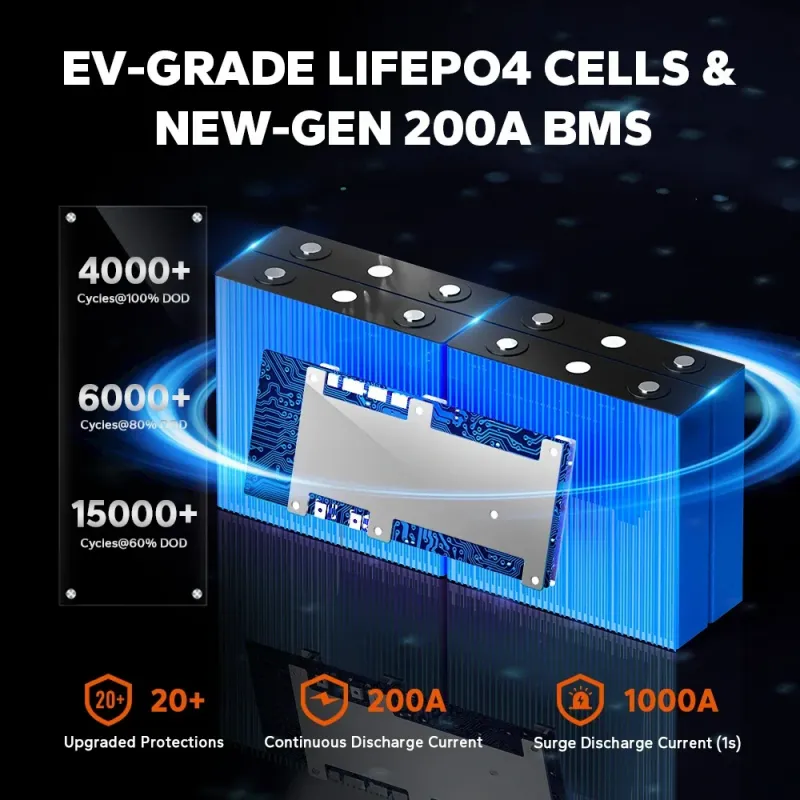

- Safe & Certified: UL-1973, FCC, CE, RoHS, UN38.3, and ABYC E-13 compliant; non-toxic LiFePO4 chemistry with EV-grade cells for eco-friendly, indoor-safe operation.
- Rugged IP65 Enclosure: Dust-tight and water-resistant ABS case with M8 bolt terminals for secure, vibration-resistant connections.
- Scalable & Compatible: Up to 4S4P configuration (47.10kWh max); pairs seamlessly with Victron, Renogy, and other inverters for expanded 12V systems.
Specifications at a Glance:
- Voltage: 12.8V; Capacity: 230Ah; Energy: 2944Wh.
- Discharge: 200A continuous, 600A peak (5s), 1000A peak (1s); Charge: 200A max.
- Efficiency: 99%; Self-Discharge: <3% per month.
- Dimensions: 19 x 6.7 x 9.5 in (482.6 x 170.18 x 241.3 mm); Weight: 45.22 lbs (20.52 kg).
- Enclosure: IP65 ABS; Terminals: M8 Bolts.
Pair this battery with our premium chargers and inverters for a complete, sustainable power ecosystem. Whether for marine adventures, RV excursions, or solar storage, the LiTime 12V 230Ah Plus delivers unmatched efficiency, safety, and peace of mind. Order now and experience LiTime’s innovative lithium excellence—stocked and ready to ship from lithiumion-batteries.com!
(For full technical details, download the datasheet or manual linked on the product page.)
